ID # 41395897

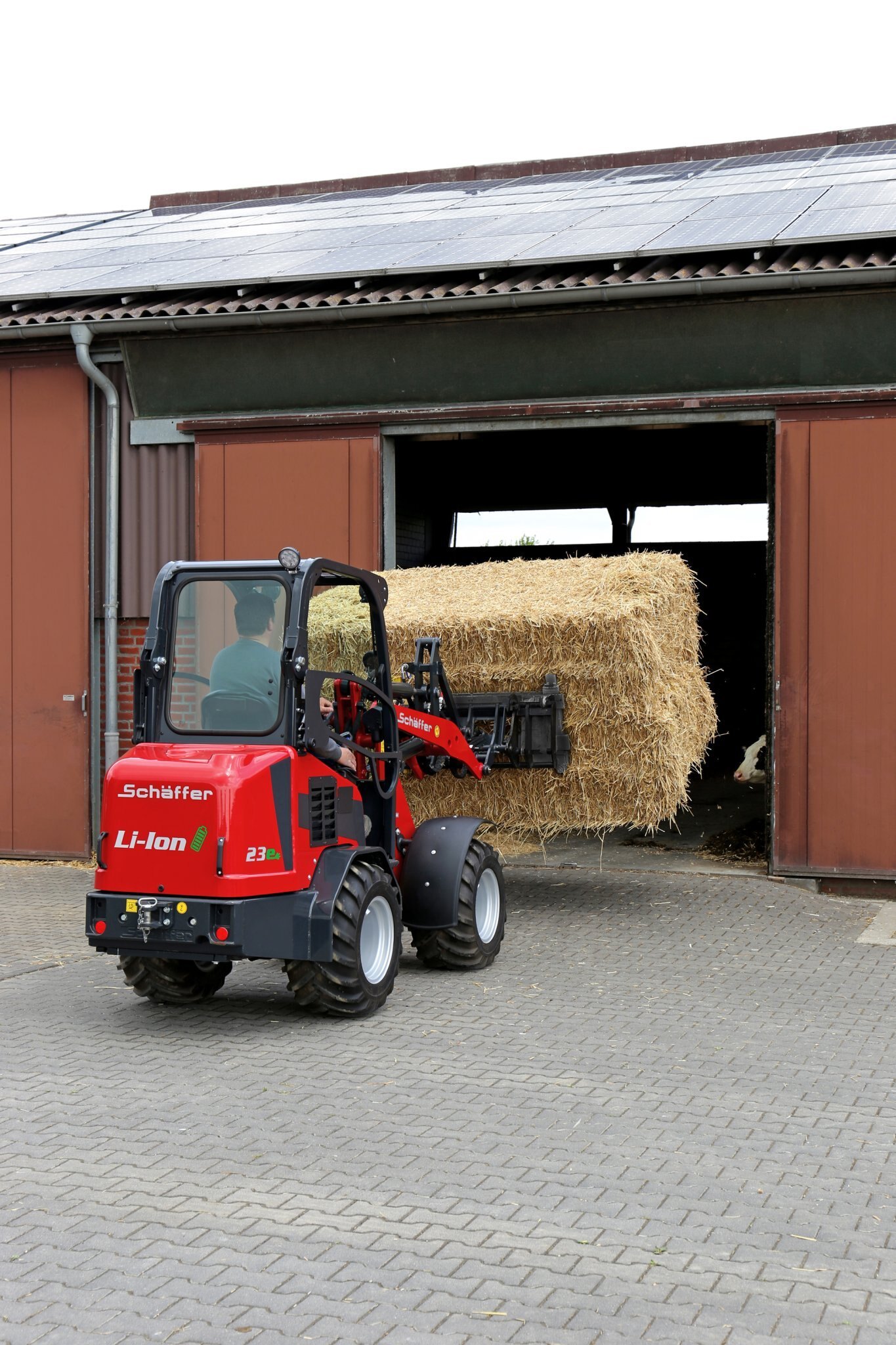

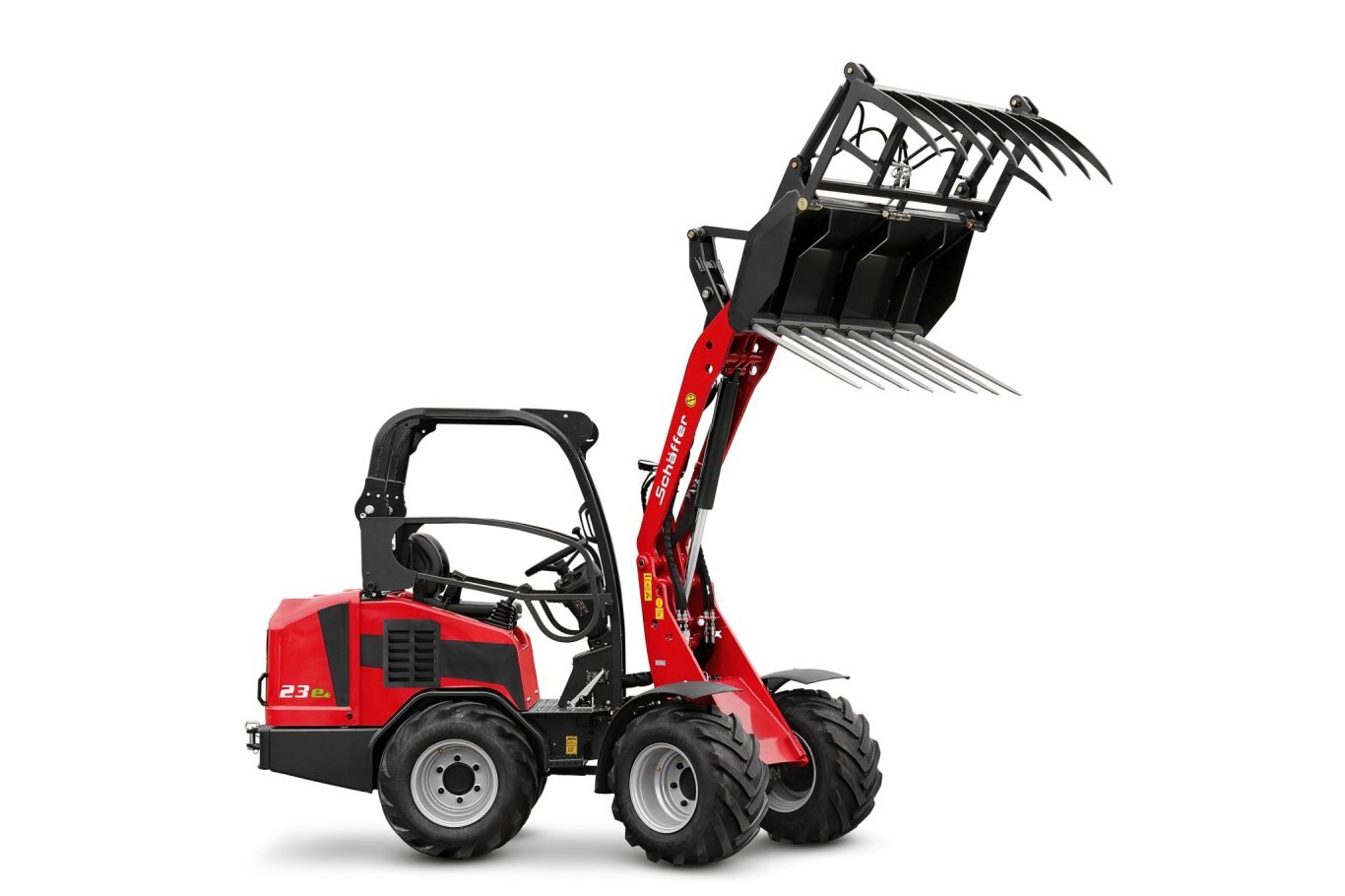

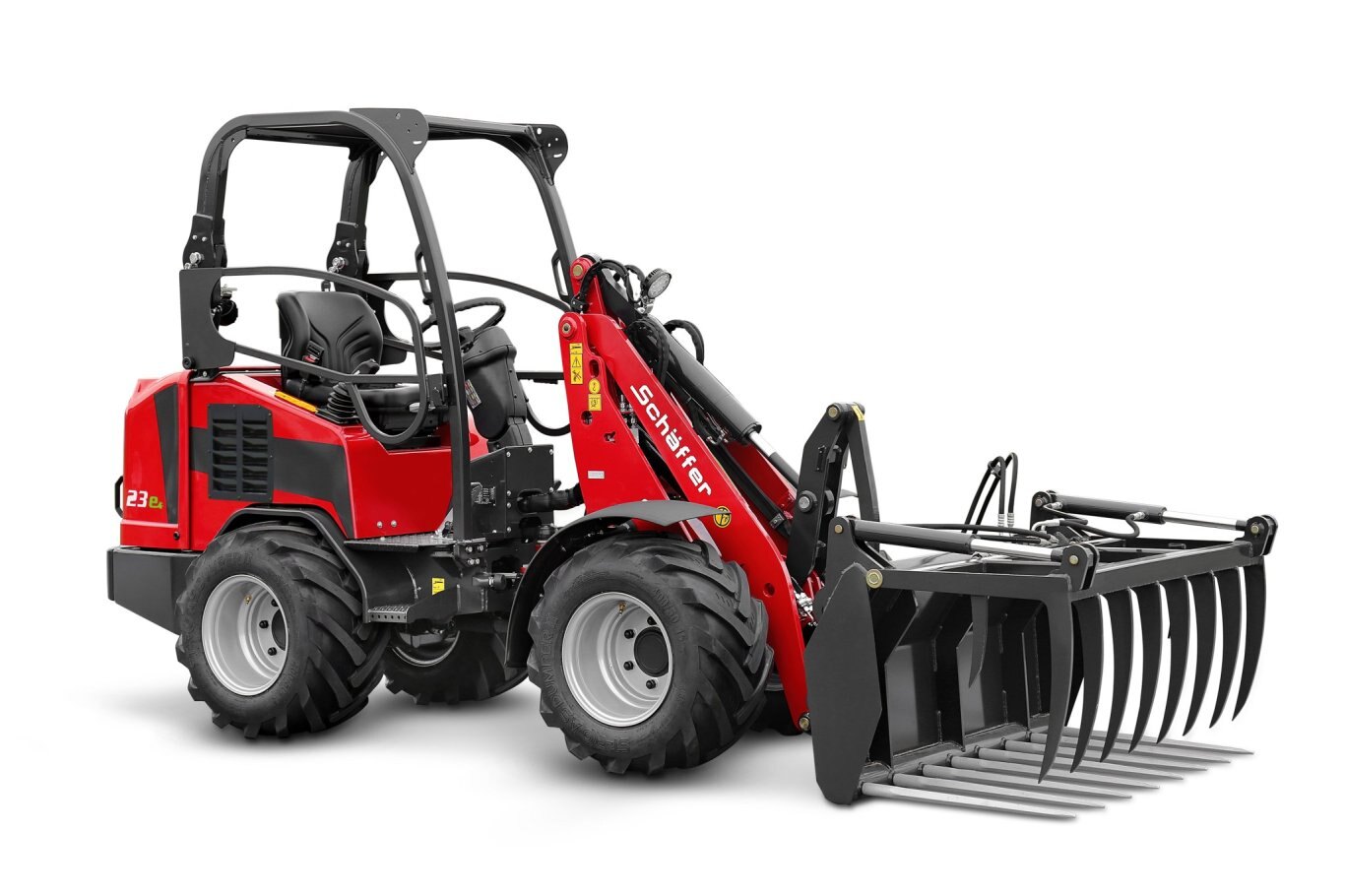

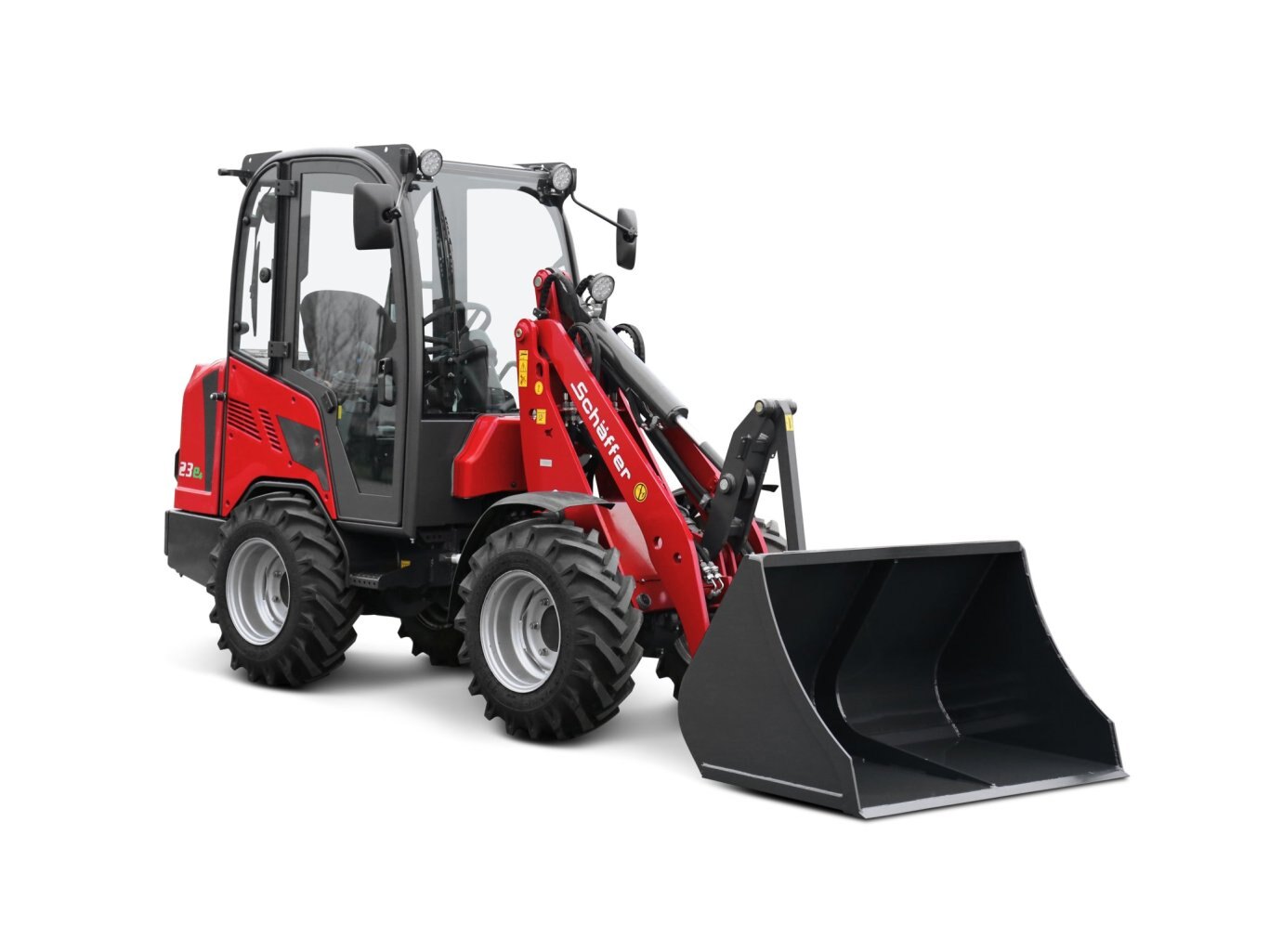

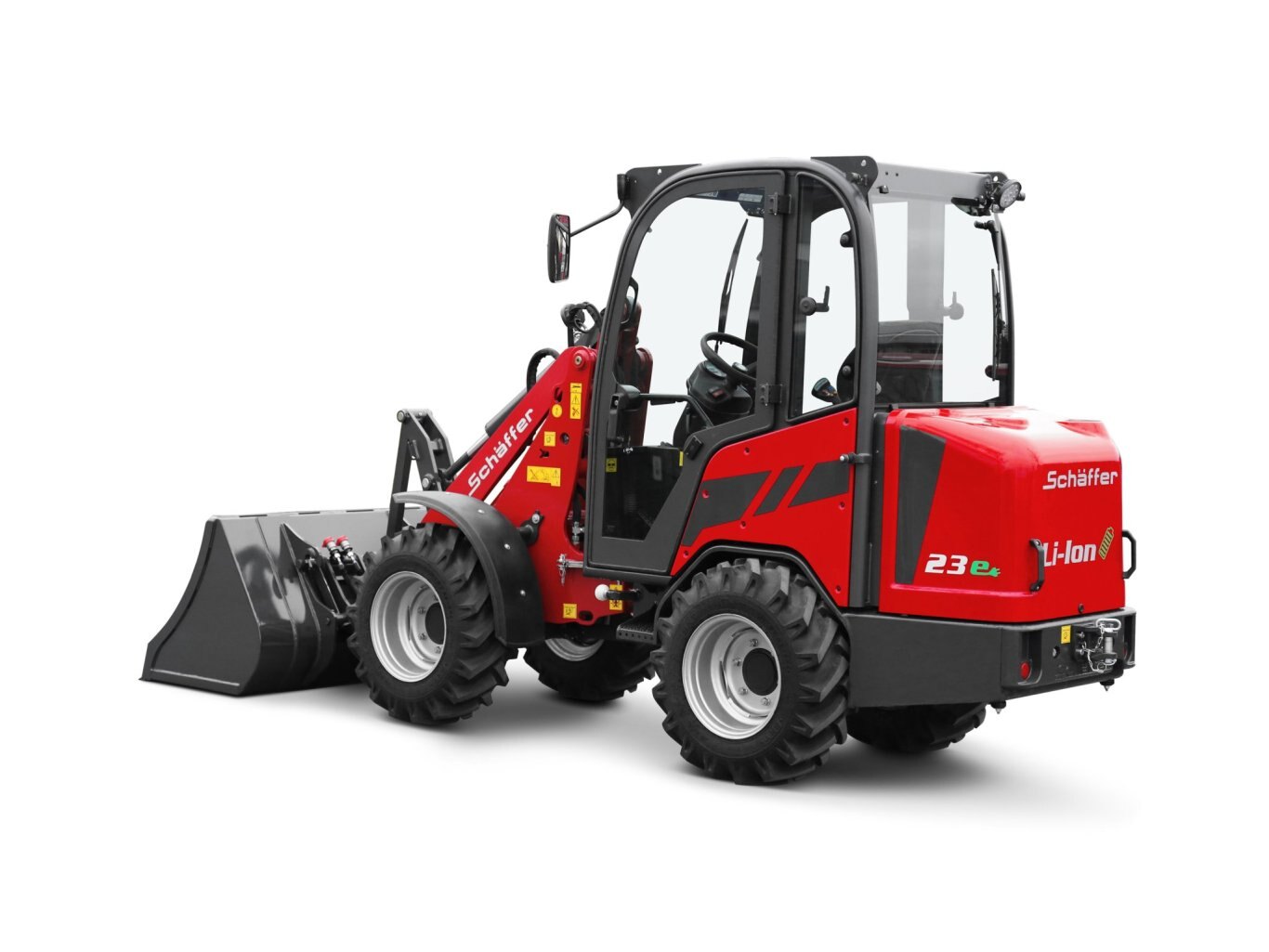

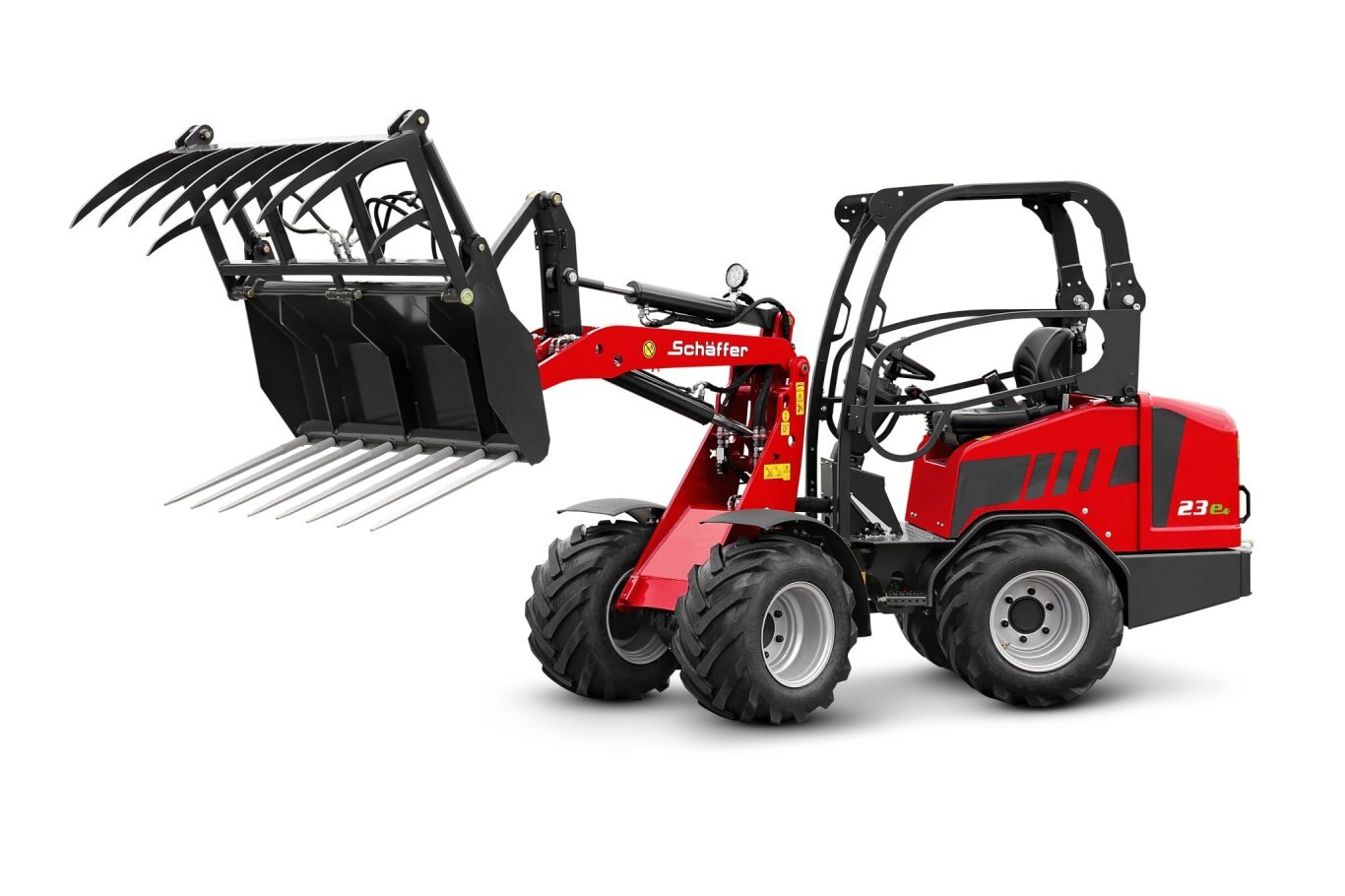

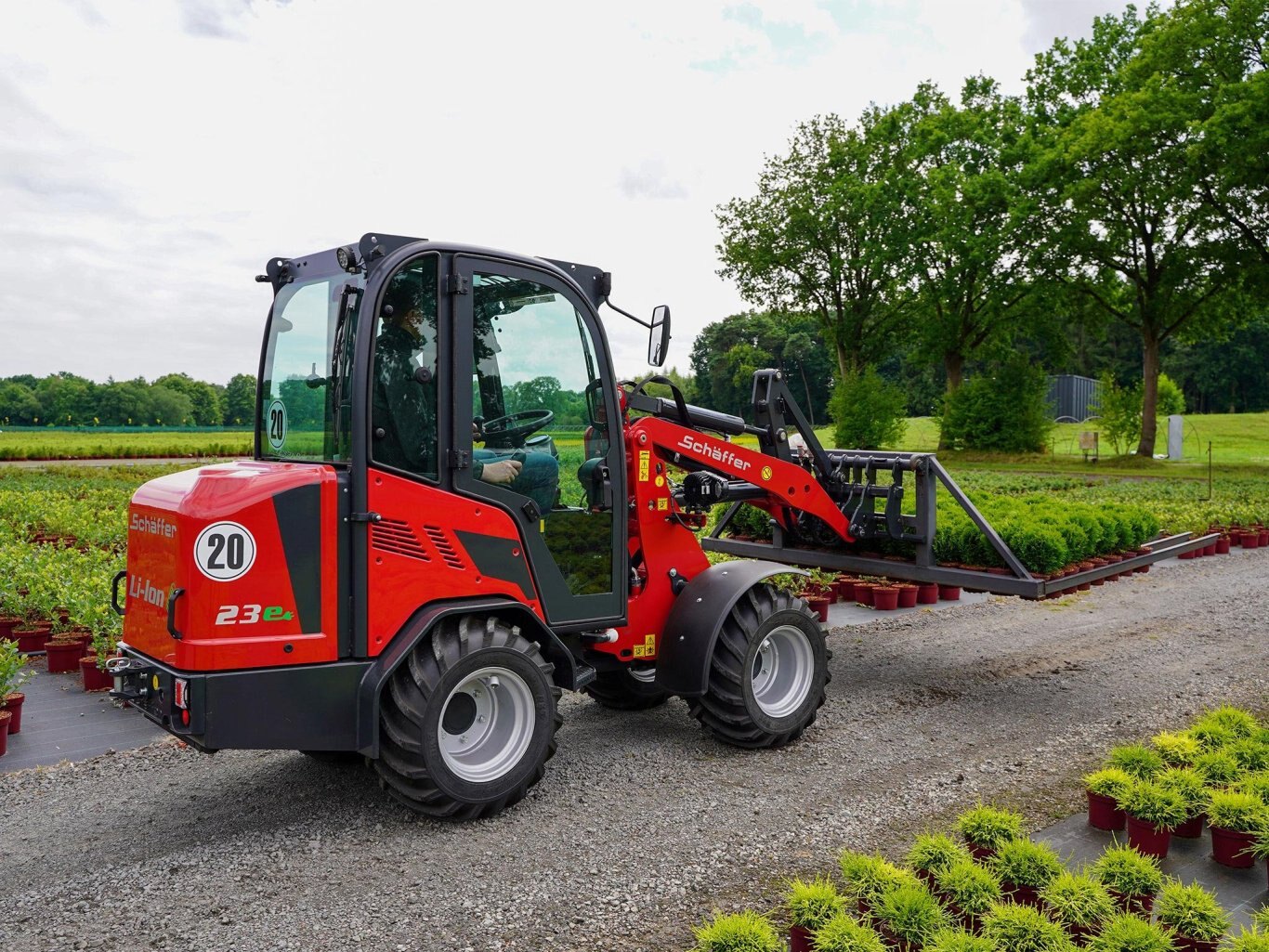

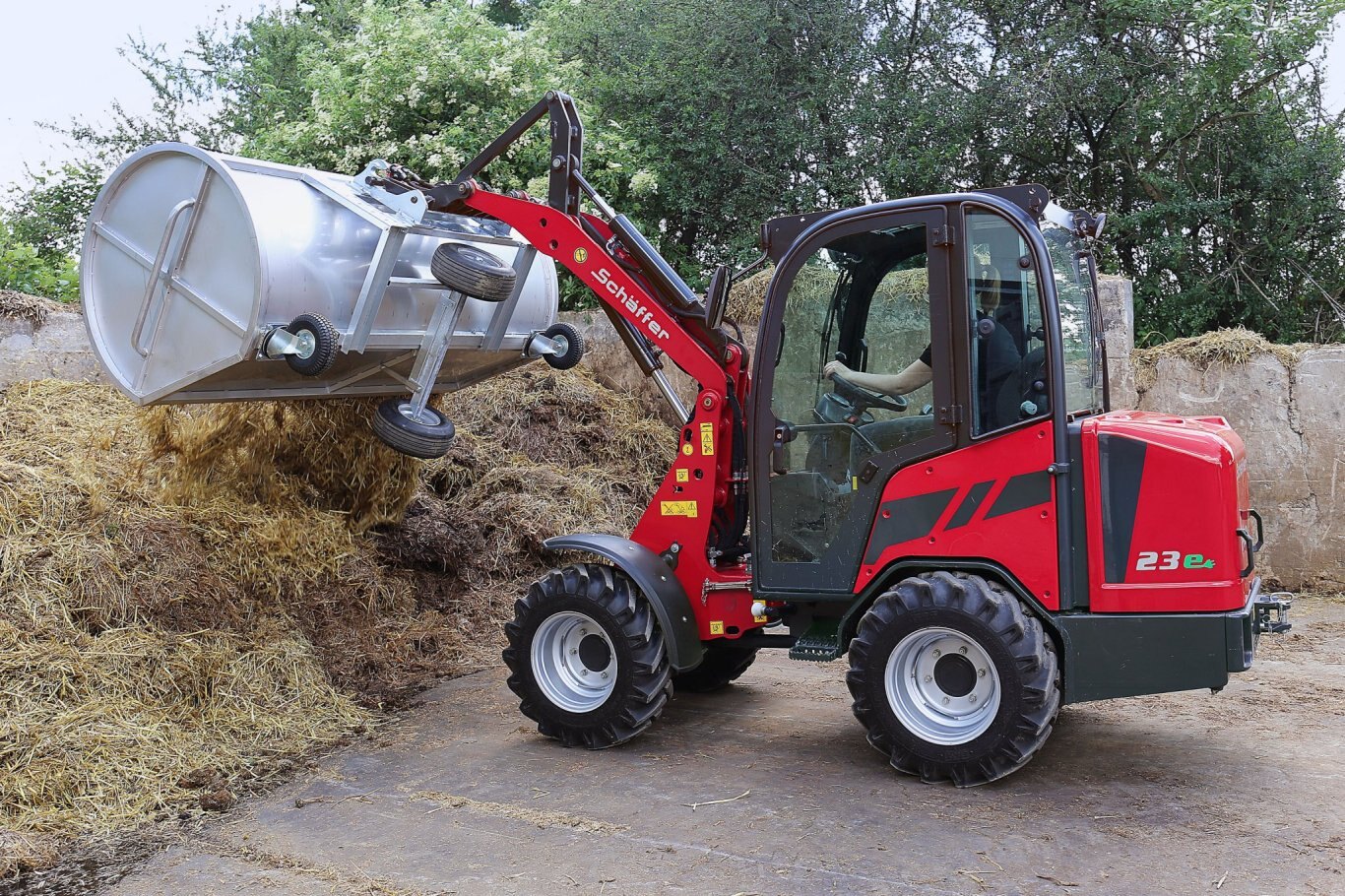

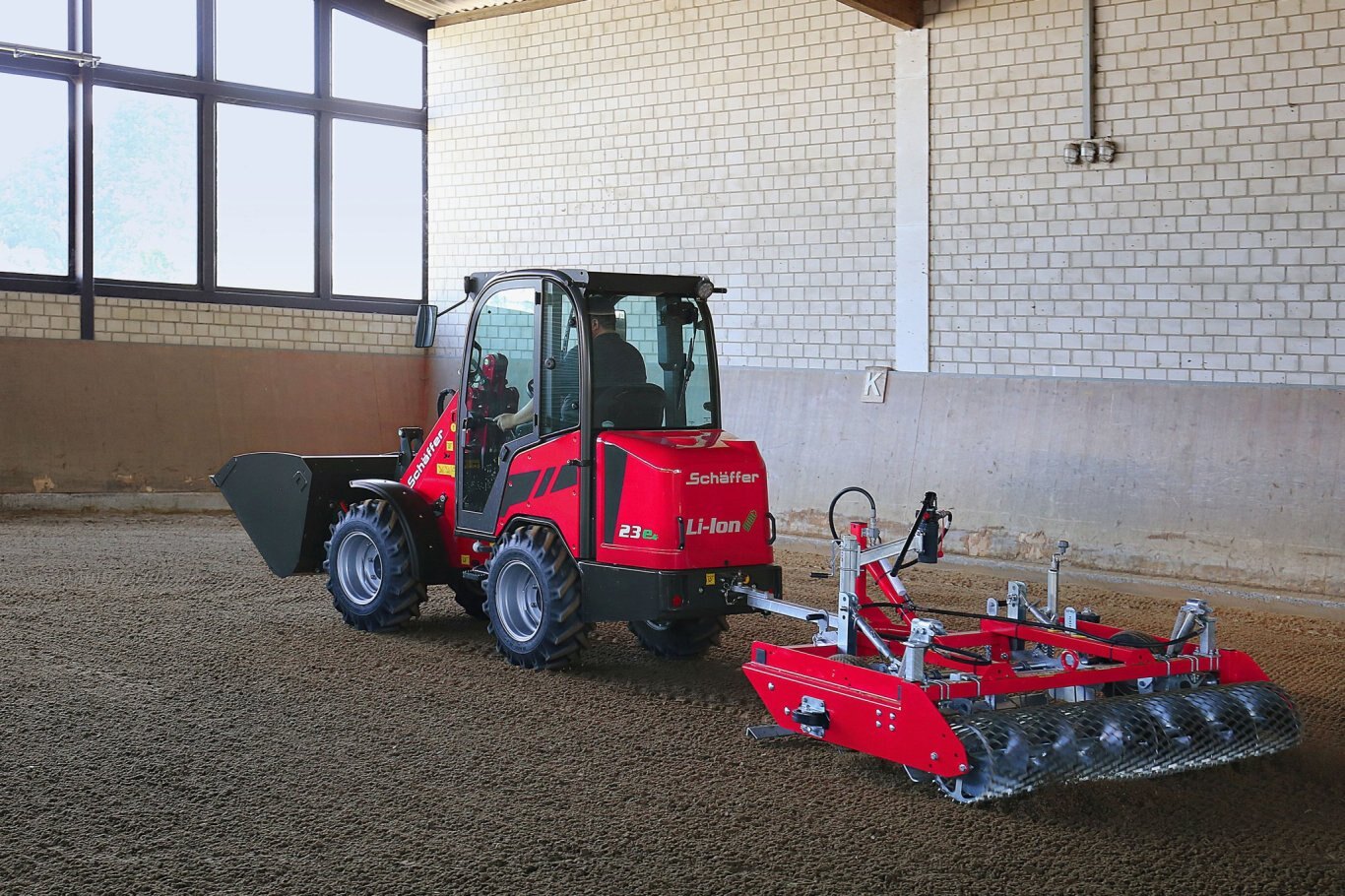

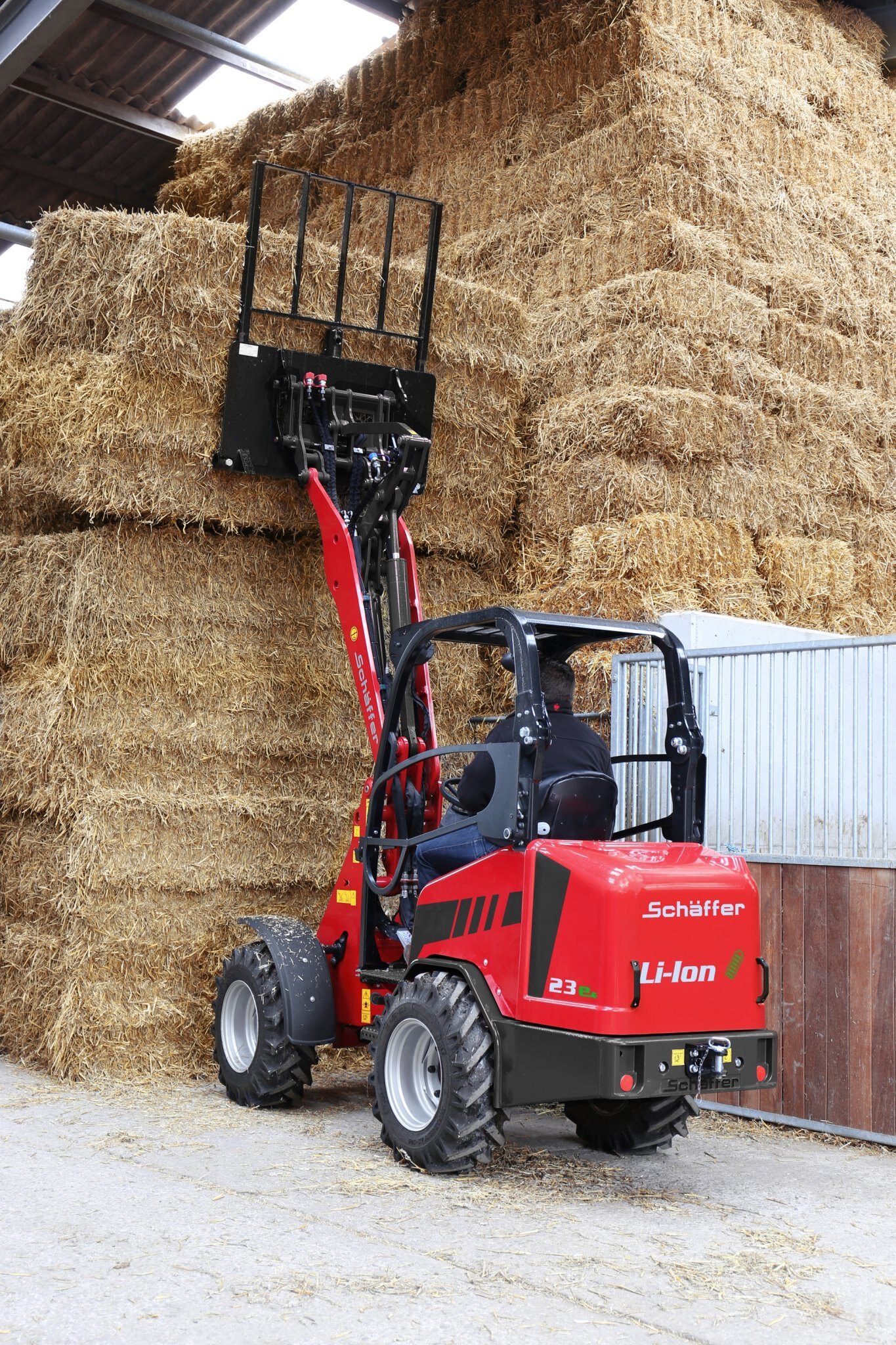

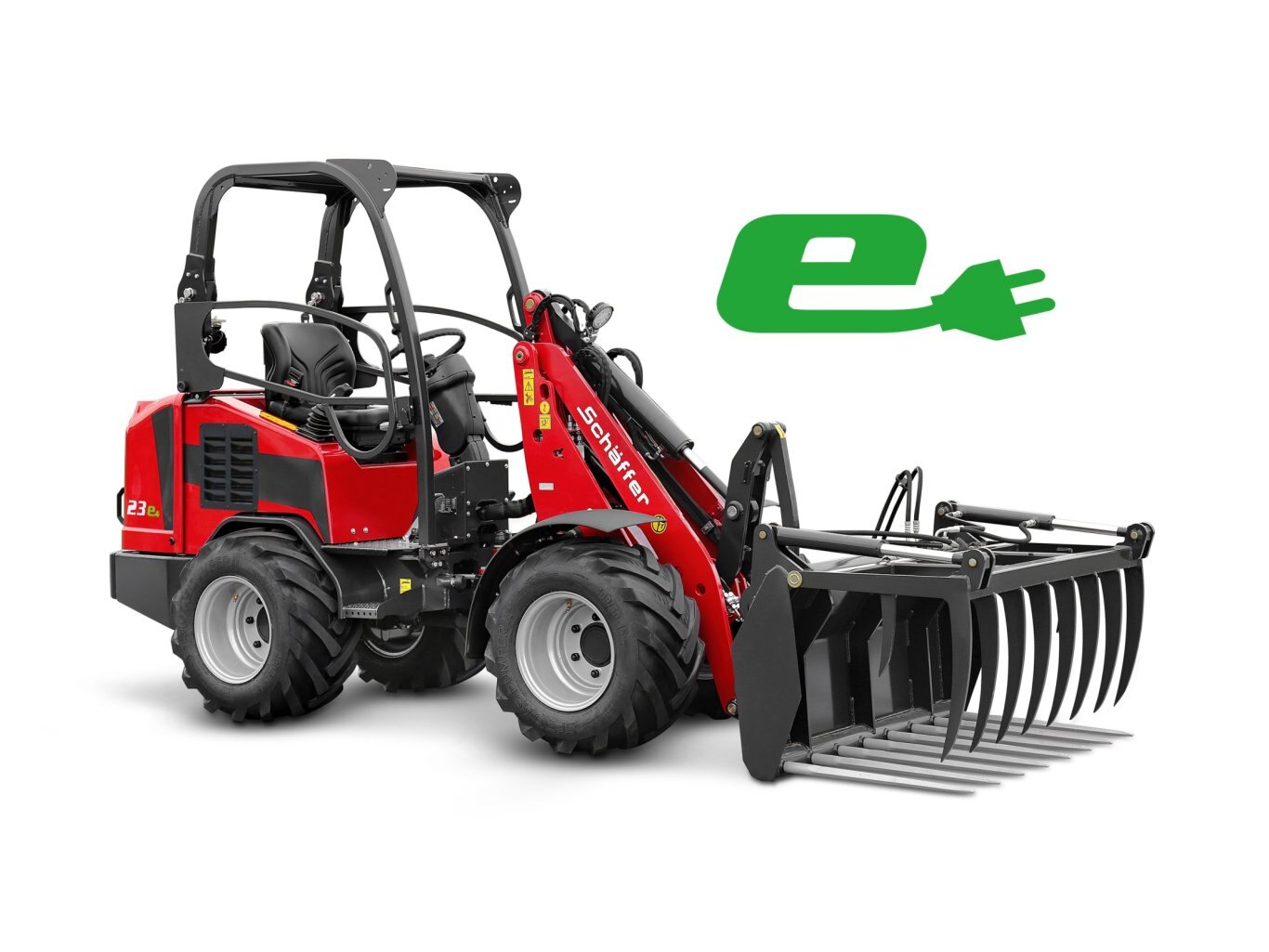

Schaffer Electric loader 23e

  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
  • Schaffer Electric loader 23e
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Specifications
Model
23e
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Schaffer
standard equipment
  • Electric motor drive: 21 kW; electric motor working hydraulics: 9,7 kW
  • Electric four wheel drive with cardan shaft
  • Li-Ion battery pack, 240 V / 15.65 kWh (31.3 kWh on option)
  • On-board charger with Type 2 connector enables charging at a 230V power outlet or a wallbox
  • Charging cable type 2 / CEE 16 A, 4 m
  • Battery management system
  • Energy recuperation
  • Hill-Hold funktion: ?start up assistant? to make hill starts easier
  • Tyres 10.0/75-15.3 AS, offset +40
  • 20 km/h
  • Eco mode to extend the operating time
  • Genuine Schäffer axle, 6 hole
  • Water cooling of electric motors
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • LED working headlights: 2 x front, 1 x rear
  • Acoustic reverse warning signal (can be switched off)
  • Parallel lift
  • Electronically operated additional controller
  • Working hydraulics: 42 l/min
  • Adjustable steering column
  • Hour meter and charging status display
  • Rear weight end plate
  • Main battery switch
  • Driver-on-board switch
  • Quick-change frame SWH with hydraulic tool lock



technical data
  • Engine
    • Output: Electrical drive: 21 kW
    • Working hydraulics: 9,7 kW
  • Tyres
    • Standard tyres: 10.0/75-15.3 AS, ET+40
    • Option I: 27x10.5-15 SKD, ET+40
    • Option II: 31x15.5-15 AS, ET-37
  • Electric system
    • Operating voltage: 12 V
  • Dimensions
    • (A) Wheelbase: 1,550 mm
    • (B) Chassis length: 3,230 mm
    • (C) Overall length with standard bucket: 3,880 mm
    • (D) Digging depth: 90 mm
    • (G) Loading height with pallet fork / option: 2,680 / 2,960 mm
    • (H) Max. dumping height / option: 2,045 / 2,300 mm
    • (I) Front end height / option: 1,690 / 1,790 mm
    • (J) Dumping width: 470 mm
    • (K) Seat height: 1,160 mm
    • (L) Protective roof height: 2,190 mm
    • (L) Cab height: 2,140 mm
    • (M) Max, bucket pivot point / option [mm]: 2,880 / 3,110 mm
    • (N) Overall width / option: 1,020 (1,200 turned) / 1,030 - 1,570 mm
    • (O) Inner turning radius: 1,200 mm
    • (P) Outer turning radius: 2,220 mm
    • (Q) Outer radius with standard bucket: 2,865 mm
  • Drive
    • Traction hydraulics: 4-wheel-drive, fully electric
    • Axles: Original Schäffer axles, 6 wheel nut rim
    • Speed: 0 - 20 kph with Eco mode
  • Brakes and steering
    • Service braking system: Combined brake hydrostatic and multi-disc brake
    • Parking brake: Multi-disc brake running in oil bath
    • Steering: Fully hydraulic articulated/swivel steering
  • Tank capacity
    • Hydraulic oil: 15 l
  • Working hydraulics
    • Delivery rate: 42 l/min
    • Operat. pressure: 180 bar
  • Weights
    • Operating weight protective roof incl. Original tyres, driver and standard bucket: 2,240 kg
    • Operating weight cabin incl. Original tyres, driver and standard bucket: 2,305 kg
    • Lifting capacity: 1,700 kg
    • Tipping load, straight, pallet fork acc. to ISO 8313: 1,048 - 1,321 kg
    • Tipping load, straight, bucket acc. to ISO 8313: 1,250 - 1,578 kg
  • Sounds and vibration
    • Sound pressure level LpA: 64 db(A)
    • Sound power level guaranteed LwA: 99 db(A)
    • Sound power level equivalent LwA: 90 db(A)
    • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
    • Total body vibration acc. to ISO 8041: <0,5 m/s²

Schaffer Electric loader 23eDimensions



tyres loader
Dimension Diameter (mm) / Width (mm) Rim offset Loader width (mm) Tread Tread options
10.0/75-15.3 770 / 260 40 1,020 (1,200) AS MPT
10.0/75-15.3 770 / 260 -5 1,100 AS MPT
31x15.5-15 770 / 400 -37 1,300 AS SKD, Allground
27x10.50-15 690 / 270 40 1,030 SKD
31x13.5-15 800 / 350 -35 1,250 Multi Trac
With wide axle
10.0/75-15.3 770 / 260 40 1,280 AS MPT
10.0/75-15.3 770 / 260 -5 1,370 AS MPT
31x15.5-15 770 / 400 45 1,390 AS SKD, Allground
31x15.5-15 770 / 400 0 1,480 AS SKD, Allground
31x15.5-15 770 / 400 -45 1,570 AS SKD, Allground
31x13.5-15 800 / 350 -35 1,520 (1,380) Multi Trac
literature

Name

Link
Electric loader 23e Download
