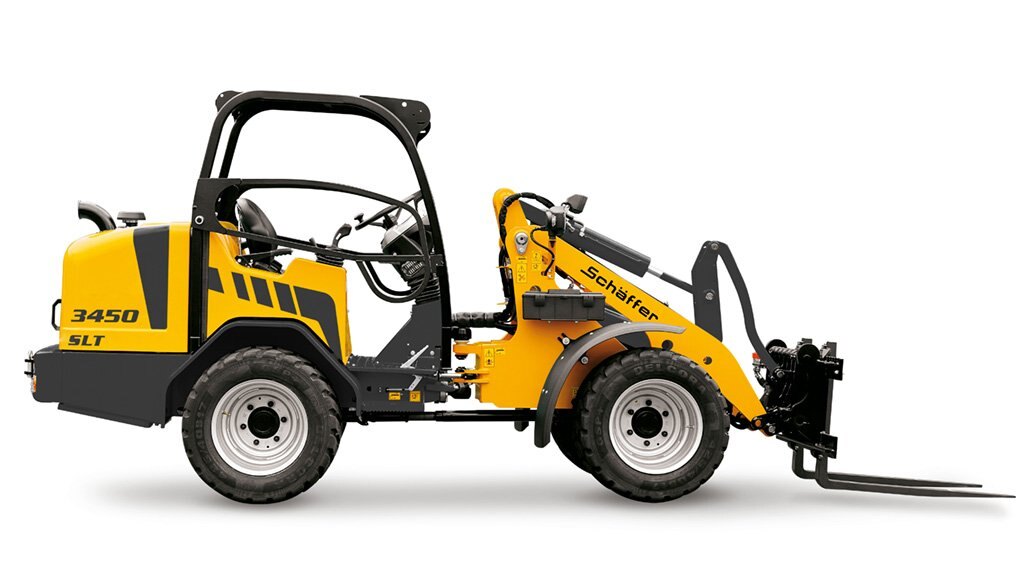

Schaffer 3450 SLT

  • Schaffer 3450 SLT
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Wheel loaders

Compact dimensions, perfect manoeuvrability and convincing lifting and traction forces – that is what a Schäffer wheel loader stands for. The machine is very simple and intuitive. The view of the attachments is excellent. The comfortable seating position guarantees relaxed and productive work at all times for the driver – maximum driving fun included.
  Standard equipment
  • Special low construction design
  • Kubota diesel engine, 4 cylinders, water-cooled, 37 kW (50 HP)
  • Low version front carriage for best lifting force
  • Hydrostatic four wheel drive with automotive control
  • Tyres 11.5/80-15.3 MPT
  • HTF (High Traction Force)
  • Hydraulic quick gear 20 km/h switchable under load
  • Genuine Schäffer axle
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front
  • Parallel lift
  • Mechanically operated additional controller
  • Stronger gear pump 60 l/min
  • Adjustable steering column
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Case weight
  • Rear weight end plate
  • Tool Box
  • Quick-change frame SWH with hydraulic tool lock

  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
Specifications
Model
3450 SLT
Category Name
Equipment
Year
2018
Sale Type
New
Manufacturer
Schaffer
Diesel Engine
Kubota, 4 cylinders water-cooled
Output
37 kW (50 PS)
Width
1140 mm - 1680 mm
Lifting Capacity
2200 kg
Height Protection Roof
2050 mm
Length With Standard Bucket
4400 mm
Lifting Height (tool Pivot)
2600 mm
Working Weight Protection Roof
3100 kg
Turning Radius Inside
1100 mm
Tipping Height (bottom Edge Of Bucket)
1800 mm
Tipping Load Straight, Pallet Fork*
2040 kg - 2120 kg
