Landini Trekker3 Compact Trekker 4-105 F-M

Specifications

Model	Trekker 4-105 F-M	Category Name	Tractors	Year	2025
Sale Type	New	Manufacturer	Landini	Type	Speed Four
Engine Type	TCD 2.9 L4 HP	Fuel Tank L	80	Max Torque Nm	400
Braking System	Hydrostatic wet multidisc graphite brakes	Cooling System	Liquid	Air Filter System	Power Core
Air Intake System	Turbo aftercooled	Displacement Cm 3	2900	Cylinders / Valves	4 TA / 8
Emissions Category	Stage V	Engine Manufacturer	Deutz-AG	Maintenance Interval	1000 hours
Fuel Injection System	Electronically controlled high pressure common rail	Max Power (ISO) Hp/kW	95 / 70	After-treatment System	DOC+DPF+SCR+AdBlu
Rated Engine Speed Rpm	2200	Max Operating Pressure Bar	180	Max Power Engine Speed Rpm	1900
Max Torque Engine Speed Rpm	1600	Price	Contact for price CAD

Description

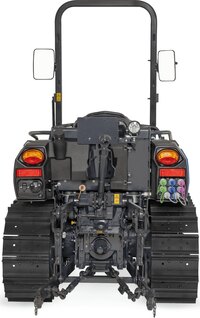

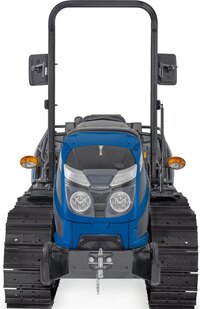

Trekker3 Compact, The most compact crawler tractor in its class

Trekker3 Compact, a tracked tractor specially designed for use in narrow-row orchards and vineyards. Compact, nimble and efficient, the Trekker3 Compact will tackle tough terrains and steep inclines with ease, reaching where conventional tractors cannot reach. Excellent manoeuvrability, agility and safety: with a minimum width of only 1150 mm, the Trekker3 Compact is the most compact crawler tractor in its class; and thanks to a ground clearance of just 230 mm, it delivers high levels of efficiency even in the most challenging conditions.

RESOURCES

Name	Link
Brochure	Download

KEY FEATURES

Kohler engine

The new super compact Stage V KOHLER KDI 2504 2.5-litre, 75-hp, four-cylinder turbo aftercooled engine with common rail injection system is designed for maximum efficiency and long-lasting performance.

Speed Four transmission

Entirely designed and manufactured at Landini’s facility, the Speed Four transmission with Hi-Lo stands for strength, efficiency and reliability. It features four synchronised gears and two mechanical ranges providing 16F/8R speeds.

Driving position

The platform is suspended on Hydro-Silent Blocks to isolate the driving position from engine heat and to reduce vibrations generated by rough terrain and mechanical parts, ensuring a level of comfort never before achieved.

Open-centre hydraulic circuit

The hydraulic system is open-centre with a double pump, with 30 litres/minute for steering and 50 for the other services. Two rear spool valves are standard on this range.
