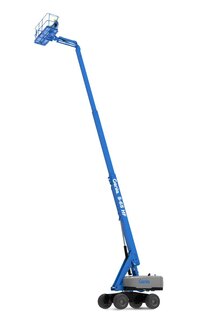

Genie S-60 HF and S-65 HF

Listing image Listing image Listing image Listing image
Specifications

Model S-60 HF and S-65 HF Category Name Aerial Lifts Year 2024
Sale Type New Manufacturer Genie Odometer km
Platform Capacity 600 lb | 272 kg Below Ground Reach S-60 HF: 4 ft 5 in / S-65 HF: 7 ft 5 in | S-60 HF: 1.34 m / S-65 HF: 2.27 m Max Working Height S-60 HF: 66 ft 2 in / S-65 HF: 71 ft 2 in | S-60 HF: 20.33 m / S-65 HF: 21.86 m
Max Horizontal Reach S-60 HF: 46 ft 7 in / S-65 HF: 51 ft 2 in | S-60 HF: 14.21 m / S-65 HF: 15.60 m Machine Width And Length S-60 HF: 8 ft 5 in, 28 ft 7 in / S-65 HF: 8 ft 5 in, 32 ft | S-60 HF: 2.55 m, 8.71 m / S-65 HF: 2.55 m, 9.76 m Price Contact for price CAD
Description



The Genie® S®-60 HF and S-65 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie S-60 and S-65 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires

Overview

  • This new generation of Genie HF booms retain the productivity features that enhance customers’ ability to get work done quickly, including:

  • A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight
    • 22,224 lb (10,081 kg) on the Genie S-60 HF model
    • 24,454 lb (11,092 kg) on the Genie S-65 HF model
  • 4WD and positive traction drive maintains equal power to all drive wheels
  • 45% gradeability (stowed) for driving on slopes
  • 160˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning


DOWNLOADS
Name Link
S-60 HF & S-65 HF - Product Specifications - 2022 - EN-US Download
RANGE OF MOTION
