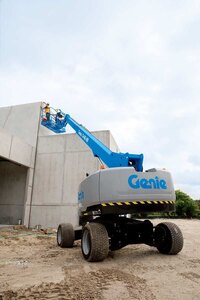

Genie S-40 HF and S-45 HF

Listing image Listing image Listing image Listing image
Specifications

Model S-40 HF and S-45 HF Category Name Aerial Lifts Year 2024
Sale Type New Manufacturer Genie Odometer km
Platform Capacity 600 lb | 272 kg Below Ground Reach S-40 HF: 1 ft / S-45 HF: 4 ft 2 in | S-40 HF: 0.30 m / S-45 HF: 1.27 m Max Working Height S-40 HF: 45 ft 6 in / S-45 HF: 50 ft 6 in | S-40 HF: 13.87 m / S-45 HF: 15.56 m
Max Horizontal Reach S-40 HF: 28 ft 11 in / S-45 HF: 34 ft | S-40 HF: 8.81 m / S-45 HF: 10.36 m Machine Width And Length S-40 HF: 8 ft 5 in, 26 ft 4 in / S-45 HF: 8 ft 5 in, 31 ft 1 in | S-40 HF: 2.56 m, 8.03 m / S-45 HF: 2.56 m, 9.47 m Price Contact for price CAD
Description



The Genie® S®-40 HF and S-45 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie S-40 and S-45 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.

Overview

  • This new generation of Genie HF booms retain the productivity features that enhance customers’ ability to get work done quickly, including:

  • A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight
    • 13,544 lb (6,143 kg) on the Genie S-40 HF model
    • 15,720 lb (7,130 kg) on the Genie S-45 HF model
  • 4WD and positive traction drive maintains equal power to all drive wheels
  • 45% gradeability (stowed) for driving on slopes1
  • 60˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning


DOWNLOADS
Name Link
S-40 HF & S-45 HF - Product Specifications - 2022 - EN-US Download
RANGE OF MOTION
