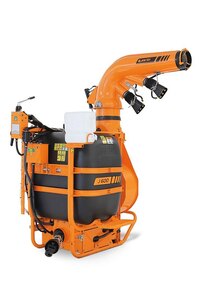

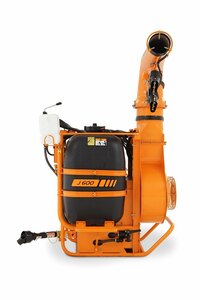

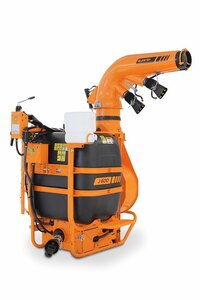

Jacto - J600 USA

Specifications

Model	J600 USA	Category Name	Agriculture	Year	2023
Sale Type	New	Manufacturer	Jacto	Price	Contact for price CAD

Description

Similar in operation to our smaller AJ401 and J400 models, the J600 series has 160 gallon capacity, a higher output fan with disconnect and uses a Jacto two stage, 34 gpm, centrifugal pump to deliver the spray solution through a larger outlet duct. The J600 will achieve up to a 110 foot spray swath, depending on the crop and wind conditions.

There are two different J600 models... the J600CHT and J600EL.

The J600CHT has hydraulic duct controls standard and uses the tractor remotes to energize the movement. The J600CHT also has manual on/off spray controls. You must have two open sets of remotes available.

The J600EL is a self contained unit with its own hydraulic and electric on/off controls and does not need any tractor remotes... otherwise both models are the same in features and performanace.

Like the the J400 series, The J600 series uses a single lever flow control that makes calibration simple and easy with our customizable calibration charts available under the After Sales support tab.

Popular applications are a wide variety of vegetables, especially pumpkins and sweet corn, both highbush and low wild blueberries, Christmas trees, container and tree nurseries, pasture and forage field management and for spraying odor control agents in landfills.

RESOURCES

Brochure

Download

J600 CHT - Operators Manual

Download

J600 Electric - Operators Manual

Download

Illustrated Parts List

Download

FEATURES

• up to 110 foot spray swath, depending on crop and wind conditions
• 160 gallon poly tank
• Dual stage 34 gpm centrifugal pump,
• Hydraulic duct controls standard
• Chemical container rinse system
• 3 gallon Hand wash/eye splash system
• Mechanical and bypass agitation
• Suction filter with shutoff and washable 40 mesh element
• J600CHT uses tractor hydraulics for duct control and manual spray control
• J600 Electronic has self contained hydraulic system for duct control and electric spray control

• Empty weight: approximately 849 lbs.
• Recommended tractor – 60 horsepower and above
• Optional electric spray control for J600CHT - #ELCKIT2

• Optional duct extension kit...39 inch #1198856 available for either model
• Optional duct extension kit...78 inch #440727 available for either model

CANNON Duct

The Cannon outlet duct is easy to operate and can be adjusted horizontally up to 290 degrees and vertically by 34 degrees. Besides the main cannon duct, there are two smaller adjustable intermediate ducts on the lower side of the main duct and each of these ducts has three nozzles for even better close up coverage

ELECTRIC CONTROL

For growers with cab tractors we offer an optional electric valve kit with in-cab controller for the J600CHT. Electric controls are standard with the J600EL.

EXTENSION

Optional duct extension kit. In crops such as highbush blueberries, certain varieties of sweet corn and taller nursery or nut trees, it may be desirable to add the 39 or 78 inch duct extension. These extensions mount to the top of the fan housing before the outlet duct to raise the whole assembly. This higher mount allows you to achieve proper spray angles across, down and through the crop.

SPRAYING

Crop

Cereals - Vegetables - Sugar Cane - Livestock

Mesh

40 mesh

Air_speed

168 mph

Area_size

Up to 500 ha / Over 500 ha

Pump_RPM_

4,100 rpm

Air_volume

5,500 cfm

PUMP_Model

Jacto Dual stage centrifugal pump

Fan_Rotation

3,030 rpm

TANK_Capacity

160 gallon

TANK_Material

Polyethylene

PUMP_Capacity_

34 gpm

Power_Consumption_

26.7 hp

SUCTION_FILTER__Model

FVS 102

CLEAN_WATER_TANK_Material

Polyethylene

CLEAN_Water_Tank_Capacity

3 gallon

WORKING_SPEED_Spraying_____

1 to 4 mph

DIMENSIONS / WEIGHT

Height

87 inches

Width_

50 inches

WEIGHT_Empty_machine_

849 lbs

Minimum_tractor_size___

55 HP and above
