Jacto - A 2000 Sapphire EL

Listing image Listing image Listing image Listing image
Specifications

Model A 2000 Sapphire EL Category Name Agriculture Year 2023
Sale Type New Manufacturer Jacto Price Contact for price CAD
Description

https://s3.amazonaws.com/1-jacto.com.br/files/product_image_1589229965857_2000.gifJacto's Arbus Sapphire 530 gallon trailed airblast sprayer offers incomparable performance in a wide variety of crops, such as highbush blueberries, apples, stone fruits, grapes, nuts, avocados, citrus and large nursery trees.

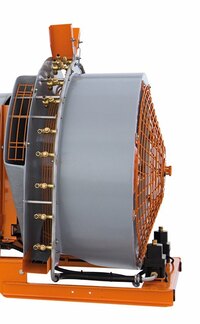

Jacto's 33" two port fan delivers almost 51,000 CFM of air volume at air speeds up to 78 MPH. Combining this high performance fan with Jacto's JP190 50 GPM ceramic cylinder high pressure piston pump gives you superior performance in spray deposition, to penetrate the densest canopies up to 25 feet plus.

With standard features that are options on most other sprayers, such as double flip over anti-drip nozzle holders with ceramic nozzles and electric on/off valves for spray control and in-cab controller, the Sapphire is easy on your pocketbook and the environment, while providing excellent coverage for eliminating diseases and pests.

A constant velocity wide angle PTO shaft is standard to allow for tighter turns without having to have a heavy turning hitch or consuming extra horsepower.

RESOURCES
Brochure                                 Download
Operators Manual                     Download
Illustrated Parts List                  Download



FEATURES

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_0_image_1524584896399_Fan_with_Electric_Valves.jpg 530 gallon fiberglass tank, trailer mounted

33 inch diameter fan-2 port fan low-mount

11L-15 10-ply tires

Fan disconnect for ease of filling, mixing and when using a hand gun

Jacto JP190 ceramic cylinder piston pump – 50 gpm @ up to 300 psi

18 Anti-Drip double flip-over nozzle holders and 36 ceramic nozzles

Electric spray control valves with in-cab controller are standard

Suction filter with shutoff and washable mesh elements

Wide angle CV PTO shaft standard

Adjustable axle height

Multi blade mechanical and hydraulic agitation

Chemical container and fresh-water rinse systems

Recommended tractor – 80 HP and above

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_1_image_1524584896399_Handgun_with_wand.jpgOptional Spray Handgun with Wand

You can add an optional handgun and spray hose for use with your A2000 Sapphire EL in manual mode. You will need the following parts to complete a handgun installation. Handgun with wand #002203F, adapter from handgun to 1/2" hose #006330 and quick connect fitting with o-ring from hose to machine #636407 + 440982. 1/2" hose sold separately.

A 2000 SAPPHIRE EL
Crop
Fruits
Mesh
24/40 Dual mesh
Width
60 to 73 inches, adjustable
Length
175 inches
Height_
80 inches in high axle position
FAN_Size
33 inches
Material
Fiberglass
Agitation
Multi blade mechanical and bypass agitation
Air_speed
78 mph
Area_size
Up to 500 ha / Over 500 ha
Air_volume
50,853 cfm
PTO_Speed_
540 rpm
PUMP_-_Model
Jacto JP-190 Piston Pump
Pump_capacity
50 gpm
TANK_Capacity
530 gallons
FILTER_-_Model
FVS 200
Axle_track_width_
55 to 61 inches
Ground_clearance_
8 or 15 inches, two position axle height
Net_weight_(Empty)_
1,543 lbs
Pump_Power_consumption
10.8 hp at 300 psi
Recommended_Tractor_Size
80 hp and above
Maximum_Power_Consumption
40 hp
Recommended_Working_Speed
1 to 4 mph
