Jacto - Columbia Cross

Listing image Listing image Listing image Listing image
Specifications

Model Columbia Cross Category Name Agriculture Year 2023
Sale Type New Manufacturer Jacto Price Contact for price CAD
Description

Robustness and versatility to

protection of your crops.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_0_image_1589825488328_diferencial_cross.gifOperation Savings

29 feet semi-hydraulic boom, allows you can cover more area in less time.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_1_image_1589825009791_suspensao_cross.gifStability

Trapezoidal suspension

With shock absorbers and springs in the frame of the boom, it reduces the impact of vibrations caused by the unevenness of the field, providing greater stability to the boom, better quality of application and excellent daily production.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_2_image_1589824787174_COLUMBIA_CROSS_18.jpgHigh Resistance and Practicality

528 gal tank, made of polyethylene, with a polished finish on the internal and external surfaces to facilitate cleaning. Resists impacts and corrosions.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_4_image_1589824787174_1589821468492_mexedor_e_filtro.gifPerfect Combination

Mechanical chemical agitation, agitation of the chemical through a polyethylene propeller, providing greater homogenization.



https://s3.amazonaws.com/1-jacto.com.br/files/product_features_3_image_1592500507597_unnamed.pngPressure in the Right Measure

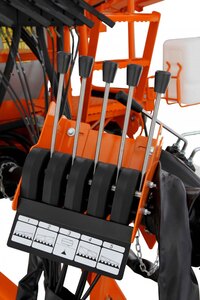

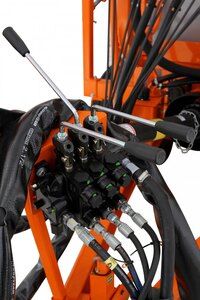

For better spray control, the Columbia Line has several options for spray commands and boom activation. The farmer can choose between the 4-way masterflow manual or 4-way masterflow cable.
RESOURCES
Brochure                                                   Download



SPRAYING
Crop Cereals Vegetables Sugar Cane Flowers
Tank Capacity
528 gal
Material
Polyethylene
Chemical Solution Agitation
Mechanical
Spray pump Model
JP-100 / JP-150
Type
Piston
Maximum flow rate
26 / 40 gpm
Power consumption
6 hp / 11 hp
Main Filter Model
FVS-100 / FVS-200
Filtering capacity
27 gpm / 53 gpm
Filter Mesh
60 / 24 and 40
Area size Up to 1235 ac
Spray control

MF 4 ways by lever

MF 4 ways cable

Trailer

Axles

Cross

Track width

5 ft to 6,4 ft

Ground clearance

23,6 in

Tires

9,5/9 x 24

Clean water tank

Capacity

4 gal

Tank capacity

53 gal

Material

Polyethylene

Precision Agriculture GPS - Lightbar GPS signal conrrections
Dimensions

Length

15

Maximum Width

8,5 ft

Height

8,5 ft

Weight

Empty machine

2557 lb

Boom

Actuation

Hydraulic

Working Height

20 in to 52 in

Length

60 ft

Nozzle Branch

Material

Hose or Stainless Steel

Nozzle Spacing

14 in / 20 in

Nozzle holders

Monojet / Bijet

Options available Wide-Angle to shaft Chemical Mixer with chemical Container rinse Nozzle Quick coupling

Filler unit
