Jacto - BC 610 PEC

Listing image Listing image Listing image Listing image
Specifications

Model BC 610 PEC Category Name Agriculture Year 2023
Sale Type New Manufacturer Jacto Price Contact for price CAD
Description

More technology and productivity for your pasture

The Best Option

BC Line was specially developed for application in pastures. It provides high daily operation efficiency and reduced maintenance cost.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_1_image_1588688955793_faixa_de_aplicacao.gifApplication Agility

Application range of up to 10 meters. Fixed booms with 2.2 meters in total length equivalent to the tractor width avoids collisions with obstacles in pastures. Excellent for low-mobility areas.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_2_image_1588688955793_tanque.gifResistance and Practicality

600-liter polyethylene tank with polished finish on internal and external surfaces to make cleaning easier. It resists impacts and corrosion.

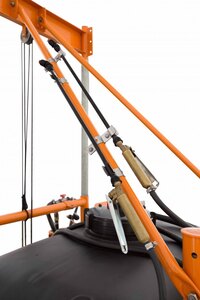

Hose reels

With 2 spray lances attached to the sprayer, it easier to use it in spot applications.



https://s3.amazonaws.com/1-jacto.com.br/files/product_features_4_image_1595329809657_product_features_4_image_1585230772839_1585175869574_bomba_e_filtro.gifPerfect Combination

Pump driven by cardan shaft (optional item), JP-402 model with 38-liter/minute pumping capacity. The ceramic sleeves guarantee excellent resistance to abrasion and corrosion.

Quick-closing Filter makes cleaning easier. Stainless-steel screen filtering system.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_3_image_1588689915333_comando.gifPressure in the Right Measure

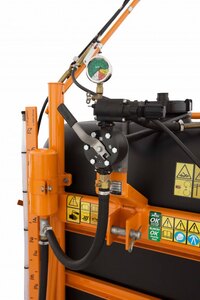

CJ-42 Control with quick relief avoids pressure overloads in the agrochemical circuit. Glycerin-filled pressure gauge with extended scale provides better readings.





RESOURCES
Brochure                                                   Download



SPRAYING
Crop Livestock
Tank Tank Capacity
158 gal
Material
Polyethylene
Chemical Solution Agitation
Hydraulic
Spray pump Model
JP-402
Type
Piston
Maximum flow rate
10 gpm
Power consumption
2 hp
Nozzle Branch

Material

Hose

Nozzle spacing

Center boom 4.6 ft

Nozzle spacing

Side boom 6.6 ft

Nozzle holders

Monojet

Main Filter Model
FVS-100
Filtering capacity
26 gpm
Filter Mesh
60
Spray control

Model

CJ-42

Number of ways

2

Actuation

Manual by lever

Maximum working pressure

150 PSI

Clean water tank Tank Capacity
4 gal

Material
Polyethylene

Nozzle

Model center boom

MVI-04 / MVI-02

Model side boom

XT020 / XT010

Boom Working Height

Until 7.2 ft
Length

6,5 ft (33 ft application range)
Actuation
Manual
Area size Over 500 ha
Dimensions Length
4,10 ft
Width
4.60 ft
Height
10.82 ft
Weight Empty machine
441 lb
Working speed Spraying
1 to 4 mph
