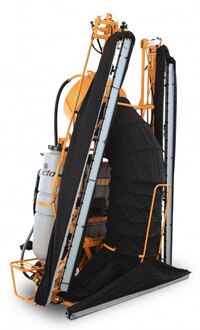

Jacto - Falcon Vortex – Air-Assist Boom

Listing image Listing image Listing image Listing image
Specifications

Model Falcon Vortex – Air-Assist Boom Category Name Agriculture Year 2023
Sale Type New Manufacturer Jacto Price Contact for price CAD
Description

Total crop protection with or without wind.

https://s3.amazonaws.com/1-jacto.com.br/files/product_gallery_3_1589226066910_FALCON_VORTEX_8.jpgOptimal Penetration

Excellent penetration and coverage of the plant.

Protection even on the underside of the leaves.

Protects the plant from top to bottom.



https://s3.amazonaws.com/1-jacto.com.br/files/product_features_2_image_1589226066910_1587059735701_ventilador.gifSpray Quality

The vortex system fan generates air that reduces drift and improves the penetration of agri-chemical into the plants. The fan is positioned to help maintain the balance of the tractor.


Adjustable air volume.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_3_image_1589226066910_1587058125888_1587049513161_1587043070469_1587038184545_1585317154901_1585246545283_bomba.gifDurable Pump

Piston pump with highly wear-resistant ceramic sleeves. The durable pump required limited maintenance, providing greater reliability of the equipment to the producer, ensuring the application can be applied at the right time.

RESOURCES
Brochure                                                   Download



SPRAYING
Crop Flowers Fruits
Fan Hydraulically controlled variable speed Fan performance
18,822 CFM @ 62 MPH
Boom 46 foot with hydraulic fold Boom height

adjustable from 21 to 51 inches
Suction filter FVS-100 with shut off valve (M-60) Chemical induction hopper with
chemical container rinse
Clean water tank
Area size Up to 500 ha
Tank capacity 165 Gallons high density poly
Controls Masterflow with in-cab electric controls
Pump model JP-75 piston pump 20 GPM
Agitation Bypass with venture
29 Anti-drip flip-over nozzle holder 58 total nozzles
Nozzles installed JA-2 & AXI 110-02
Nozzle spacing 20 inch
Minimum tractor engine HP 30
