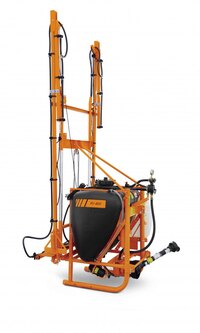

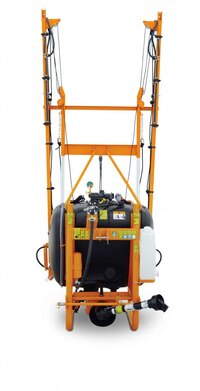

Jacto - PJ 401

Listing image Listing image Listing image Listing image
Specifications

Model PJ 401 Category Name Agriculture Year 2023
Sale Type New Manufacturer Jacto Price Contact for price CAD
Description

Ideal for small and medium farms.

https://s3.amazonaws.com/1-jacto.com.br/files/product_image_1589290502706_pj_401.gifPJ 401

This sprayer was developed for uniform spraying, reduced maintenance cost and high daily operating performance compared to manual applications.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_1_image_1585173324454_tanque.gifHigh Resistance

105 gal tank, made of polyethylene, with a polished finish on the internal and external surfaces to facilitate cleaning. Resists impacts and corrosions.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_2_image_1597675589052_product_features_2_image_1585173855413_chassi.gifLess Stops

Piston pump with highly wear-resistant ceramic liner. The pump reduces the number of maintenance stops, providing greater availability of the equipment to the producer, ensuring application at the right time.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_4_image_1597676206368_product_features_4_image_1585175869574_bomba_e_filtro.gifPerfect Combination

As an option, the PJ 401 can be equipped with a ratchet system to facilitate the handling of the booms.


Filter, with quick closing for easy cleaning. Filtration system through stainless steel screens.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_3_image_1585175324400_comando.gifPressure in the Right Measure

Command CJ-42 with quick relief that avoids pressure overload in the defensive circuit. Manometer with extended scale and glycerin bath, providing better reading.



RESOURCES
Brochure PJ 401 Download



SPRAYING
Crop

Cereals

Livestock

Vegetables



Sugar Cane



Fruits



Precision Agriculture GPS - Lightbar GPS signal conrrections
Tank

Tank Capacity

105 gal

Material

Polyethylene

Chemical Solution Agitation

Hydraulic


Clean water tank

Tank Capacity

3 gal

Material

Polyethylene


Main Filter

Model

FVS-100

Filtering capacity

26 gpm

Filter Mesh

60


Spray pump

Model

JP-402

Type

Piston

Maximum flow rate

10 gpm

Power consumption

2 hp

Spray Control

Model

CJ-42

Number of ways

2

Actuation

Manual by Lever

Maximum working pressure

150 psi

Boom

Length

3 ft

Actuation

Manual

Working height

Until 5 ft


Nozzle Branch

Material

Hose

Nozzle spacing

19,6 in

Nozzle holders

Monojet


Dimensions

Length

4.4 ft

Width

3,6 ft

Height

10,5 ft


Area size Up to 50 ha
Weight

Empty machine

430 lb

Working speed

Spraying

1 to 4 mph

Available options Filler unit Line Filter
