Construction Telehandlers
The RS6-34 GEN:3 has a unique reach to its RS brothers and sisters in the lineup. With a 34' reach and 6,000lb lift capacity, this Telescopic Handler is ready to serve you and its

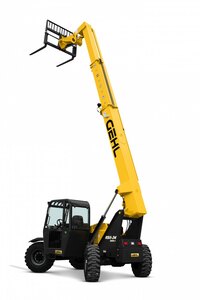

Gehl RS6-34 GEN:3 |
|||||||||||||||||||||
|
|||||||||||||||||||||
|
Specifications
|
|||||||||||||||||||||
|
Description
|
|||||||||||||||||||||
|
WEIGHT AND DIMENSIONS
|
|||||||||||||||||||||
|
Wheelbase
2.80 m
Overall_width
2.40 m
Tilt-up_angle
12 °
Overall_height
2.36 m
Standard_tyres
15 x 19.5
Tilt-down_angle
112 °
Ground_clearance
350 mm
Overall_cab_width
838 mm
External_turning_radius
3.80 m
Overall_length_to_carriage
4.88 m
Overall_length_(with_forks)
5.90 m
Unladen_weight_(with_forks)
6850 kg
Frame_levelling_longitudinal_+/-
10 °
|
|||||||||||||||||||||
|
ENGINE
|
|||||||||||||||||||||
|
Engine_norm
Stage IV / Tier 4 Final
Engine_brand
Deutz
Engine_model
TD 3.6 L4
Max._torque_/_Engine_rotation
330 Nm @ 2500 rpm
I.C._Engine_power_rating_-_Power_(kW)
74 Hp / 55 kW
|
|||||||||||||||||||||
|
HYDRAULICS
|
|||||||||||||||||||||
|
Hydraulic_pump_type
Gear pump
Hydraulic_flow_-_Pressure
110 l/min / 207 Bar
|
|||||||||||||||||||||
|
TANK CAPACITIES
|
|||||||||||||||||||||
|
Fuel_tank
110 l
Hydraulic_oil
110 l
|
|||||||||||||||||||||
|
MISCELLANEOUS
|
|||||||||||||||||||||
|
Controls
Single Joystick FNR
Safety_cab_homologation
ROPS/FOPS
Drive_wheels_(front_/_rear)
2 / 2
Steering_wheels_(front_/_rear)
2 / 2
|
