Hauling 20' Containers

The Model 342 is truly designed to add flexibility to your transportation fleet.  The 342 is a heavy duty short trailer that gives you great maneuverability while being pulled by your current single axle tractor.  The fifth wheel king pin, 7-way electrical connection and a single 15,000 lb. air brake axle are all standard equipment. The 23' lower deck will legally handle up to 24' containers and the standard chain drive load system is ideal for handling multiple box transfers.  Haul three 8-foot, two 10-foot, or your standard 20 foot boxes.

Ready For Work

The 342 comes standard with chain loading bridle, rear tiedown chain/binders, push bar and container side pin lock downs.  You get this handling package with the trailer and you just don't need more to legally tie down and go.

STANDARD EQUIPMENT

• *Capacity:  11,300 lbs.
• Deck Rating: 10,000 lbs. in 10'
• Estimated Base Weight: See Specs Above
• Main Frame: 17 lb. 10" Structural I-Beam
• Crossmembers: 3" Jr. I-Beam
• Slope Drop: 90°
• Parking Stands Pin Drop
• Tires: 215/75R 17.5 LRH Double Coin Radial
• Wheels: Hub Pilot 8-Hole Steel
• Axles: 1 - 15,000 lb. Dual Tire, Oil Bath Bearings, Dexter
• Suspension Spring Multi-Leaf
• Brakes: 12-1/4"x5" Air Brakes, ABS 2S/1M
• Oil Seal Hubs: Internal Mated Assembly
• Hitch: Gooseneck with 2" Kingpin (Hitch for 48" Fifth Wheel Height)
• Pin Setting: 8-1/2"
• Swing Clearance: 78"
• Loaded Ground Clearance: 25"
• Loaded Deck Height: 37"
• Width: 102"
• Decking: Steel Tread Plate 1/8" with Container Skid Plate and Toe Board
• Air / Electrical: 7-Way Receptacle
• Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
• Lights: Grote "SuperNova" LED - 10-Year Warranty
• Finish: Steel Grit Shot Blast to Bright Metal
• Powder Coat Color: White / Black / Yellow / Blue / Red / Green
• Decals: Hi-Visibility Reflective Package
• Tie Downs: 2 - 4" x 30' Nylon Strap Hand Ratchet Assembly (138115)
• Storage Area: 2 - Open Storage Trays at Front (3"H x 14"D x 18"W)
• Tool Box: Gooseneck Mounted (24"H x 24"D x 14"W)
• Hydraulic Gear Box: 12,000 lb. Gear Box, Continuous Power Chain Drive Load System
• Tilt Cylinders: 1 - 4" x 42" (Gooseneck)
• Undercarriage Cylinder: 3" x 108"
• Load Angle: 11°
• Approach Plate: Approach Plate with Four Keyhole Tie Downs, Shoe Lock Tie Down Slots
• Hydraulic Valve Body: Prince Valve Electronic
• Accessories: Chain & Grab Hook Assy (42" x 1/2")(129938)
• Pusher/Dozer Blade Assy (129210) - Chain Connector (129209)

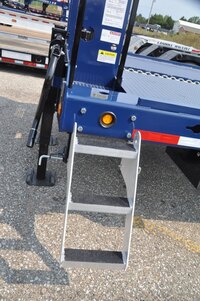

• Container Load Bridle (135316) - Ladder Left Side Mounted (169392)
• Container Pins: (2) Front Stop Pins and (2) Front Hold Down Pins
