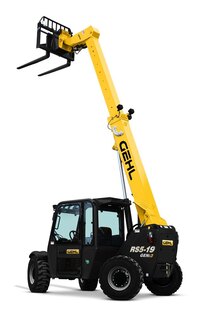

2020 Gehl RS5-19 GEN:3 Telescopic Handler

Specifications

Model	RS5-19 GEN:3 Telescopic Handler	Category Name	Skid Steer	Year	2020
Sale Type	New	Manufacturer	Gehl	Model	4TNV98C Tier IV
Power	69 hp	Width	5'11	Brakes	2-Wheel Hydraulically Actuated Internal Wet-Disc Brake
Length	12'4''	Pump Type	Gear	Wheelbase	7'6"
Aspiration	Natural	Rated Speed	2,500 rpm	Manufacturer	Yanmar
Overall Height	6'4"	Total Capacity	20 gpm	Ground Clearance	14"
System Pressure	3,350 psi	Maximum Travel Speed	15 mph	Hydraulic Reservoir Capacity	18 gal.
Price	Contact for price CAD

Description

RS5-19 GEN:3
Telescopic Handler

- Rated Lift Capacity (kg): 5,500 lbs. (2495)

- Gross Power (kW): 69 hp (50.1)

- Maximum Lift Height (m): 19' 1" (5.8)

- Maximum Forward Reach (m): 11' 0" (3.4)

Performance

The RS5-19 GEN:3 is built to work hard.

Compact size 5' 11" wide & 6' 4" tall
Total weight of 10,000 lbs
With a ground clearance of 14"
Two section telescopic boom has full hydraulic power for all lift and telescopic functions
Hydraulic self-leveling lift action automatically keeps the load level as the boom is raised.
Inboard wet-disc service brakes
Limited slip differential is located on front axle.
Highly visible boom level indicator is located on the outer boom and an easy-to-read frame level gauge is located in the cab

System Pressure (bar) 3,350 psi (231)

Hydraulic System Total Capacity (L/min) 20 gpm (83)

Operator's Cabin

The operator’s cab in the RS5-19 GEN:3 Telescopic Handler is anything but compact. A modern, ergonomic design maximizes comfort.

High-back seat with right-side adjustable armrest; suspension seat optional.
Locking storage compartment under seat.
Full 360° visibility.
Ergonomic design features all gauges, indicator lights and switches on the right-side dash panel
ROPS/FOPS canopy standard; ROPS/FOPS cab with heater or ROPS/FOPS cab with heater & A/C optional

Handling

Gehl RS5-19 GEN3 Telehandler Crab Steering

To enhance maneuverability, the RS5-19 GEN:3 Telescopic Handler has three steering modes. An operator can change between 2-wheel, 4-wheel and crab-type steering by flipping a switch in the operator’s station.

Engine

The RS5-19 GEN:3 Telescopic Handler provides the power to get work done effectively and efficiently.

Engine shutdown protection feature allows 30-seconds of run time for moving the unit to a safe location for loading or repair.
Rexroth 2-speed hydrostatic transmission.
Limited-slip differential in the front axle provides additional traction in muddy and unimproved surfaces.

Manufacturer	Yanmar
Model	4TNV98C Tier IV
Power (kW)	69 hp (50.1)
Maximum Travel Speed (km/hr)	15 mph (24)
Rated Speed	2,500 rpm

Hydraulics

The model RS5-19 GEN:3 makes no exceptions when it comes to hydraulic performance.

Pump Type	Gear
Total Capacity (L/min)	20 gpm (83)
System Pressure (bar)	3,350 psi (231)
Hydraulic Reservoir Capacity (L)	18 gal. (68)

Attachments

There is a tool for every job, and the RS5-19 GEN:3 can power them all. Dynattach® Quick-Attach system allows quick attachment changes with unsurpassed ease.

A	Carriages – Masonry, framing and standard carriages available in different widths.
B	Rotating Carriage – 48” (1219 mm) and 66” (1676 mm) wide.
C	Fork Shift - 50" (1270 mm) wide.
D	Truss Boom- 5' long.
E	Bucket - Light Material - 71" wide.

Serviceability

The RS5-19 GEN:3 Telescopic Handler has an intelligent design that protects components and provides easy access for routine maintenance.

The engine hood lifts fully out of the way, providing easy access to the battery and and engine maintenance
A hinged access door provides easy access to the engine oil drain.
Hydraulic oil fill cap is located on the top of the engine compartment for easier access, with a spill guard for extra protection.
A protective sleeve over the exhaust pipe increases safety when working on the engine.
A dual-element air filter protects the engine from airborne contaminants.
