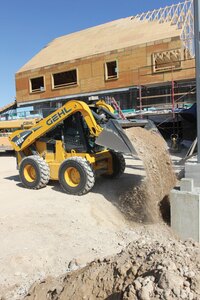

Gehl V400 Vertical-Lift Skid Loader

Listing image Listing image Listing image Listing image
Specifications

Model V400 Vertical-Lift Skid Loader Category Name Skid Steer Year 2014
Sale Type New Manufacturer Gehl Overall Operating Height Fully Raised 186.8''
Height To Hinge Pin Fully Raised 144'' Overall Height To Top Of ROPS 82.0'' Ground Clearance To Chassis 7.3''
Overall Length W Bucket 158.5'' Overall Length W O Bucket 121.5'' Wheelbase 54.6''
Dump Reach At Full Height 39.5'' Rollback At Ground 31° Dump Angle 31°
Overall Width 79.5'' Bucket Widths 84'' Clearance Circle Rear 70.5''
Clearance Circle Front W O Bucket 50.8'' Clearance Circle Front W Bucket 88.5'' Seat To Ground Height 40.8''
Dump Height 114.8'' Departure Angle 19° Standard Specification Tire Size 14.00 - 17.5 HD
Make Cummins Model QSB 4.5 Tier III Net Power @ Rpm 99 hp @ 2,200
Maximum Torque 326 ft.-lbs. @ 1,300 Displacement 272 cu.in. Auxiliary Hydraulics Standard 32 gpm
High Flow Auxiliary Hydraulics Option 40.8 gpm Reservoir Capacity 16.75 gal. Rated Operating CapacityB 4,000 lbs.
Fuel Tank 31.25 gal. Travel Speed Maximum 6.5 mph Travel Speed With Two Speed Option Maximum 11.2 mph
Operating WeightC Approximate 11,100 lbs. Rollback At Specified Height 100° Price Contact for price CAD

Description

    Height to Hinge Pin - Fully Raised (mm): 144" (3647)
    Rated Operating Capacity (kg): 4,000 lbs. (1814)
    Power (kW): Gross 99 hp (74)

  Features

 Performance

The Gehl V400 skid loader is a shining example of Gehl’s superior innovation and well thought-out product development.

Operator's Cabin

The operator’s compartment on the V400 skid loader provides a safe and comfortable working environment for operators of all sizes.

Controls

Controls on the Gehl V400 skid loader are ergonomically designed to reduce operator fatigue and increase productivity.
Engine
The Gehl V400 skid loader comes equipped with the power to tackle virtually any job.

Hydraulics

When maximum hydraulic power is needed to run demanding attachments, the V400 Skid Loader is equipped with the tools to get the job done right.

Lift Arm

The V400 skid loader vertical-lift arm design was created for maximum reach, superior strength and optimal operator visibility.
Serviceability
At Gehl we know ease of serviceability is very important to our customers. The model V400 skid loader is sure to exceed their expectations.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their V400 the most versatile machine on the job site. Popular attachments are listed below.

Edge Attachments for Gehl 1640E Skid Steer Loader
A     Augers
B     Bulk Material Buckets
C     Cold Planers
D     Silage Defacer
E     Snow Removal
F     Stump Removal Bucket
G     Tree Shears
H     Tree Puller/Grabbing Tool
