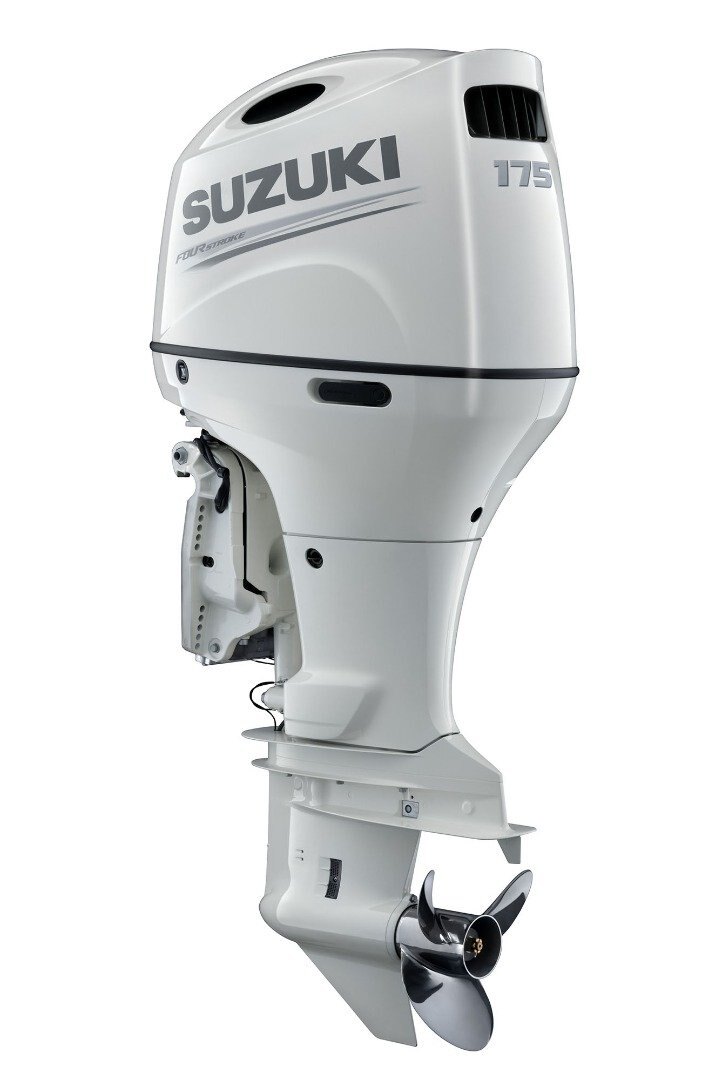

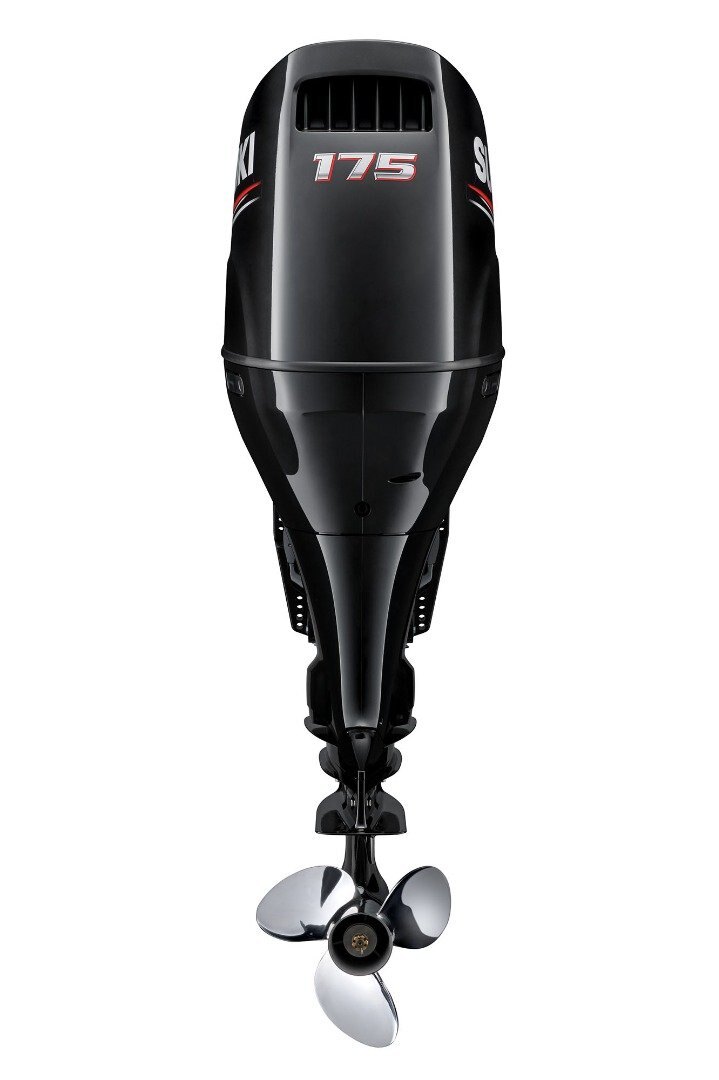

Suzuki DF175A

  • Suzuki DF175A
  • Suzuki DF175A
  • Suzuki DF175A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

OVERVIEW
With a combination of our Lean Burn technology, a semi-direct intake system and a high performance compression ratio of 10.2-to-1, these new outboards deliver clean, efficient power. Compared to the current 175 and 150, the DF175A is 14% more fuel efficient and the DF150A shows a 7% improvement for significant savings at the fuel dock


  Features
EXPLANATION
The engine powerhead is offset closer to the transom, moving the outboard’s center of gravity forward.

ADVANTAGE
Less vibration More compact engine Stable steering performance

EXPLANATION
This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller for high propulsive efficiency while providing greater torque.

ADVANTAGE
High propulsive efficiency with large diameter propeller. Powerful navigation, maintaining propeller rotation even with a larger load. Power to turn large diameter propellers, offering quick acceleration.

Suzuki Advantages

Model Name: DF175 175 Verado™
Manufacturer: Suzuki Mercury
Horsepower: 175 175
Shaft Length (Inches): L (20), X (25) L (20), X (25)
Weight (Lbs): L (474), X (485) L (510), X (527)
Cylinders: In-line 4 In-line 4
Valves Per Cylinder: DOHC 4 Valves Per Cyl DOHC 4 Valves Per Cyl
Valve Train Drive: Self adjusting oil bathed chain with variable valve timing Single overhead timing belt
Displacement: 174.9 cu. in. (2867 cc) 105.7 cu. in. (1732 cc)
Bore and Stroke (Inches/mm): 3.81 x 3.81 in. (97 x 97 mm) 3.23 x 3.23 in. (82 x 82 mm)
Operating Range (RPM): 5500-6100 5800-6400
Induction System: EFI - Multi Stage Induction EFI Super Charged
Starting System: Electric Start w/ Suzuki EFI Electric
Lubrication: Wet sump Wet sump
Oil Tank Capacity: 8.0 qt. (7.6 lit.) 6.3 qt. (6.0 lit)
Ignition: Solid State Electronic Digital Inductive
Alternator: 12V 44A 12V 70A
Trim Type: Power Trim and Tilt Power Trim and Tilt
Gear Ratio: 2.50:1 2.08:1
CARB Emissions Rating: 3-Star Ultra Low 2-Star Very-Low
Standard Propeller (Blades x Dia. x Pitches (Ins.)): Optional - See Dealer Unknown
Counter Rotation: Available Available
Range of Avail. Optional Propeller Pitches: 17 - 27 Unknown
Steering: Remote Unknown





Specifications
Model
Df175a
Category Name
Outboard Engines
Year
19999
Sale Type
New
Manufacturer
Suzuki
Color
Black, white
Steering
Remote
Alternator
12V 44A
Weight LBS
L: 520 X: 531 (AP Model)
Engine Type
DOHC 16-Valve
Starting System
Electric
No Of Cylinders
4
Maximum Output HP
175
Propeller Selection
15 - 27.5
Fuel Delivery System
Multi Point Sequential Electronic Fuel Injection
Operating Range (RPM)
5500-6100
Bore X Stroke Inches (mm)
3.81 x 3.81 (97 x 97)
Oil Pan Capacity Quarts (liter)
8.5 (8.0)
Piston Displacement Inches (cc)
174.9 (2867)
Recommended Transom Height (inches)
L: 20 X: 25
