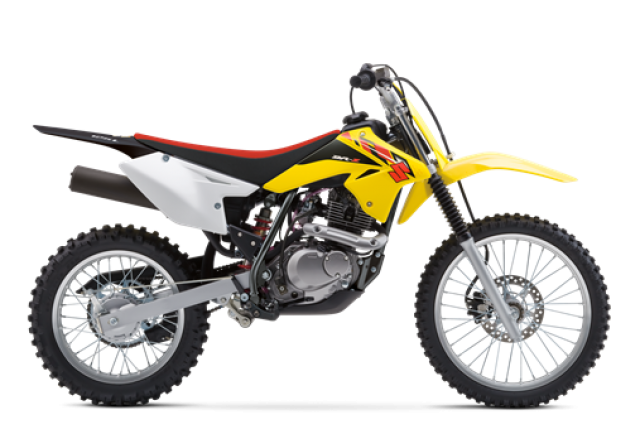

2014 DR-Z125L

  • 2014 DR Z125L
  • Video Button Maxresdefault
Videos
Retail: $3,499 CAD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
This custom version of the DR-Z125 features full-size, 19-inch front and 16-inch rear tires and wheels and a front disc brake, making it a great choice for larger riders. Its styling is inspired by the championship-winning RM-Z motocross bike line with sharp-looking fenders, number plates, and frame covers. It also offers a terrific combination of crisp handling and strong low-end and mid-range power. When you've got a DR-Z, the whole world looks a little different. You start seeing whoops, jumps, and washboards everywhere you look.

  Features

Key Features

Aggressively styled bodywork, number plates and graphics built to look exactly like the race winning RM-Z competition models.

Engine Features

Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine designed for ease-of operation and low maintenance.
Digital-type CDI ignition system with timing set to enhance the engine's low-rpm power characteristics.
MIKUNI VM20SS carburetor contributes to excellent throttle response.
Suzuki Composite Electrochemical Material (SCEM) - plated cylinder for durability, lightweight and superior heat transfer.

Transmission Features

Five-speed transmission with link-type gearshift system for precise operation and positive feel.

Chassis Features

Lightweight, high rigidity steel pipe frame and rear swingarm are designed specifically to create a compact, fully-sized off road machine.
The seat and bodywork design provides a seamless surface for easy maneuverability.
Strong braking performance provided by lightweight front and rear drum brakes.
Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action for enhancing enjoyable, comfortable ride.
The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions.
A lightweight plastic skid plate helps protect the bottom of the engine.
32 inch seat height.
Lightweight aluminum rims for reduced weight provide agile handling and improved suspension performance.



Specifications
Model
2014 DR-Z125L
Category Name
Motorcycles
Year
2014
Sale Type
New
Manufacturer
Suzuki
Color
Champion Yellow/Solid Black
Curb Weight
89 kg (196 lbs)
Ground Clearance
290 mm (11.4 in)
Seat Height
805 mm (32.0 in)
Wheelbase
1270 mm (50.0 in)
Compression Ratio
9.5 : 1
Engine
124cc, 4-stroke, air-cooled, OHC
Ignition
Electronic ignition (CDI)
Starter
Primary Kick
Transmission
5-speed constant mesh
Brakes Front
Disc brake
Brakes Rear
Drum brake
Final Drive
DID 428HG, 130 links
Fuel Tank Capacity
62.L (1.6 US gal)
Overall Length
1885 mm (74.2 in)
Overall Width
770 mm (30.3 in)
Suspension Front
Telescopic, coil spring, oil damped
Suspension Rear
Link type, coil spring, oil damped
Tires Front
70/100-19 42M, tube type
Tires Rear
90/100-16 52M, tube type
Bore Stroke
2.244.60 in x 1.921 in
Fuel System
MIKUNI VM20SS
Lubrication
Wet sump
