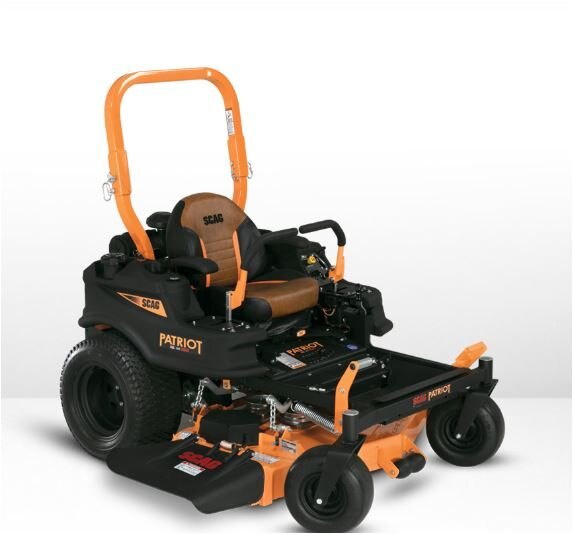

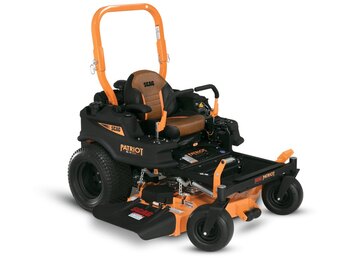

Scag PATRIOT

  • Scag PATRIOT
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

MAKE A DECLARATION

Built to deliver maintenance-free and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.
Specifications
Model
PATRIOT
Category Name
Lawn Care
Year
2023
Sale Type
New
Manufacturer
Scag
features

Scag PATRIOT

Command perfection

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

Scag PATRIOT

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT3.5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 250 ft. lb. of holding strength, and an adjustable air gap for long life.

Scag PATRIOT

High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Tubular-steel main frame delivers unmatched strength and longevity.

Scag PATRIOT

Hydro-Gear ZT-3100 / ZT-3400 Transaxles

SPEEDS UP TO 10 MPH (SPZ61) / 8.5 MPH (SPZ52)

The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

Scag PATRIOT

Low-Maintenance Mower Design

MORE UPTIME

Fewer grease points increase operator convenience and ease-of-ownership.

Scag PATRIOT

Suspension Seat

RIDE IN COMFORT

The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.

Scag PATRIOT

Iso-Mounted Footplate

CRANK UP THE COMFORT

Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
Scag PATRIOT
Powerful and Efficient Engine Options

RELIABLE POWER, UP TO 26 HP

Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.
battery & deck combinations
Model Description
SPZ-52H-23CV 52" Hero Cutter Deck, 23 HP Kohler® Command PRO®
SPZ-52H-27CX 52" Hero Cutter Deck, 27 HP Briggs CXi Series™ – V-Twin
SPZ-52H-22FX 52" Hero Cutter Deck, 22 HP Kawasaki®FX691
SPZ-61H-25CV 61" Hero Cutter Deck, 25 HP Kohler® Command PRO®
SPZ-61H-27CX 61" Hero Cutter Deck, 27 HP Briggs CXi Series™ – V-Twin
SPZ-61H-23FX 61" Hero Cutter Deck, 23 HP Kawasaki® FX730
product dimensions
Product Dimensions 52" Patriot 61" Patriot
Length 73" 79"
Width (chute down) 64.5" 73.5"
Width (chute in transport position) 53" 62"
Height (ROPS folded) 46.5" 47"
Height (ROPS up) 61" 61"
Weight 907-911 lb 952-956 lb
general
Seat
Torsion-spring suspension seat
Drive Tires
22" x 10.5"-12" (52")
Caster Tires
13" x 6.5"-6"
Total Fuel Capacity
6.5 gallons
drive system
Pumps
ZT3100 Internal Pump: 10 cc (52")
Motors
Internal Motor: 16 cc
Parking Brake
Foot-operated pedal
Drive System Type
Hydro-Gear ZT3100 Transaxle (52")
Forward Ground Speed
8.5 mph (52")
Reverse Ground Speed
5 mph
deck
Type
Hero Cutter Deck
Spindles
Aluminum housing with sealed ball bearings.
Deck Lift
Foot-operated pedal
Construction
Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Cutting Height
1.5" to 5" in .25" increments
Cutting Widths
52" and 61"
Blade Engagement
Ogura GT2 (108 ft lb)
