ID # 19376168

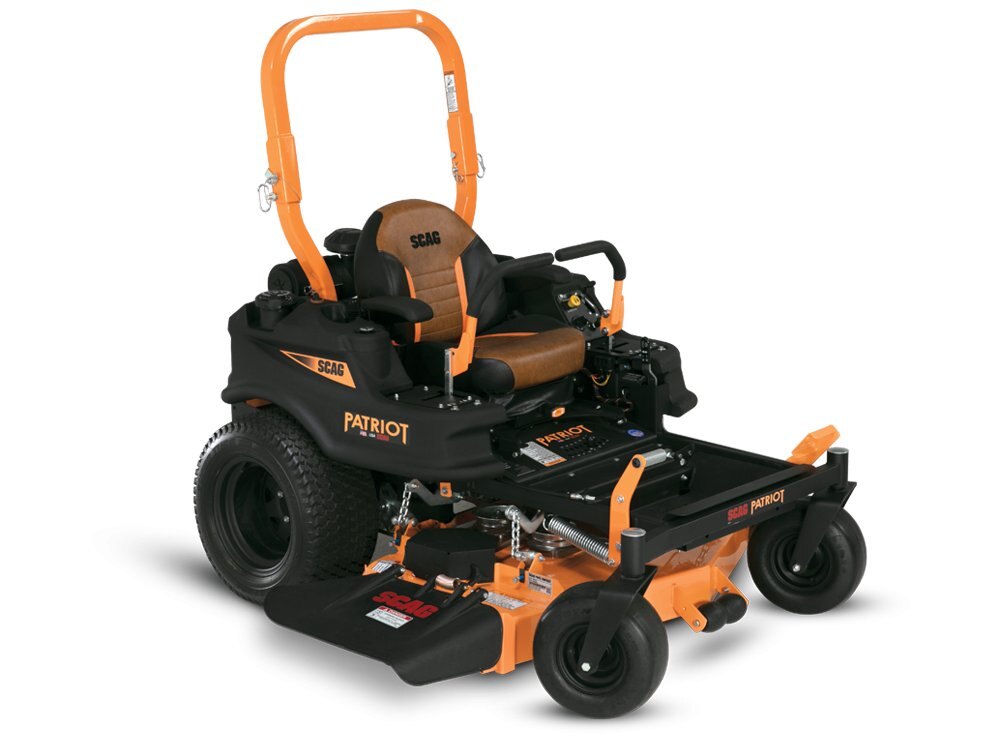

Scag Patriot

  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Scag Patriot
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

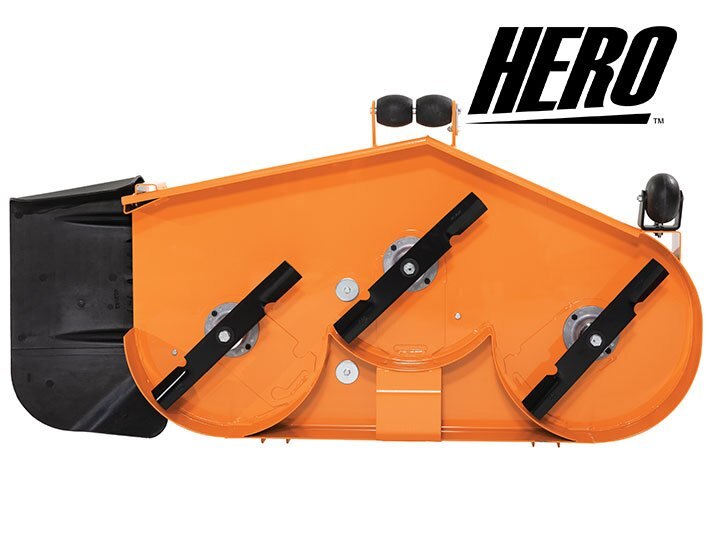

Scag Patriot Hero™ Cutter Deck
DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.


Specifications
Model
Patriot
Category Name
Lawn Care
Year
2022
Sale Type
New
Manufacturer
Scag
features

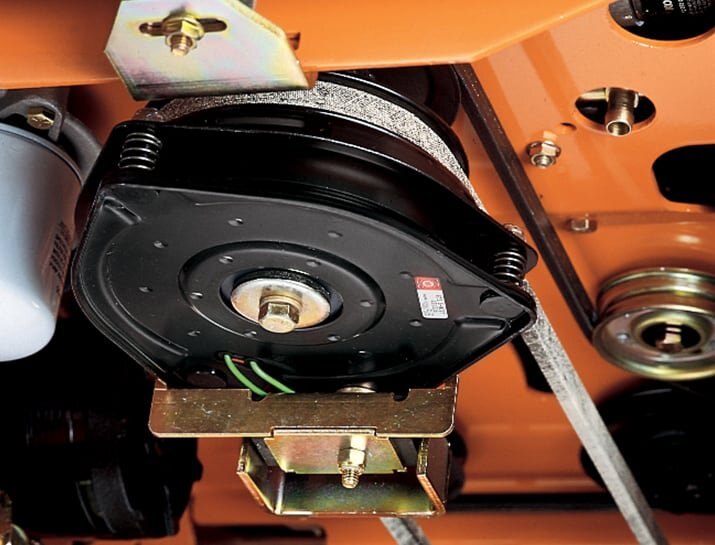

Scag Patriot Ogura PTO Clutch Brake
Strong, Adjustable Clutch for Long Life

The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.

Scag Patriot High-Strength Steel Frame
Solid Design for Years of Dependable Service

Tubular-steel main frame delivers unmatched strength and longevity.

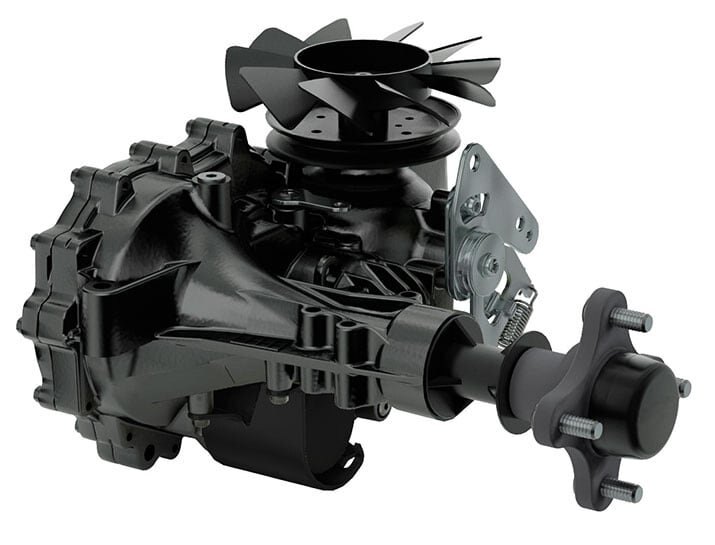

Scag Patriot Hydro-Gear ZT-3100 / ZT-3400 Transaxles
Speeds Up To 10 MPH (SPZ61) / 8.5 MPH (SPZ52)

The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

Scag Patriot Low-Maintenance Mower Design
More Uptime

Fewer grease points increase operator convenience and ease-of-ownership.

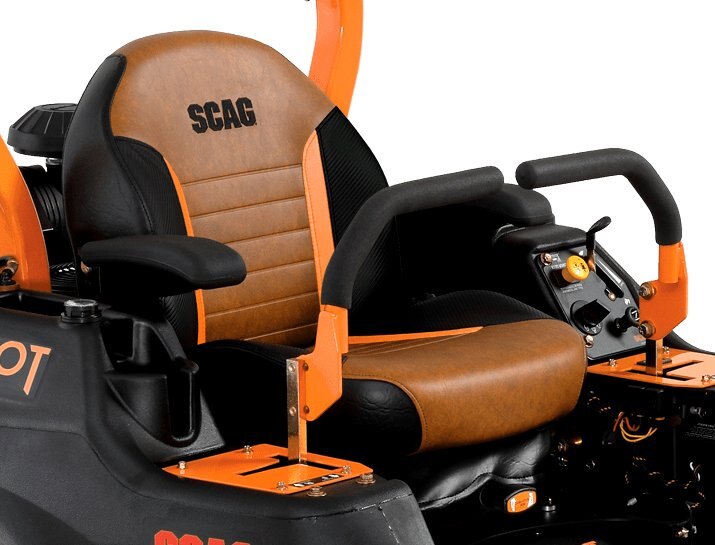

Scag Patriot Suspension Seat
Ride in Comfort

The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.

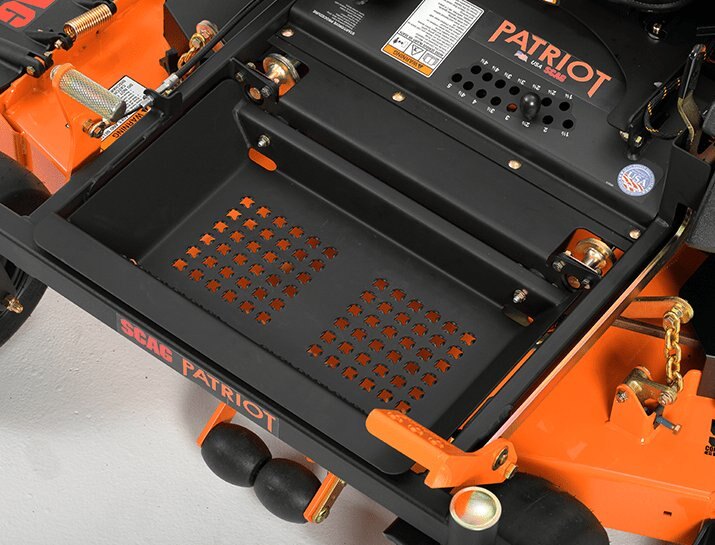

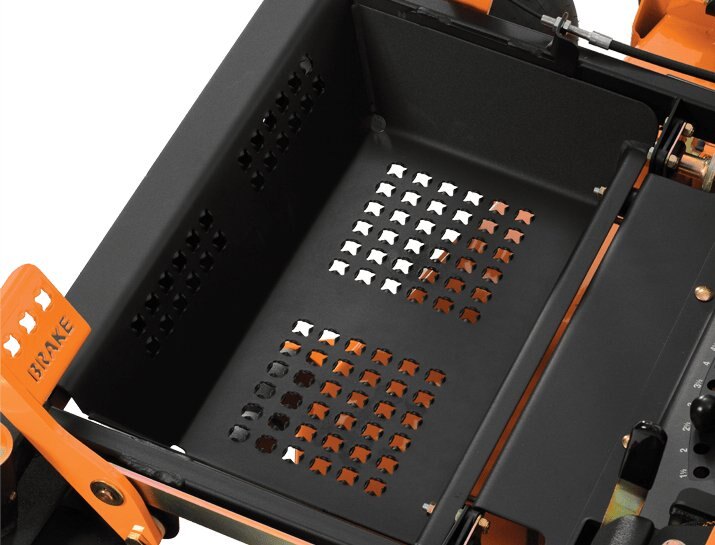

Scag Patriot Iso-Mounted Footplate
Crank Up the Comfort

Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.

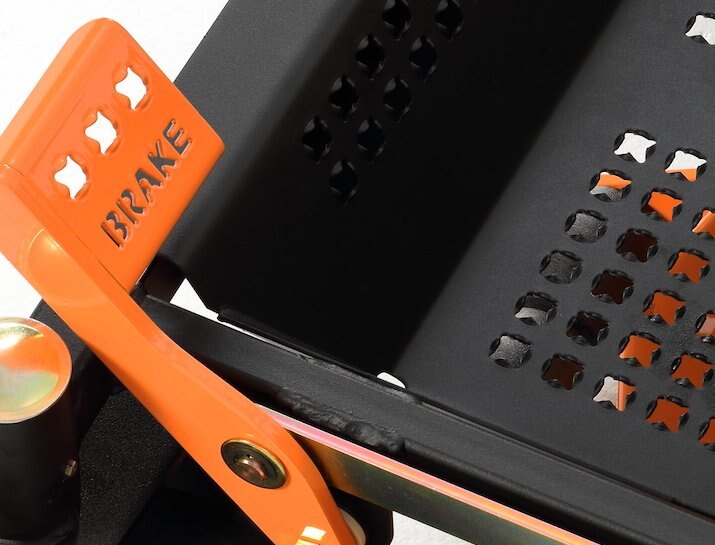

Scag Patriot Foot-Pedal Parking Brake
Stay in Control

Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.

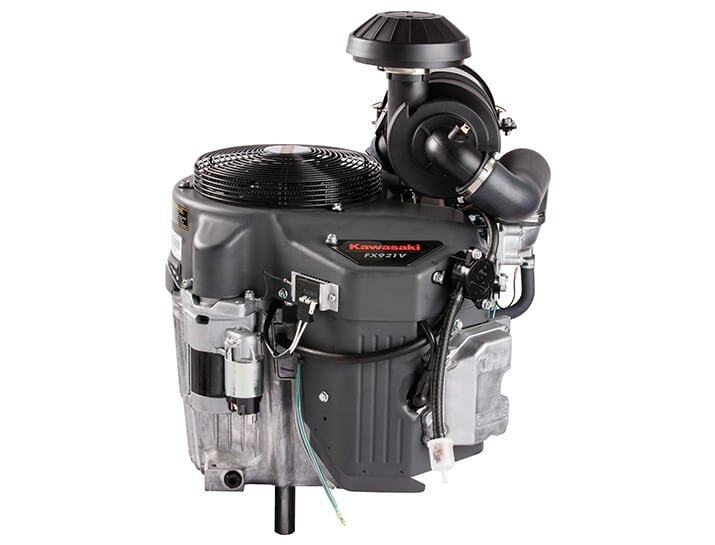

Scag Patriot Powerful and Efficient Engine Options
Reliable Power, Up To 25 HP

Choose from a Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.
engine & deck combinations
Model Description
SPZ52H-22FX 52" Hero Cutter Deck, 22 HP Kawasaki®FX691
SPZ52H-23CV 52" Hero Cutter Deck, 23 HP Kohler® Command PRO®
SPZ52H-26BV 52" Hero Cutter Deck, 26 HP Briggs Vanguard® 810
SPZ61H-23FX 61" Hero Cutter Deck, 23 HP Kawasaki®FX730
SPZ61H-25CV 61" Hero Cutter Deck, 25 HP Kohler® Command PRO®
SPZ61H-26BV 61" Hero Cutter Deck, 26 HP Briggs Vanguard® 810
product dimensions
specifications
  Specification Patriot
General Total Fuel Capacity 6.5 gallons
  Drive Tires 22" x 10.5"-12" (52")

24" x 12"-12" (61")
  Caster Tires 13" x 6.5"-6"
  Seat Torsion-spring suspension seat
Drive System Drive System Type Hydro-Gear ZT3100 Transaxle (52")

Hydro-Gear ZT3400 Transaxle (61")
  Pumps ZT3100 Internal Pump: 10 cc (52")

ZT3400 Internal Pump: 12 cc (61")
  Motors Internal Motor: 16 cc
  Forward Ground Speed 8.5 mph (52")

10 mph (61")
  Reverse Ground Speed 5 mph
  Parking Brake Foot-operated pedal
Deck Cutting Widths 52" and 61"
  Type Hero Cutter Deck
  Cutting Height 1.5" to 5" in .25" increments
  Deck Lift Foot-operated pedal
  Construction Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
  Spindles Aluminum housing with sealed ball bearings.
  Blade Engagement Ogura GT2 (108 ft lb)

Adjustable air-gap for extended life.
