ID # 31217638

Penta DOUBLE AUGER TRUCK MOUNT 9630

  • Penta DOUBLE AUGER TRUCK MOUNT 9630
  • Penta DOUBLE AUGER TRUCK MOUNT 9630
  • Penta DOUBLE AUGER TRUCK MOUNT 9630
  • Penta DOUBLE AUGER TRUCK MOUNT 9630
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

DOUBLE AUGER TRUCK MOUNT
Specifications
Model
9630
Category Name
Trailers
Year
2024
Sale Type
New
Manufacturer
Penta
Total Width
101 in
Empty Weight
23,547 lbs
Total Length
333 in
Capacity 9" Rubber
965 cu ft
truck requirements
HP 425 - 475
Front Axle 20,000 lbs
Rear Axle 46,000 lbs
Preferred Transmission Allison 4500RDS

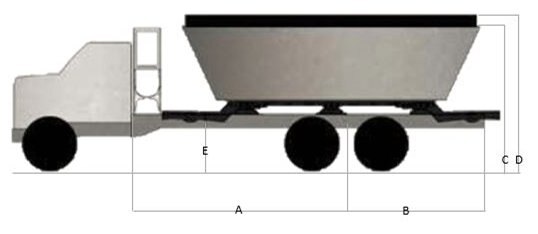

Cab to Axle (A) 175"
End of Frame (B) 96"
Overall Height (C) 130"
Approximate Overall Height w/rubber (D) 136"
Conveyor Clearance (E) 44"
Corner Door 26"
features

Penta DOUBLE AUGER TRUCK MOUNT 9630

CONTROLS

  • Digital Screen
  • Joystick
  • Oil Temperature Monitor
  • Oil Pressure Monitor
  • Optional Cameras

Penta DOUBLE AUGER TRUCK MOUNT 9630

CONVEYOR

Conveyors are configured to match the individual needs of the operator.

  • Dog Leg System
  • Slide Out Conveyors
  • Designed to be Grain Ration Ready

Penta DOUBLE AUGER TRUCK MOUNT 9630

TUB & AUGER

The angled curve of the tub and baffles are designed to work with our Hurricane augers for the best mix possible and provides easy clean out.

  • Stainless Steel Tub Liner included in the truck mount mixers increases the longevity of the life of the tub
  • Massive front and rear material doors increase efficiency in unloading and clean out

Penta DOUBLE AUGER TRUCK MOUNT 9630

DRIVE SYSTEM

  • Hydraulic Pumps
  • Poclain Wheel Motors
  • Hoses
  • Oil Reservoir
  • Valve Blocks
  • Mechanical Truck Mount available for models 4130 and 5030
