Manitou

ID # 24548805

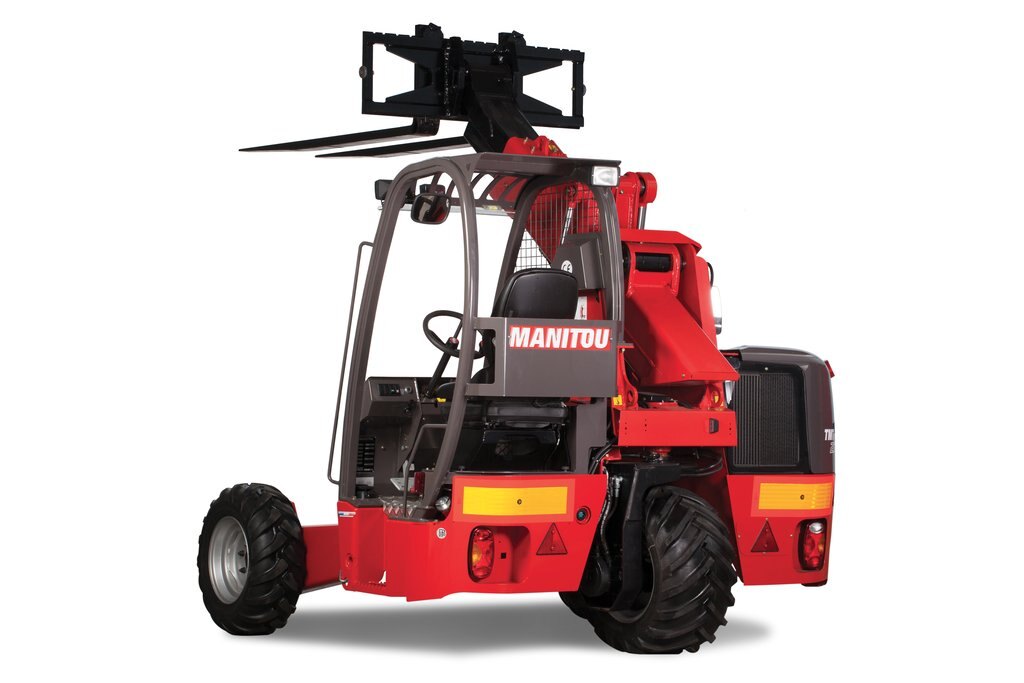

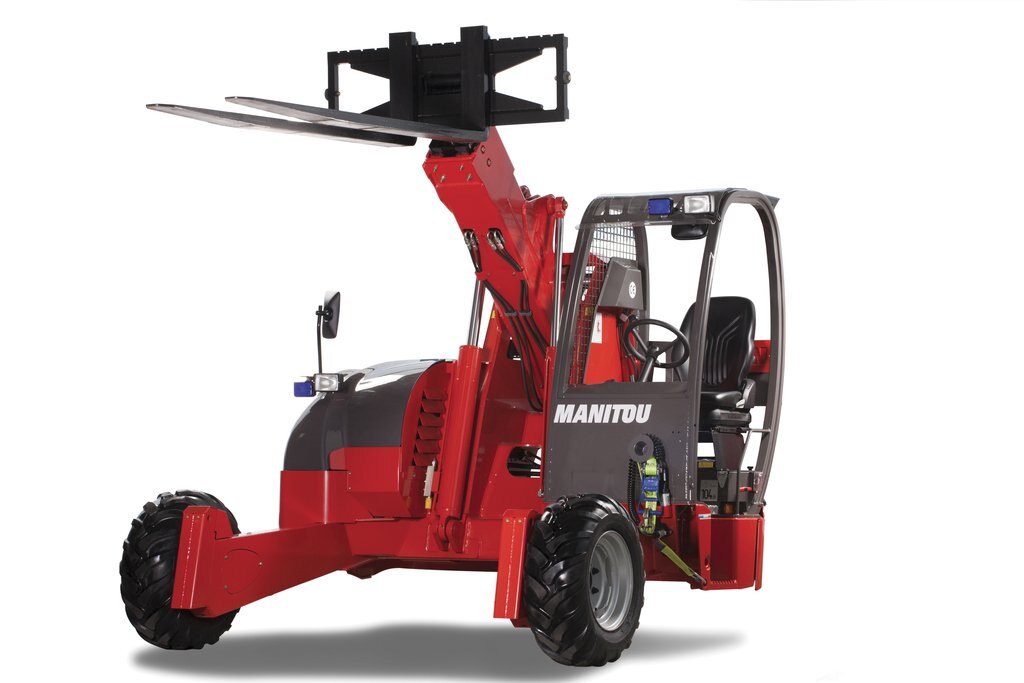

Manitou TMT 55 XT

Videos
Call for Price
Overview

Are you after an all-terrain truck-mounted forklift to use to load and unload lorries? The TMT 55 XT was designed by Manitou to make life easier for logistics professionals especially for those times when a loading/unloading bay is not available. It's particularly valuable in the construction sector, as you can deliver materials at the end of an unpaved path. Built to last, the TMT 55 XT features robust components for ease of upkeep. Payload is kept at a minimum for maximum cost effectiveness. Extremely stable, you can load and unload lorries from a single side, which is quite handy when you have to park alongside a wall or on the side of the road.

Specifications
Model
TMT
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
technical characteristics
Model Name
55 XT
Manufacturer
Manitou
Max. Capacity
2500 kg
Operator Type
Sitting
Reach Out Equipment
Telescopic boom
weight
Service Weight
2660 kg
wheels
Dimensions Of Rear Wheels
31 x 15,5 - 15"
Dimensions Of Front Wheels
31 x 15,5 - 15"
Drive Wheels (front / Rear)
2 / 1
Number Of Front Wheels / Rear Wheels
2 / 1
dimensions
Max. Outreach
1310 mm
Overall Width
2.57 m
Turning Radius
274 m
Max. Lifting Height
3430 mm
Forks Section / Width / Length
44 mm x 102 mm / 1219 mm
Height Telescopic Boom Extended
3915 mm
performances
Service Brake
Hydraulic
Transmission Type
Hydrostatic
Travel Speed (laden / Unladen)
11 km/h
engine
Rated Speed
2700 rpm
Engine Brand / Model
Kubota - Tier 4 final
Engine Power According To ISO 1585
37 kW
Number Of Cylinders / Capacity Of Cylinders
2434 cm³
miscellaneous
Oil Flow Rate For Attachments
46 l/min
Working Hydraulic Pressure For Attachments
245 bar
technical sheet
Name Link
Technical sheet Download
