ID # 15933162

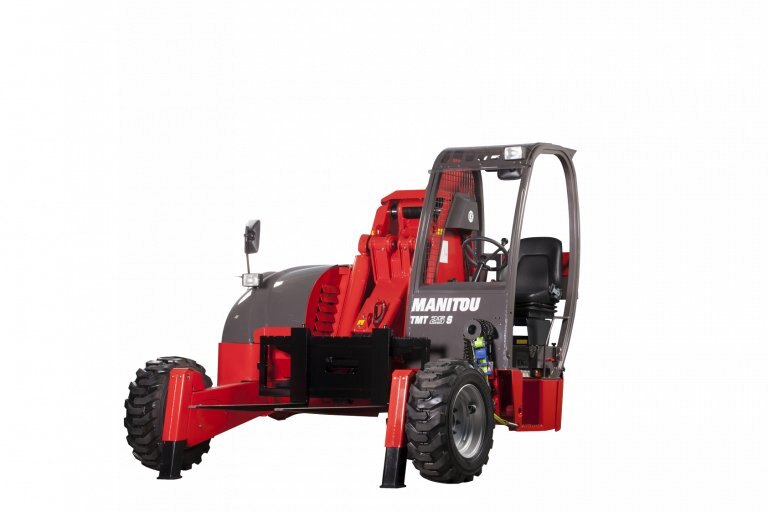

Manitou TMT 55 XT

  • Manitou TMT 55 XT
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Are you after an all-terrain truck mounted forklift to use to load and unload lorries? The TMT 55 XT was designed by Manitou to make life easier for logistics professionals for those times when customers don't have a loading/unloading bay. It's particularly valuable when dealing with the construction sector, as you can even deliver materials at the end of an unpaved path.Designed to last, the TMT 55 XT features robust components for ease of upkeep. Payload is kept at a minimum for maximum cost effectiveness. Extremely stable, you can load and unload lorries from a single side, which is quite handy when you have to park alongside a wall or on the side of the road.

  Dimensional drawing

                           TMT 55 XT                                          TMT 55 XT

TMT 55 XT



Load chart

           Machine on stabilizers with forks Metric                                 Machine on tyres with forks Metri

         TMT 55 XT          .        TMT 55 XT
MT 1840 A



Specifications
Model
TMT 55 XT
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Max. Reach
1310 mm
Model Name
TMT 55 XT
Rated Speed
2700 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
2.57 m
Service Brake
Hydrostatic
Service Weight
2660 kg
Engine Brand / Norm
Kubota - Tier IV Final
Max. Lifting Height
3430 mm
Travel Speed (laden)
11 km/h
Capacity Of Cylinders
2434 cm³
Length To Face Of Forks
2.85 m
Dimensions Of Rear Wheels
31x15,5-15
Dimensions Of Front Wheels
31 x 15,5 - 15"
Drive Wheels (front / Rear)
2 / 1
Engine Power According To ISO 1585
37 kW
Number Of Front Wheels / Rear Wheels
2 / 1
