Manitou

ID # 24548655

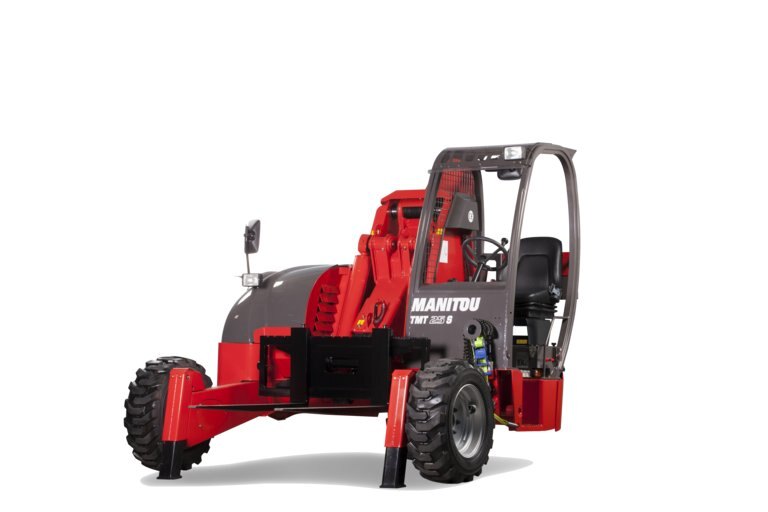

Manitou TMT 55 HT 4W

Videos
Call for Price
Overview

The TMT 55 HT 4W heavy-traction truck-mounted forklift designed for single-side loading and unloading of lorries and making customer deliveries even when ground conditions aren't as smooth as they could be, or when a loading/unloading bay is not available. It's incredibly useful in the construction sector for materials delivery with its increased robustness and reduced payload. Built to last, the controls are incredibly easy to grasp and upkeep has been simplifed as well. With offset and lateral movement modes, it can load and unload lorries from a single side with no problems. This is particularly useful when lorries are parked alongside a wall, on the side of the road or if you have to navigate a narrow path.

Specifications
Model
TMT
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
technical characteristics
Model Name
TMT 55 HT 4W
Manufacturer
Manitou
Max. Capacity
2500 kg
Operator Type
Sitting
Reach Out Equipment
Telescopic boom
weight
Service Weight
2883 kg
wheels
Dimensions Of Rear Wheels
31x15,5-15
Dimensions Of Front Wheels
31 x 10 - 16,5"
Drive Wheels (front / Rear)
2 / 1
Number Of Front Wheels / Rear Wheels
2 / 1
dimensions
Max. Outreach
1310 mm
Overall Width
2.57 m
Turning Radius
2610 mm
Max. Lifting Height
3430 mm
Forks Section / Width / Length
44 mm x 102 mm / 1219 mm
Height Telescopic Boom Extended
3915 mm
performances
Service Brake
Hydraulic
Transmission Type
Hydrostatic
Travel Speed (laden / Unladen)
11 km/h
engine
Rated Speed
2700 rpm
Engine Brand / Model
Kubota - Tier 4 final
Engine Power According To ISO 1585
37 kW
Number Of Cylinders / Capacity Of Cylinders
2434 cm³
miscellaneous
Oil Flow Rate For Attachments
46 l/min
Working Hydraulic Pressure For Attachments
245 bar
technical sheet
Name Link
Technical sheet Download
