ID # 15933161

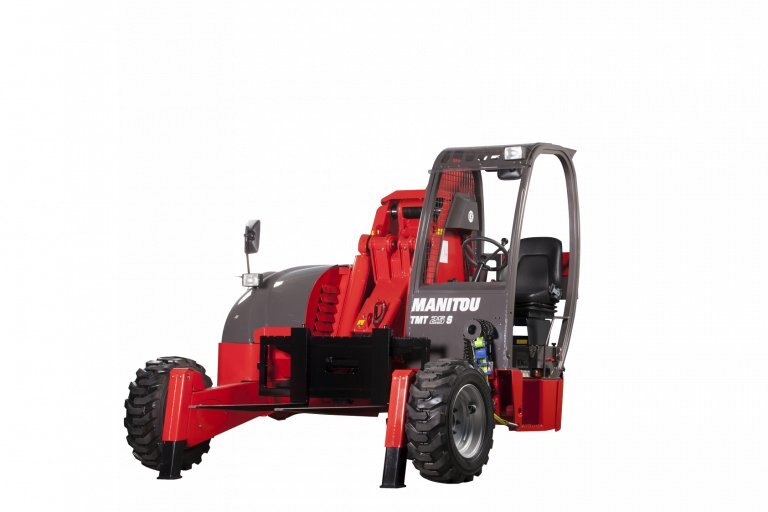

Manitou TMT 55 HT 4W

  • Manitou TMT 55 HT 4W
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The TMT 55 HT 4W is an all-terrain truck-mounted forklift designed for loading and unloading lorries and making customer deliveries even when ground conditions aren't as smooth as they could be, or when customers don't have a loading/unloading bay. It's incredibly useful in the construction sector for materials delivery with its increased robustness and reduced payload. Built to last, the controls are incredibly easy to to grasp and upkeep has been simplifed as well. With offset and lateral movement modes, it can load and unload lorries from a single side with no problems. This is particularly useful when lorries are parked alongside a wall, on the side of the road or if you have to navigate a narrow path.

  Dimensional drawing

     TMT 55 HT                                 TMT 55 HT

Load chart

           Machine on stabilizers with forks Metric                                           Machine on tyres with forks Metri

           TMT 55 HT 4W                          . TMT 55 HT 4W
MT 1840 A



Specifications
Model
TMT 55 HT 4W
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Max. Reach
1310 mm
Model Name
TMT 55 HT 4W
Rated Speed
2700 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
2.57 m
Service Brake
Hydrostatic
Service Weight
2883 kg
Engine Brand / Norm
Kubota - Tier IV Final
Max. Lifting Height
3430 mm
Travel Speed (laden)
11 km/h
Capacity Of Cylinders
2434 cm³
Length To Face Of Forks
2.92 m
Dimensions Of Rear Wheels
31x15,5-15
Dimensions Of Front Wheels
31 x 10 - 16,5"
Drive Wheels (front / Rear)
2 / 1
Engine Power According To ISO 1585
37 kW
Number Of Front Wheels / Rear Wheels
2 / 1
Documents
