ID # 38949235

Landini Trekker3 Compact Trekker 4-105 F-M

  • Landini Trekker3 Compact Trekker 4 105 F M
  • Landini Trekker3 Compact Trekker 4 105 F M
  • Landini Trekker3 Compact Trekker 4 105 F M
  • Landini Trekker3 Compact Trekker 4 105 F M
  • Landini Trekker3 Compact Trekker 4 105 F M
  • Landini Trekker3 Compact Trekker 4 105 F M
  • Landini Trekker3 Compact Trekker 4 105 F M
  • Landini Trekker3 Compact Trekker 4 105 F M
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

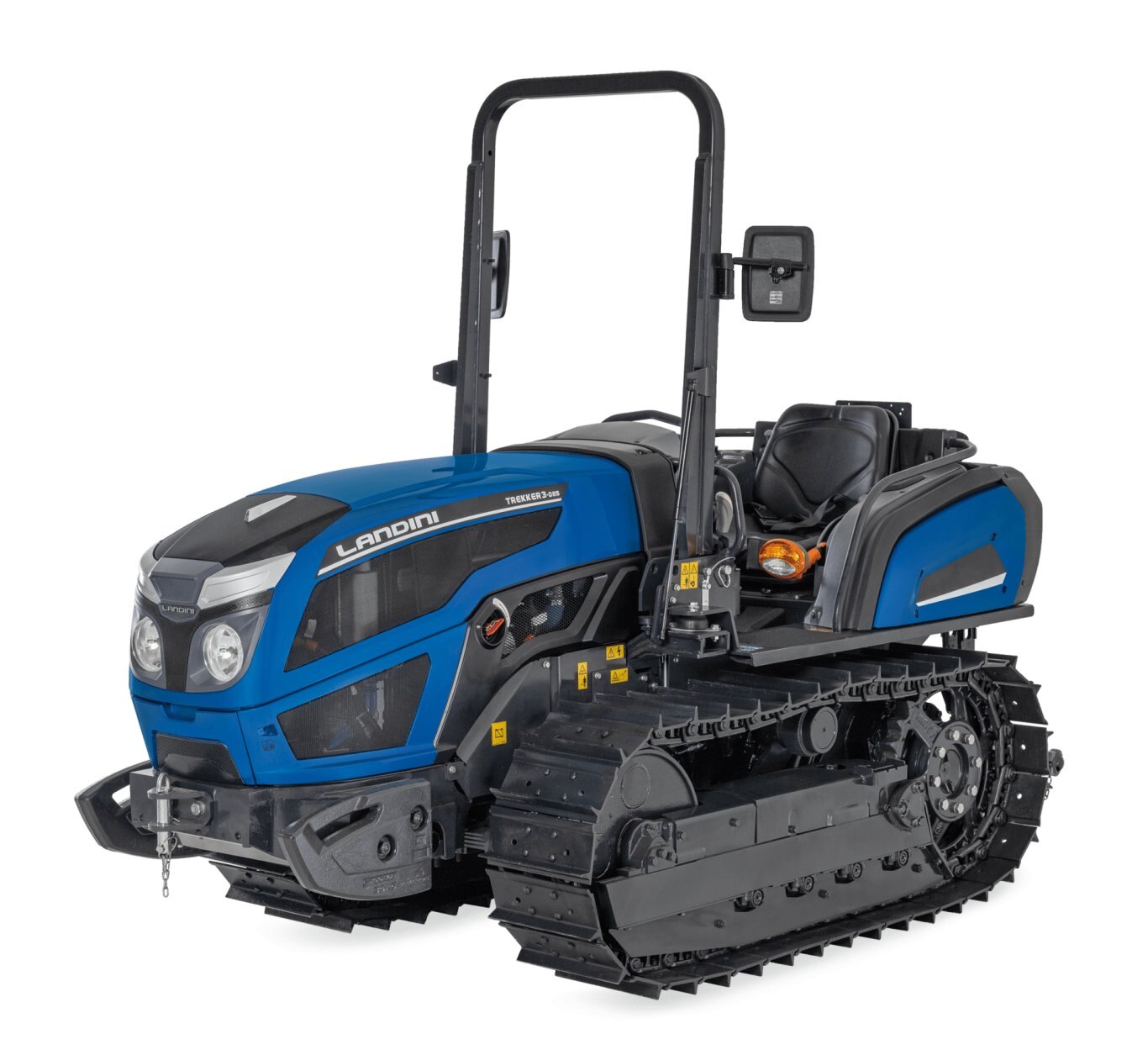

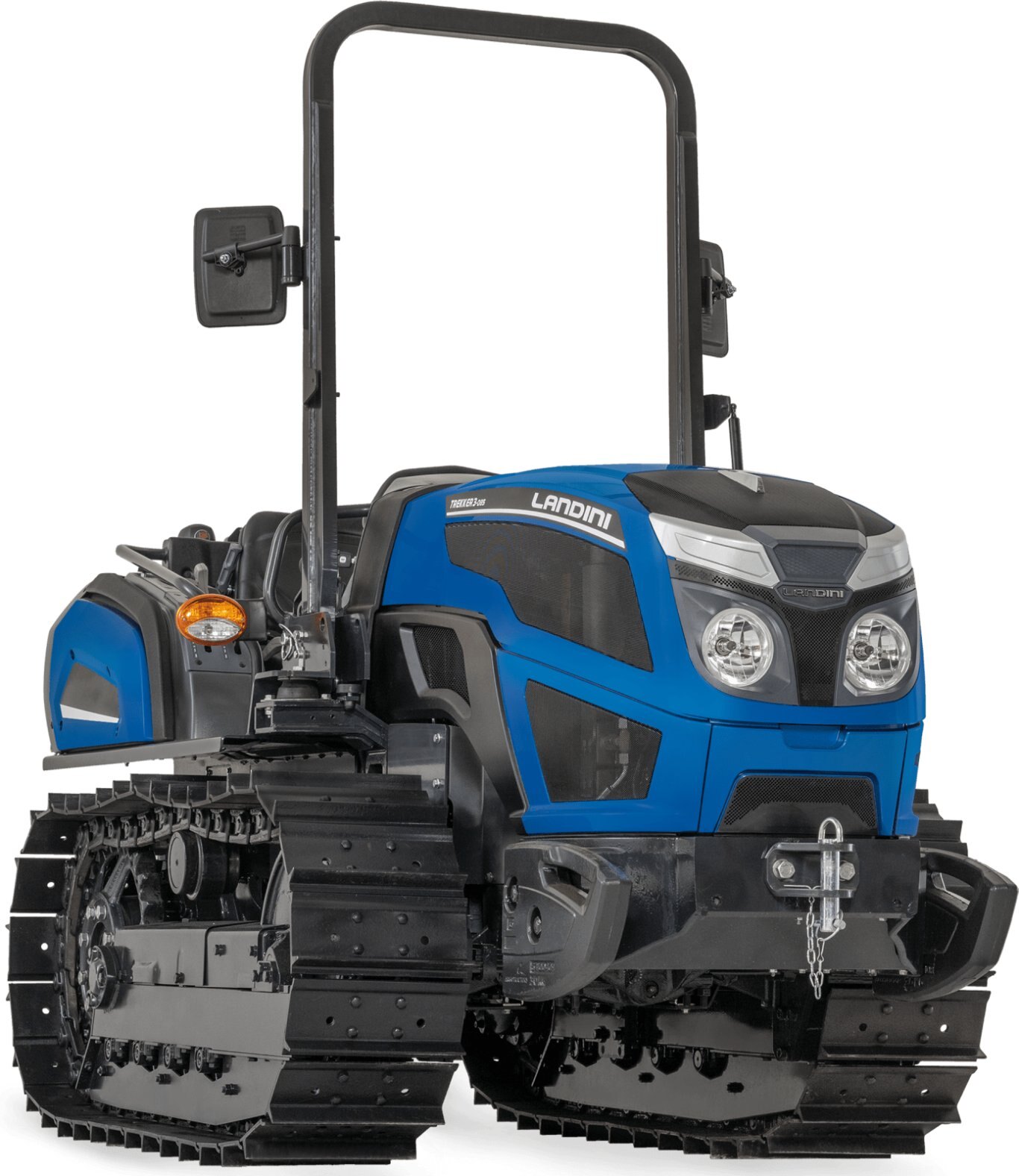

Trekker3 Compact, The most compact crawler tractor in its class

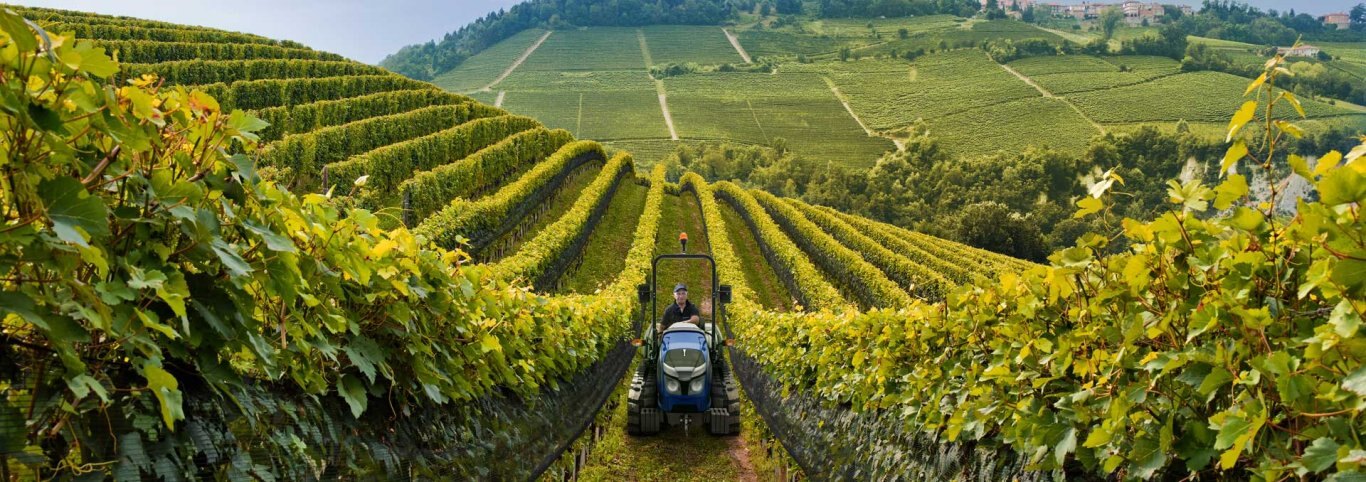

Trekker3 Compact, a tracked tractor specially designed for use in narrow-row orchards and vineyards. Compact, nimble and efficient, the Trekker3 Compact will tackle tough terrains and steep inclines with ease, reaching where conventional tractors cannot reach. Excellent manoeuvrability, agility and safety: with a minimum width of only 1150 mm, the Trekker3 Compact is the most compact crawler tractor in its class; and thanks to a ground clearance of just 230 mm, it delivers high levels of efficiency even in the most challenging conditions.











Specifications
Model
Trekker 4-105 F-M
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Landini
Type
Speed Four
Engine Type
TCD 2.9 L4 HP
Fuel Tank L
80
Max Torque Nm
400
Braking System
Hydrostatic wet multidisc graphite brakes
Cooling System
Liquid
Air Filter System
Power Core
Air Intake System
Turbo aftercooled
Displacement Cm 3
2900
Cylinders / Valves
4 TA / 8
Emissions Category
Stage V
Engine Manufacturer
Deutz-AG
Maintenance Interval
1000 hours
Fuel Injection System
Electronically controlled high pressure common rail
Max Power (ISO) Hp/kW
95 / 70
After-treatment System
DOC+DPF+SCR+AdBlu
Rated Engine Speed Rpm
2200
Max Operating Pressure Bar
180
Max Power Engine Speed Rpm
1900
Max Torque Engine Speed Rpm
1600
resources
Name Link
Brochure                                                                            Download



key features

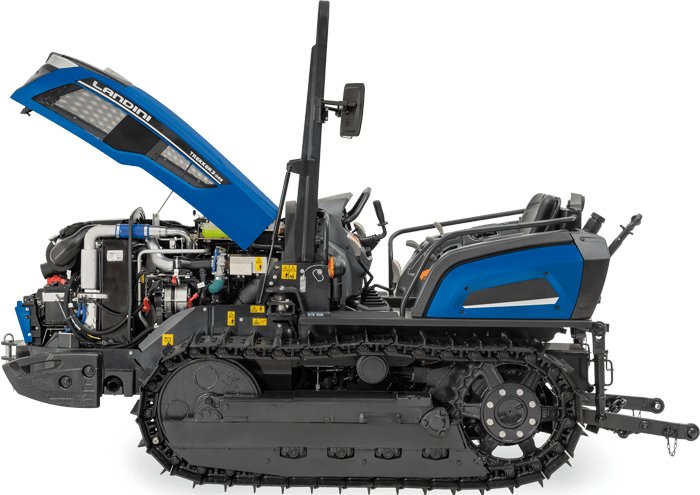

Landini Trekker3 Compact Trekker 4 105 F M Kohler engine

The new super compact Stage V KOHLER KDI 2504 2.5-litre, 75-hp, four-cylinder turbo aftercooled engine with common rail injection system is designed for maximum efficiency and long-lasting performance.

Landini Trekker3 Compact Trekker 4 105 F M Speed Four transmission

Entirely designed and manufactured at Landini’s facility, the Speed Four transmission with Hi-Lo stands for strength, efficiency and reliability. It features four synchronised gears and two mechanical ranges providing 16F/8R speeds.

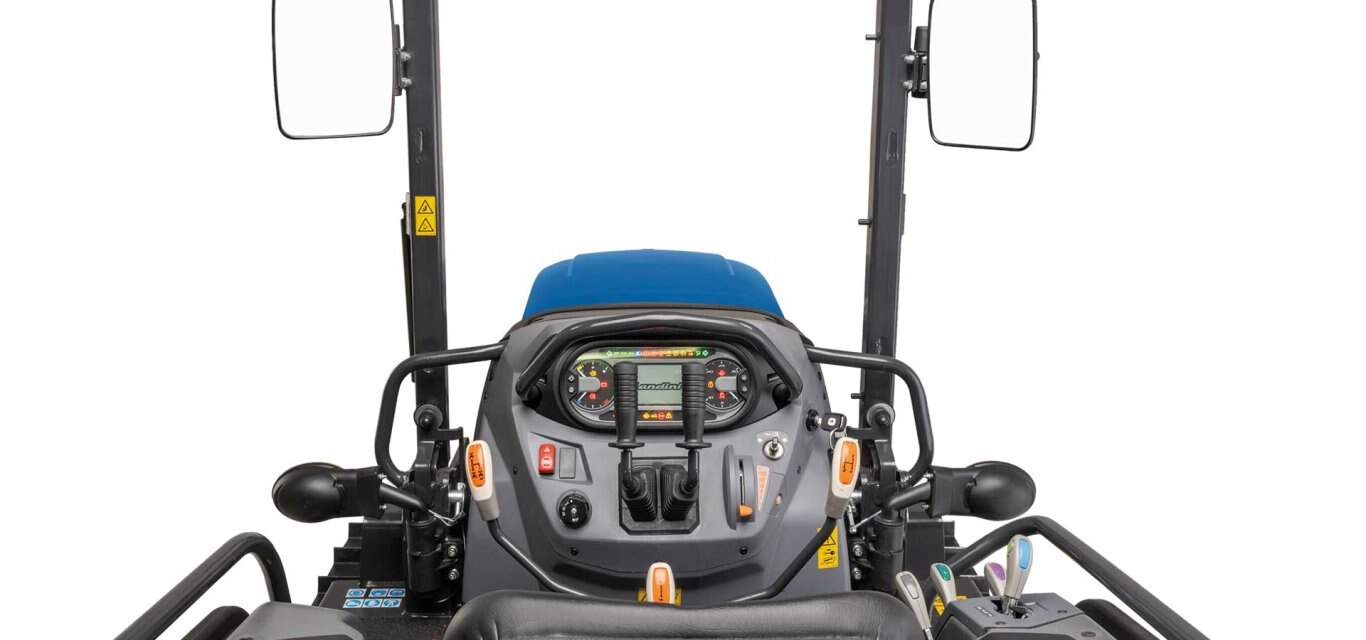

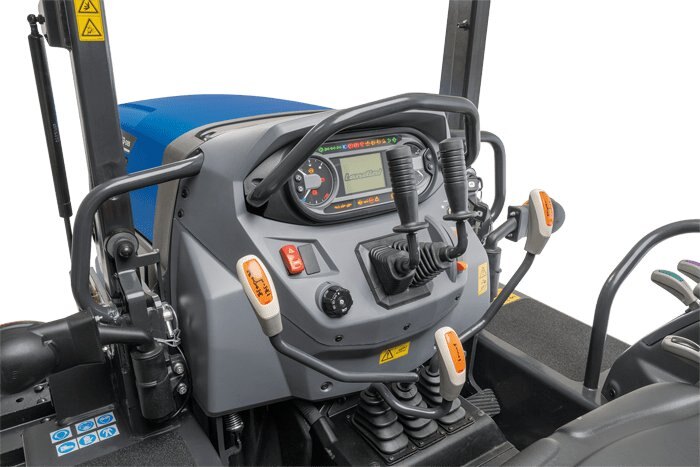

Landini Trekker3 Compact Trekker 4 105 F M Driving position

The platform is suspended on Hydro-Silent Blocks to isolate the driving position from engine heat and to reduce vibrations generated by rough terrain and mechanical parts, ensuring a level of comfort never before achieved.

Landini Trekker3 Compact Trekker 4 105 F M Open-centre hydraulic circuit

The hydraulic system is open-centre with a double pump, with 30 litres/minute for steering and 50 for the other services. Two rear spool valves are standard on this range.
