• up to 110 foot spray swath, depending on crop and wind conditions
• 160 gallon poly tank
• Dual stage 34 gpm centrifugal pump,
• Hydraulic duct controls standard
• Chemical container rinse system
• 3 gallon Hand wash/eye splash system
• Mechanical and bypass agitation
• Suction filter with shutoff and washable 40 mesh element
• J600CHT uses tractor hydraulics for duct control and manual spray control
• J600 Electronic has self contained hydraulic system for duct control and electric spray control

• Empty weight: approximately 849 lbs.
• Recommended tractor – 60 horsepower and above
• Optional electric spray control for J600CHT - #ELCKIT2

• Optional duct extension kit...39 inch #1198856 available for either model
• Optional duct extension kit...78 inch #440727 available for either model

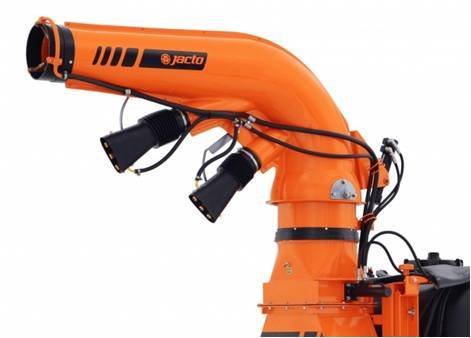

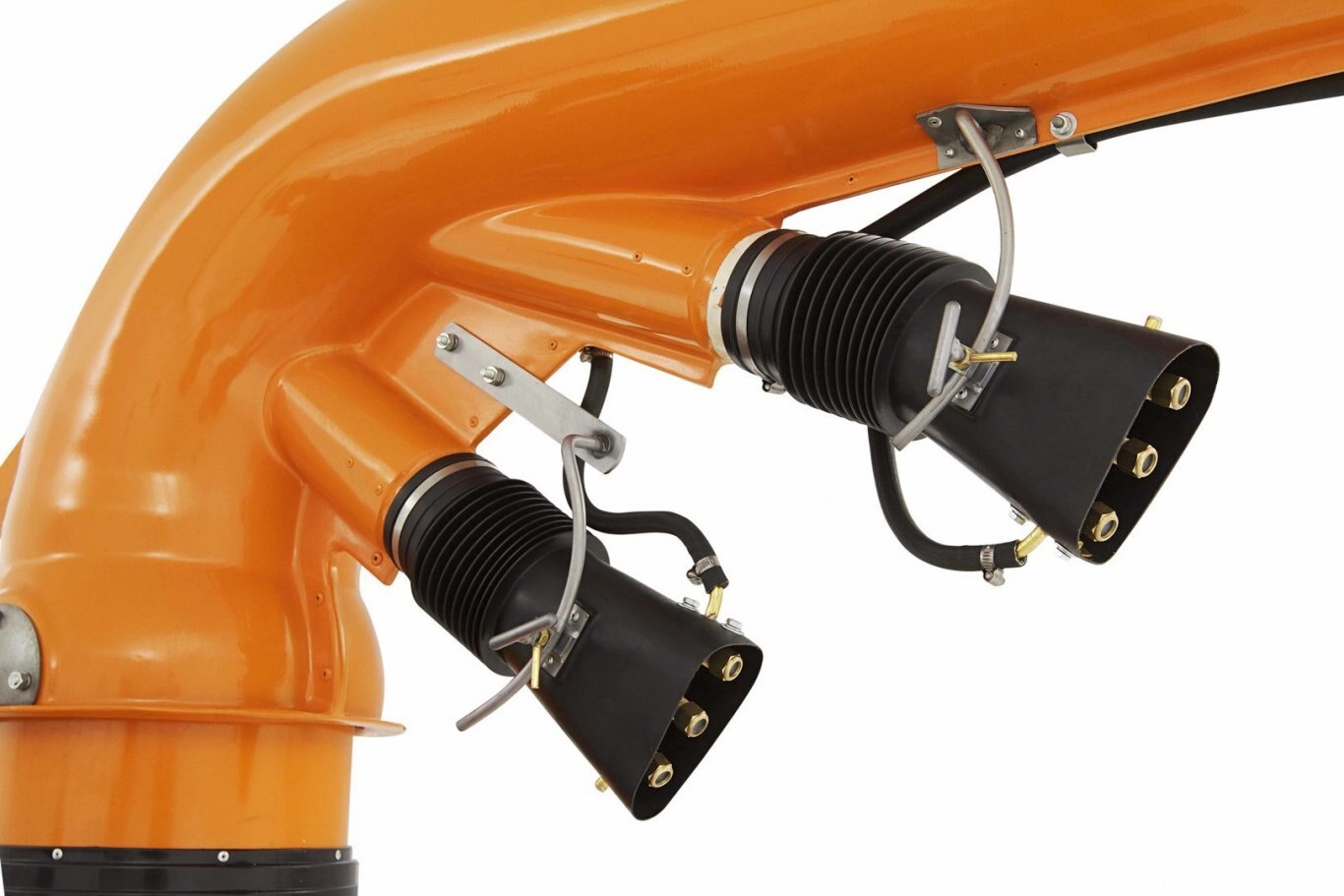

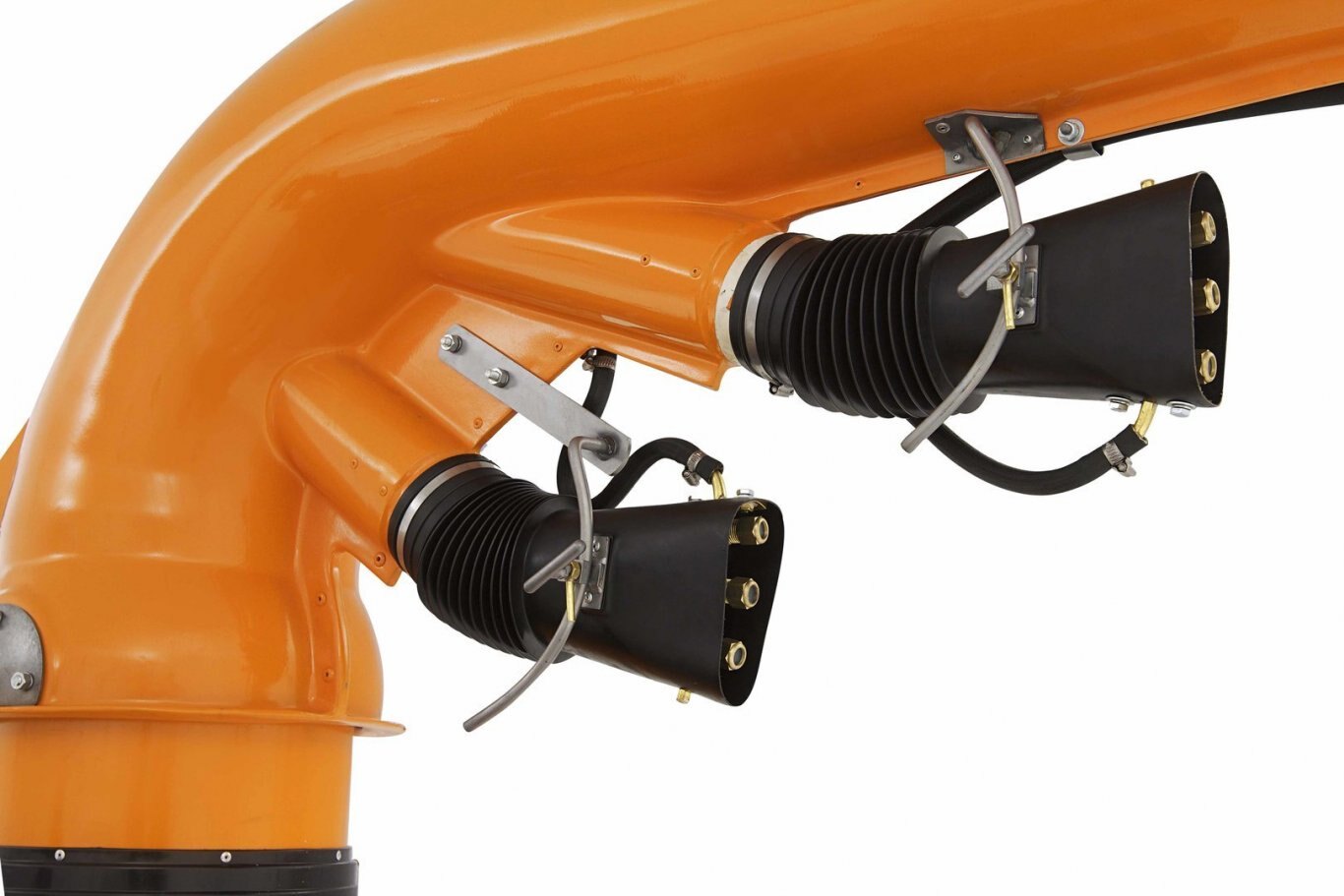

CANNON Duct

ELECTRIC CONTROL

For growers with cab tractors we offer an optional electric valve kit with in-cab controller for the J600CHT. Electric controls are standard with the J600EL.

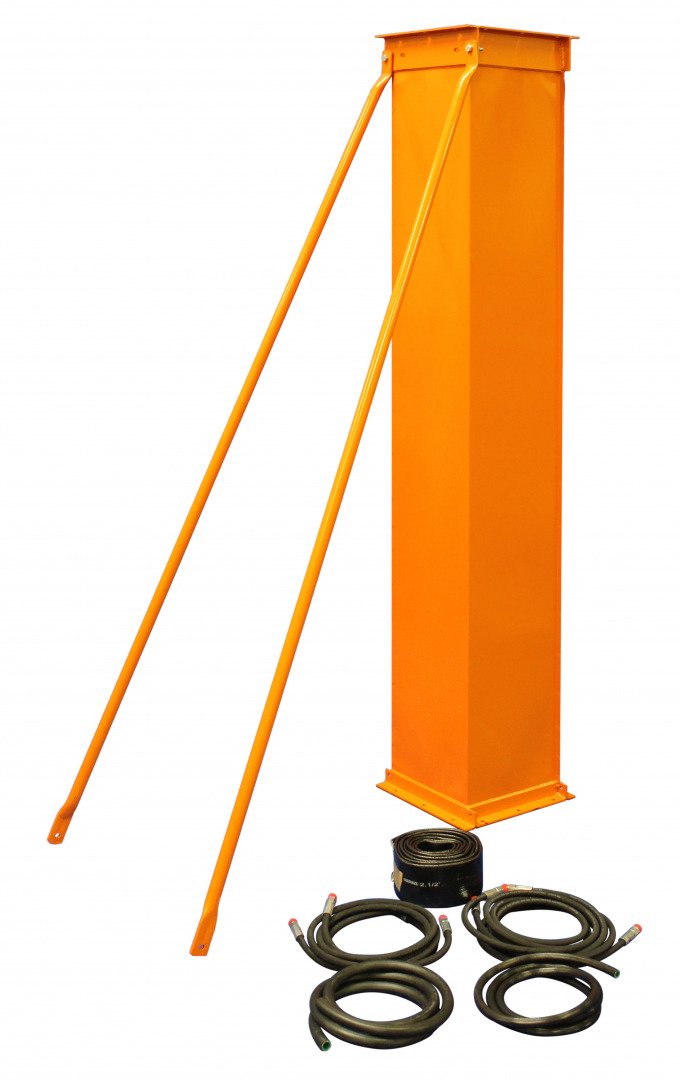

EXTENSION

Optional duct extension kit. In crops such as highbush blueberries, certain varieties of sweet corn and taller nursery or nut trees, it may be desirable to add the 39 or 78 inch duct extension. These extensions mount to the top of the fan housing before the outlet duct to raise the whole assembly. This higher mount allows you to achieve proper spray angles across, down and through the crop.
