Jacto - A 2000 Sapphire EL

  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
  • Jacto A 2000 Sapphire EL
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

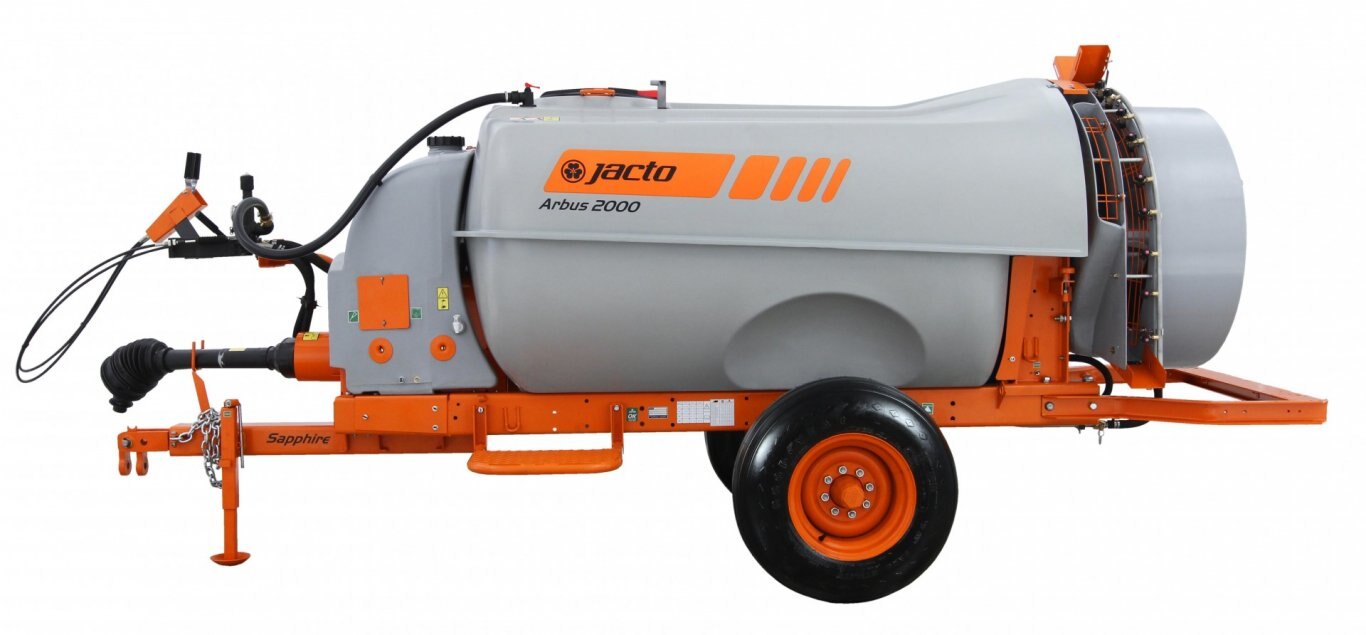

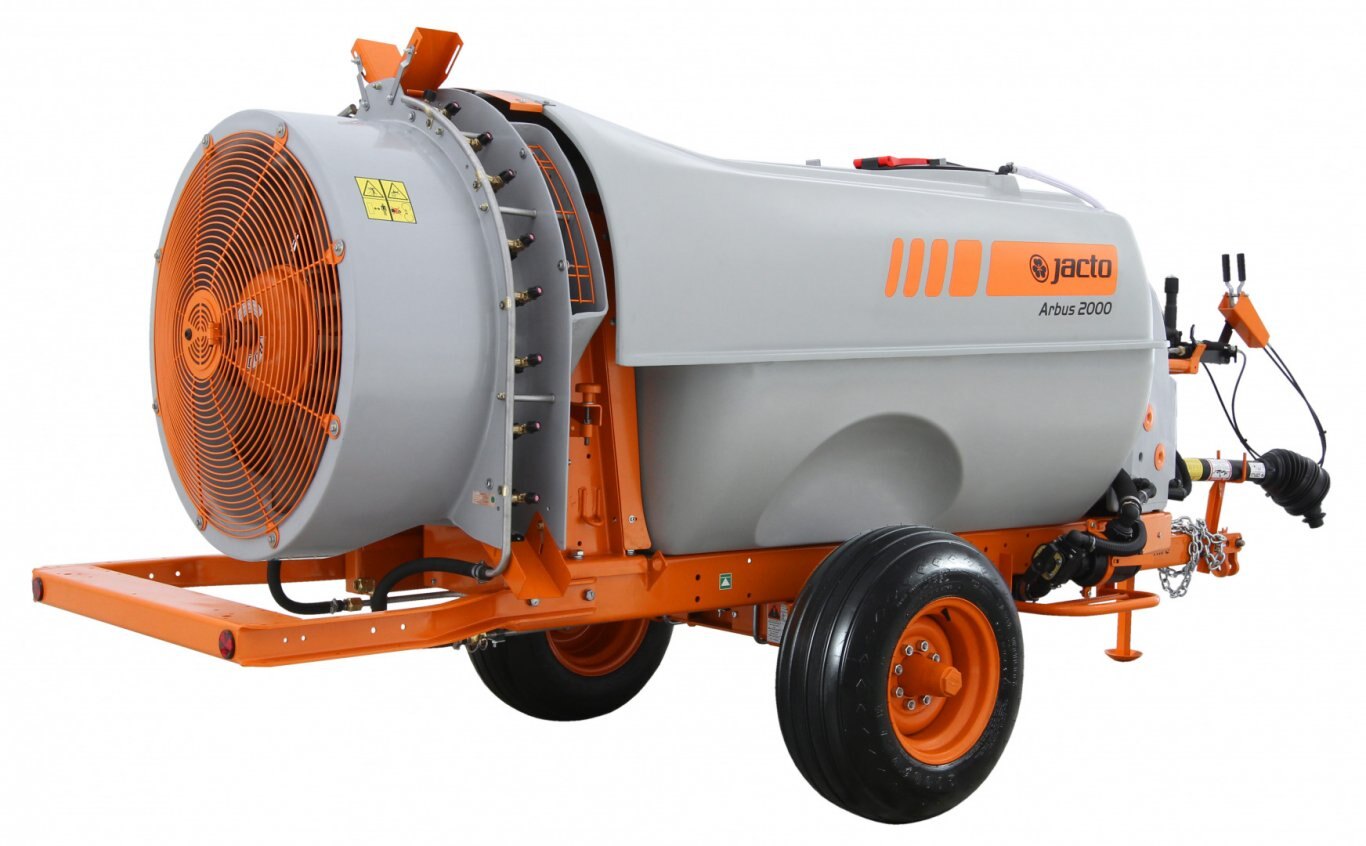

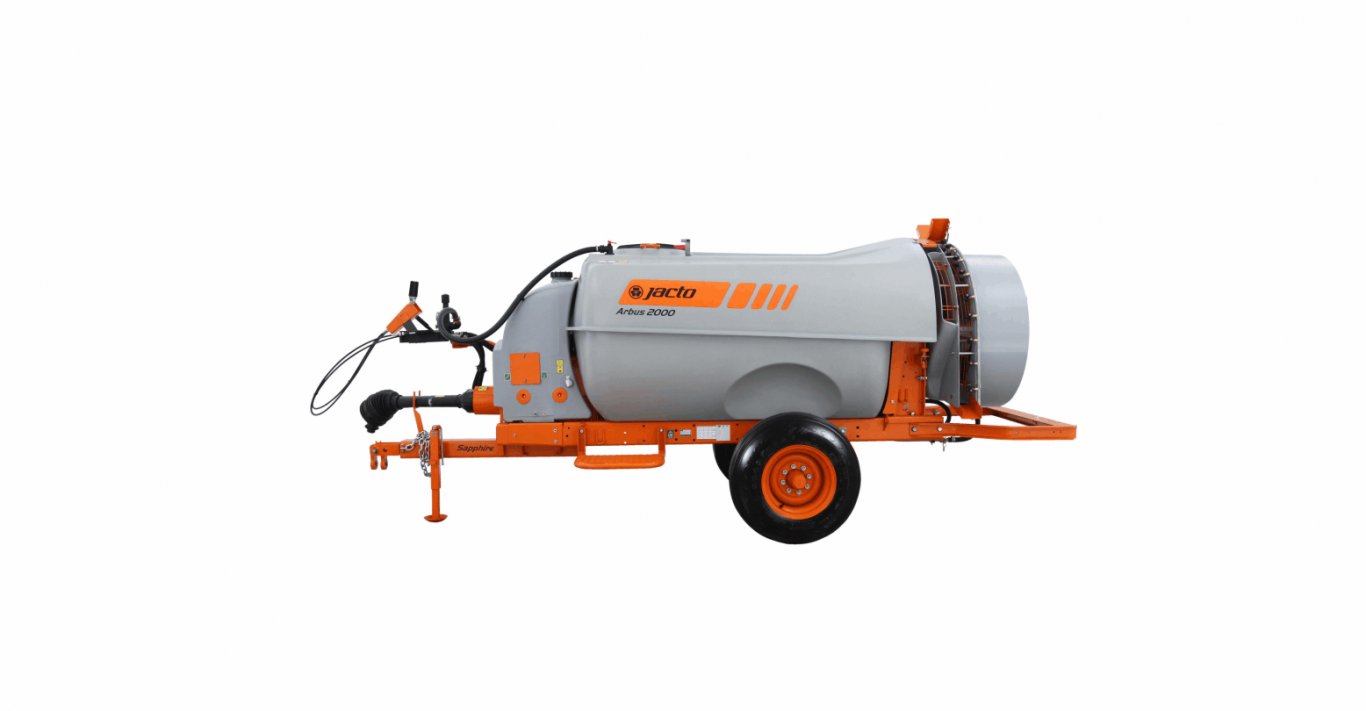

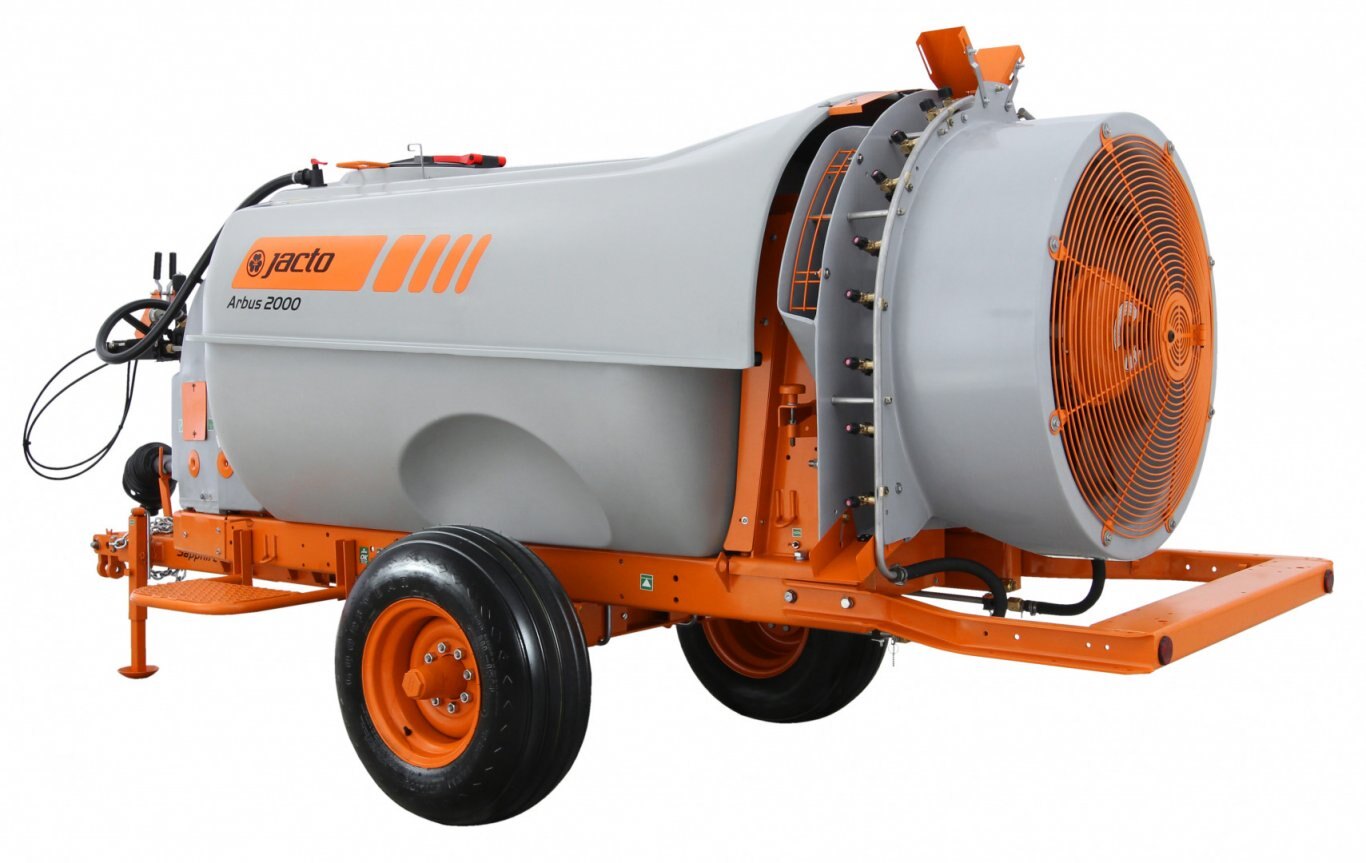

Jacto A 2000 Sapphire ELJacto's Arbus Sapphire 530 gallon trailed airblast sprayer offers incomparable performance in a wide variety of crops, such as highbush blueberries, apples, stone fruits, grapes, nuts, avocados, citrus and large nursery trees.

Jacto's 33" two port fan delivers almost 51,000 CFM of air volume at air speeds up to 78 MPH. Combining this high performance fan with Jacto's JP190 50 GPM ceramic cylinder high pressure piston pump gives you superior performance in spray deposition, to penetrate the densest canopies up to 25 feet plus.

With standard features that are options on most other sprayers, such as double flip over anti-drip nozzle holders with ceramic nozzles and electric on/off valves for spray control and in-cab controller, the Sapphire is easy on your pocketbook and the environment, while providing excellent coverage for eliminating diseases and pests.

A constant velocity wide angle PTO shaft is standard to allow for tighter turns without having to have a heavy turning hitch or consuming extra horsepower.
Specifications
Model
A 2000 Sapphire EL
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                 Download
Operators Manual                     Download
Illustrated Parts List                  Download



features

Jacto A 2000 Sapphire EL • 530 gallon fiberglass tank, trailer mounted

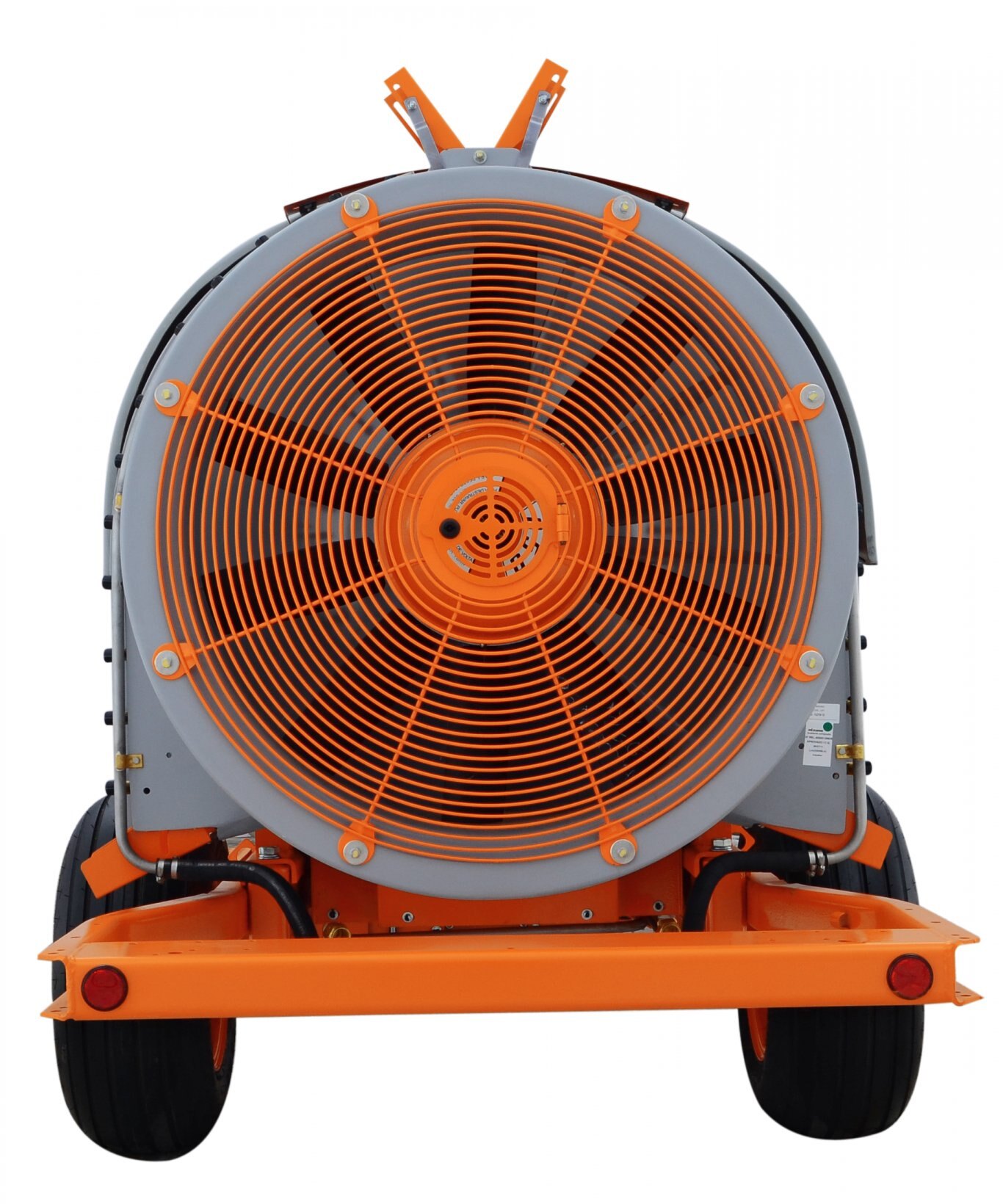

• 33 inch diameter fan-2 port fan low-mount

• 11L-15 10-ply tires

• Fan disconnect for ease of filling, mixing and when using a hand gun

• Jacto JP190 ceramic cylinder piston pump – 50 gpm @ up to 300 psi

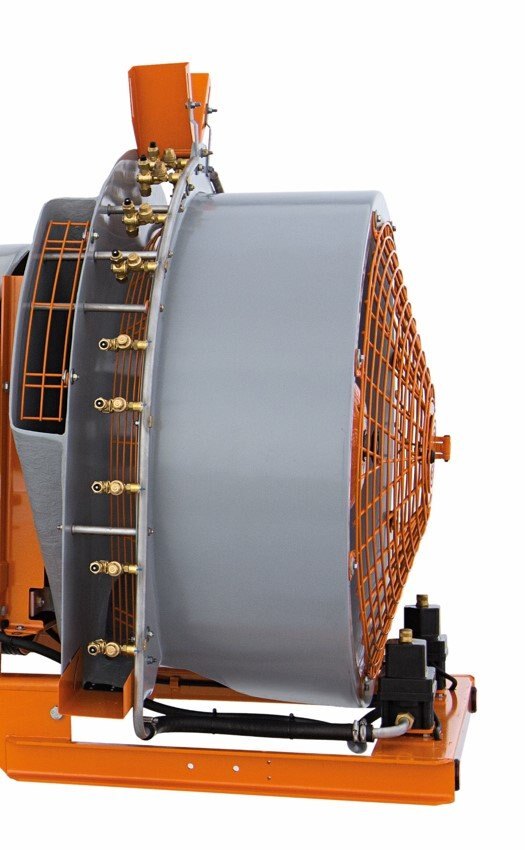

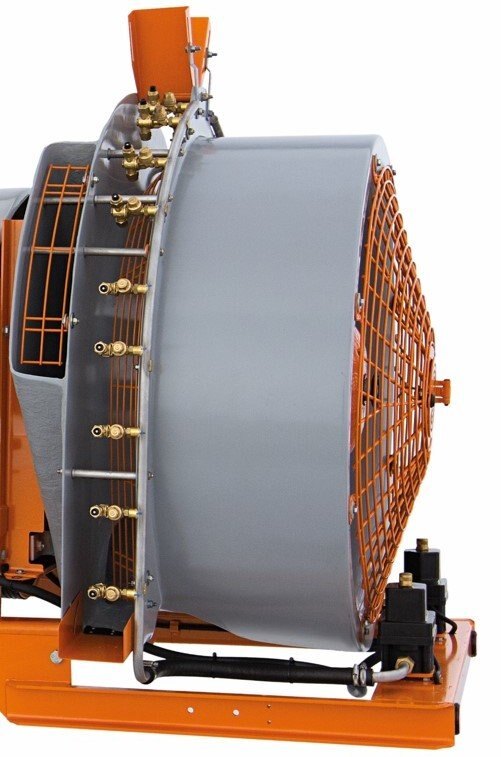

• 18 Anti-Drip double flip-over nozzle holders and 36 ceramic nozzles

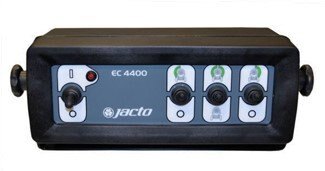

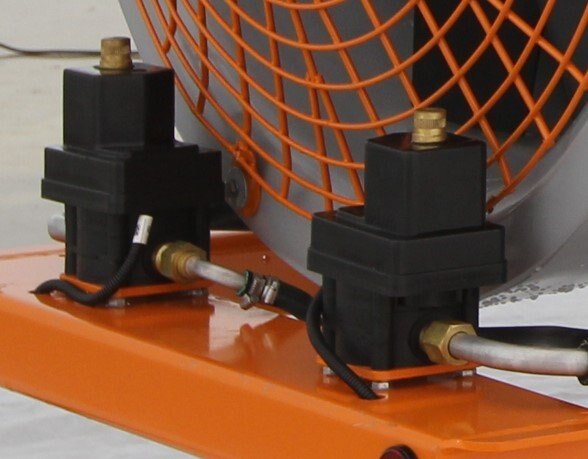

• Electric spray control valves with in-cab controller are standard

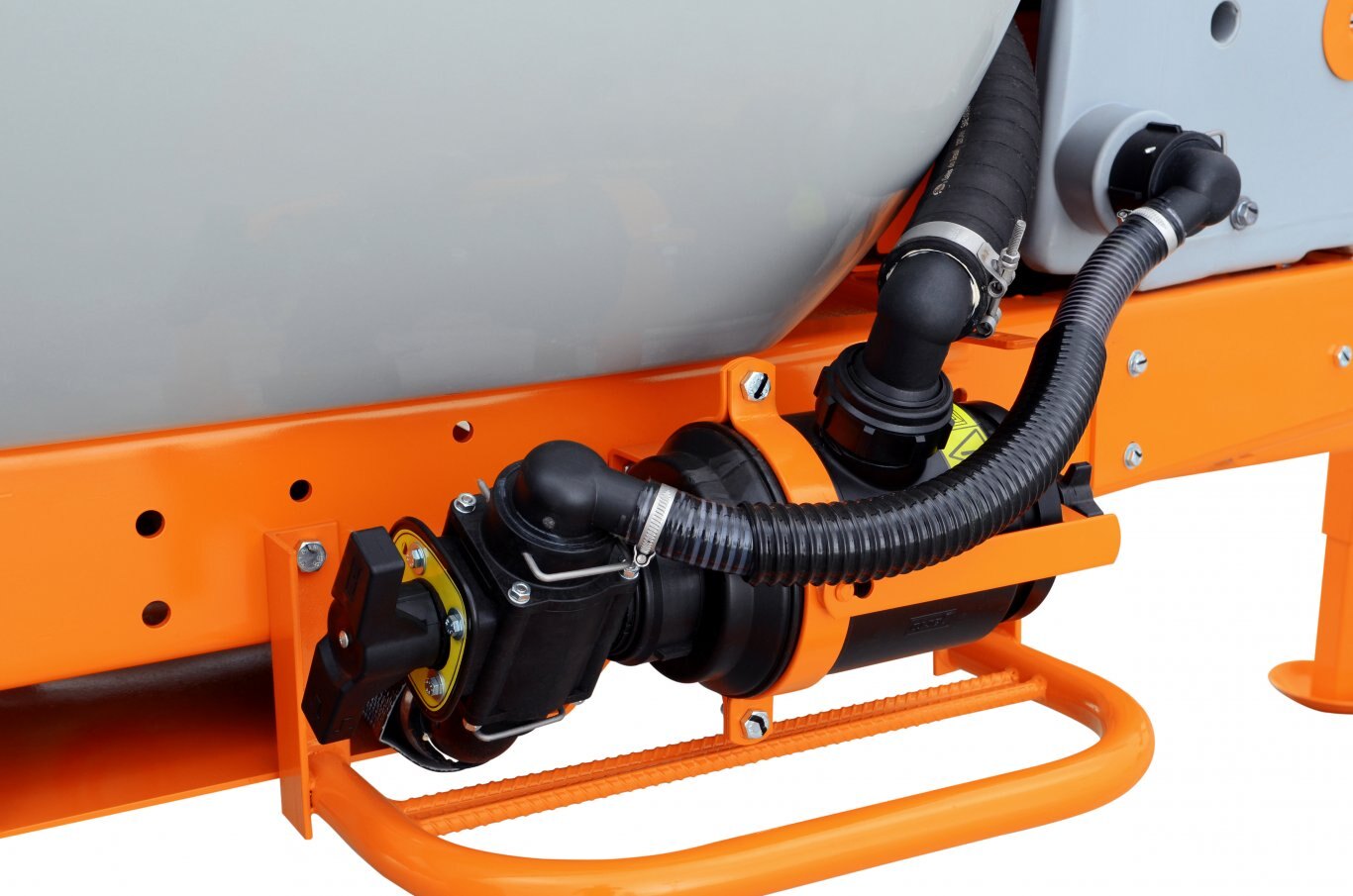

• Suction filter with shutoff and washable mesh elements

• Wide angle CV PTO shaft standard

• Adjustable axle height

• Multi blade mechanical and hydraulic agitation

• Chemical container and fresh-water rinse systems

• Recommended tractor – 80 HP and above

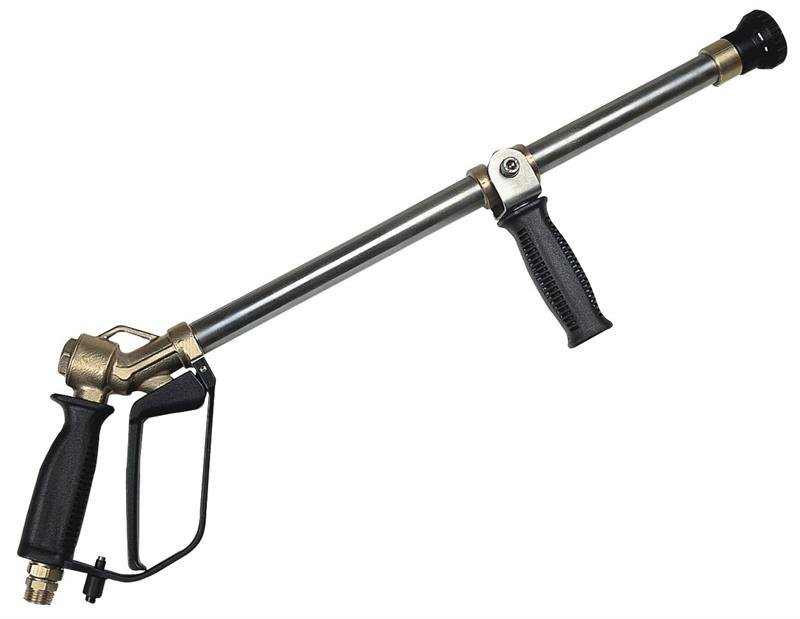

Jacto A 2000 Sapphire EL Optional Spray Handgun with Wand

You can add an optional handgun and spray hose for use with your A2000 Sapphire EL in manual mode. You will need the following parts to complete a handgun installation. Handgun with wand #002203F, adapter from handgun to 1/2" hose #006330 and quick connect fitting with o-ring from hose to machine #636407 + 440982. 1/2" hose sold separately.
a 2000 sapphire el
Crop
Fruits
Mesh
24/40 Dual mesh
Width
60 to 73 inches, adjustable
Length
175 inches
Height
80 inches in high axle position
FAN Size
33 inches
Material
Fiberglass
Agitation
Multi blade mechanical and bypass agitation
Air Speed
78 mph
Area Size
Up to 500 ha / Over 500 ha
Air Volume
50,853 cfm
PTO Speed
540 rpm
PUMP - Model
Jacto JP-190 Piston Pump
Pump Capacity
50 gpm
TANK Capacity
530 gallons
FILTER - Model
FVS 200
Axle Track Width
55 to 61 inches
Ground Clearance
8 or 15 inches, two position axle height
Net Weight (Empty)
1,543 lbs
Pump Power Consumption
10.8 hp at 300 psi
Recommended Tractor Size
80 hp and above
Maximum Power Consumption
40 hp
Recommended Working Speed
1 to 4 mph
