Jacto

ID # 24548198

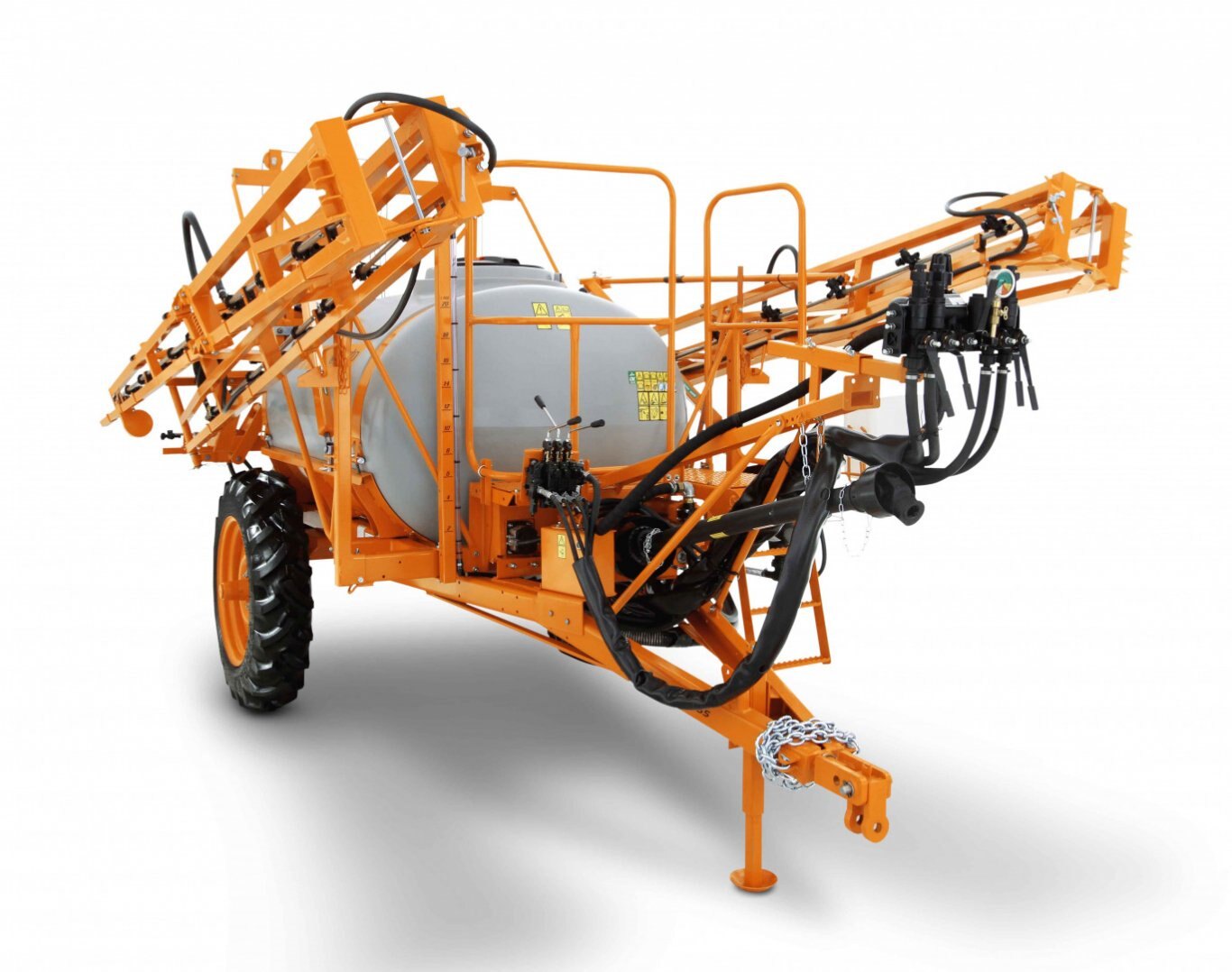

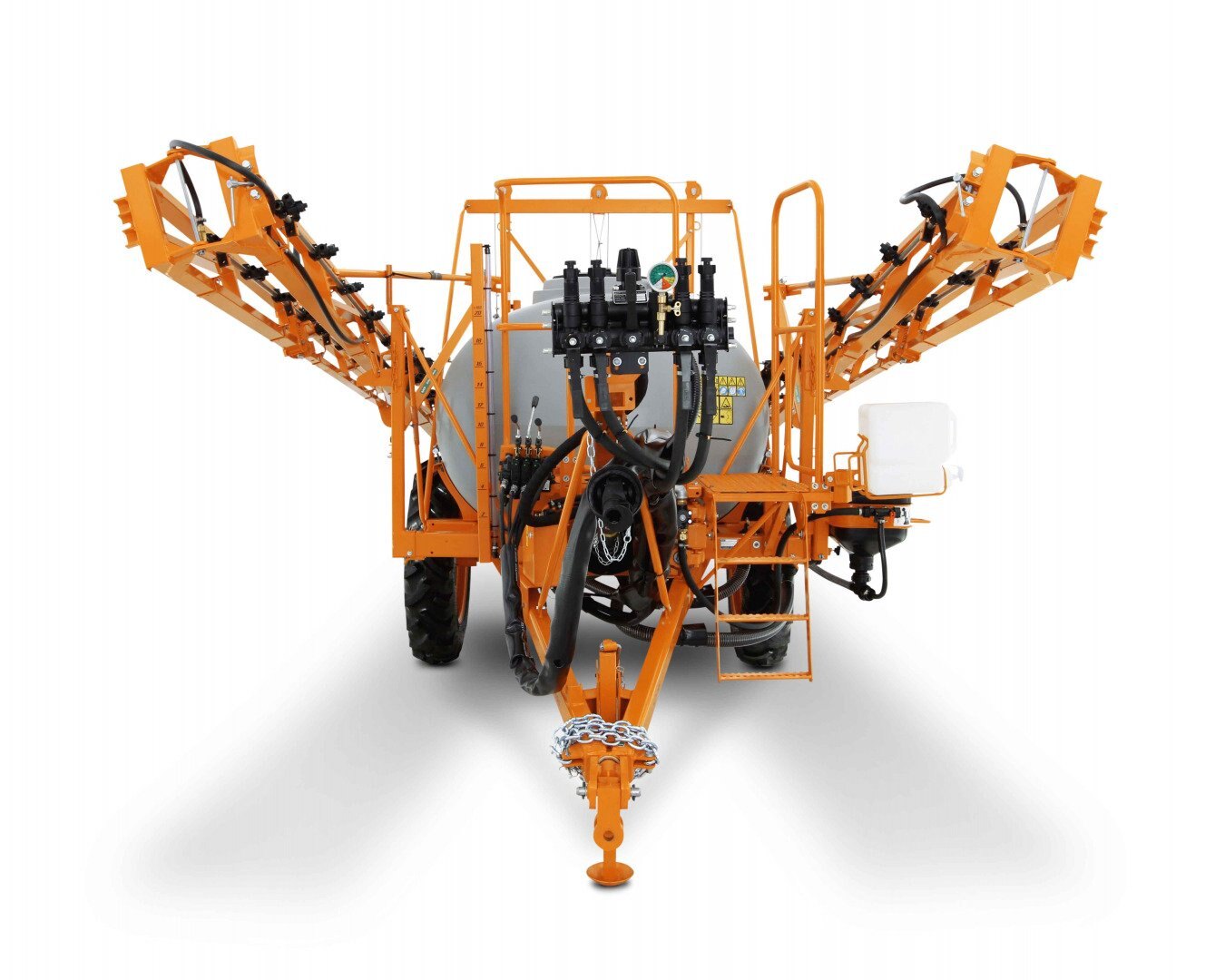

Jacto - Columbia Cross

Call for Price
Overview

Robustness and versatility to

protection of your crops.

Jacto Columbia Cross Operation Savings

29 feet semi-hydraulic boom, allows you can cover more area in less time.

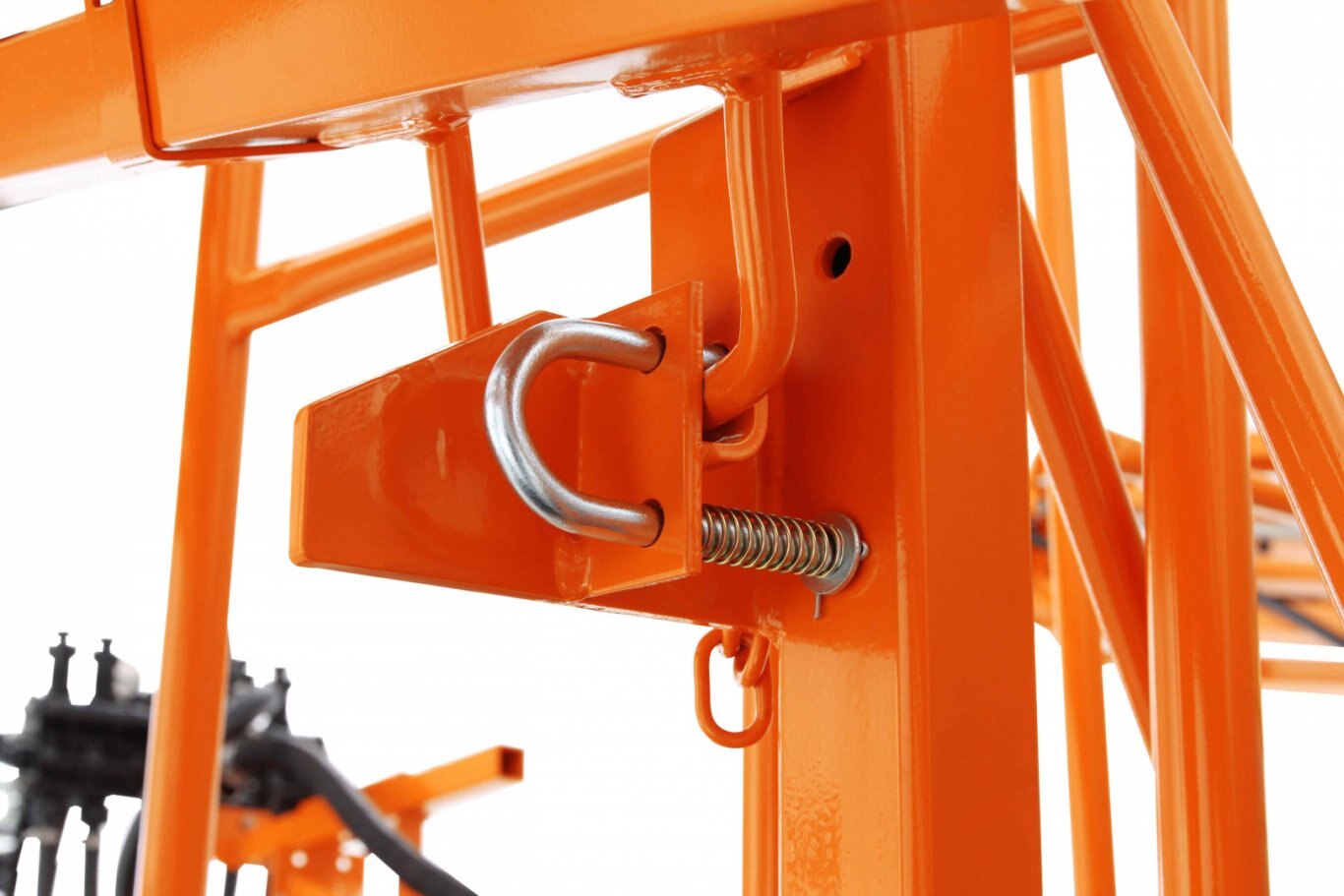

Jacto Columbia Cross Stability

Trapezoidal suspension

With shock absorbers and springs in the frame of the boom, it reduces the impact of vibrations caused by the unevenness of the field, providing greater stability to the boom, better quality of application and excellent daily production.

Jacto Columbia Cross High Resistance and Practicality

528 gal tank, made of polyethylene, with a polished finish on the internal and external surfaces to facilitate cleaning. Resists impacts and corrosions.

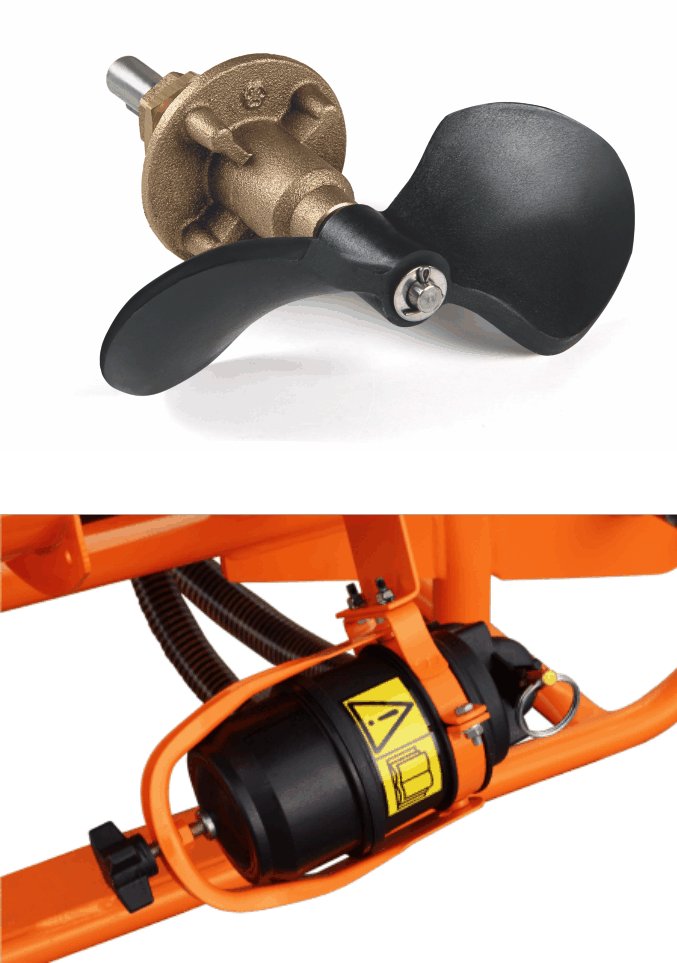

Jacto Columbia Cross Perfect Combination

Mechanical chemical agitation, agitation of the chemical through a polyethylene propeller, providing greater homogenization.

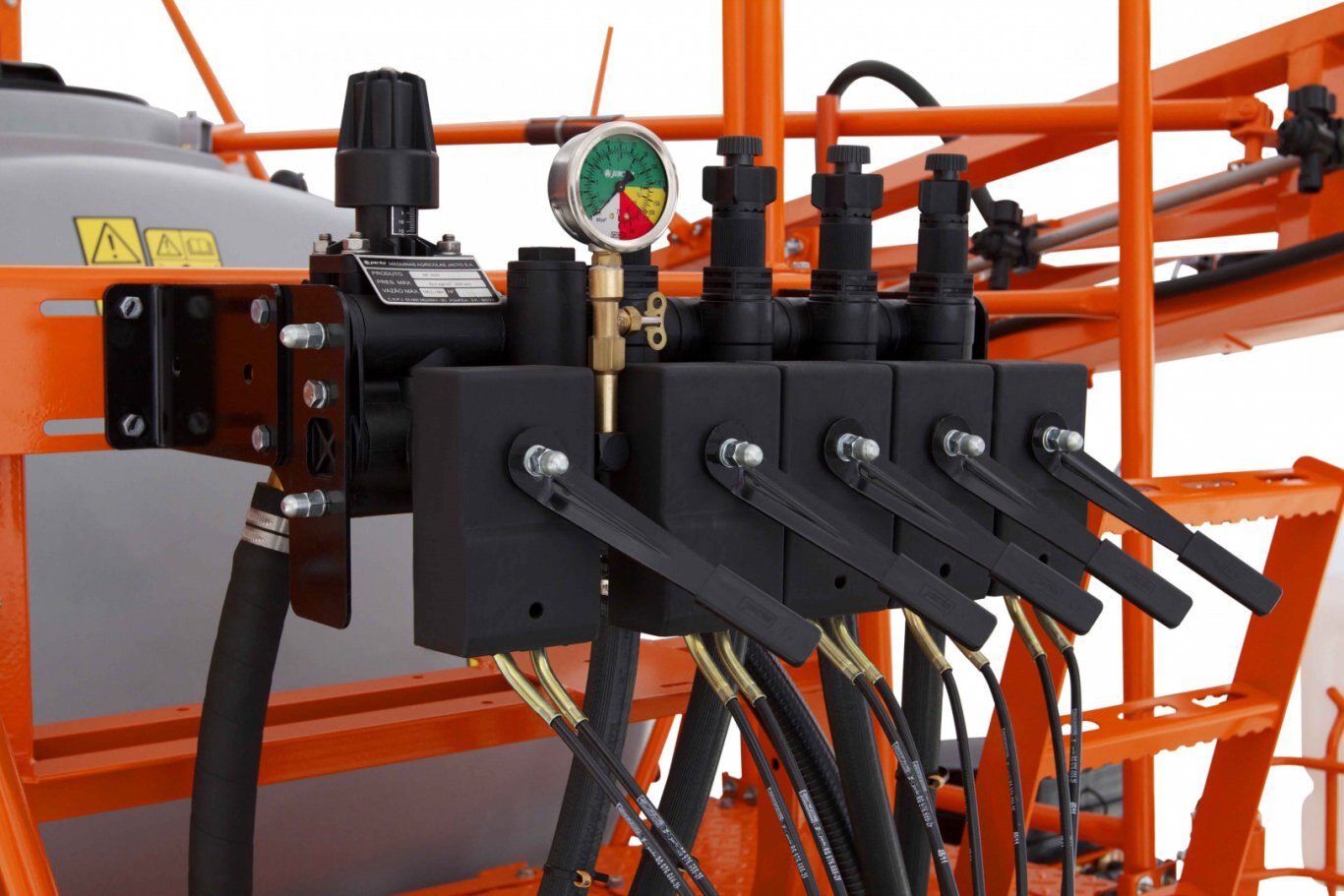

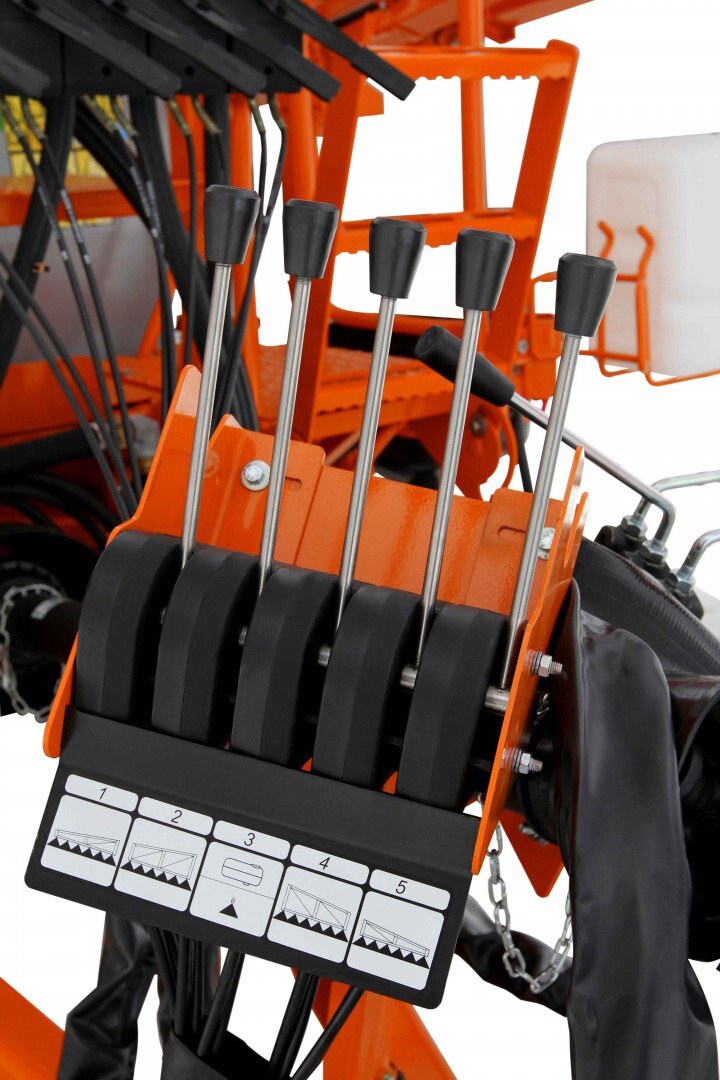

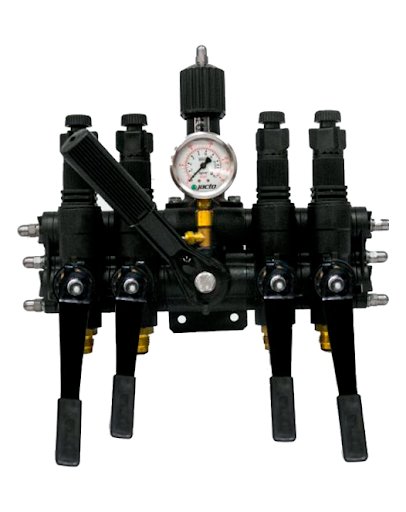

Jacto Columbia Cross Pressure in the Right Measure

For better spray control, the Columbia Line has several options for spray commands and boom activation. The farmer can choose between the 4-way masterflow manual or 4-way masterflow cable.
Specifications
Model
Columbia Cross
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                   Download



spraying
Crop Cereals Vegetables Sugar Cane Flowers
Tank Capacity
528 gal
Material
Polyethylene
Chemical Solution Agitation
Mechanical
Spray pump Model
JP-100 / JP-150
Type
Piston
Maximum flow rate
26 / 40 gpm
Power consumption
6 hp / 11 hp
Main Filter Model
FVS-100 / FVS-200
Filtering capacity
27 gpm / 53 gpm
Filter Mesh
60 / 24 and 40
Area size Up to 1235 ac
Spray control

MF 4 ways by lever

MF 4 ways cable

Trailer

Axles

Cross

Track width

5 ft to 6,4 ft

Ground clearance

23,6 in

Tires

9,5/9 x 24

Clean water tank

Capacity

4 gal

Tank capacity

53 gal

Material

Polyethylene

Precision Agriculture GPS - Lightbar GPS signal conrrections
Dimensions

Length

15

Maximum Width

8,5 ft

Height

8,5 ft

Weight

Empty machine

2557 lb

Boom

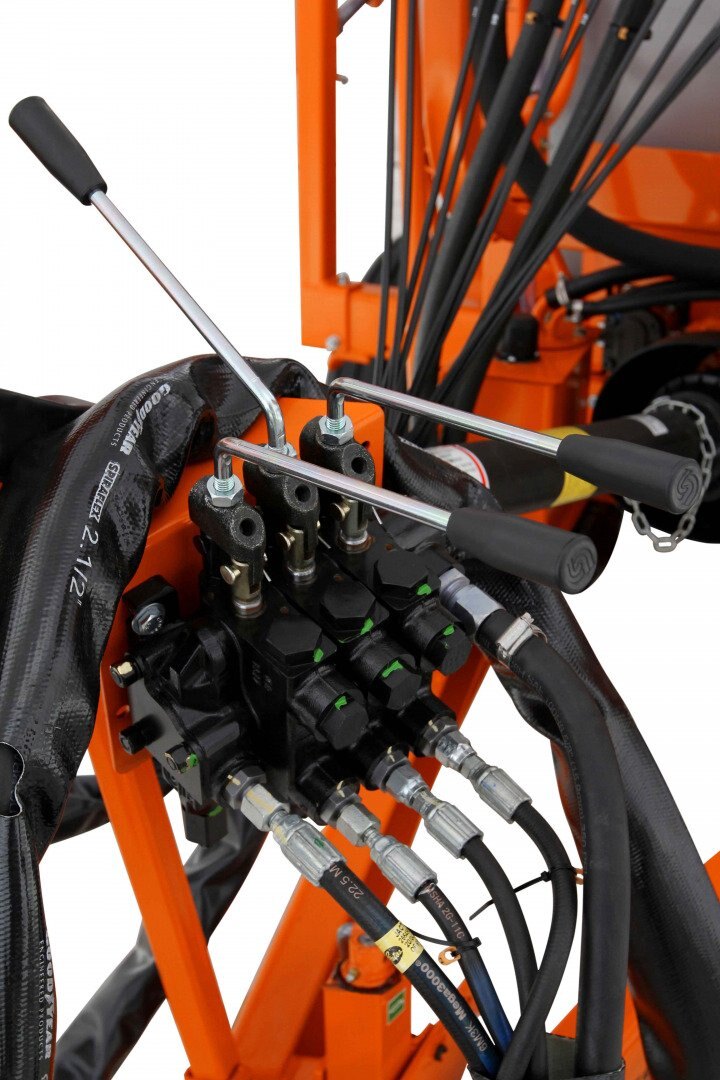

Actuation

Hydraulic

Working Height

20 in to 52 in

Length

60 ft

Nozzle Branch

Material

Hose or Stainless Steel

Nozzle Spacing

14 in / 20 in

Nozzle holders

Monojet / Bijet

Options available Wide-Angle to shaft Chemical Mixer with chemical Container rinse Nozzle Quick coupling

Filler unit
