ID # 24541106

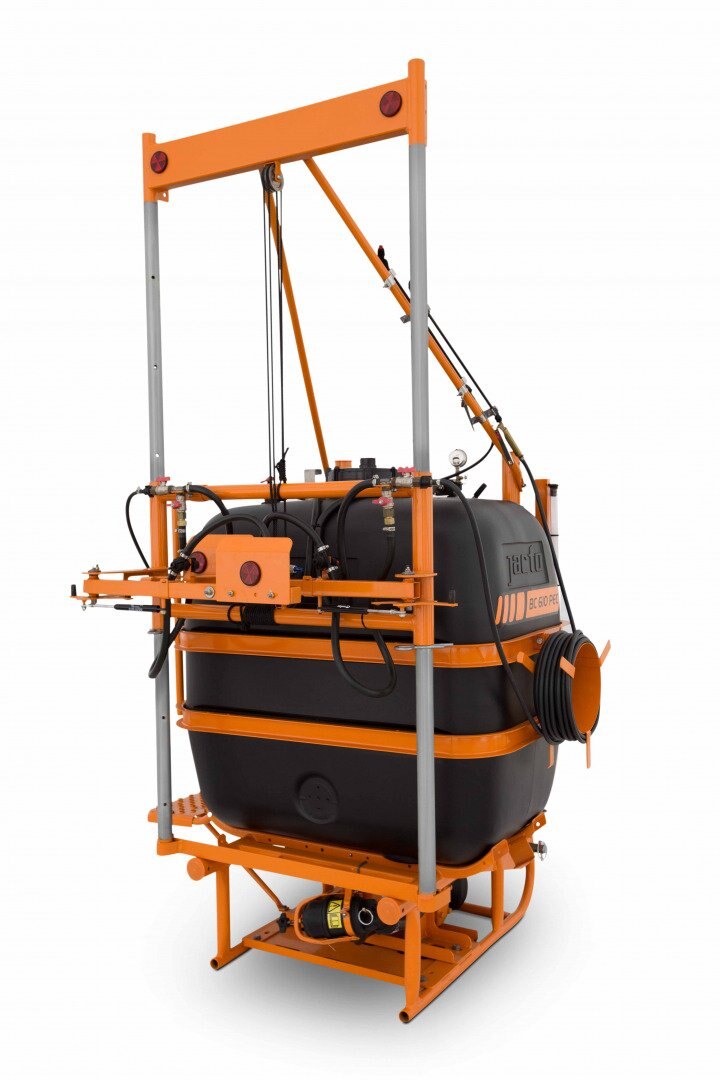

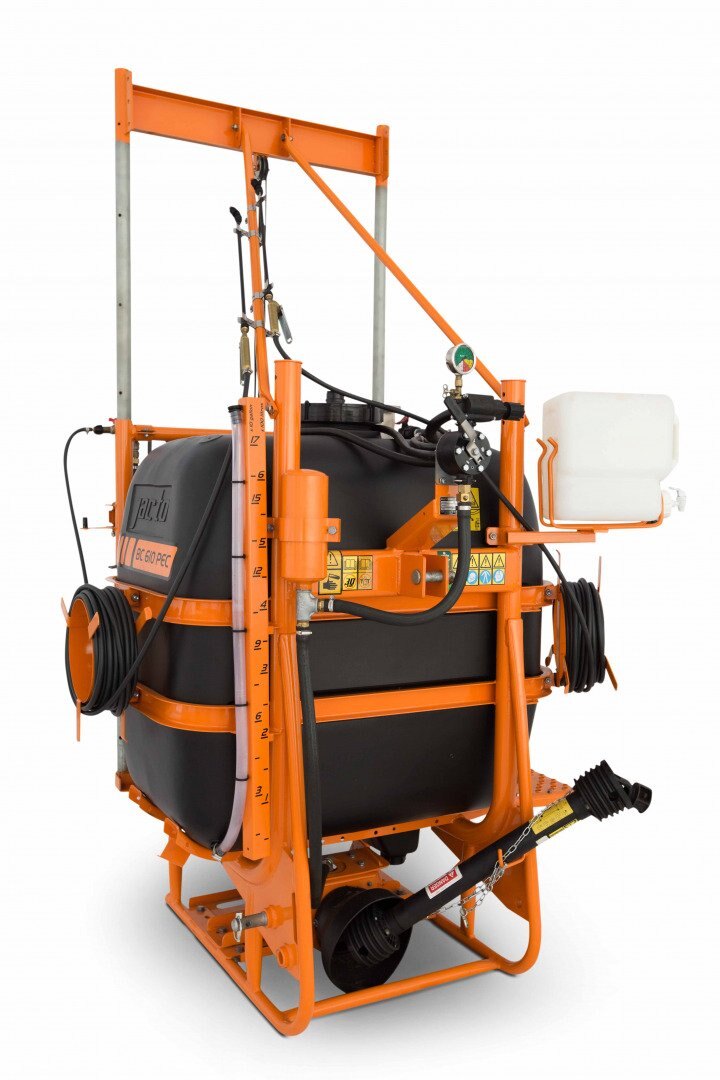

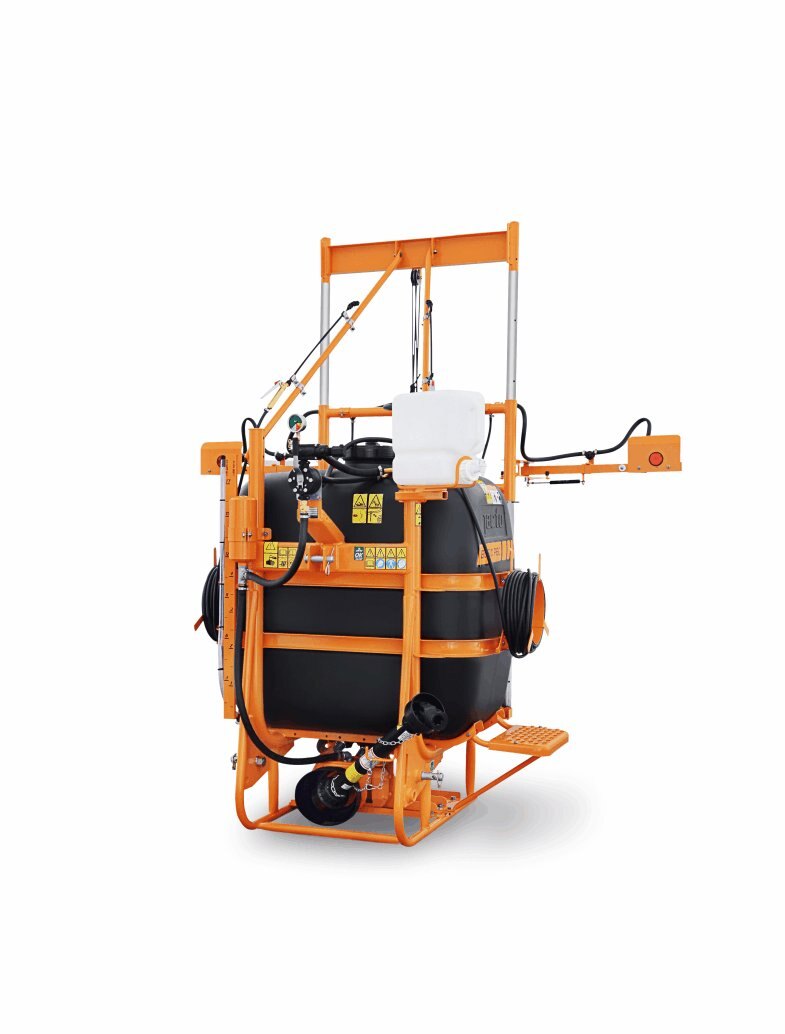

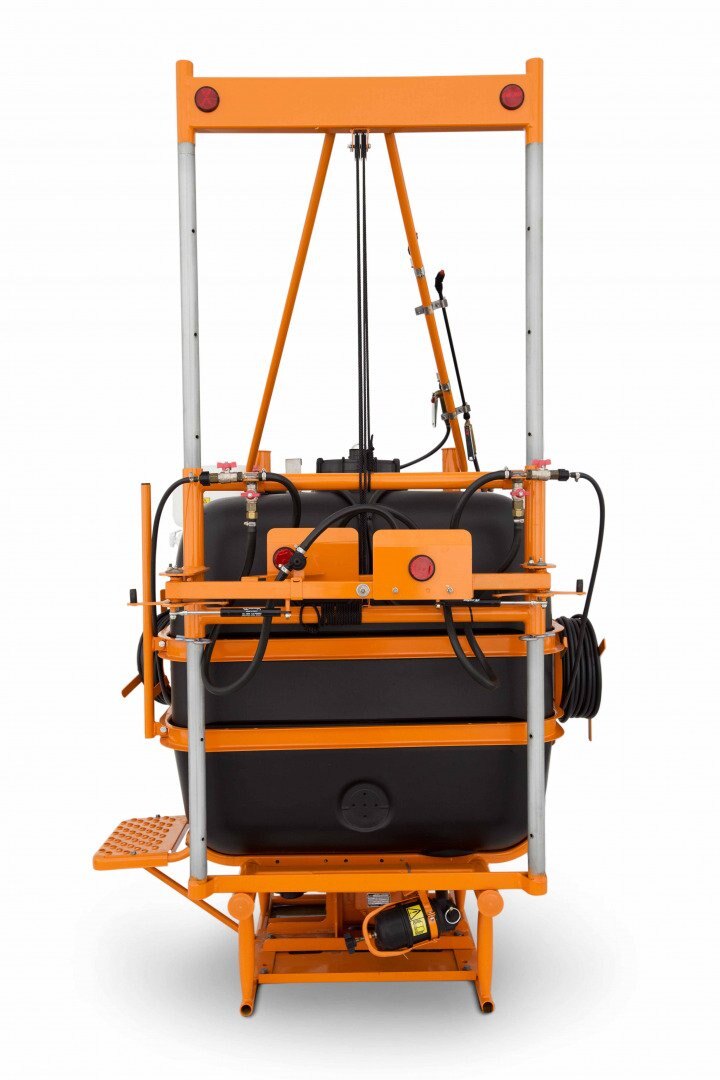

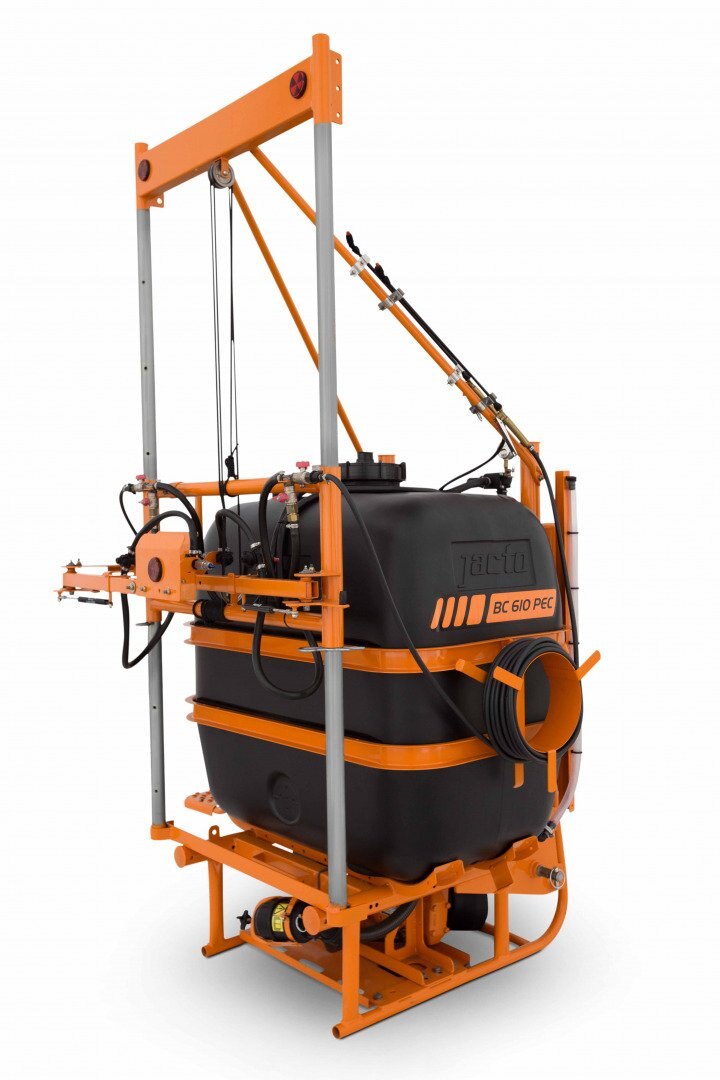

Jacto - BC 610 PEC

  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
  • Jacto BC 610 PEC
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

More technology and productivity for your pasture

The Best Option

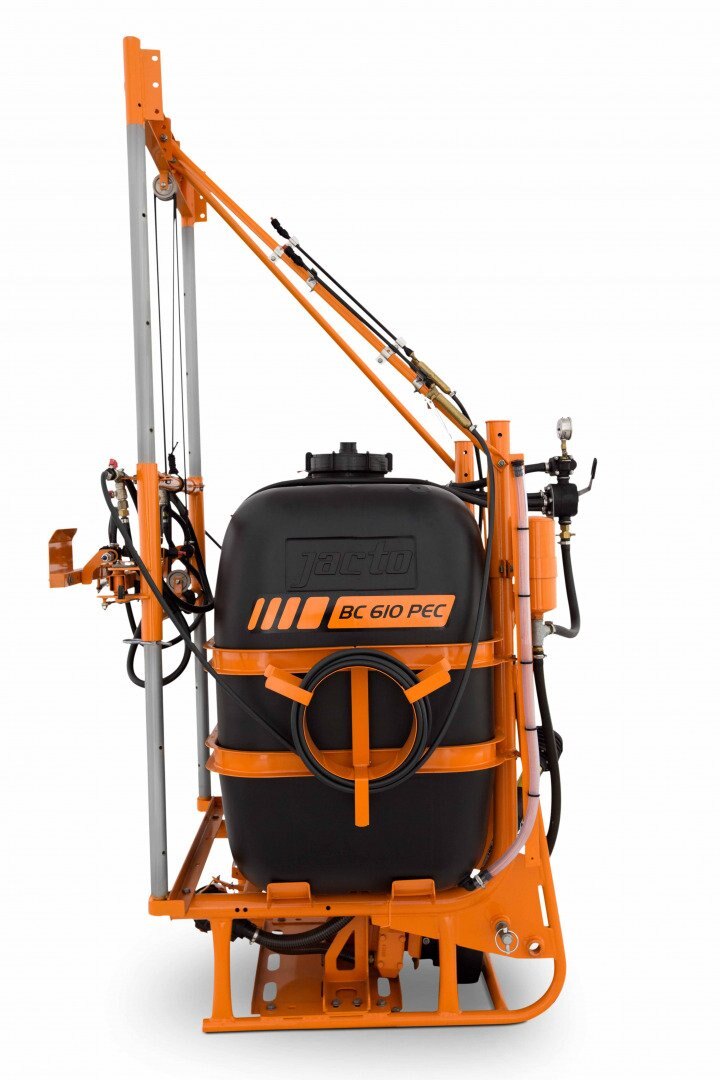

BC Line was specially developed for application in pastures. It provides high daily operation efficiency and reduced maintenance cost.

Jacto BC 610 PEC Application Agility

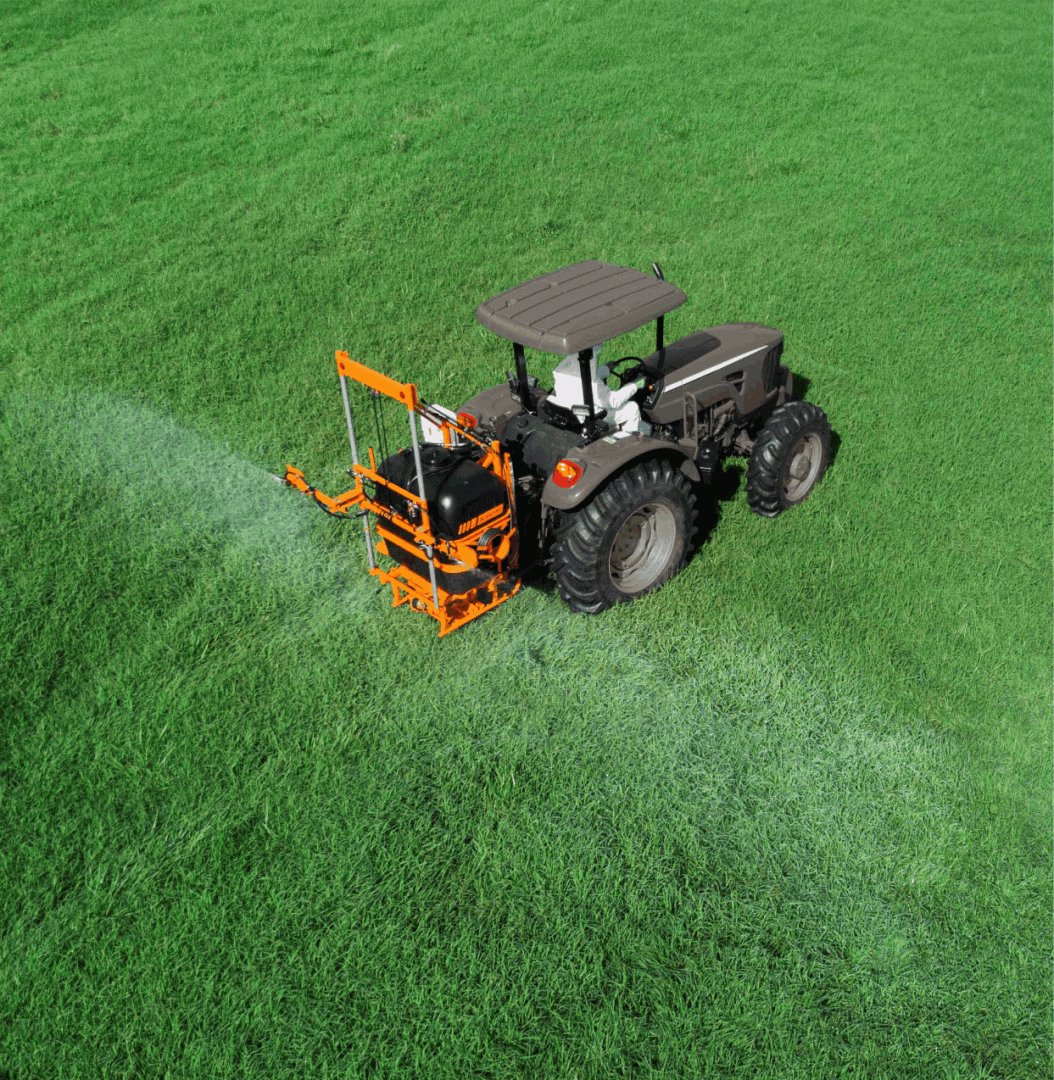

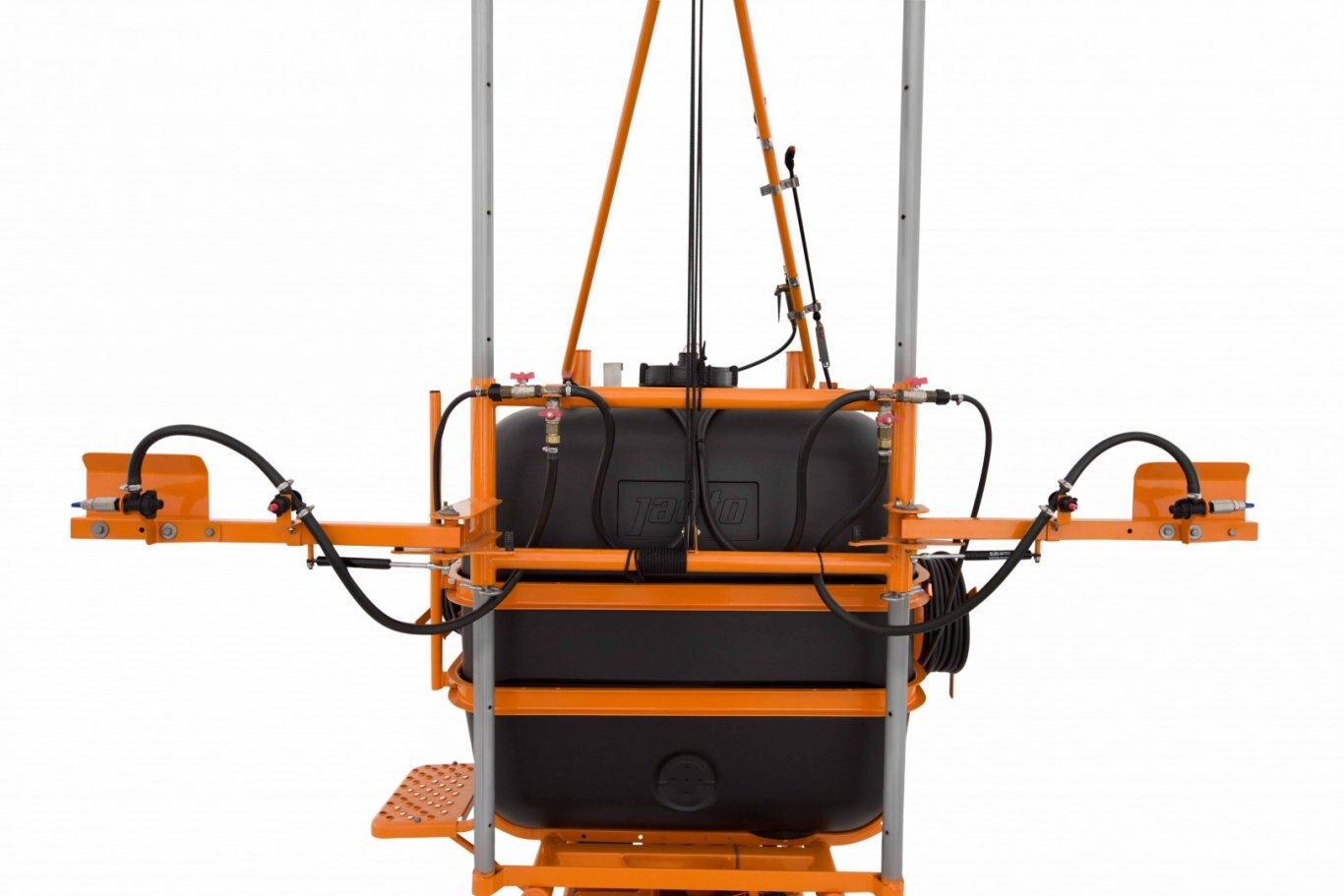

Application range of up to 10 meters. Fixed booms with 2.2 meters in total length equivalent to the tractor width avoids collisions with obstacles in pastures. Excellent for low-mobility areas.

Jacto BC 610 PEC Resistance and Practicality

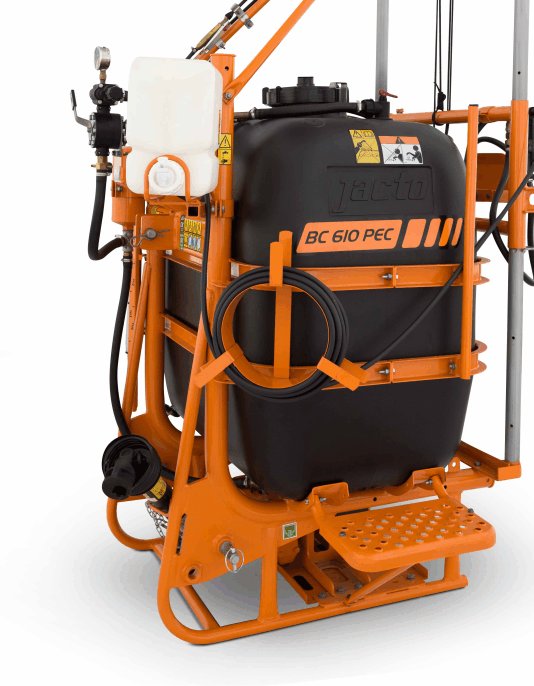

600-liter polyethylene tank with polished finish on internal and external surfaces to make cleaning easier. It resists impacts and corrosion.

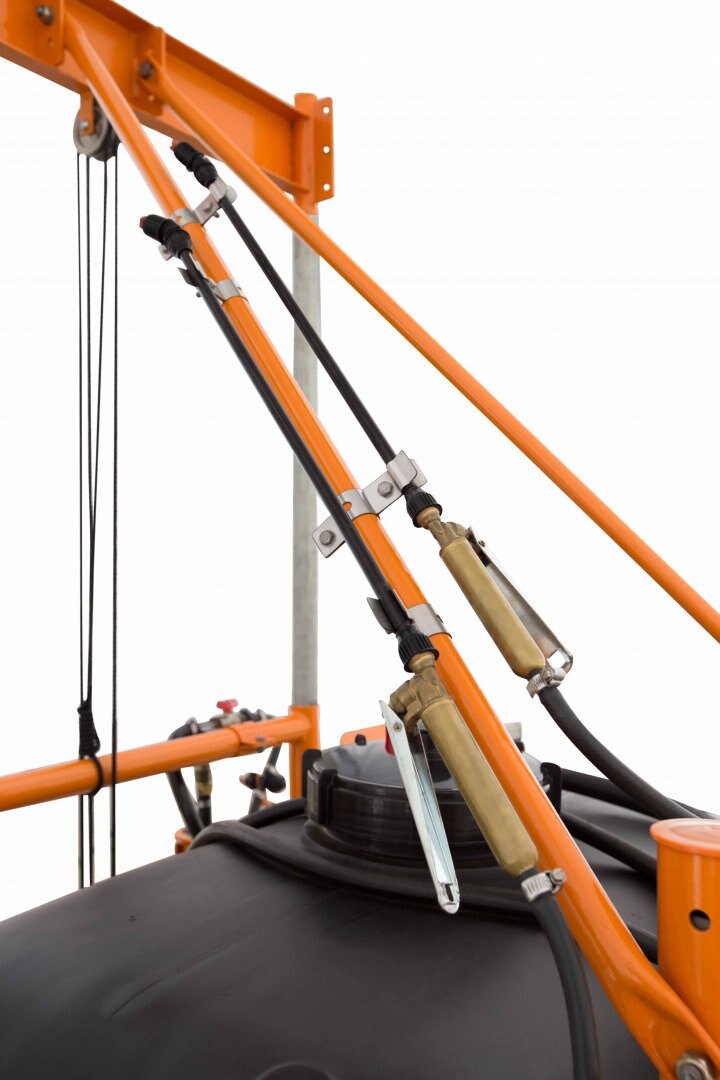

Hose reels

With 2 spray lances attached to the sprayer, it easier to use it in spot applications.



Jacto BC 610 PEC Perfect Combination

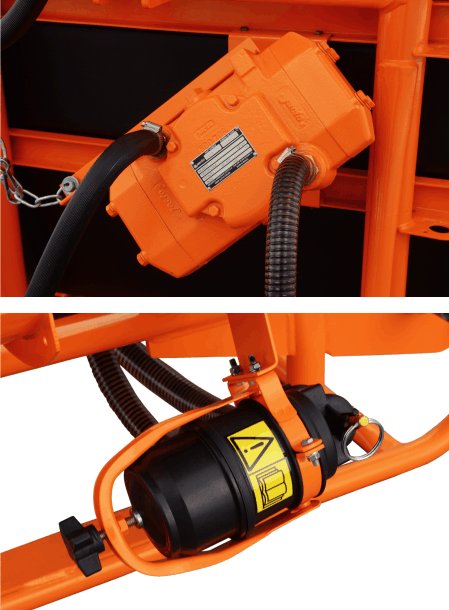

Pump driven by cardan shaft (optional item), JP-402 model with 38-liter/minute pumping capacity. The ceramic sleeves guarantee excellent resistance to abrasion and corrosion.

Quick-closing Filter makes cleaning easier. Stainless-steel screen filtering system.

Jacto BC 610 PEC Pressure in the Right Measure

CJ-42 Control with quick relief avoids pressure overloads in the agrochemical circuit. Glycerin-filled pressure gauge with extended scale provides better readings.




Specifications
Model
BC 610 PEC
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                   Download



spraying
Crop Livestock
Tank Tank Capacity
158 gal		 Material
Polyethylene		 Chemical Solution Agitation
Hydraulic
Spray pump Model
JP-402		 Type
Piston		 Maximum flow rate
10 gpm		 Power consumption
2 hp
Nozzle Branch

Material

Hose

Nozzle spacing

Center boom 4.6 ft

 Nozzle spacing

Side boom 6.6 ft

Nozzle holders

Monojet
Main Filter Model
FVS-100		 Filtering capacity
26 gpm		 Filter Mesh
60
Spray control

Model

CJ-42

Number of ways

2

Actuation

Manual by lever

Maximum working pressure

150 PSI
Clean water tank Tank Capacity
4 gal
Material
Polyethylene

Nozzle

Model center boom

MVI-04 / MVI-02

Model side boom

XT020 / XT010
Boom Working Height

Until 7.2 ft		 Length

6,5 ft (33 ft application range)		 Actuation
Manual
Area size Over 500 ha
Dimensions Length
4,10 ft		 Width
4.60 ft		 Height
10.82 ft
Weight Empty machine
441 lb
Working speed Spraying
1 to 4 mph
