Jacto

ID # 24534084

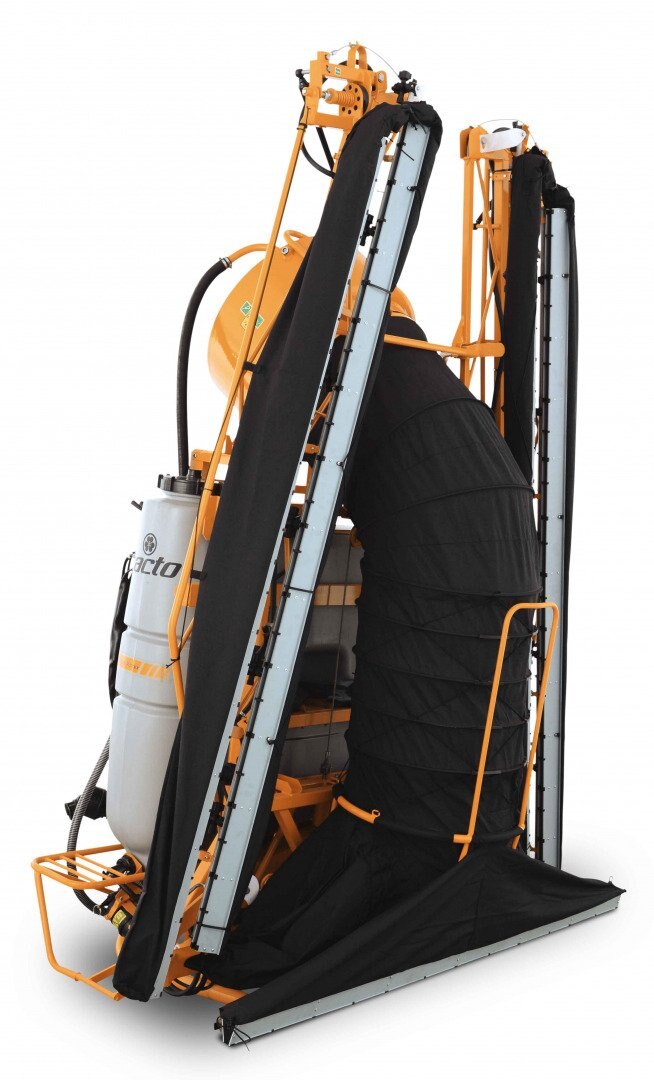

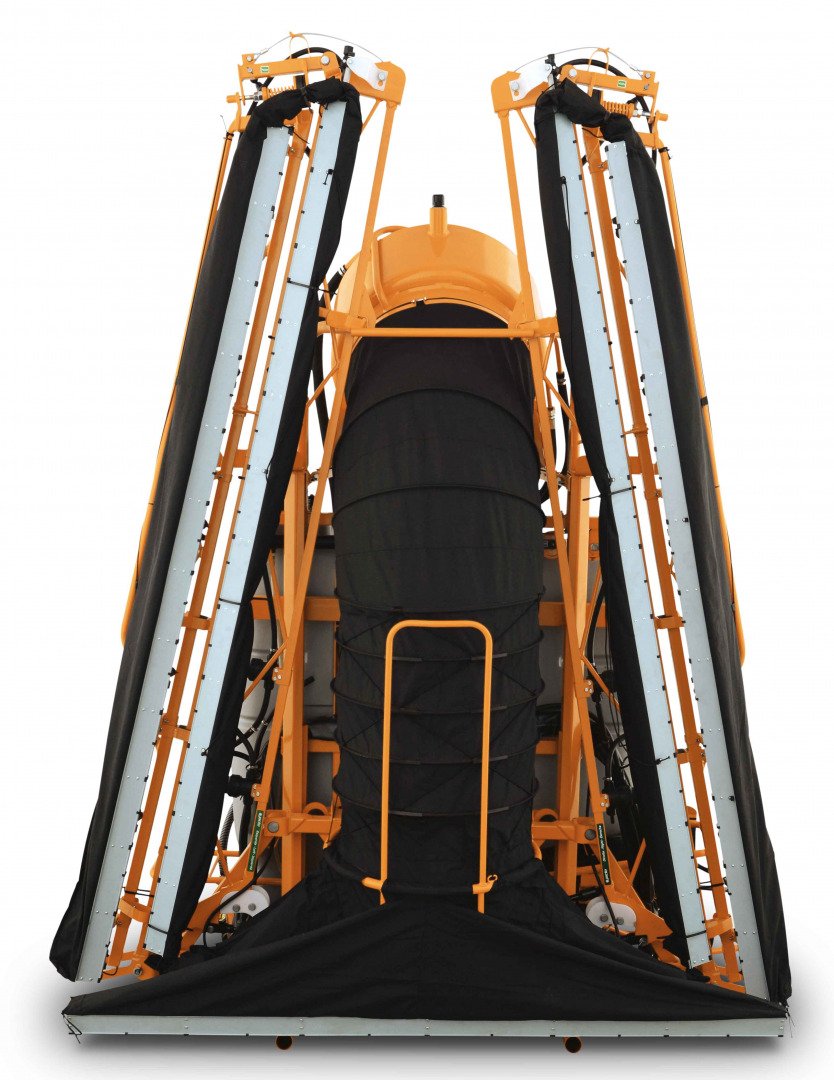

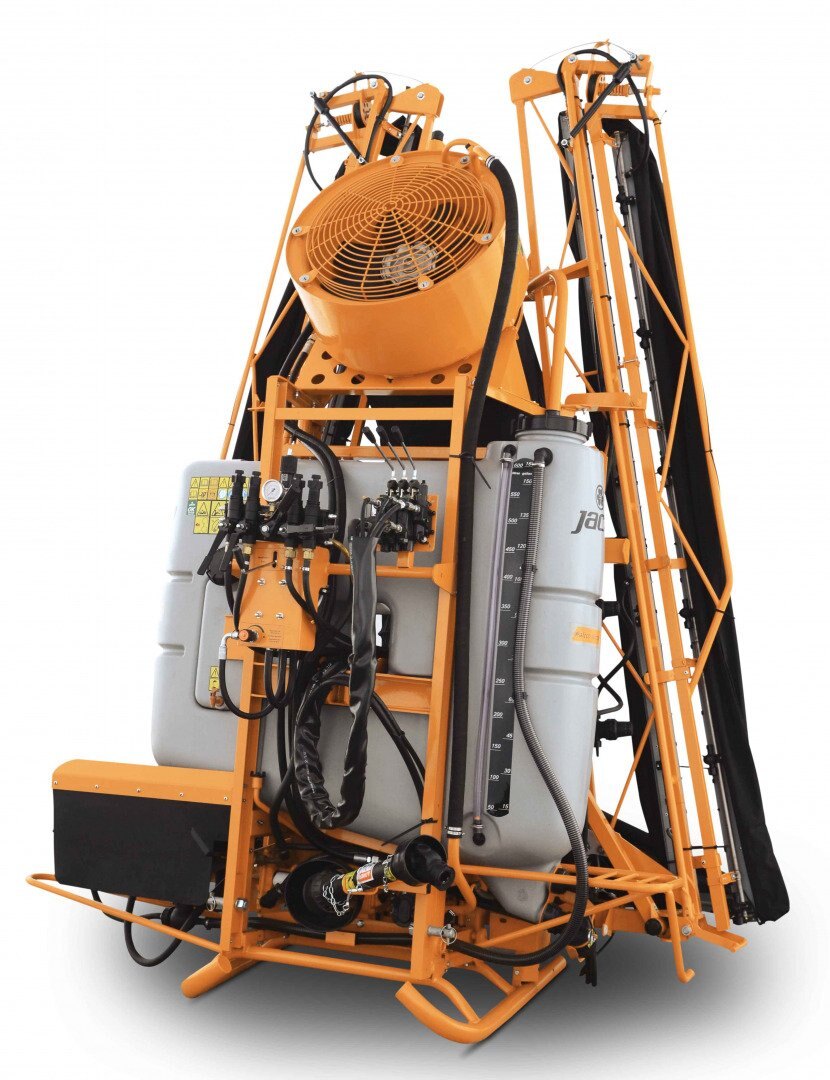

Jacto - Falcon Vortex – Air-Assist Boom

Call for Price
Overview

Total crop protection with or without wind.

Jacto Falcon Vortex – Air Assist Boom Optimal Penetration

Excellent penetration and coverage of the plant.

Protection even on the underside of the leaves.

Protects the plant from top to bottom.

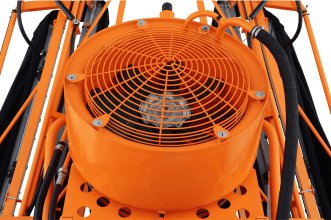

Jacto Falcon Vortex – Air Assist Boom Spray Quality

The vortex system fan generates air that reduces drift and improves the penetration of agri-chemical into the plants. The fan is positioned to help maintain the balance of the tractor.


Adjustable air volume.

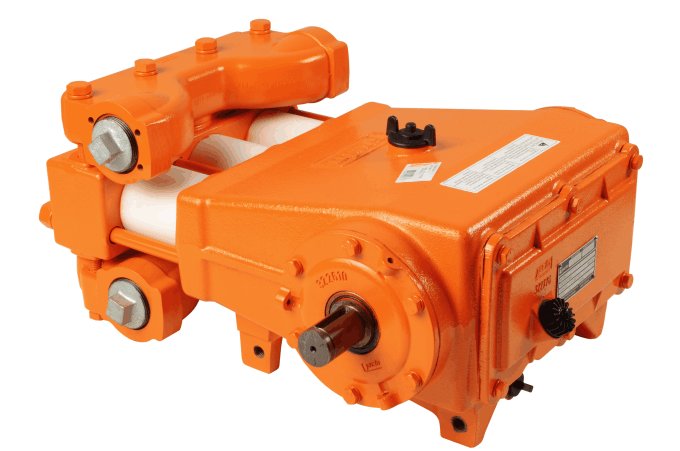

Jacto Falcon Vortex – Air Assist Boom Durable Pump

Piston pump with highly wear-resistant ceramic sleeves. The durable pump required limited maintenance, providing greater reliability of the equipment to the producer, ensuring the application can be applied at the right time.

Specifications
Model
Falcon Vortex – Air-Assist Boom
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                   Download



spraying
Crop Flowers Fruits
Fan Hydraulically controlled variable speed Fan performance
18,822 CFM @ 62 MPH
Boom 46 foot with hydraulic fold Boom height

adjustable from 21 to 51 inches
Suction filter FVS-100 with shut off valve (M-60) Chemical induction hopper with
chemical container rinse
Clean water tank
Area size Up to 500 ha
Tank capacity 165 Gallons high density poly
Controls Masterflow with in-cab electric controls
Pump model JP-75 piston pump 20 GPM
Agitation Bypass with venture
29 Anti-drip flip-over nozzle holder 58 total nozzles
Nozzles installed JA-2 & AXI 110-02
Nozzle spacing 20 inch
Minimum tractor engine HP 30
