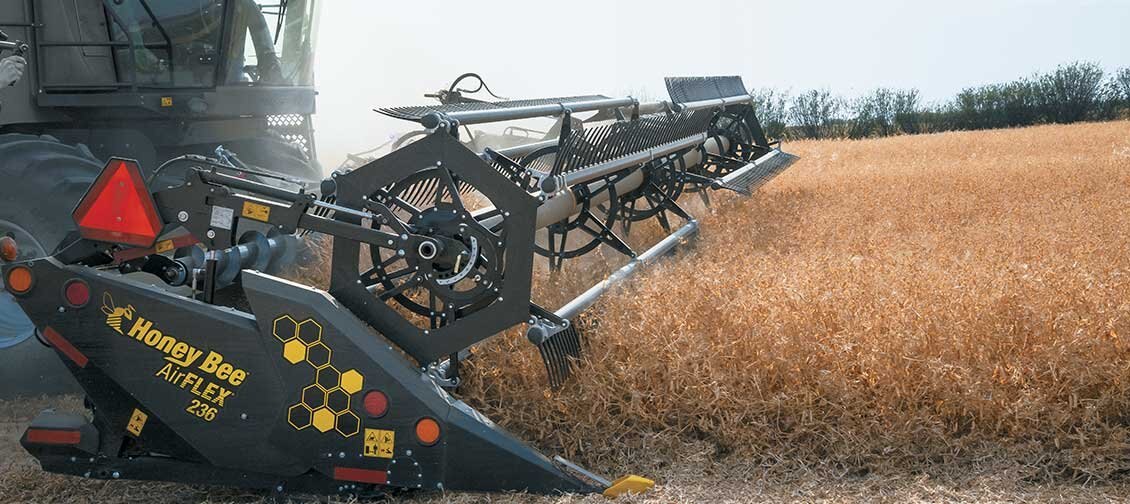

Honey Bee - AirFLEX

  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Honey Bee AirFLEX
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Harvest faster while increasing bushels

Farming low-podded crops?

The next generation of draper header innovation has arrived and it brings the design and speed you’ve always deserved.

The future of flex headers features sensors and air suspension that allow the header to shave the ground, picking up more of your peas, lentils and soybeans. The AirFLEX is lightweight yet durable, sophisticated yet easy to use. Switch from flex to rigid mode with the push of a button, allowing you to harvest other crops like canola. Crafted on the farm, the AirFLEX brings you a combination of thoughtful design, high-performance and simplicity.

The Honey Bee AirFLEX is light weight, fast and built to last.
Specifications
Model
AirFLEX
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Honey Bee
specs
AF225 AF230 AF236 AF240 AF245 AF250
Width 25' (7.6 m) 30′ (9.1 m) 36′ (10.9 m) 40′ (12.2 m) 45′ (13.7 m) 50′ (15.2 m)
Operating weight (incl. reel) 6,769 lbs
(3,070 kg)		 7,398 lbs
(3,356 kg)		 7,912 lbs
(3,589 kg)		 8,660 lbs
(3,928 kg)		 8,990 lbs
(4,078 kg)		 9,226 lbs
(4,185 kg)
Hydraulic System Hydraulics are limited to the combine reel circuits only
Cutting System Honey Bee cutting system with SCH sections
Knife Drive Fully synchronized mechanical knife drive
Draper New high performance tensioning system and mechanical drive
Center Deck New high performance tensioning system and mechanical drive
HB Draper Shield Patented crop flow assistance device (Optional)
Cross Auger Crop flow assistance device (optional)
HB Reel High strength, high performance reel with multiple crop settings and finger spacing options
Reel Drive Centre hydraulic reel drive
Transport System Heavy-duty road transport with electric brakes (Optional RV/AG plugs)
Tires / Wheels / Hubs / Spindles Standard
Cutterbar Poly Skid Standard with sectional panels
Combine Adapters Available for most models of self-propelled combines
Fore/Aft Standard – using combine functions
Automatic Reel Speed Control Standard equipment – combine must have reel speed circuit
Gauge Wheels Standard
Subframe Suspension Standard
Header Height Standard – combine needs header height function
Automatix Standard
Operating Modes Standard – flex and rigid
Reversible Mechanical Drive Standard
Maintenance Requirements 4 x 10 hour knife grease / 15 x 50 hour drive-line grease

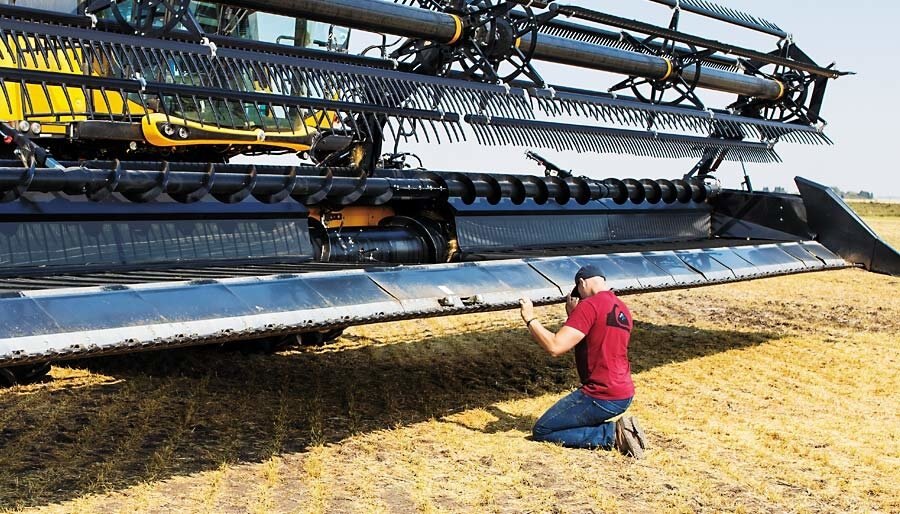

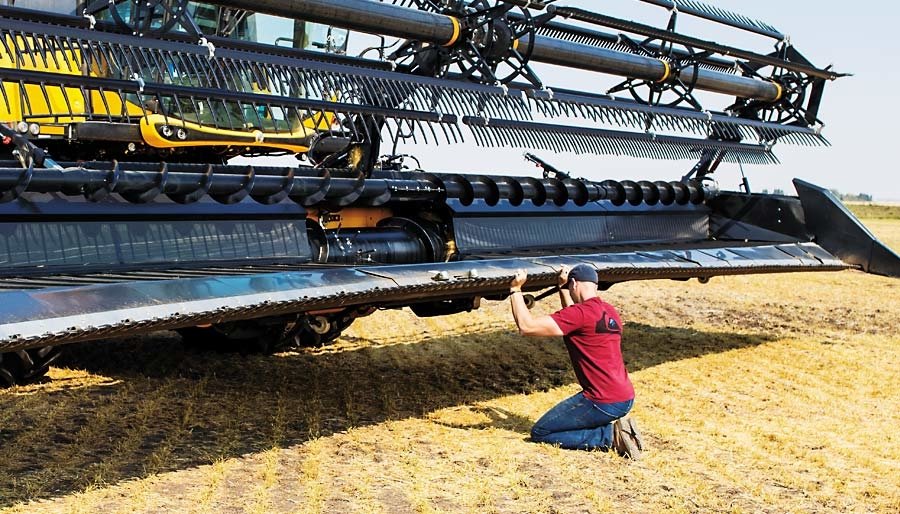

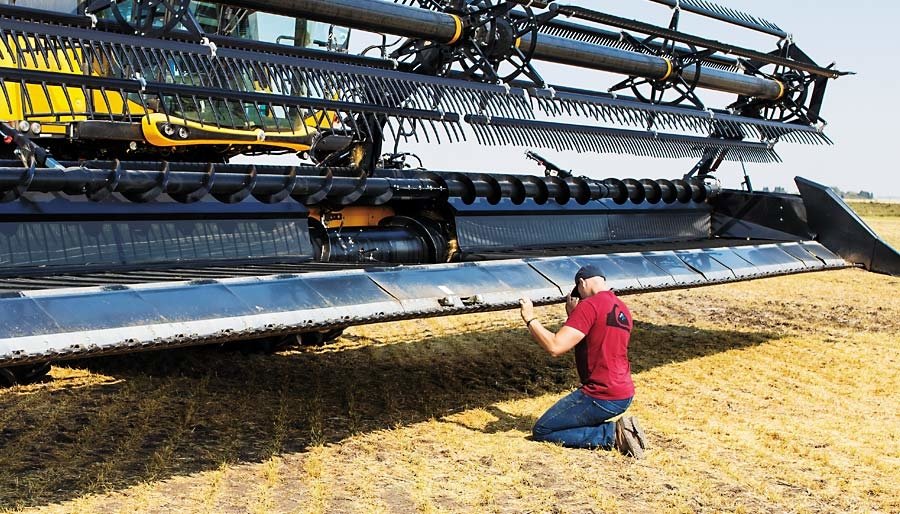

Flex A total of 9″ flex in cutterbar
Cutterbar Independently suspended
Air System Standard on-board air compressor with cab controls (AUTOMATIX)
HB Vertical Shears Powered by mechanical knife drive (optional)
features

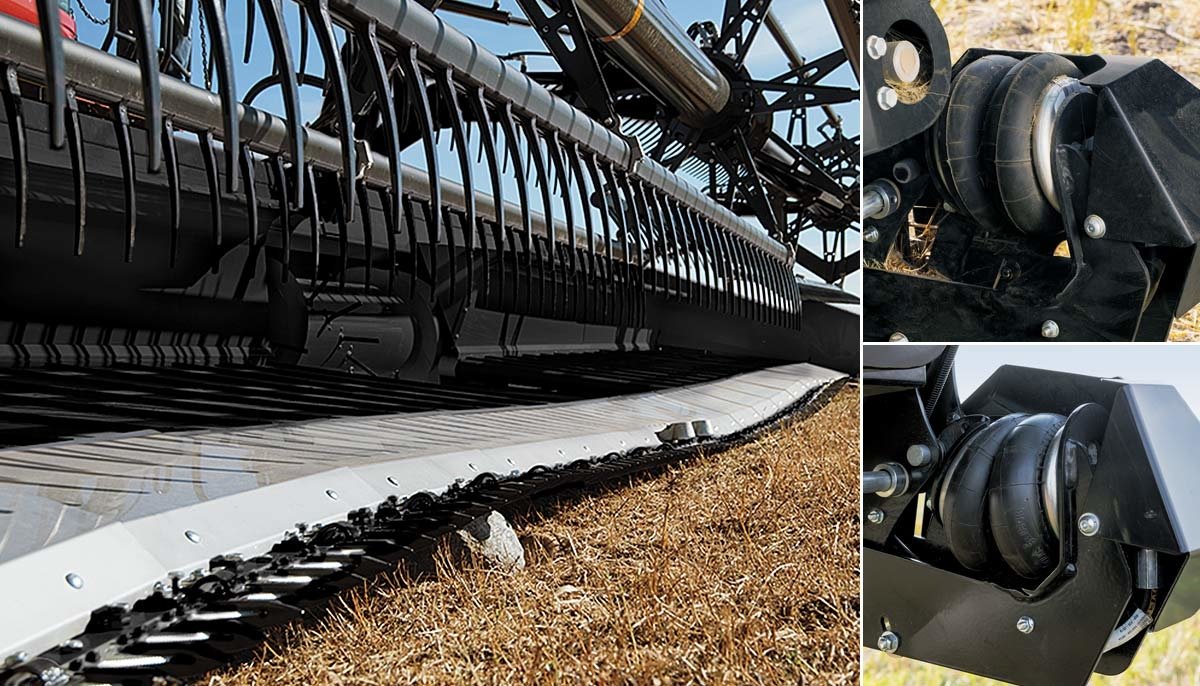

Honey Bee AirFLEX Fully Flexible Cutterbar, Adjustable Air Suspension and Optimized Header Height System
The AirFLEX can be used in flex or rigid mode with a simple push of a button in the cab. In rigid mode, the cutterbar is inflexible; the ideal setting for cereals. In flex mode, the AirFLEX shaves the ground and is ideal for soybeans, peas and lentils. The air suspension is light, fast-reacting and infinitely adjustable. The Optimized Header Height System always keeps the header at the perfect height in all terrains and in both cutting modes.
Honey Bee AirFLEX
Honey Bee AirFLEX

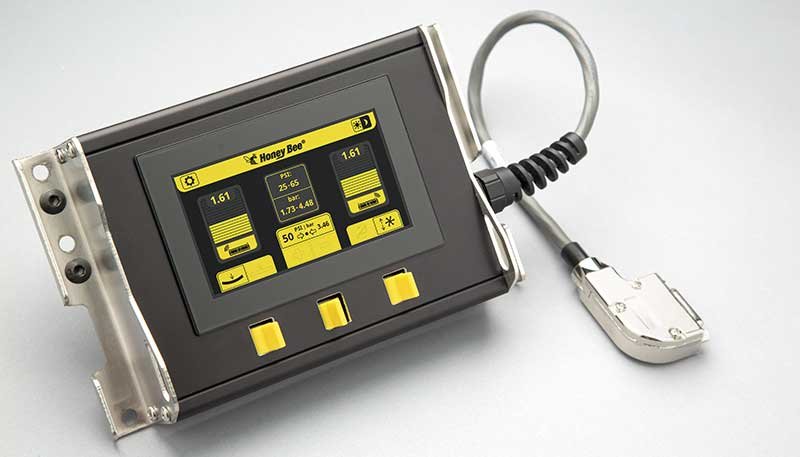

Honey Bee AirFLEX Easy to Operate
The AUTOMATIX system is an advanced control panel delivering simple and complete control of the AirFLEX.

Honey Bee AirFLEX High Performance Rigid Mode
The no-compromise rigid cutterbar is optimized for off-ground cutting. No gauge wheels are required.

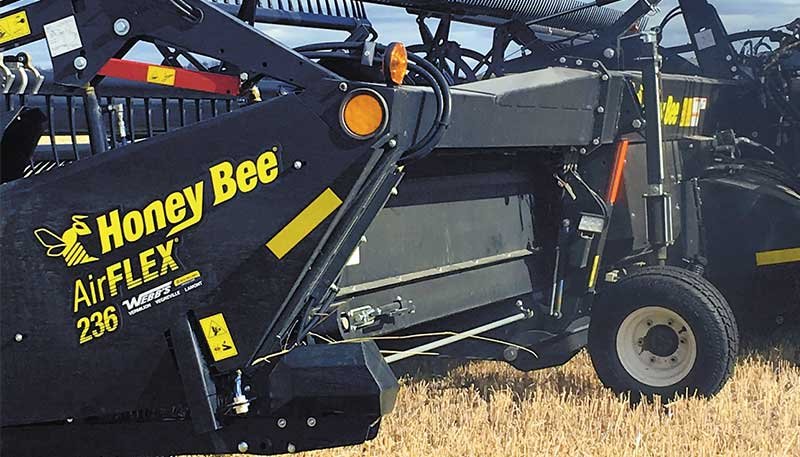

Honey Bee AirFLEX Precision Gauge Wheels
Working with the subframe suspension in rigid mode, gauge wheels achieve a quicker and more accurate header height response.

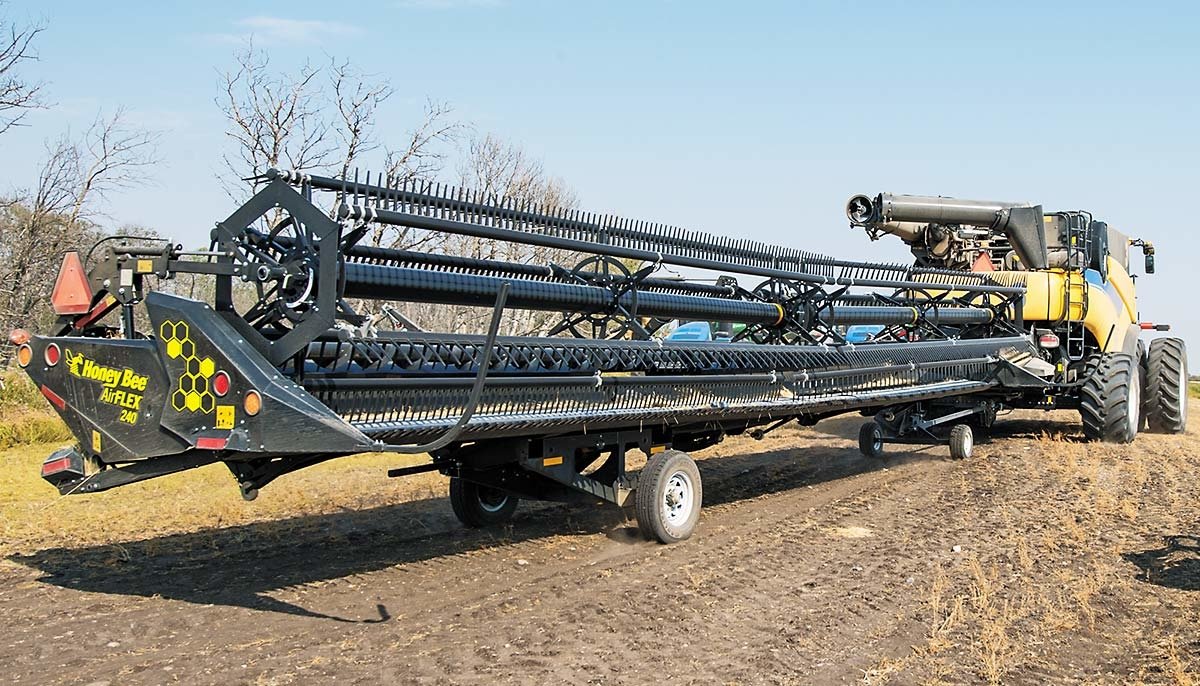

Honey Bee AirFLEX Transport System
The AirFLEX transport wheels are designed to be there when you need them and off for harvest. They’re self-aligning and can be mounted in five minutes.

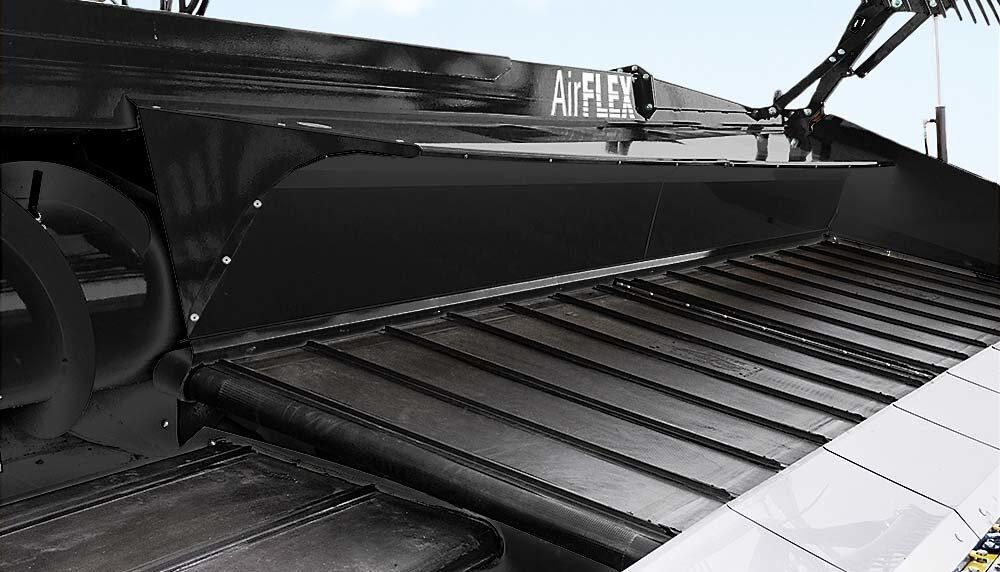

Honey Bee AirFLEX Honey Bee Draper Shield
The draper shield efficiently provides and promotes unrestricted crop flow to the centre deck without power, moving parts or adjustment.

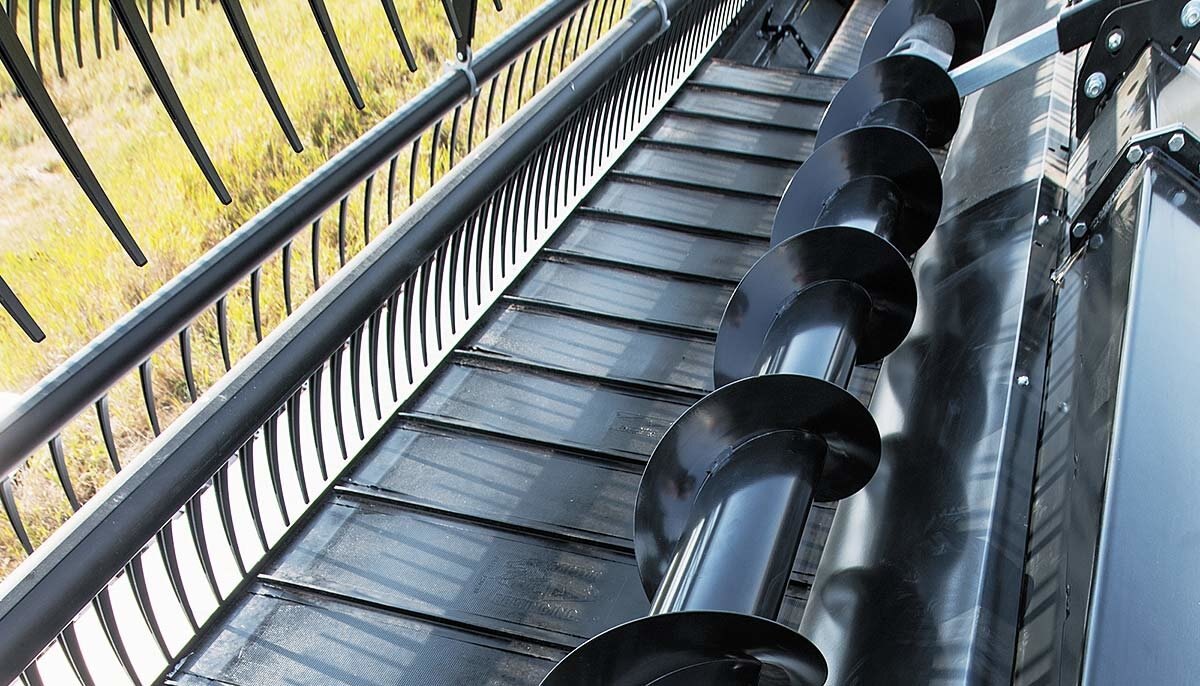

Honey Bee AirFLEX Cross Auger
A hydraulic cross auger is available to assist in material flow from the drapers to the feed auger. It replaces the draper shield and adjusts for bulky and tangled crops like peas and mustard.

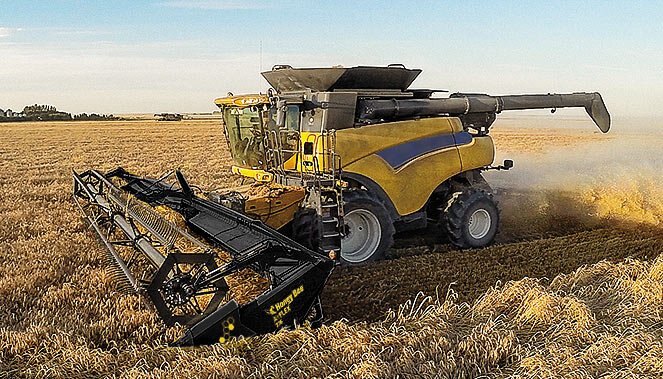

Honey Bee AirFLEX Speed
The AirFLEX allows greater precision at higher speeds. You’ll pick up the entire crop while covering more acres at a pace that will surprise you.

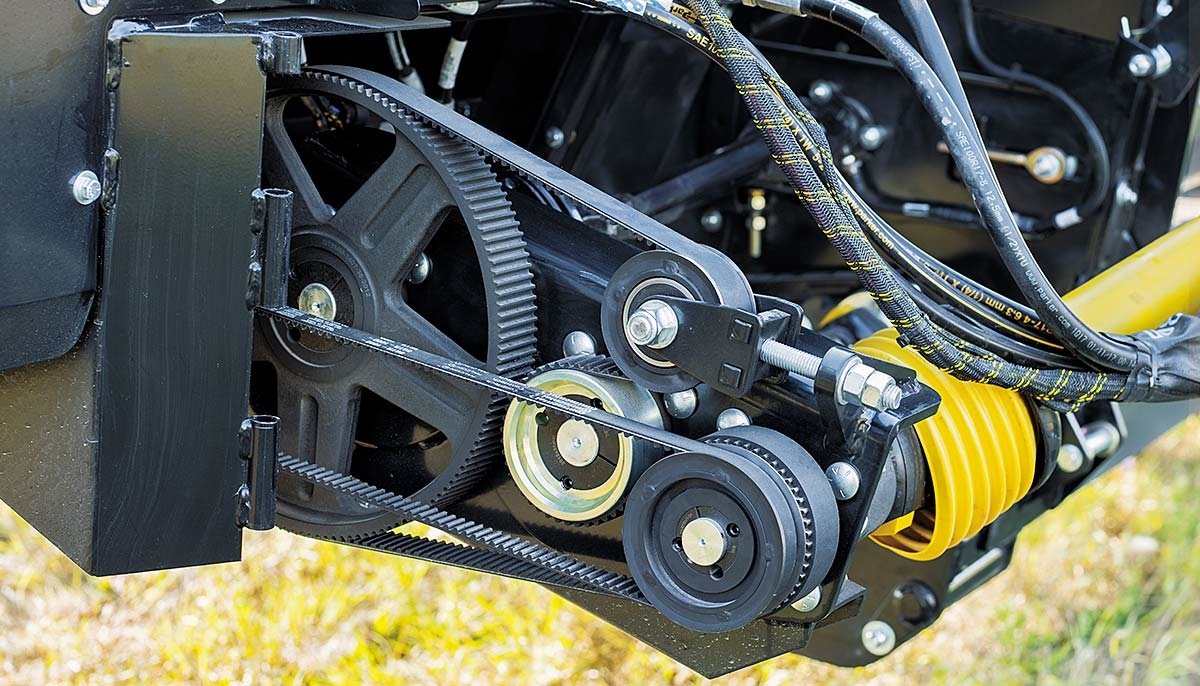

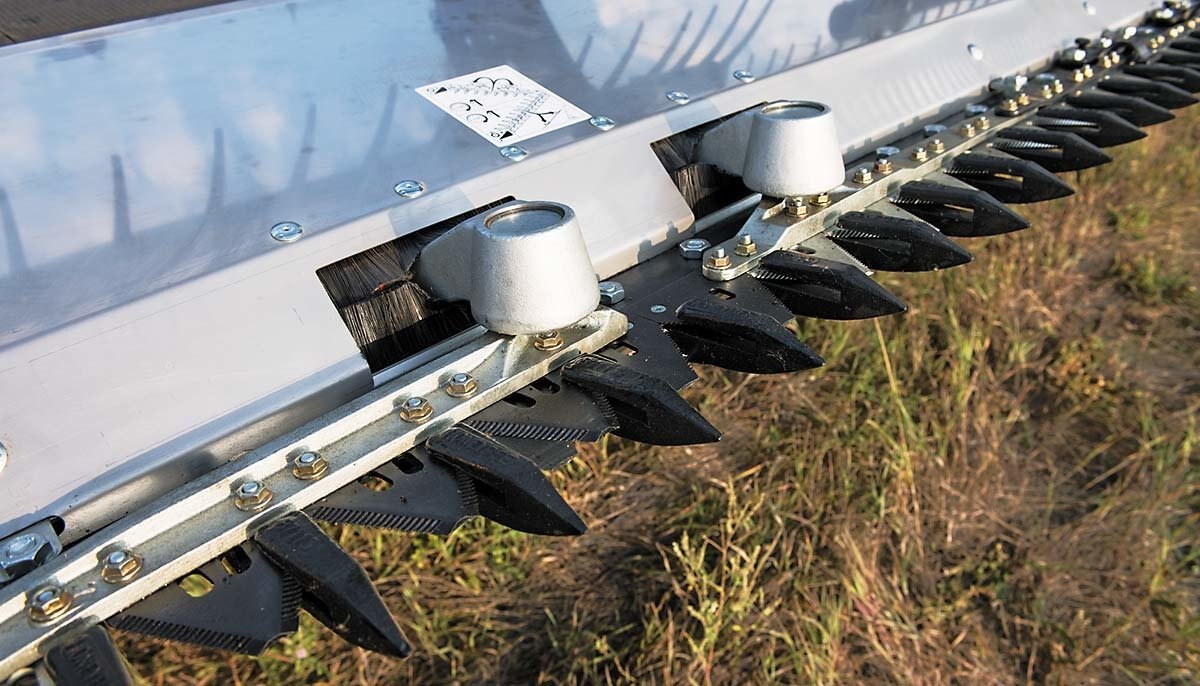

Honey Bee AirFLEX Fully Synchronized, Centrally Driven Knives
The smooth operating knife drive provides powerful cutting action and increased durability, while enabling a lighter and more streamlined crop divider.

Honey Bee AirFLEX Honey Bee High Performance Reel
The custom built, fully adjustable reel ranges from gentle to aggressive with unlimited finger spacing options to leave no crop behind.

Honey Bee AirFLEX Reversible Mechanical Drive
For maximum convenience and efficiency, you can remove plugged crops directly from the cab of your combine. The drapers, knife drive and feed auger run reverse with the combine.

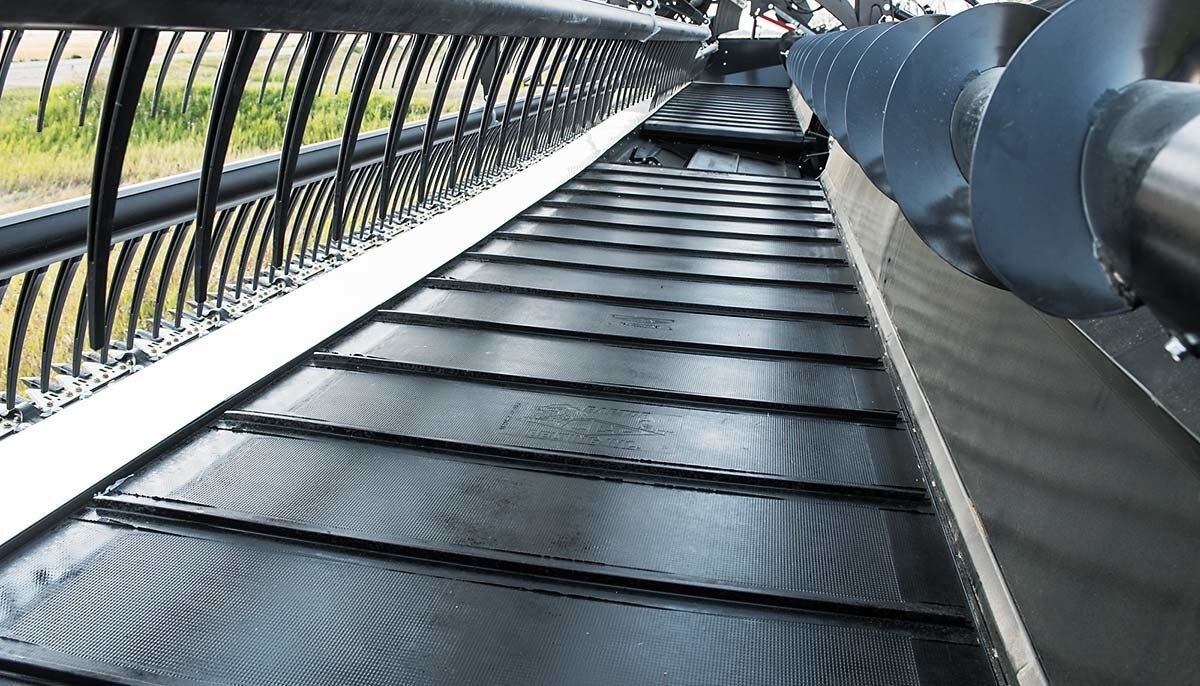

Honey Bee AirFLEX High Performance Drapers
The new draper tensioning system provides smooth, consistent operation regardless of what crop you’re harvesting.
