ID # 14034446

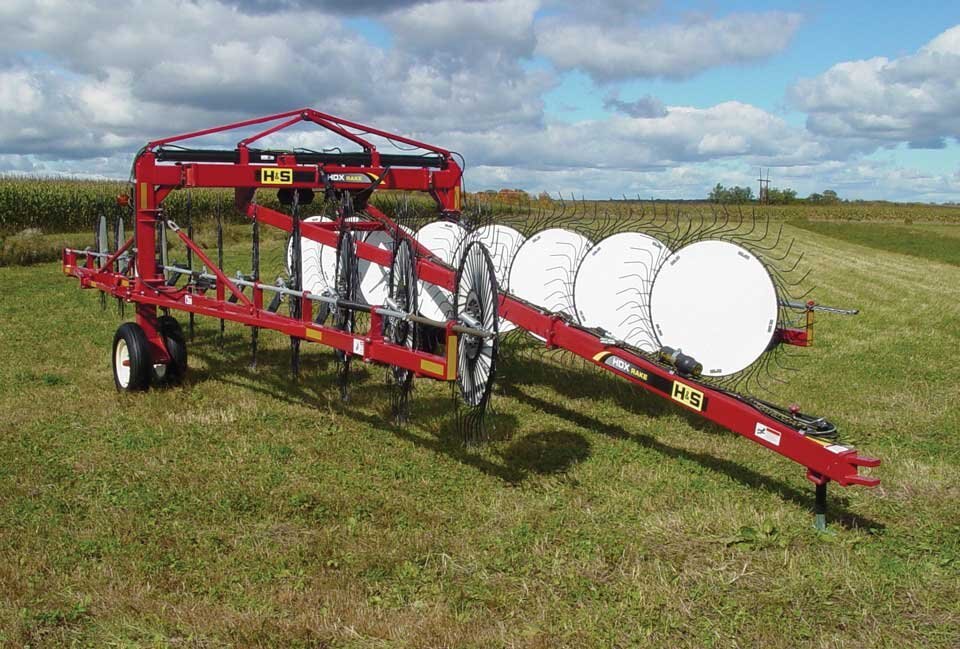

H&S X-15 Rake

  • H&S X 15 Rake
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features
  • The H&S X-15 Rakes feature a highly maneuverable short turning radius, no caster wheel design, and an overhead frame design for high volume capacity of the crop.
  • The variable main frame width adjustment opens symmetrically. Hitch height and beam fore and aft tilt are controlled by a simple ratchet jack.
  • Hydraulic adjust beam angle as standard equipment.
  • Tandem ST175/80D13 tires w/rims are standard equipment.
  • The X-15 Rake has a proven ground pressure system and rake arm design.
  • The X-15 Rake has 100% coverage, there is no need for center kicker wheels. The 3 wheel extension can be locked up if not needed.
  • One side raking can be done with the right or left side.
  • The hydraulic beam angle kit adjusts right and left beam angles.
  • An electric-over-hydraulic toggle switch adjusts the left and right beam angle – the neutral position of the toggle switch adjusts main frame width.
  • Optional rake wheel wind boards help to keep the crop from wrapping on the rake wheels.
  • Work lights are optional.


 Specifications

X-15
WHEEL DIAMETER 55"
TEETH PER WHEEL 40
TOOTH DIAMETER 7mm (.275")
RAKE WHEEL HUBS Tapered Roller Bearings
TRANSPORT WIDTH 10' 4"
TRANSPORT LENGTH 31' 6"
WINDROW WIDTH ADJUSTMENT Up to 46"
RAKING WIDTH Up to 25'
HITCH JACK Standard
STANDARD TRANSPORT WHEELS (4-Tandem) ST175/80D13
WEIGHT 3023#
RAKE WHEEL WIND GUARDS Optional
TRANSPORT LIGHTS Optional
HORSEPOWER REQUIREMENTS 40 (30kW)
HYDRAULIC REQUIREMENTS 1 Double acting remote for main frame open and close. 1 Single acting remote for rake wheel lift.
ELECTRICAL REQUIREMENTS + 12 volt power source for hydraulic beam angle kit.




Specifications
Model
X-15 Rake
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
H&S
