Kubota Diesel Engine

EPA Tier 4 Final-compliant 77 cu. in. (1.3L) , 3-cylinder, liquid-cooled Kubota Clean Diesel engine with horizontal crankshaft and pressure lube for smooth, reliable operation

Heavy-duty Deck

• Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
• Specially designed cutting chambers enhance airflow for better cut quality

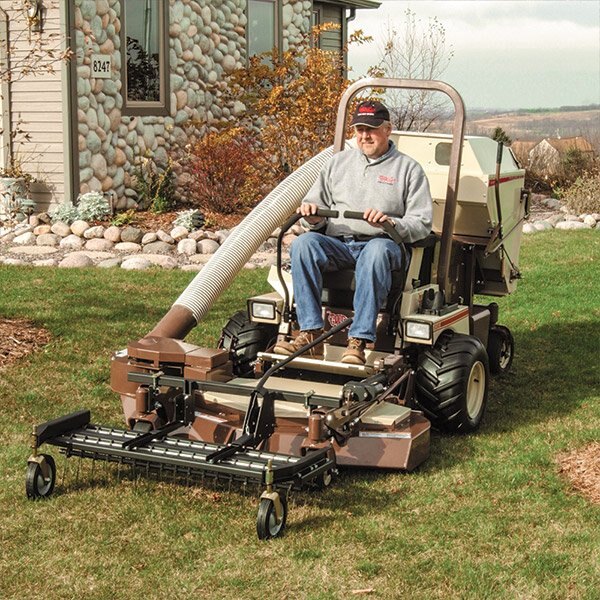

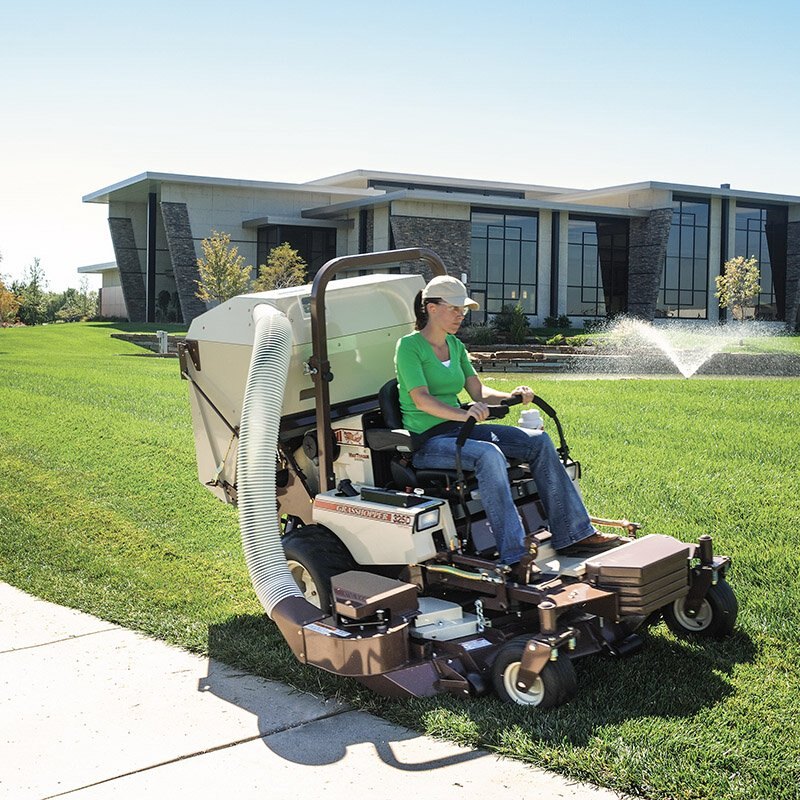

• Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
• Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
• Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
• Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion

Warranty

• Commercial Use: 3-year unlimited hours; limited warranty covering parts and labor.
• Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.

Hydraulic Height Adjustment

Hydraulic Height Adjustment for MidMount DuraMax™ decks 61-inches and larger allows operators to raise and lower cutting height at infinitely variable settings with toggle switch control. Standard on 400 Series models.

Rugged Construction

• Robotically-welded steel construction for long-lasting durability
• Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
• Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance

Reduced Maintenance

• Only two Access-Eze™ lubrication points cut maintenance time up to 95%
• Self-tensioning belts minimize cost and labor on routine maintenance

Ultimate Suspension Ride® Seat

• Deep-cushioned, high-back, foam-padded, scuff-resistant, sliding Cordura®-covered seat with padded lumbar support and armrests
• Roomy, iso-mounted, shock-absorbing footrest

Minimal Maintenance

• Fewer than 10 grease points and easy top-side access to belts and filters
• 1,000-hour transmission fluid change intervals
• Self-tensioning belts minimize cost and labor on routine maintenance

Design - Matched G2 Transmission

- Rugged G2 transmission with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and high-torque Parker wheel motors

- CoolFan™ hydro cooling system with 7-micron absolute filter for cooling efficiency

- Delivers smooth response and requires less maintenance, with industry-leading 1,000-hour fluid change interval

High Temperature Clutch Cut Out

Equipped with a High Temperature Clutch Cut-Out that automatically disengages the PTO if engine temperature reaches a certain point to prevent engine damage

Ultimate Operator Station

ComfortZone™ seat eliminates jostles and jolts with coil-spring suspension and a fully padded, high-back seat, padded armrests and variable density foam cushion. Iso-mounting smooths the ride, erases fatigue and keeps the operator comfortably in control at faster mowing speeds

Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach

One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.

Vigilant Operator Presence System

- Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt

- Dampened steering levers that return to neutral from forward and reverse

- Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
