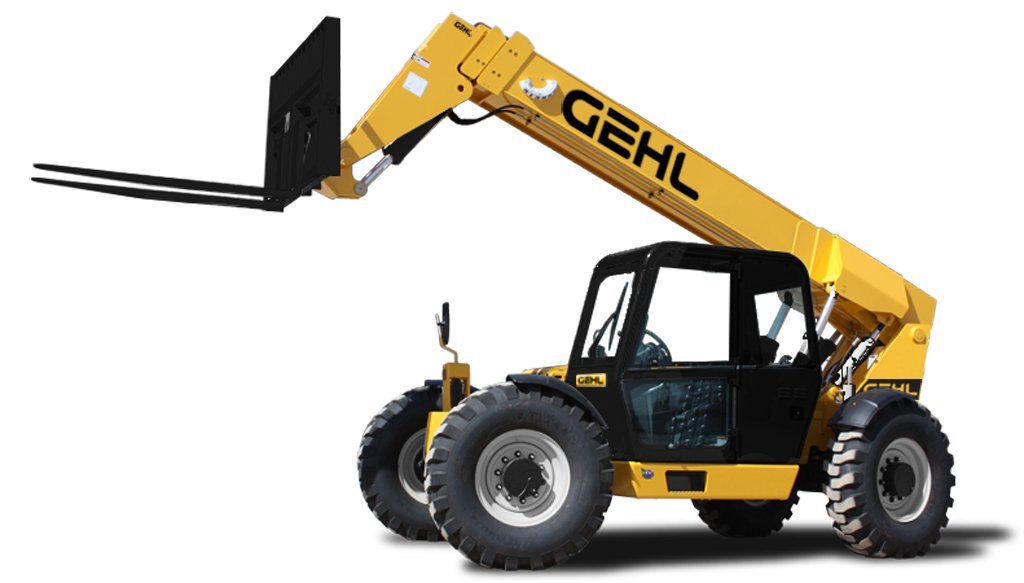

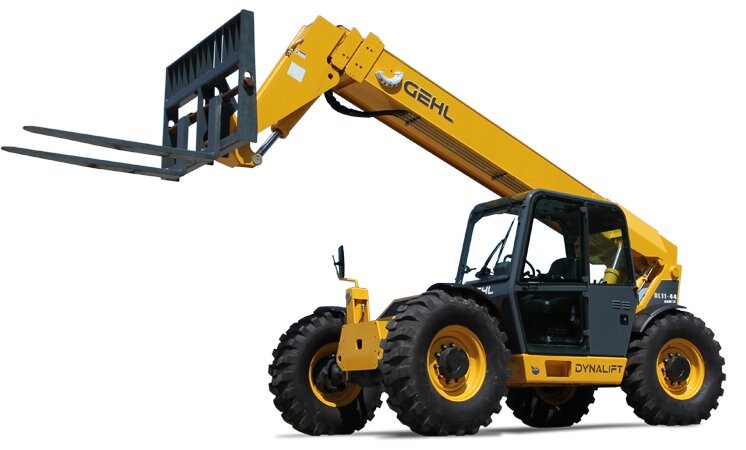

2020 Gehl DL11-44 GEN:3 Telescopic Handler

Call for Price
Overview

DL11-44 GEN:3
Telescopic Handler

- Rated Lift Capacity (kg): 11,000 lbs. (4990)

- Gross Power (kW): 120 hp (89)


- Maximum Lift Height (m): 44' 4" (13.5)


- Maximum Forward Reach (m): 30' 6" (9.2)

 Performance
Gehl DL11-44 GEN:2 DL Series Telehandler Performance

 The DL11-44 GEN:3 Telescopic Handler is a tool to increase jobsite productivity, develop new business and improve your return-on-investment.

  • Rear axle stabilization system locks the rear axle to the frame if the parking brake is engaged, if the boom is raised 60 degrees or higher, or if the PWP System is activated.
  • 10-degree frame tilt in both directions.
  • Double universal joints for tight turn radius without applying stress on the axle.
  • Two-wheel, four-wheel, crab steering standard.
  • Standard centrifugal pre-cleaner and two-stage air cleaner.
  • Powershift transmission with four forward and two reverse gears, with a 2-year/2,000-hour warranty.
  • Standard pneumatic tires.
  • ROPS and FOPS certified operator's compartment.
Power (kW) 120 hp (89)
Maximum Travel Speed (km/hr) 22.8 mph (36.7)
Turning Radius (m) 12'2" (3.7)
Lift Capacity (kg) 11,000 lbs. (4990)

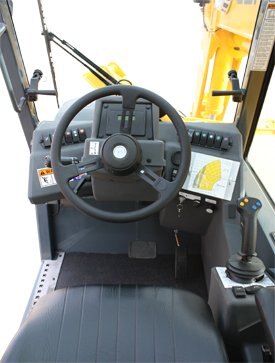

 Operator's Cabin
Gehl DL11-44 GEN3 Telehandler Operator's Station
 Comfort comes standard on the DL11-44 GEN:3 Telescopic Handler, boasting 57 cubic feet of interior space.
  • GEN3 F-N-R Single Joystick that allow operators precise movement of heavy loads
  • Lockable, two-piece cab door for security, communication and cross-ventilation.
  • Standard lockable storage compartment for service items, such as work gloves, tools, blueprints and more.
  • Choice of canopy or cab with heating and defrosting systems standard (air-conditioning optional).
  • Un-matched panoramic visibility increases work-site safety and operator productivity and reduces operator fatigue.
 Handling
  • Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.
  • Industry loading job site maneuverability with a 12' 2" turning radius.
 Engine

The DL11-44 GEN:3 Telescopic Handlers provides the power to get work done effectively and efficiently.

  • Engine shutdown protection feature allows 30-seconds of run time for moving the unit to a safe location for loading or repair.
Manufacturer Cummins
Model 3.8L QSF Tier IV
Power (kW) 120 hp (89)
Maximum Travel Speed (km/hr) 22.8 mph (36.7)
 Hydraulics
Gehl DL11-44 GEN3

The DL11-44 GEN:2 Telescopic Handler has the hydraulic power to get the job done.















Pump Type Open-Center, Dual-Section
Total Capacity (L/min) 43 gpm (162.8)
Main Relief Pressure (bar) 3,000 psi (207)
Auxiliary Relief Pressure (bar) 2,500 psi (172)
Hydraulic Reservoir Capacity (L) 45 gal. (170)
 Attachments
There is a tool for every job, and the DL11-44 can power them all. Dynattach® Quick-Attach system allows quick attachment changes with unsurpassed ease.

A Carriages – Masonry, framing and standard carriages available in different widths.
B Rotating Carriage – 48” (1219 mm) and 66” (1676 mm) wide.
C Fork Shift - 48" (1219 mm) wide.
E Swing Carriage – 90° and 180° swing.
F Log and Pipe Grapple.
G Jib Boom - 5' (1.5 m) with winch and 60' (18.3 m) cable.
H Truss Boom - 12' (3.6 m) and 15' (4.5 m) with optional winch.
Dl Attachments
 Serviceability

Side-mounted engine improves serviceability, allowing three-sided service access through a large, hinged hood.

  • Exterior boom hose routings for easy access.
  • Transmission and hydraulics easily accessed through large hinged panel.
  • Easy access to hydraulic oil and transmission reservoirs.
  • Hydraulic main control valve in back door.
  • Rifled bushings in key areas





Specifications
Model
DL11-44 GEN:3 Telescopic Handler
Category Name
Skid Steer
Year
2020
Sale Type
New
Manufacturer
Gehl
Model
3.8L QSF Tier IV
Width
8'3''
Brakes
Oil-Immersed, Disc-type
Power
120 hp
Wheelbase
10'8''
Aspiration
Turbocharged
Rated Speed
2,500 rpm
Manufacturer
Cummins
Transmission
4-Speed Power Shift
Fuel Capacity
30 gal.
Turning Radius
12'2"
Total Capacity
43 gpm
Ground Clearance
16''
Approximate Weight
25,400 lbs.
Length - Less Forks
20'7"
Maximum Travel Speed
22.8 mph
Frame Leveling - Left/Right
10°/10°
Hydraulic Reservoir Capacity
45 gal.
