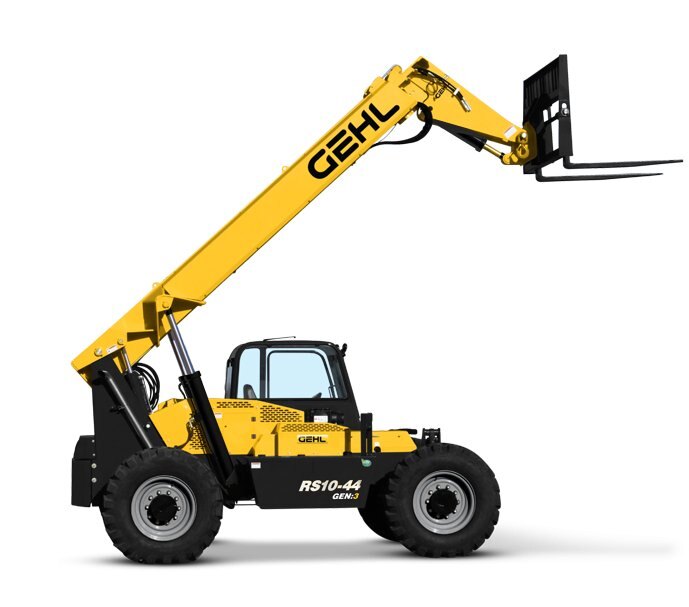

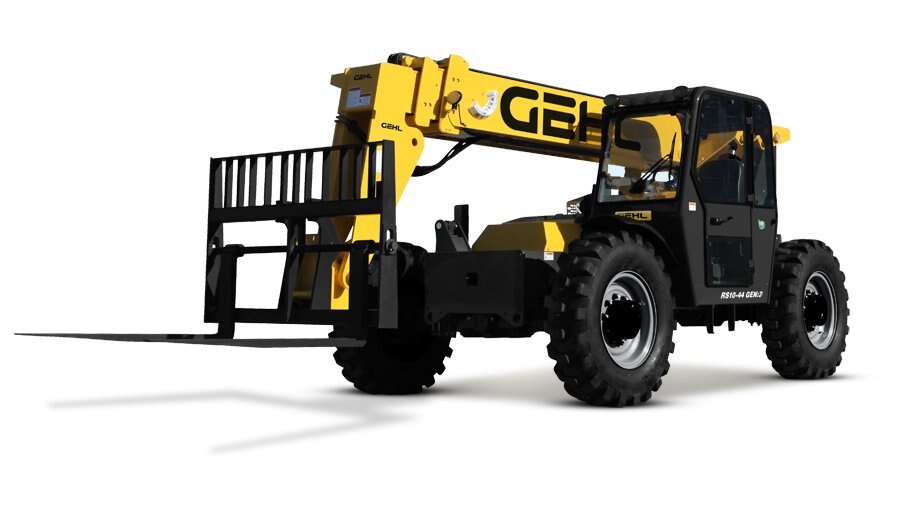

2020 Gehl RS10-44 GEN:3 Telescopic Handler

  • 2020 Gehl RS10 44 GEN:3 Telescopic Handler
  • 2020 Gehl RS10 44 GEN:3 Telescopic Handler
  • 2020 Gehl RS10 44 GEN:3 Telescopic Handler
  • 2020 Gehl RS10 44 GEN:3 Telescopic Handler
  • 2020 Gehl RS10 44 GEN:3 Telescopic Handler
  • 2020 Gehl RS10 44 GEN:3 Telescopic Handler
  • 2020 Gehl RS10 44 GEN:3 Telescopic Handler
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

RS10-44 GEN:3
Telescopic Handler

- Rated Lift Capacity (kg) : 10,000 lbs. (4536)

- Gross Power (kW) : 120 hp (89)

- Maximum Lift Height (m) : 44' 0" (13.4)

- Maximum Forward Reach (m) : 30' 5" (9.3)
 Performance
Gehl RS10-44 Telehandler Performance

The model RS10-44 GEN:3 is built with high quality components, which provides the performance to get the job done.

  • Boom tip lift hook option is now available as a factory-installed option or field installed option.
  • Proven welded box-section boom design makes the boom stronger than competitive models.
  • Cylinder design provides one of the fastest cycle times in the industry.
  • Frame leveling feature adjusts 10-degrees to the left and right, for level performance on uneven terrain.
  • Internal wet disc brakes provide excellent braking and long life.
  • Dual-element air filter protects the engine from airborne contaminants, increasing engine performance and longevity.
 Operator's Cabin
Gehl RS10-44 Telehandler Operator Station

The RS10-44 GEN:3 Telescopic Handler features spacious, durable operator stations to maximize comfort and productivity.

  • Large cab enclosure provides optimal leg room and a spacious operating environment.
  • ROPS/FOPS canopy is standard equipment; ROPS/FOPS enclosed cab is optional.
  • Virtually 360-degree visibility increases safety and operating accuracy.
  • Deluxe high-back seat maximizes operator comfort. Adjustable suspension seat is optional.
  • Side and rear glass is standard equipment.
 Handling
Gehl RS10-44 Telehandler Steering

Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.

  • In 4-wheel steer, the machine has a 13' 11" turning radius for machine positioning on tight job site.

Turning Radius (m)           13'11" (4.24)
 Engine
Gehl RS10-44 Telescopic Handler Engine

The RS10-44 GEN:3 Telescopic Handlers provides the power to get work done effectively and efficiently.

  • Dana four-speed power-shift transmission (4-forward/3-reverse speeds) is easy to operator.
  • Limited-slip differential in the front axle provides additional traction in muddy and unimproved surfaces.





Manufacturer Cummins
Model QSF 3.8 Tier IV
Power (kW) 120 hp (89)
Maximum Travel Speed (km/hr) 20.1 mph (32.3)
Rated Speed 2,500 rpm
 Hydraulics
Hydraulics

The model RS10-44 GEN:3 has outstanding hydraulic system and control performance..

  • Dual-function, pilot-assisted joystick is standard equipment.
  • Optional tri-function, pilot-assisted joystick allows the operator to set fork tilt and auxiliary function speeds.
  • Auto-leveling feature keeps loads level when raising/lowering the boom.



















Pump Type Gear
Total Capacity (L/min) 41.5 gpm (157)
System Pressure (bar) 3,000 psi (207)
Hydraulic Reservoir Capacity (L) 45 gal. (170)


 Attachments
There is a tool for every job, and the RS10-44 GEN:3 can power them all. Dynattach® Quick-Attach system allows quick attachment changes with unsurpassed ease.

A Carriages – Masonry, framing and standard carriages available in different widths.
B Rotating Carriage – 48” (1219 mm) and 66” (1676 mm) wide.
C Fork Shift - 50" (1270 mm) wide.
D Personnel Work Platforms - 180° swing platform and 48” x 50” x 114” (1219 mm x 1270 mm x 2895 mm) platform.
E Swing Carriage – 90° and 180° swing.
F Log and Pipe Grapple.
G Jib Boom - 5' (1.5 m) with winch and 60' (18.3 m) cable.
H Truss Boom - 15' (4.5 m) with optional winch.
Gehl RS6-42 Telehandler Attachment System
Gehl RS10-44 GEN:2 Telehandler Boom Hook Attachment System

Boom Tip Lift Hook

  • This factory-installed option provides a secure lifting point for transporting suspended loads without the use of an additional attachment.
  • The lift capacity remains the same as a standard carriage, while the quick attachment point increases versatility and reduces downtime.
  Serviceability
Gehl RS10-44 Telehandler Service Access

Plenty of access points and over-sized covers make service and maintenance on the RS10-44 GEN:3 a snap.

  • Over-sized front cover provides easy access to the hydraulic reservoir and hydraulic pressure ports for service and testing.
  • Side-mounted fuel tank with battery access and an additional storage compartment.
  • Lockable rear-side covers located on both sides of the machine slide out of the way to expose the engine for service.
  • Shorter hoses from main valve to boom provide neat hose routing, enhancing serviceability.



Specifications
Model
RS10-44 GEN:3 Telescopic Handler
Category Name
Skid Steer
Year
2020
Sale Type
New
Manufacturer
Gehl
Model
QSF 3.8 Tier IV
Width
8'3''
Power
120 hp
Pump Type
Gear
Wheelbase
10'4''
Rated Speed
2,500 rpm
Manufacturer
Cummins
Lift Capacity
10,000 lbs.
Ground Clearance
18''
Maximum Lift Height
44'0"
Maximum Travel Speed
20.1 mph
