The model RS6-34 GEN:3 is built with high quality components, which enhance performance on all levels.

• Welded box-section boom design for maximum load placement ability.
• Well-thought-out cylinder design provides one of the fastest cycle times in the industry.
• Frame leveling feature adjusts 10-degrees to the left and right, for level performance on uneven terrain.
• Internal wet disc brakes provide excellent braking and long life.
• Dual-element air filter protects the engine from airborne contaminants, increasing engine performance and longevity.

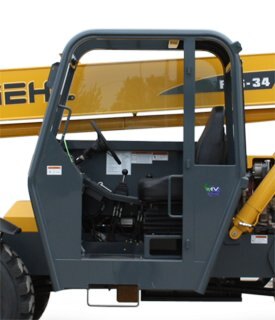

The RS6-34 GEN:3 Telescopic Handler features spacious, modern operator stations to maximize comfort and productivity.

• 44 cubic-foot cab enclosure provides optimal leg room and a spacious operating environment.
• ROPS/FOPS canopy is standard equipment; ROPS/FOPS enclosed cab is optional.
• Virtually 360-degree visibility increases safety and operating accuracy.
• Deluxe high-back seat maximizes operator comfort. Adjustable suspension seat is optional.
• Side and rear glass is standard equipment.

In 4 wheel steer the machine turn radius can be as small as 12' 6" for machine positioning on tight job sites.

• Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.

Turning Radius (m)                                                                         12'6" (3.8)

The model RS6-34 GEN:3 has the hydraulic system power to get the job done.

• Dual-function, pilot-assisted joystick is standard equipment.
• Optional tri-function, pilot-assisted joystick allows the operator to set variable tilt and auxiliary function speeds.
• Auto-leveling feature keeps loads level when raising/lowering the boom.
