ID # 13371358

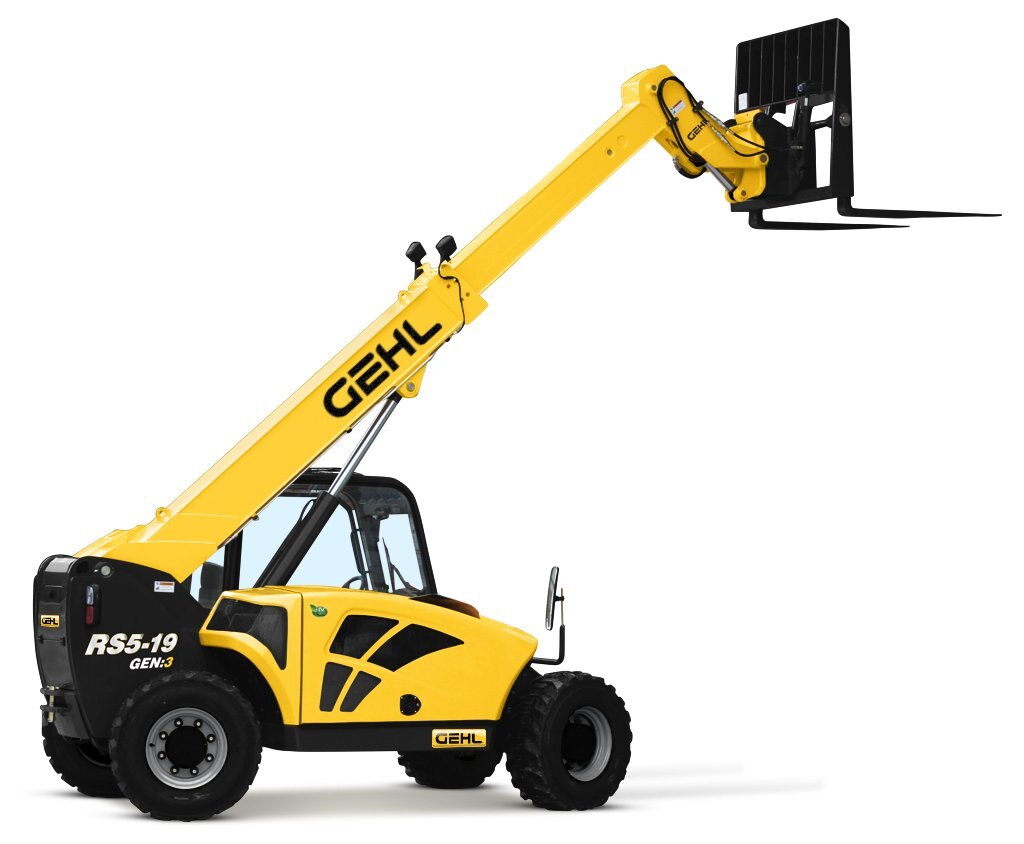

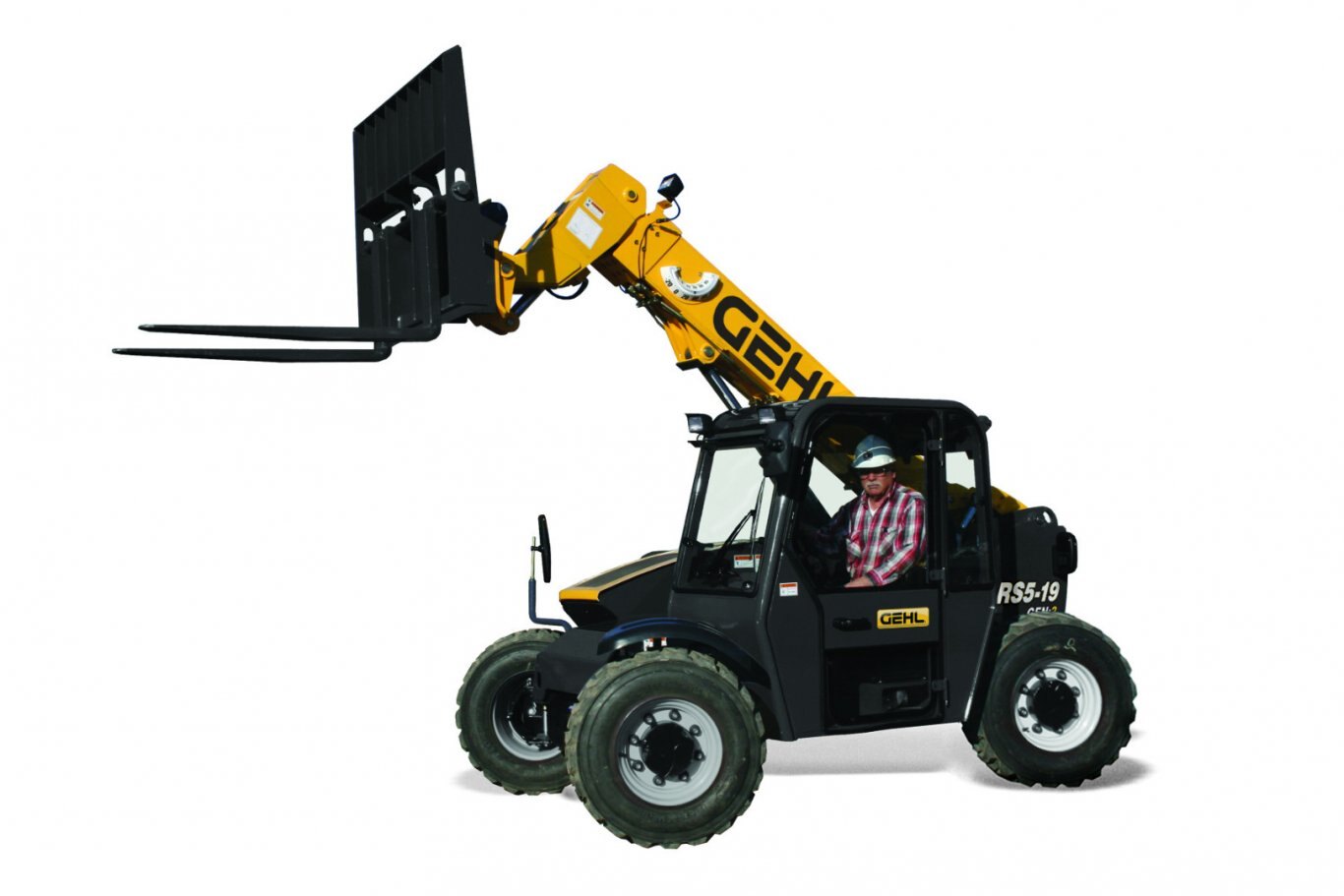

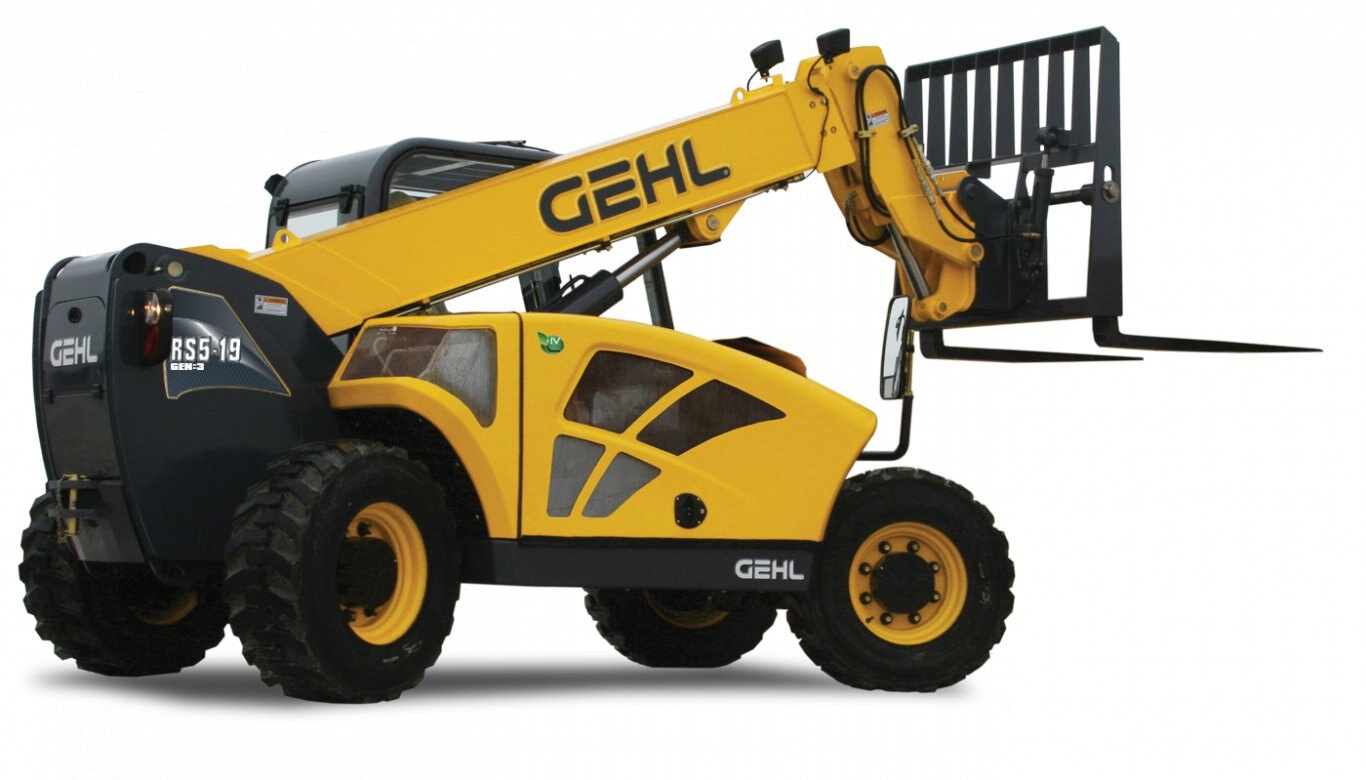

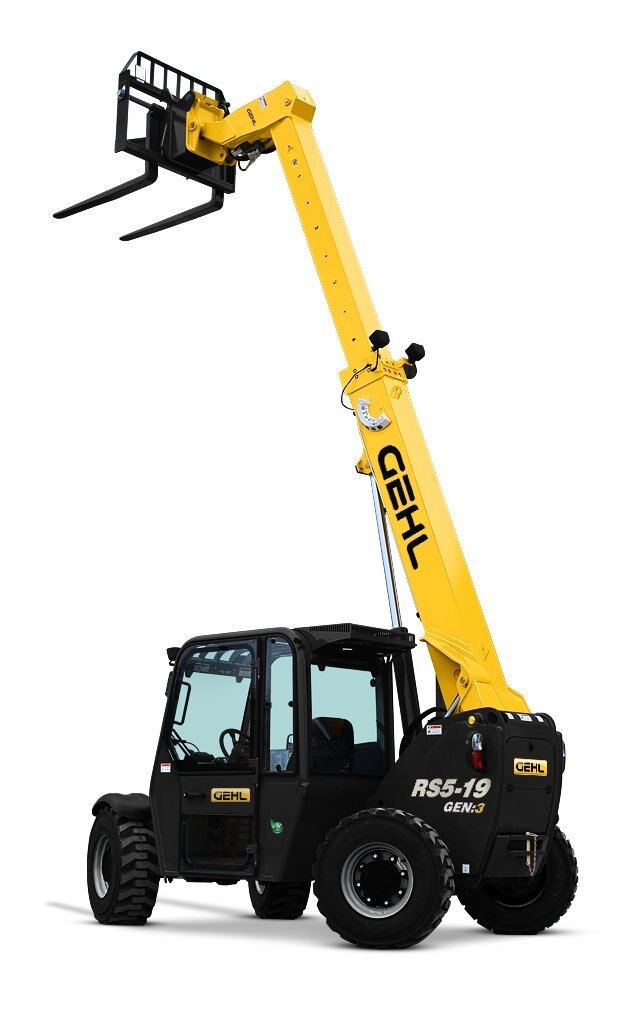

2020 Gehl RS5-19 GEN:3 Telescopic Handler

  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
  • 2020 Gehl RS5 19 GEN:3 Telescopic Handler
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

RS5-19 GEN:3
Telescopic Handler

- Rated Lift Capacity (kg): 5,500 lbs. (2495)

- Gross Power (kW): 69 hp (50.1)

- Maximum Lift Height (m): 19' 1" (5.8)

- Maximum Forward Reach (m): 11' 0" (3.4)
 Performance
Gehl RS5-19 GEN3 Lift

The RS5-19 GEN:3 is built to work hard.

  • Compact size 5' 11" wide & 6' 4" tall
  • Total weight of 10,000 lbs
  • With a ground clearance of 14"
  • Two section telescopic boom has full hydraulic power for all lift and telescopic functions
  • Hydraulic self-leveling lift action automatically keeps the load level as the boom is raised.
  • Inboard wet-disc service brakes
  • Limited slip differential is located on front axle.
  • Highly visible boom level indicator is located on the outer boom and an easy-to-read frame level gauge is located in the cab

System Pressure (bar)                                     3,350 psi (231)

Hydraulic System Total Capacity (L/min)          20 gpm (83)
 Operator's Cabin

 The operator’s cab in the RS5-19 GEN:3 Telescopic Handler is anything but compact. A modern, ergonomic design maximizes comfort.

  • High-back seat with right-side adjustable armrest; suspension seat optional.
  • Locking storage compartment under seat.
  • Full 360° visibility.
  • Ergonomic design features all gauges, indicator lights and switches on the right-side dash panel
  • ROPS/FOPS canopy standard; ROPS/FOPS cab with heater  or ROPS/FOPS cab with heater & A/C optional
 Handling
Gehl RS5-19 GEN3 Telehandler Crab Steering

 To enhance maneuverability, the RS5-19 GEN:3 Telescopic Handler has three steering modes. An operator can change between 2-wheel, 4-wheel and crab-type steering by flipping a switch in the operator’s station.
 Engine
Gehl RS5-19 Engine Access

 The RS5-19 GEN:3 Telescopic Handler provides the power to get work done effectively and efficiently.

  • Engine shutdown protection feature allows 30-seconds of run time for moving the unit to a safe location for loading or repair.
  • Rexroth 2-speed hydrostatic transmission.
  • Limited-slip differential in the front axle provides additional traction in muddy and unimproved surfaces.









Manufacturer Yanmar
Model 4TNV98C Tier IV
Power (kW) 69 hp (50.1)
Maximum Travel Speed (km/hr) 15 mph (24)
Rated Speed 2,500 rpm
  Hydraulics
Gehl RS5-19 GEN3 Telescopic Handler Hydraulics

 The model RS5-19 GEN:3 makes no exceptions when it comes to hydraulic performance.

Pump Type Gear
Total Capacity (L/min) 20 gpm (83)
System Pressure (bar) 3,350 psi (231)
Hydraulic Reservoir Capacity (L) 18 gal. (68)
 Attachments
There is a tool for every job, and the RS5-19 GEN:3 can power them all. Dynattach® Quick-Attach system allows quick attachment changes with unsurpassed ease.

A  Carriages – Masonry, framing and standard carriages available in different widths.
B Rotating Carriage – 48” (1219 mm) and 66” (1676 mm) wide.
C Fork Shift - 50" (1270 mm) wide.
D Truss Boom- 5' long.
E Bucket - Light Material - 71" wide.
Rs Attachments
 Serviceability

The RS5-19 GEN:3 Telescopic Handler has an intelligent design that protects components and provides easy access for routine maintenance.

  • The engine hood lifts fully out of the way, providing easy access to the battery and and engine maintenance
  • A hinged access door provides easy access to the engine oil drain.
  • Hydraulic oil fill cap is located on the top of the engine compartment for easier access, with a spill guard for extra protection.
  • A protective sleeve over the exhaust pipe increases safety when working on the engine.
  • A dual-element air filter protects the engine from airborne contaminants.



Specifications
Model
RS5-19 GEN:3 Telescopic Handler
Category Name
Skid Steer
Year
2020
Sale Type
New
Manufacturer
Gehl
Model
4TNV98C Tier IV
Power
69 hp
Width
5'11
Brakes
2-Wheel Hydraulically Actuated Internal Wet-Disc Brake
Length
12'4''
Pump Type
Gear
Wheelbase
7'6"
Aspiration
Natural
Rated Speed
2,500 rpm
Manufacturer
Yanmar
Overall Height
6'4"
Total Capacity
20 gpm
Ground Clearance
14"
System Pressure
3,350 psi
Maximum Travel Speed
15 mph
Hydraulic Reservoir Capacity
18 gal.
