ID # 13224906

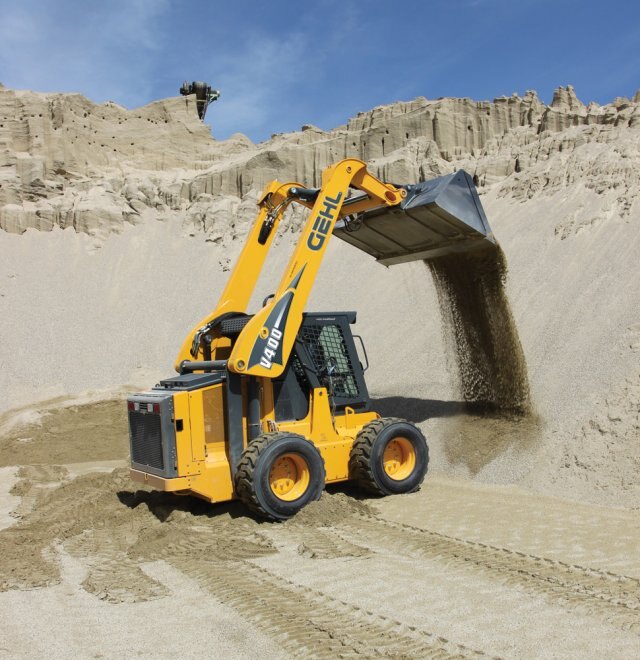

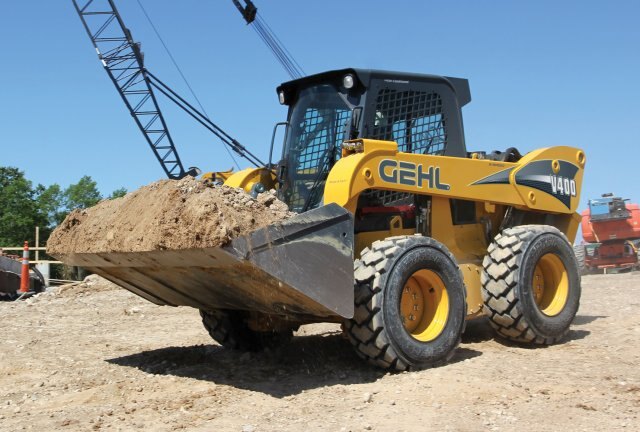

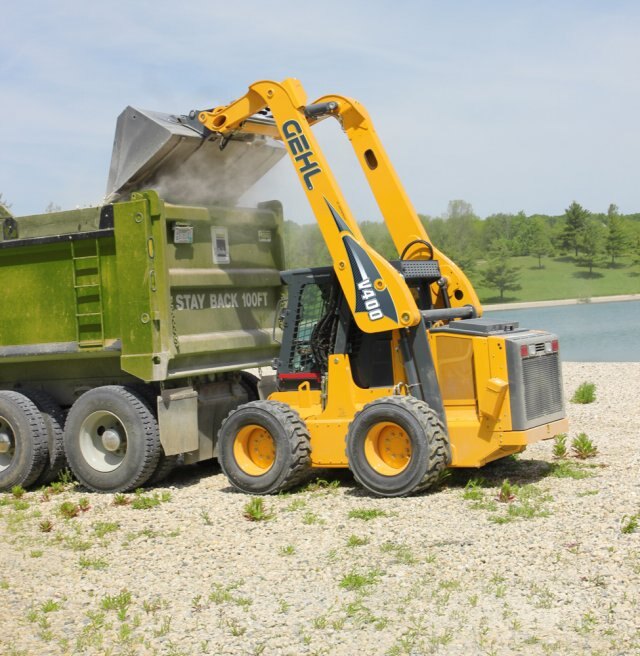

Gehl V400 Vertical-Lift Skid Loader

  • Gehl V400 Vertical Lift Skid Loader
  • Gehl V400 Vertical Lift Skid Loader
  • Gehl V400 Vertical Lift Skid Loader
  • Gehl V400 Vertical Lift Skid Loader
  • Gehl V400 Vertical Lift Skid Loader

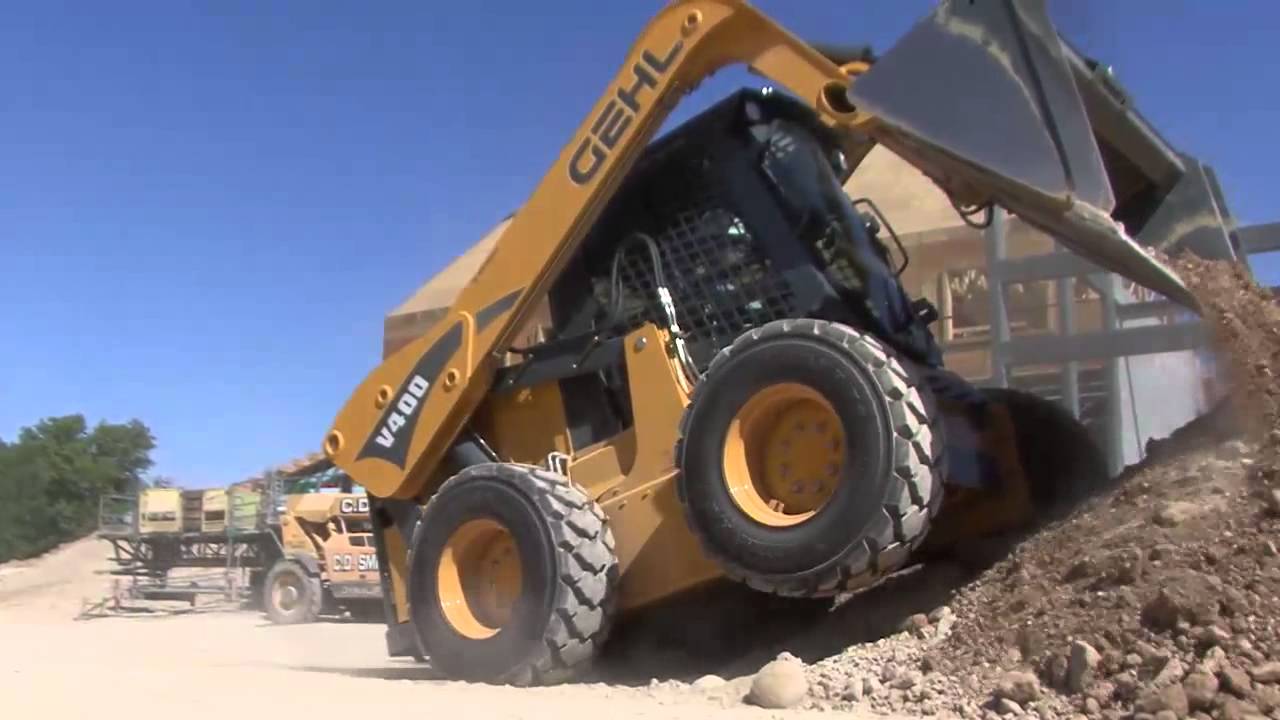

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

    Height to Hinge Pin - Fully Raised (mm): 144" (3647)
    Rated Operating Capacity (kg): 4,000 lbs. (1814)
    Power (kW): Gross 99 hp (74)

  Features

 Performance

The Gehl V400 skid loader is a shining example of Gehl’s superior innovation and well thought-out product development.

Operator's Cabin

The operator’s compartment on the V400 skid loader provides a safe and comfortable working environment for operators of all sizes.

Controls

Controls on the Gehl V400 skid loader are ergonomically designed to reduce operator fatigue and increase productivity.
Engine
The Gehl V400 skid loader comes equipped with the power to tackle virtually any job.

Hydraulics

When maximum hydraulic power is needed to run demanding attachments, the V400 Skid Loader is equipped with the tools to get the job done right.

Lift Arm

The V400 skid loader vertical-lift arm design was created for maximum reach, superior strength and optimal operator visibility.
Serviceability
At Gehl we know ease of serviceability is very important to our customers. The model V400 skid loader is sure to exceed their expectations.

Attachment System
A full line of Edge attachments and accessories are designed specifically to fill operators’ needs, making their V400 the most versatile machine on the job site. Popular attachments are listed below.

Edge Attachments for Gehl 1640E Skid Steer Loader
A     Augers
B     Bulk Material Buckets
C     Cold Planers
D     Silage Defacer
E     Snow Removal
F     Stump Removal Bucket
G     Tree Shears
H     Tree Puller/Grabbing Tool



Specifications
Model
V400 Vertical-Lift Skid Loader
Category Name
Skid Steer
Year
2014
Sale Type
New
Manufacturer
Gehl
Overall Operating Height Fully Raised
186.8''
Height To Hinge Pin Fully Raised
144''
Overall Height To Top Of ROPS
82.0''
Ground Clearance To Chassis
7.3''
Overall Length W Bucket
158.5''
Overall Length W O Bucket
121.5''
Wheelbase
54.6''
Dump Reach At Full Height
39.5''
Rollback At Ground
31°
Dump Angle
31°
Overall Width
79.5''
Bucket Widths
84''
Clearance Circle Rear
70.5''
Clearance Circle Front W O Bucket
50.8''
Clearance Circle Front W Bucket
88.5''
Seat To Ground Height
40.8''
Dump Height
114.8''
Departure Angle
19°
Standard Specification Tire Size
14.00 - 17.5 HD
Make
Cummins
Model
QSB 4.5 Tier III
Net Power @ Rpm
99 hp @ 2,200
Maximum Torque
326 ft.-lbs. @ 1,300
Displacement
272 cu.in.
Auxiliary Hydraulics Standard
32 gpm
High Flow Auxiliary Hydraulics Option
40.8 gpm
Reservoir Capacity
16.75 gal.
Rated Operating CapacityB
4,000 lbs.
Fuel Tank
31.25 gal.
Travel Speed Maximum
6.5 mph
Travel Speed With Two Speed Option Maximum
11.2 mph
Operating WeightC Approximate
11,100 lbs.
Rollback At Specified Height
100°
