ID # 26836997

Fella Juras 12545 PRO

  • Fella Juras 12545 PRO
  • Fella Juras 12545 PRO
  • Fella Juras 12545 PRO
  • Fella Juras 12545 PRO
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

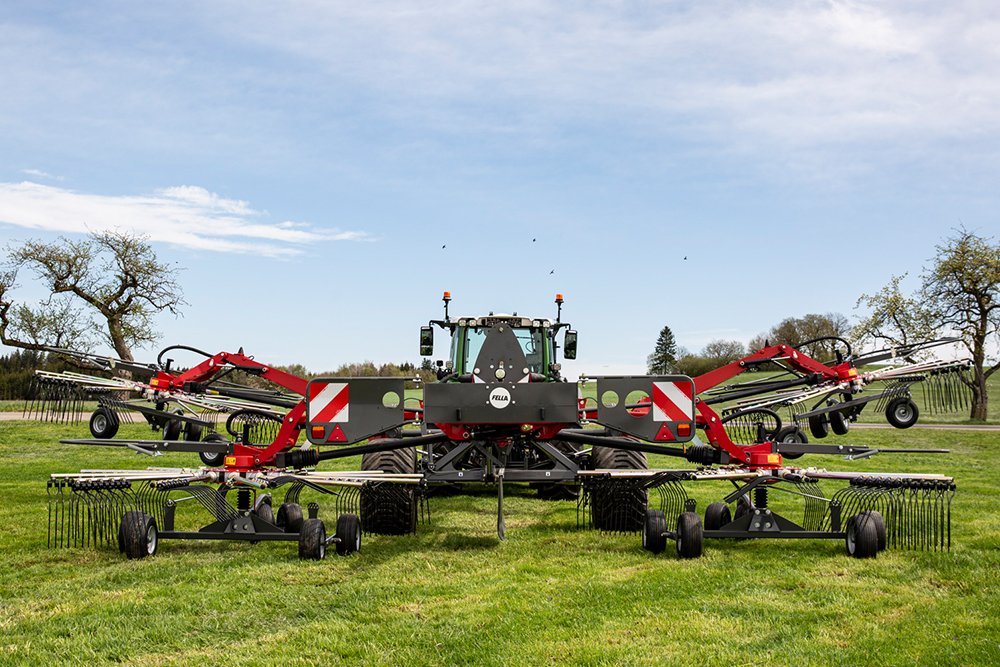

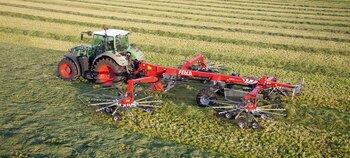

Four-rotor – central windrow deposition

  • Four-rotor rake with variable working and swath width for large area use
  • Optimum swath positioning for the perfect utilisation of the following machines
  • Low centre of gravity, excellent driving behaviour

JURAS 4000 - JURAS 12545 PRO

Working width approx.: 10.60 m – 12.50 m

  1. The cardanic rotor suspension in all four rotors ensures optimum ground adaptation in all directions and thus also neat raking work.
  2. Exact swathing even at the end of the field with sequential control as standard as well as synchronous rotor lifting.
  • Hydraulic working width/swath width adjustment
  • Performance and low drag in one machine
  • Durable FELLA rake head with enclosed design
Specifications
Model
Juras
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
FELLA
Machine
JURAS 12545 PRO
PTO Rpm
540 rpm
Weight Approx
4750 kg
Rotor Diameter
3200 mm
Swath Width Approx
1200-2200 mm
Power Demand Approx
80 hp
Tine Arms Per Rotor
4x 12
Double Tines Per Arm
4
Working Width Approx
10600-12500 mm
Mounting Category CAT
II CAT
Transport Width Approx
2980 mm
Tyres Of Rotor Chassis
4 x 16/6.50-8 / 6 x 16/6.50-8
Transport Length Approx
8820 mm
Transport Height Approx.
3940 - 3990 mm
Tyres Of Transport Chassis
500/50-17
Necessary Hydraulic Outlets
1 x Load Sensing
special features

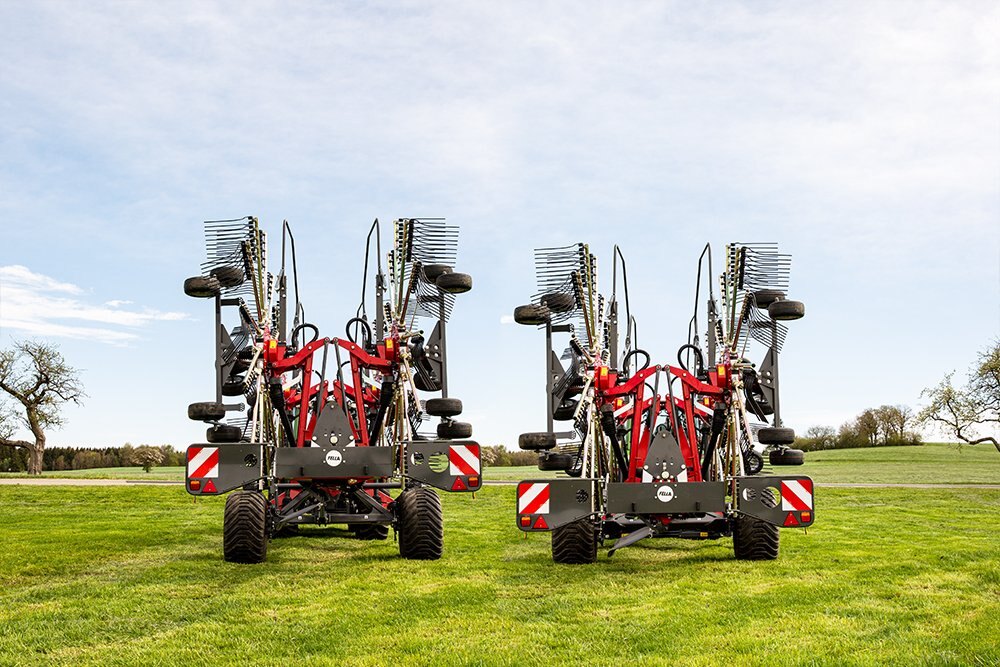

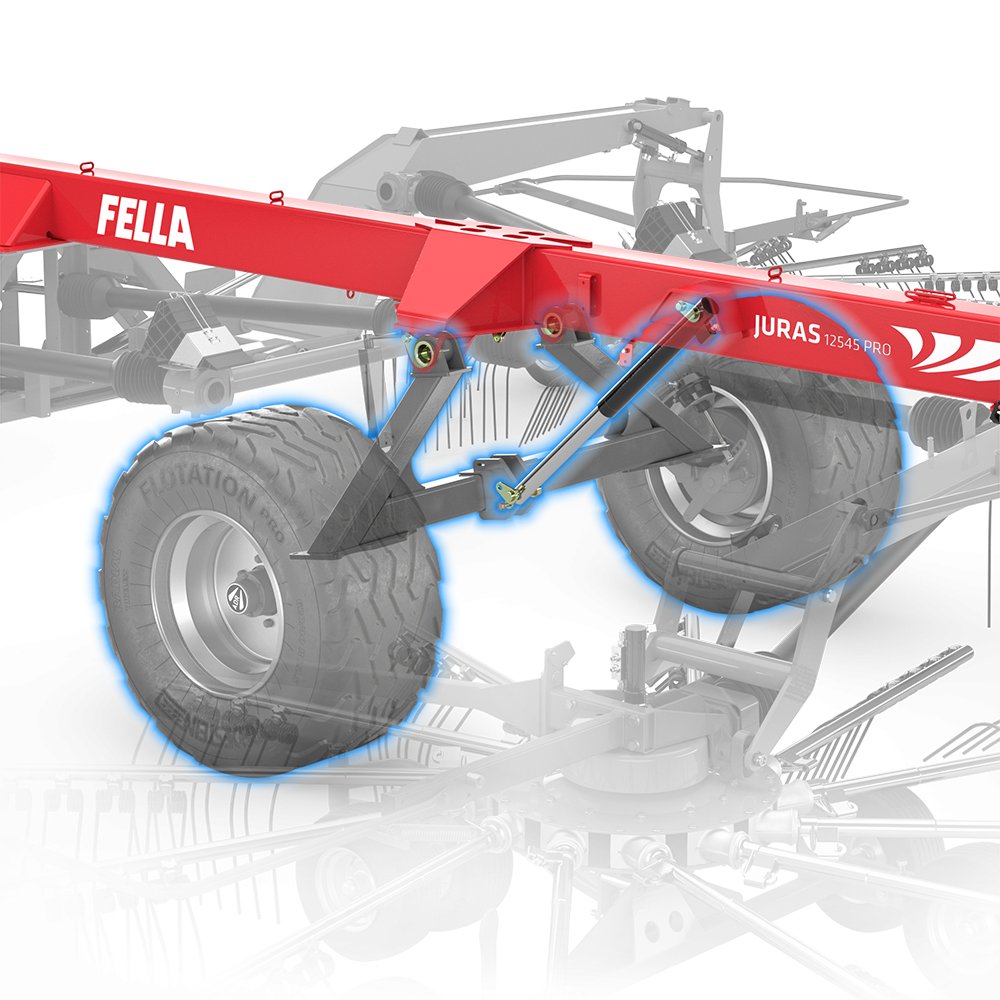

Fella Juras 12545 PRO JURAS 12545/-PRO: Hydraulic height-adjustable broad gauge chassis

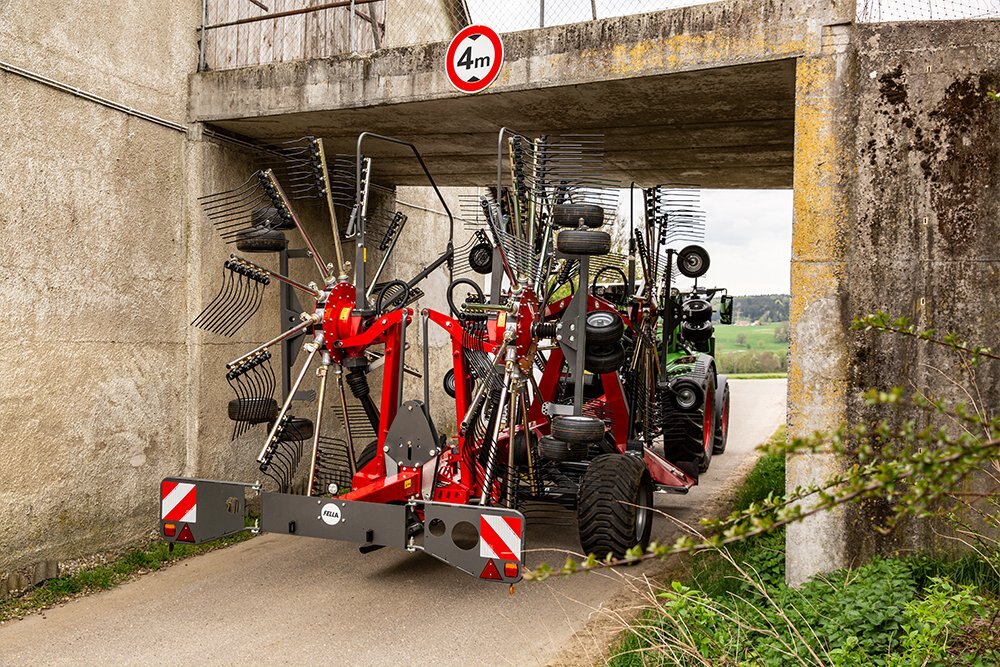

The broad gauge chassis ensures a low centre of gravity and stability in any driving situation. Consequently, the height-adjustable axle guarantees a transport height under four metres, even with the tines attached.

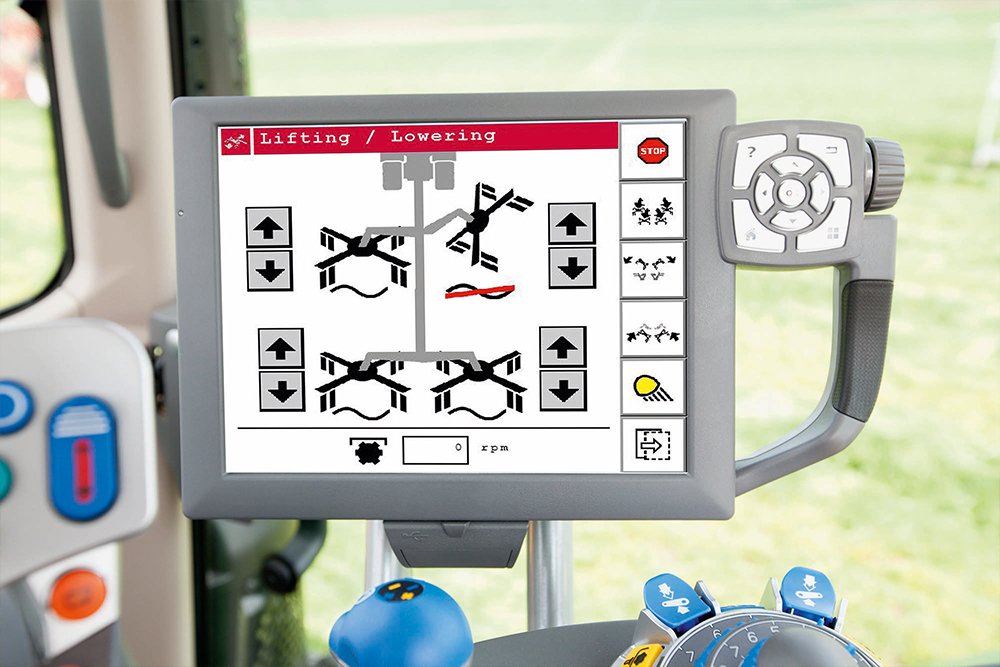

Fella Juras 12545 PRO JURAS 12545 PRO: Operation of all functions using ISOBUS control system

All functions, such as single lift, raking height adjustment and automatic folding into the transport position, can be operated from the tractor using the ISOBUS control system and can be programmed according to the user's needs using the control lever or a separate operating joystick.

Fella Juras 12545 PRO JURAS 12545 PRO: Measure performance with the integrated hectare counter

Using the integrated hectare and hour counters, it is possible to measure the amount of work which has been done. Ideal for paid contract work or use on more than one farm.

Fella Juras 12545 PRO Sequential control as standard: Easy to operate on the headland

The JURAS four-rotor rakes are equipped with automatic, hydraulic and individually adaptable sequential control. This system controls the delayed raising and lowering of the rear pair of rotors and, as a result, enables you to deposit perfectly formed swaths at the end of the field.

Fella Juras 12545 PRO Hydraulic working width adjustment

This ensures optimum ergonomics and, as far as possible, makes the driver's work easier after a long working day


technologies

Jet effect

Forage contamination and damage to the sward is reliably prevented by raising the front tines.

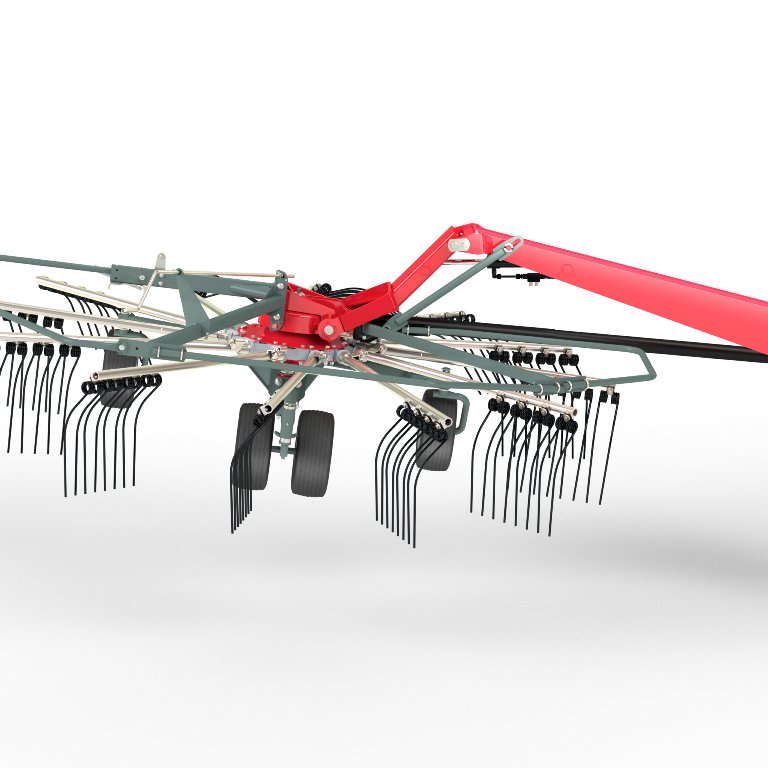

Cardanic rotor suspension

The patented fully cardanic rotor suspension ensures that perfect ground adaptation is guaranteed even under the most difficult of working conditions.

SteerGUARD

FELLA is the only manufacturer on the market to offer a steering system for the rake which operates within the frame.

Cam track adjustment/work quality optimisation

With the adjustment of the longitudinal and transverse inclination of the rotor and the cam track adjustment, the rake can be easily adapted to various conditions.
literature
Download product range brochure                                                                                                                                                              Download
Download JURAS rake brochure  Download
