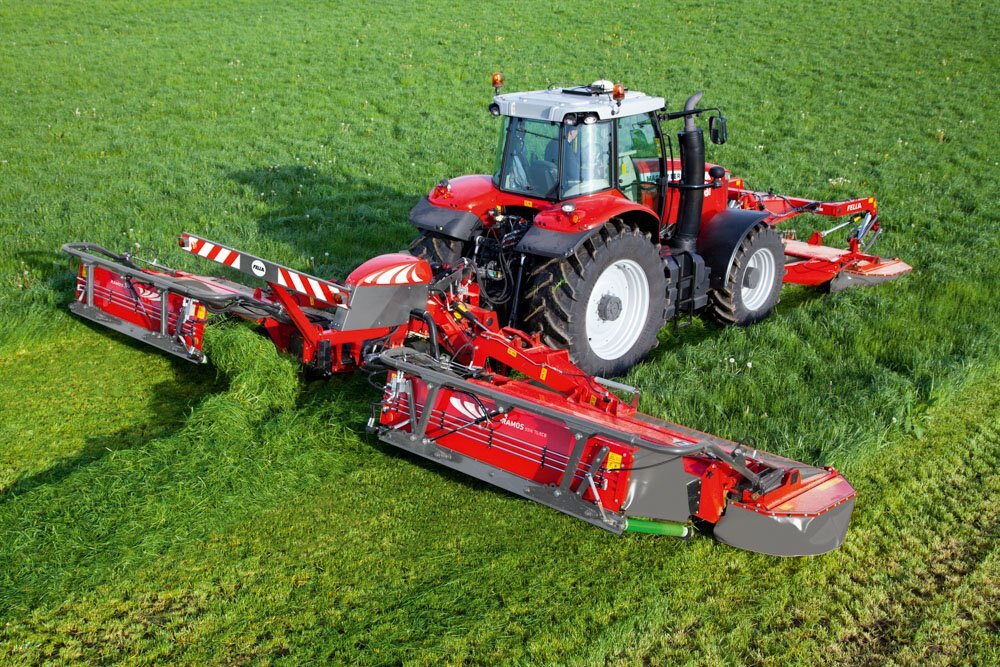

Fella RAMOS 9314 TL-KCB

  • Fella RAMOS 9314 TL KCB
  • Fella RAMOS 9314 TL KCB
  • Fella RAMOS 9314 TL KCB
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Mower combination with conveyor belt

  • Perfect for use on large farms and for contractors
  • Powerful alternatives to self-propelled machines
  • Extremely low-drag and cost-effective
  • With conditioner and swath gathering for optimum forage quality

RAMOS 9314 TL-KCB

Working width approx.: 9.30 m

  1. Operation of all mower functions by means of ISOBUS, such as single lift and conveyor belt operation, enables maximum relief for the operator.
  2. Optimum swath gathering even in large quantities of forage thanks to the FELLA beMOVE conveyor belt with integrated hydraulic lateral movement.
  • Work process automation with ISOBUS control system
  • Optimum swath gathering with the FELLA beMOVE conveyor belt
  • Perfect quality of cut thanks to the cutter bar with compact angular gear
Specifications
Model
RAMOS
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
FELLA
Machine
RAMOS 9314 TL-KCB
PTO (RPM)
1000 rpm
Mower Discs
2 x 7
Weight Approx
3450 kg
Blades Per Disc
2
Swath Width Approx
1800-3000 mm
Power Demand Approx
228 hp
Working Width Approx
9300 mm
Mounting Category CAT
II+III CAT
Transport Width Approx
2780 mm
Transport Height Approx
3900 mm
Mähscheiben Mit Förderflügeln
4
special features

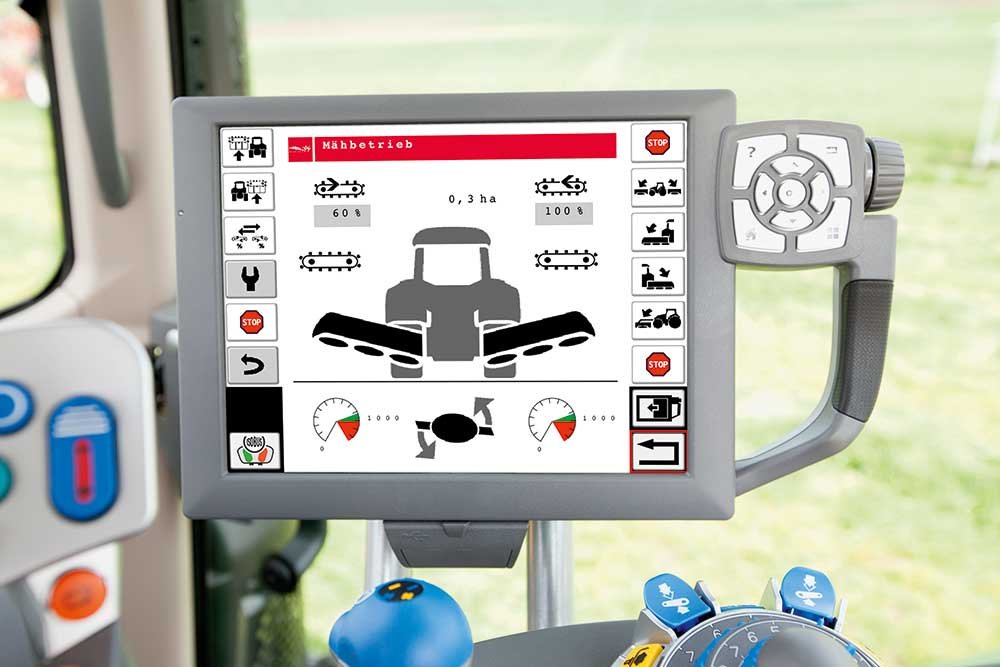

OPERATION OF ALL FUNCTIONS USING THE ISOBUS CONTROL SYSTEM Fella RAMOS 9314 TL KCB

All functions, such as single lift, conveyor belt operation and the slope function, can be operated from the tractor using the ISOBUS control system and can be programmed according to the user's needs using the control lever or a separate control joystick.

This ensures optimum ergonomics and, as far as possible, makes the driver's work easier after a long working day.

The software can optionally be extended with the addition of Section Control for satellite-controlled lifting and lowering of mower units.

AUTOMATIC FOLDING FOR TRANSPORT Fella RAMOS 9314 TL KCB

At just a touch of a button, the mower automatically and neatly folds into the transport position. Once the mower combination is at a standstill, the conveyor belts are securely and automatically brought into position.

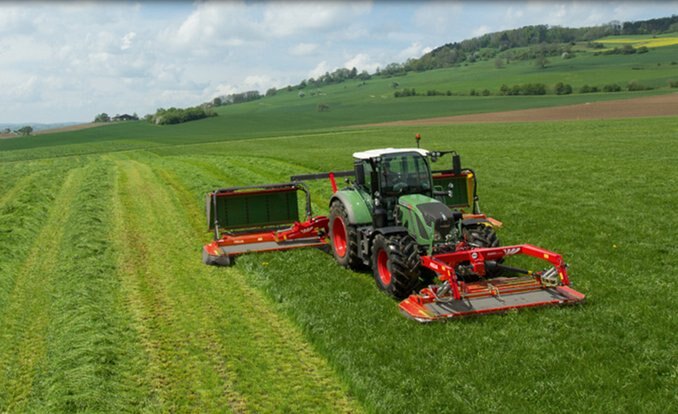

COMBINATION OF FRONT-MOUNTED MOWER AND REAR UNIT

Fully automated work processes mean that the front-mounted mower and the rear units can be combined at just a touch of a button. Both mower units can be lowered and lifted sequentially.

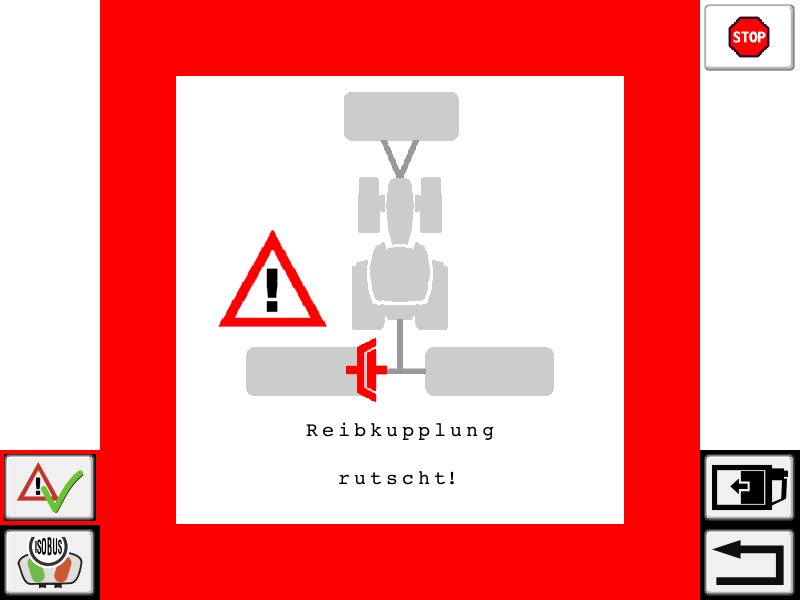

SPEED SENSORS IN THE ENTIRE POWER TRAIN Fella RAMOS 9314 TL KCB

The user can conveniently monitor the speed of the mower combination from the driver's seat and is also immediately notified of any faults by an automatic warning function. The mower combination can be used to maximum capacity in this manner.

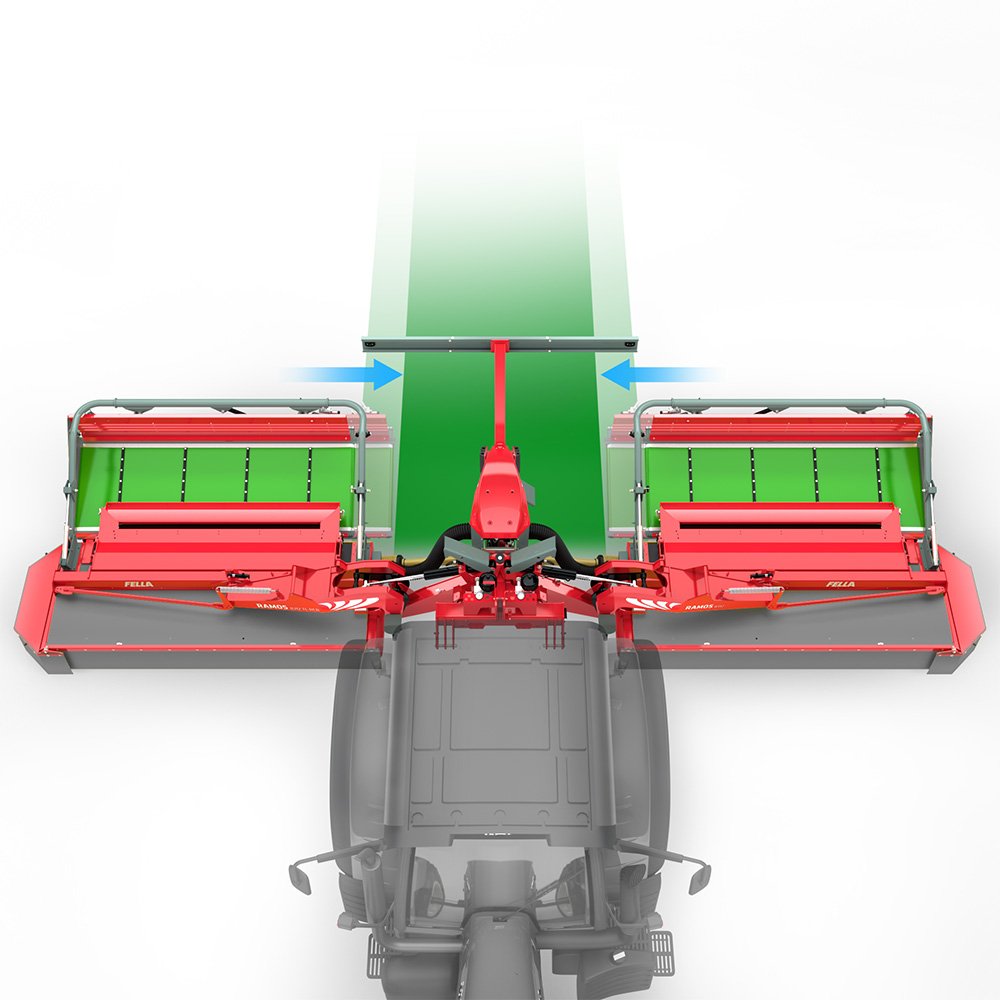

BEMOVE – HYDRAULIC LATERAL MOVEMENT FOR CONVEYOR BELTS Fella RAMOS 9314 TL KCB

The belt speed of the wide conveyor belt (940 x 270 mm) with integrated hydraulic lateral movement can be adjusted infinitely.
Optimum swath gathering is possible via ISOBUS, even in bulky crops.
The swath width can be adjusted to the trailing machinery variably and easily from the comfort of the driver's seat.

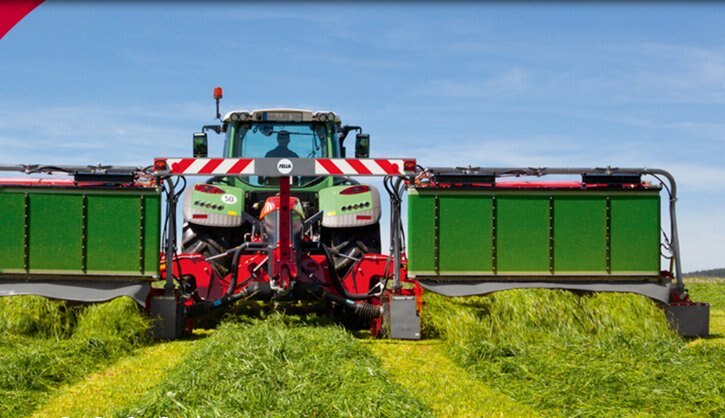

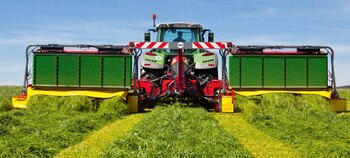

ADAPTABLE TO DIFFERENT WORKING CONDITIONS THANKS TO THE TRANSVERSE CONVEYOR BELT

Combined with the effective tine rotor conditioner, the transverse conveyor can position the forage swath in a triple, single or wide deposit. The infinitely adjustable speed and on/off switch is extremely user-friendly while driving.
technologies

Compact angular gear

FELLA mowers with compact angular gear are designed to provide maximum performance while remaining cost-efficient in all regions and in all harvesting conditions. The design of the mower units features an impressive mix of stability and flexibility. They are particularly low-drag thanks to their special drive system, and they feature high ground coverage and a low power demand.

KC tine-rotor conditioners

The mower-conditioner combination shortens the natural fermentation process of the mowed forage by hours. This gives you a decisive time advantage, particularly in unpredictable weather conditions – a quicker and safer way to produce your high-quality forage. The waxy layer of the forage is rubbed off and a loose, airy swath is deposited.

driveGUARD

The patented FELLA driveGUARD provides premium overload protection. It reliably protects the mower and mower gearbox against damage in the event of foreign objects in the crop flow

SafetySwing

The SafetySwing impact guard protects every mower unit when an obstacle is encountered. This protects the mower combination against damage, thereby eliminating the need for time-consuming repairs in the workshop.

ComfortChange quick blade change

Uncomplicated quick blade change that takes only a few hand movements.

TurboLift system

The TurboLift cutter bar suspension system from FELLA guarantees continual optimum contact pressure during the entire mowing process. This protects the sward and prevents contamination of the high-quality forage. The innovative control device enables quick, easy and continuous adjustment of the contact pressure for a wide variety of operating conditions.
literature
Download product range brochure                                                                                                                                                              Download
Download RAMOS disc mower brochure Download
