SHORT ATTACHMENT

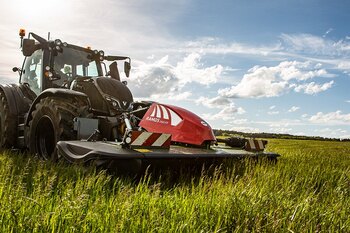

The most compact attachment possible optimises mower guiding and reduces the load for the tractor and mower. For the new FP machines, there are two different direct headstocks that have been adapted to the centre of gravity of each mower with or without conditioner.

OPTIMUM GROUND ADAPTATION

The pivot axle mounted at the centre of gravity ensures optimum ground adaptation (+/- 7.5°). A uniform cutter bar contact pressure can be set using the spring relief on the tractor.

PERFECTLY BALANCED

The integrated spring-centring system reliably prevents rocking even when driving quickly on roads. Positioning springs balance the cutter bar, thereby reducing the material load during transport and extending the service life.

DIRECT DRIVE

Simple and clear driveline via the drive shaft with overload protection and integrated freewheel in the gearbox. Counterclockwise or clockwise rotation can be achieved very easily by reversing the gear.

SIDE-LOCKING, FOLDING PROTECTIVE COVERS DESIGNED FOR OPTIONAL USE WITH A HYDRAULIC FOLDING SYSTEM

In order to comply with the transport width of 3 metres, the side guard cover can be folded. The design allows for optional use with a hydraulic side guard folding system, which reduces set-up and take-down times.

SIMPLY CONDITIONED

• The tine-rotor conditioner (KC) can be adjusted without tools into four counter-comb positions to set the work intensity – depending on the prevailing operating conditions
• The intensity of the roller conditioner (RC) is easily controlled via the spring tensioning force and the roller distance
• The swath board can quickly be adjusted to any swath width required without the need for tools.
