ID # 17932847

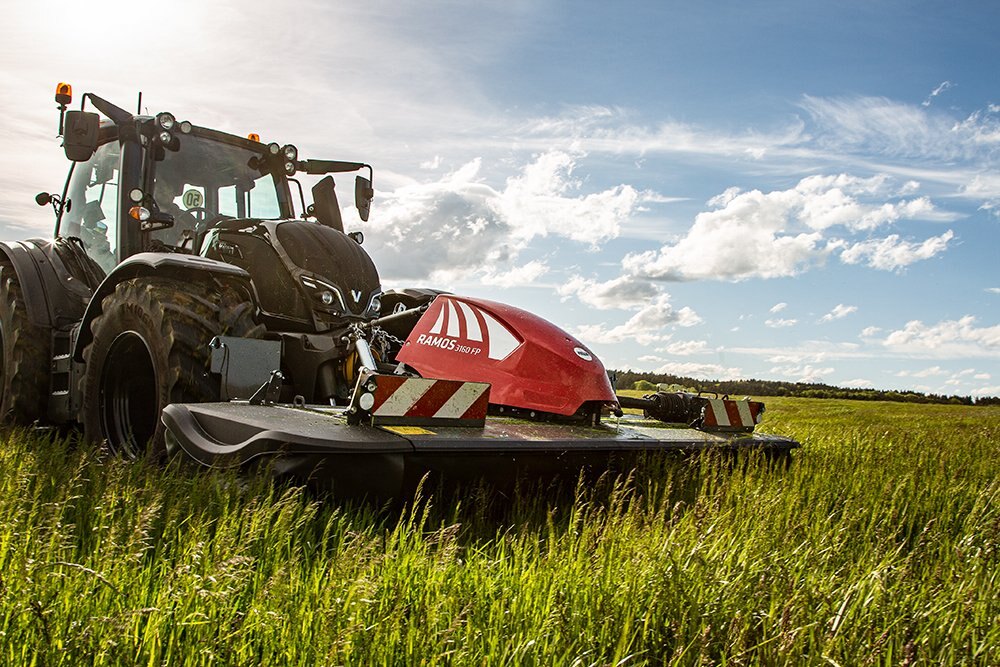

Fella Ramos 3160 FP - Ramos 3160 FP-RC

  • Fella Ramos 3160 FP Ramos 3160 FP RC
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Front-mounted oscillating linkage

  • Front mowers with oscillating linkage for optimum ground adaptation in a lateral direction
  • Short, compact attachment to the tractor
Working width approx.: 3.10 m
  1. Compact direct attachment oscillating linkage with two variants adapted to the specific centre of gravity. A shorter headstock for machines without a conditioner and a longer headstock for the conditioner mowers.
  2. A large pendulum travel, multiple coupling points and a simple counterclockwise and clockwise adjustment afford a high degree of flexibility, while the many convenient features ensure maximum user friendliness.
Specifications
Model
Ramos 3160 FP - Ramos 3160 FP-RC
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
FELLA
special features

SHORT ATTACHMENT Fella Ramos 3160 FP Ramos 3160 FP RC

The most compact attachment possible optimises mower guiding and reduces the load for the tractor and mower. For the new FP machines, there are two different direct headstocks that have been adapted to the centre of gravity of each mower with or without conditioner.

OPTIMUM GROUND ADAPTATION Fella Ramos 3160 FP Ramos 3160 FP RC

The pivot axle mounted at the centre of gravity ensures optimum ground adaptation (+/- 7.5°). A uniform cutter bar contact pressure can be set using the spring relief on the tractor.

PERFECTLY BALANCED Fella Ramos 3160 FP Ramos 3160 FP RC

The integrated spring-centring system reliably prevents rocking even when driving quickly on roads. Positioning springs balance the cutter bar, thereby reducing the material load during transport and extending the service life.

DIRECT DRIVE Fella Ramos 3160 FP Ramos 3160 FP RC

Simple and clear driveline via the drive shaft with overload protection and integrated freewheel in the gearbox. Counterclockwise or clockwise rotation can be achieved very easily by reversing the gear.

SIDE-LOCKING, FOLDING PROTECTIVE COVERS DESIGNED FOR OPTIONAL USE WITH A HYDRAULIC FOLDING SYSTEM Fella Ramos 3160 FP Ramos 3160 FP RC

In order to comply with the transport width of 3 metres, the side guard cover can be folded. The design allows for optional use with a hydraulic side guard folding system, which reduces set-up and take-down times.

SIMPLY CONDITIONED Fella Ramos 3160 FP Ramos 3160 FP RC

  • The tine-rotor conditioner (KC) can be adjusted without tools into four counter-comb positions to set the work intensity – depending on the prevailing operating conditions
  • The intensity of the roller conditioner (RC) is easily controlled via the spring tensioning force and the roller distance
  • The swath board can quickly be adjusted to any swath width required without the need for tools.
technical specifications
Machine RAMOS 3160 FP RAMOS 3160 FP-KC RAMOS 3160 FP-RC
Working width approx. 3100 mm 3100 mm 3100 mm
Weight approx. 710 kg 1015 kg 1045 kg
Blades per disc 2 2 2
Power demand approx. 60 hp 75 hp 70 hp
Mower discs 6 6 6
Mounting Category Direct mounting CAT II Direct mounting CAT II Direct mounting CAT II
Necessary hydraulic outlets - - -
Swath width approx. 1800 mm 1200-2000 mm 1200-2000 mm
Transport width approx. 2990 mm 2990 mm 2990 mm
Transport length approx. 1650 mm 1740 mm 1740 mm
PTO rpm 1000 rpm 1000 rpm 1000 rpm
