Fella RAMOS 260 FP

  • Fella RAMOS 260 FP
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

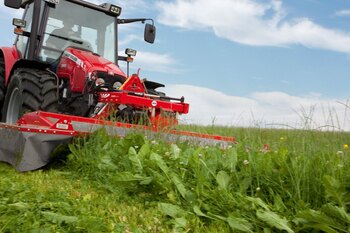

Front-mounted oscillating linkage

  • Front mowers with oscillating linkage for optimum ground adaptation in a lateral direction
  • Short, compact attachment to the tractor

RAMOS 260 FP - RAMOS 310 FP-K

Working width approx.: 2.50 m – 3.00 m

  1. Can be combined with many tractors thanks to the standard 540 and 1000 rpm as well as clockwise and anti-clockwise rotation.
  2. The FP-S variant with hydraulic lateral movement makes neat mowing on slopes and with twin tyres possible.
  3. 310 FP-K variant with shortened headstock for better ground adaptation and tractor-side spring relief
  • Compact attachment to the tractor
  • Optimum ground adaptation by hitching the mower unit at the centre of gravity
  • Perfect quality of cut thanks to the cutter bar with compact angular gear
Specifications
Model
RAMOS
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
FELLA
Machine
RAMOS 260 FP
PTO Rpm
540/1000 rpm
Mower Discs
4
Weight Approx
474 kg
Blades Per Disc
2
Swath Width Approx
1350 mm
Power Demand Approx
38 hp
Working Width Approx
2500 mm
Mounting Category CAT
II CAT
Transport Width Approx
2500 mm
Transport Length Approx
1210 mm
special features

OPTIMUM GROUND ADAPTATION Fella RAMOS 260 FP

The pivot axle mounted at the centre of gravity ensures optimum ground adaptation (+/- 4.5°). A uniform cutter bar contact pressure can be set using the spring relief on the tractor.

LOW LOAD FOR THE TRACTOR

Due to the compact linkage on the FP mower, the centre of gravity is very close to the tractor. This results in a low load for the tractor and machine, and prevents rocking, even when driving quickly on roads.

UNIFORM SWATH POSITIONING

The symmetrical number of mower discs ensures that swath is uniformly positioned between the tractor tyres without additional feeder drums or swath drums

CAN BE COMBINED WITH ALL TRACTORS

The gearbox enables a number of different directions of rotation and speeds. 540 and 1000 rpm as well as clockwise and counterclockwise rotation are available as standard.

FP-S VARIANT: HYDRAULIC LATERAL MOVEMENT Fella RAMOS 260 FP

The FP-S variant can be moved approx. 20 cm to the left or right, which means that you can mow with ease on slopes and/or with twin tyres without having to leave any forage behind.

310 FP-K VARIANT WITH SHORTENED HEADSTOCK Fella RAMOS 260 FP

This extremely compact attachment ensures perfect ground adaptation with a pendulum travel of +/- 6.5°. Since the centre of gravity is very close to the tractor, it is possible to operate it even using light tractors.
technologies

Compact angular gear

FELLA mowers with compact angular gear are designed to provide maximum performance while remaining cost-efficient in all regions and in all harvesting conditions. The design of the mower units features an impressive mix of stability and flexibility. They are particularly low-drag thanks to their special drive system, and they feature high ground coverage and a low power demand.

driveGUARD

The patented FELLA driveGUARD provides premium overload protection. It reliably protects the mower and mower gearbox against damage in the event of foreign objects in the crop flow

ComfortChange quick blade change

Uncomplicated quick blade change that takes only a few hand movements.
