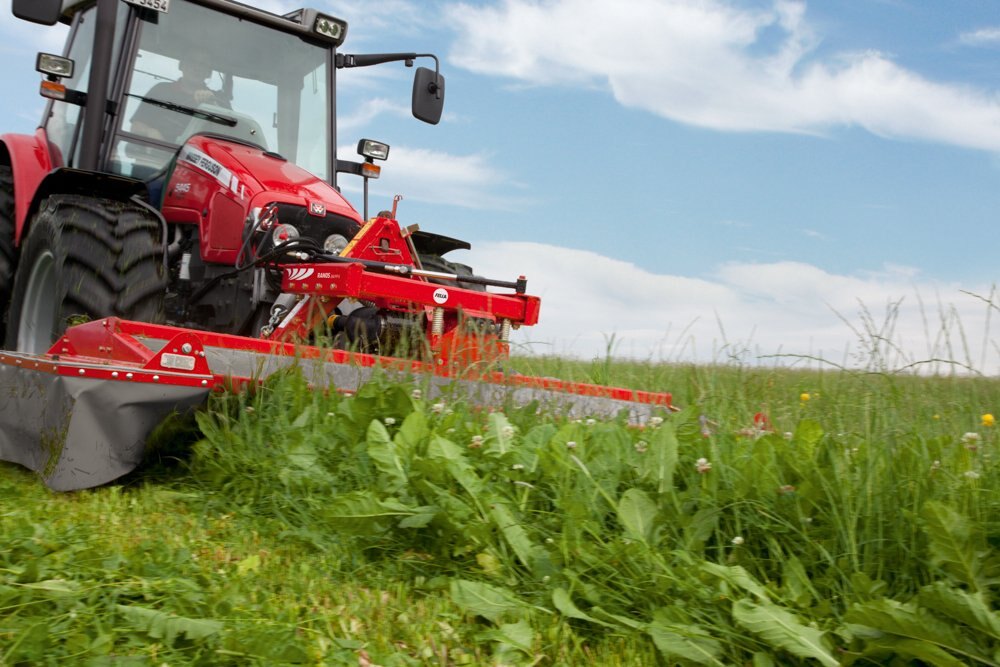

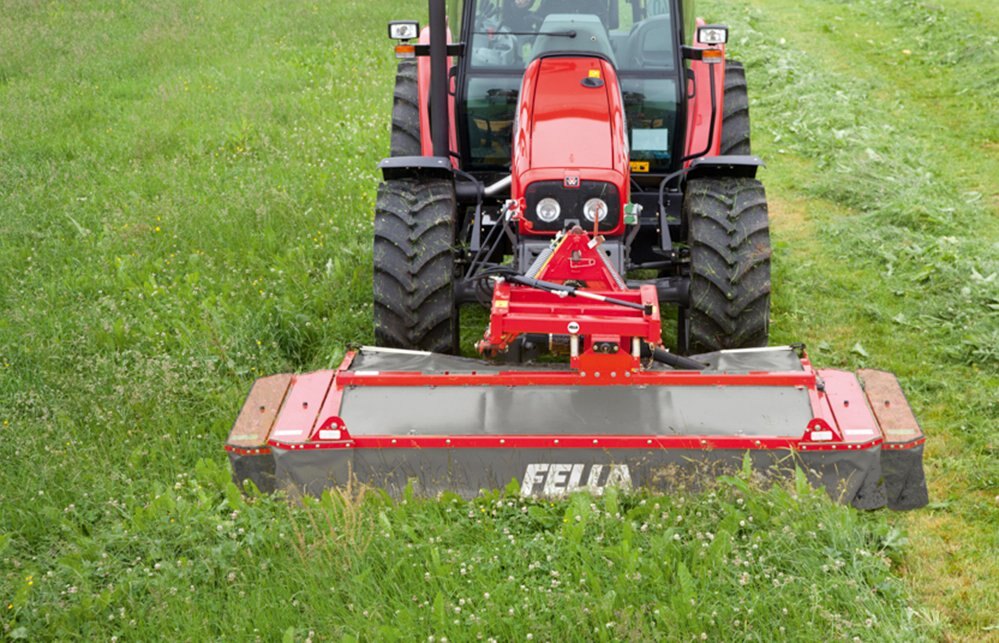

Fella Ramos 260 FP

  • Fella Ramos 260 FP
  • Fella Ramos 260 FP
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Disc-mowers
RAMOS

  • Compact attachment to the tractor
  • Optimum ground adaptation by hitching the mower unit at the centre of gravity
  • Perfect quality of cut thanks to the cutter bar with compact angular gear
 Special Features
Optimum ground adaptationhttps://fella.eu/images/products/02_trommelmaehwerke_radon/Querpendelbewegung_Pendelbock_COMP_v001_1000px.jpg

The pivot axle mounted at the centre of gravity ensures optimum ground adaptation (+/- 4.5°). A uniform cutter bar contact pressure can be set using the spring relief on the tractor.,

Low load for the tractor

Due to the compact linkage on the FP mower, the centre of gravity is very close to the tractor. This results in a low load for the tractor and machine, and prevents rocking, even when driving quickly on roads.
Uniform swath positioning

The symmetrical number of mower discs ensures that swath is uniformly positioned between the tractor tyres without additional feeder drums or swath drums.

CAN BE COMBINED WITH ALL TRACTORS

The gearbox enables a number of different directions of rotation and speeds. 540 and 1000 rpm as well as clockwise and counterclockwise rotation are available as standard.





https://fella.eu/images/products/02_trommelmaehwerke_radon/Querpendelbewegung_Pendelbock_COMP_v001_1000px.jpg

310 FP-K VARIANT WITH SHORTENED HEADSTOCK

This extremely compact attachment ensures perfect ground adaptation with a pendulum travel of +/- 6.5°. Since the centre of gravity is very close to the tractor, it is possible to operate it even using light tractors.
https://fella.eu/images/products/02_trommelmaehwerke_radon/Querpendelbewegung_Pendelbock_COMP_v001_1000px.jpg

FP-S VARIANT: HYDRAULIC LATERAL MOVEMENT

The FP-S variant can be moved approx. 20 cm to the left or right, which means that you can mow with ease on slopes and/or with twin tyres without having to leave any forage behind.





Specifications
Model
Ramos 260 FP
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
PTO Rpm
540/1000 rpm
Mower Discs
4
Weight Approx
474 kg
Blades Per Disc
2
Swath Width Approx
1350 mm
Power Demand Approx
38 hp
Working Width Approx
2500 mm
Mounting Category CAT
II CAT
Transport Width Approx
2500 mm
Transport Length Approx
1210 mm
