ID # 15539476

FELLA JURAS 351 DN

  • FELLA JURAS 351 DN
  • FELLA JURAS 351 DN
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Rakes

JURAS

301 DN - 456 DN




  • DN three-point headstock with follow-up device as standard
  • Neat raking thanks to a wide variety of possible settings
  • Durable  FELLA rake head  with enclosed design
Satz 6 gr2016 2000px 300 SERIES
The single-rotor rakes with follow-up device from the 300 series are outstanding due to their low weight, their sturdy design, their ease of handling and their versatile use. These rakes can therefore be used with a tractor performance level of as low as approx. 23 hp.
Satz 6 gr2016 2000px 400 SERIES
The 400 series differs from the 300 series due to its larger-dimensioned rake head and larger working widths. With up to 12 tine arms and 48 tines, tidy and even raking is always guaranteed for working widths of up to 4.50 m.
BROAD GAUGE CHASSIS FOR OPTIMUM GROUND ADAPTATION
The broad gauge chassis guarantees optimum ground adaptation of the single-rotor rake and very good efficiency on slopes.
Satz 6 gr2016 2000px
THE RAKE IS ALWAYS IN VIEW THANKS TO THE SWATH POSITIONING ON THE RIGHT
The FELLA single-rotor rakes place the swath to the right, which ensures better ergonomics and a better overall view because all the tractor operating elements are also on the right-hand side.
Satz 6 gr2016 2000px

INFINITELY ADJUSTABLE CLOTH
The spring-mounted cloth can be folded into the transport position very easily. The swath width can be adjusted individually.

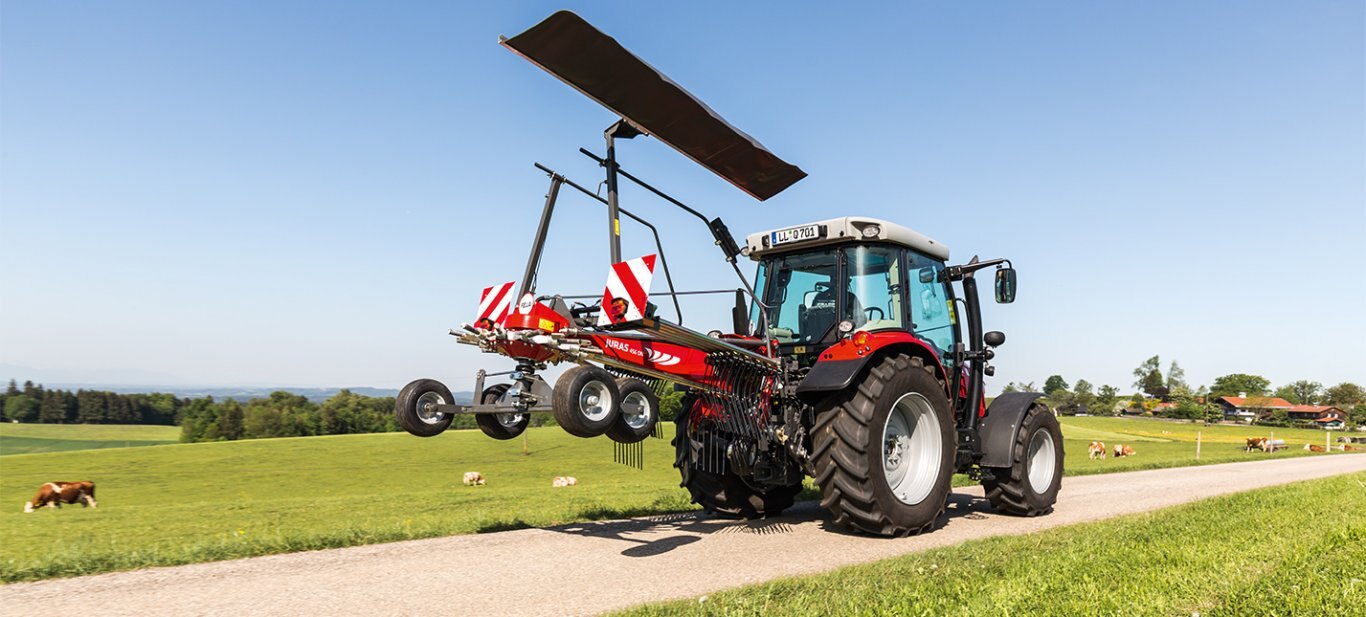

Satz 6 gr2016 2000px CONVENIENT TRANSPORT THANKS TO HORIZONTAL STORAGE OF THE TINE ARMS
All the tine arms can be effortlessly removed and are stored horizontally. This significantly reduces the transport width and the risk of accidents.







Specifications
Model
JURAS 351 DN
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
PTO Rpm
540 rpm
Rotor Diameter
2700 mm
Weight Approx.
420 kg
Swath Width Approx.
600-1500 mm
Double Tines Per Arm
3
Power Demand Approx.
27 hp
Working Width Approx.
3600 mm
Mounting Category CAT.
I+II CAT.
Tyres Of Rotor Chassis
2x 16/6.50-8
Transport Width Approx.
1550 mm
Transport Length Approx.
2210 mm
