Form & Function Taken To The Next Level

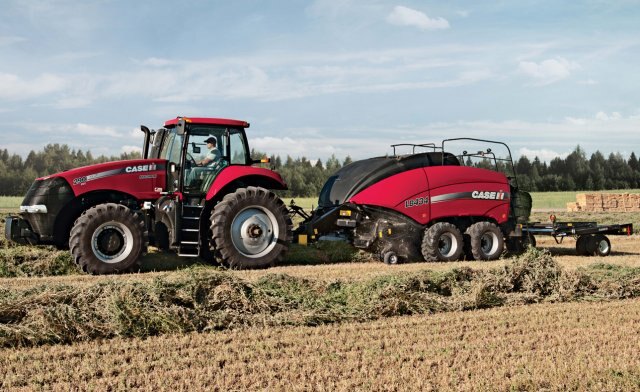

Meet the new LB4 square baler – a sleek new machine that takes the familiar square baler and smoothes out the lines inside and out. The new form improves function: the result is 25 more bales per day. |
|
Available Models |
|
LB334 Standard |
32 X 35 (800 X 900) |
1,125 (510) |
3.9-9.0 (1.2-2.75) |
105 (78) |
120 (89) |
2 - PICKUP / BALE EJECT |
|
LB334 Packer Cutter |
32 X 35 (800 X 900) |
1,250 (567) |
3.9-9.0 (1.2-2.75) |
110 (82) |
130 (97) |
3 - PICKUP / BALE EJECT / KNIVES |
|
LB334 Rotor Cutter |
32 X 35 (800 X 900) |
1,300 (590) |
3.9-9.0 (1.2-2.75) |
130 (97) |
145 (108) |
3 - PICKUP / BALE EJECT / KNIVES |
|
LB434 Standard |
47 X 35 (1200 X 900) |
1,600 (726) |
3.9-9.0 (1.2-2.75) |
125 (93) |
145 (108) |
2 - PICKUP / BALE EJECT |
|
LB434 Rotor Cutter |
47 X 35 (1200 X 900) |
1,850 (839) |
3.9-9.0 (1.2-2.75) |
150 (110) |
175 (131) |
3 - PICKUP / BALE EJECT / KNIVES | |
|
Features |
MORE STYLE, MORE SUBSTANCE.
The LB4 series large square baler isn’t just another pretty piece of equipment: it is designed from the ground up for long life and superior performance. On the outside, the unique curved shape allows it to shed crop debris. The baler width has been reduced by 2 feet to improve visibility to the rear and sides of the baler and takes up less space on the road and in the shed. Composite side panels are lighter, rust proof and fade resistant. And underneath that curvy red exterior is an amazing workhorse that has more capacity than its forerunners. |
Servicability
Three stage opening assembly
Easy ground level access to key service points
Full visibility of gearbox for routine checks
Ground level flywheel brake lever has to be in place before you can raise the shield
New styling includes a newly designed service platform
Which features one level for easy access to key bale chamber service points and knotters
The foldable ladder provides quick access to the platform and stores easily without being an obstacle. |
Operator Visability
Narrow sleek design of the LB4 series balers
Increases operator visibility to the rear and sides of the baler for increased operator efficiency
Curved shape allows for crop debris to fall off baler for less ingress of debris into knotter assembly and twine storage areas
Resulting in less operator maintenance and increased performance |
one piece design
One piece twine box panels utilize durable thermoform technology
Composite shields
A one piece design with automotive seals for minimal debris in twine box.
Providing easy maintenance and less ingress of debris into twine and knotters
Front gearbox shield
A composite shield using rotomold technology for lighter weight and durability.
Roller Chute
Choose from either a Single Piece Roller Chute or Two Piece Roller Chute (two-piece shown) |
Drive Option
Same proven design
Upgraded primary and secondary drivelines
Offering increased capacity
Three-joint design
Angle input shaft reinforced reducing vibrations
Resulting in better reliability and longer life |
Higher Efficiency Flywheel
Larger diameter high-inertia flywheel
Results: 48% more energy
Smoother operation
Increased fuel efficiency
Heavier duty components inside the gearbox
Providing durability and an increased strokes per minute from 42 to 48
Giving 20% more capacity |
Versatility
Larger tire options
Prividing improved flotation and a lighter footprint

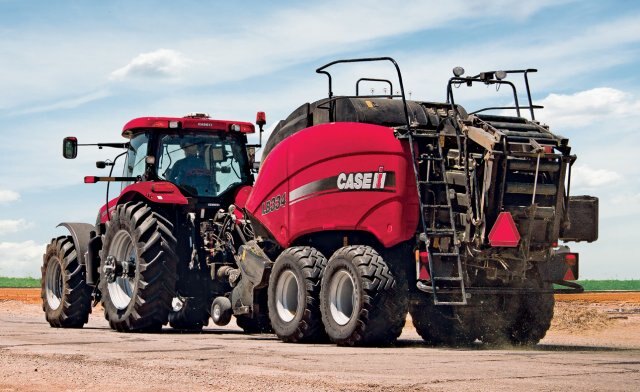

Choice of three axle configurations
1. Single
2. Steered Tandem
3. Large Steered Tandem |
Drive Option
Capacity & Reliability
Pick up designed for capacity and reliability
The wide pick ups and the new pick up flares ensure crop isn’t left behind
The roller windguard provides an even flow of crop material into the baler
The roller windguard is adjustable up and down with out the use of any tools
The Feed assist roller directs crop material directly into the pre-chamber of the baler optimizing crop flow
The feed assist roller works in conjuction with the overshot stub augers to consistently move material from the sides of the pick up into the pre-chamber.
|
Durability & wear life
The pick up has been re-designed for increased durability and wear life
Strengthened frame and pick up reel to handle tough conditions
Coil mounted tines are shot peened to stand up to adverse conditions with out bending or breaking
Overall the combination of the roller windguard, feed assist roller and overshot augers provide optimum feeding and result in high capacity feeding |
Precutting Systems
Used for high-density bales that break apart easily for feeding
Select from two optional Case IH precutting systems
Crops are cut before it enters the precompression chamber
Packing more crop into each bale, saving on handling and transportation costs
Case IH precutting systems create:
Bales of greater weight and density
Superior feed quality
Reduced mixing time
TMR feed wagons Rotor Cutter System offers maximum flexibility and bale density
Add the optional Case IH rotor cutter to your LB4 Series baler
It uses a large rotor to feed crop from the pickup through a row of knives before entering the precompression area.
Knives give the desired length of cut
Put all knives in place; get the shortest cut: 1.53 in. (39 mm)
Knives are controlled hydraulically from the tractor seat
Easily inspect, sharpen or change rotor cutter knives with a convenient slide-out knife drawer
Knives are spring loaded to protect them from damage |
Pack it in and stack 'EM High
Match your baler to your tractor and then match your bales to your feed, shipping and storage needs. Case IH LB4 series large square balers form bales that stack perfectly and are denser, thanks to things like left and right steering sensors that you can observe through your AFS Pro 700 display and quickly and easily adjust for perfect bale formation. In addition, a removable floor liner adjusts to different crop types. Adjust to your specifications, whether you’re baling for your own livestock or running a commercial hay operation.
|
Matched Systems
New suspended roller wind guard
Feed-assist roller to efficiently move your crop into the pre-chamber
Pickup is matched to the width of the bale chamber
Cutter and pre-compression chamber widths match also
Results: better capacity, more efficiency and, ultimately, better bale quality
New heavy duty pickup reel handles varied crop types including corn stalks and other tough stubble. |
The Perfect Finish
Reduce the risk of twine breakage with drive shaft-driven double knotters
Increase daily output of dense bales that can stand up to rough handling
Our best-in-class double knotters have new improved shielding
Repositioned fans to keep them clean
Providing protection and efficient operations
Two separate spools feed twine directly to the top and bottom of the bale
Reaching the preset bale length engages the knotter system
Twine moves around the bale as it is formed
Eliminating stress on knotter components
Providing greater reliability to the system and tying cycles
Dual bale chamber ejector tines offer complete bale clearance
Works independently to remove the rearmost bale |
Extras that help you go the extra mile
wine storage with 16 balls on each side
The easy-thread system allows you to keep baling when the conditions are right.
Case IH ThirtyPlus liquid preservative
Bales at a higher moisture content without worrying about heating or mold damage resulting in higher-feed-value bales
For maximum flexibility and bale density, add an optional Case IH rotor cutter
This system uses a large rotor to feed crop from the pickup through a row of spring-protected knives before entering the compression chamber. |
Lighting Package. Don't let the lack of daylight stop your productivity
Newly designed oval lights
Repositioned for greater visibility and come standard on all models
Lights can be controlled from the comfort of your cab through the monitor soft key
An optional service light package is available to provide optimal brightness for working at night |
