Bauma Light

ID # 13782788

Bauma Light iMP772

Videos
Call for Price
Overview

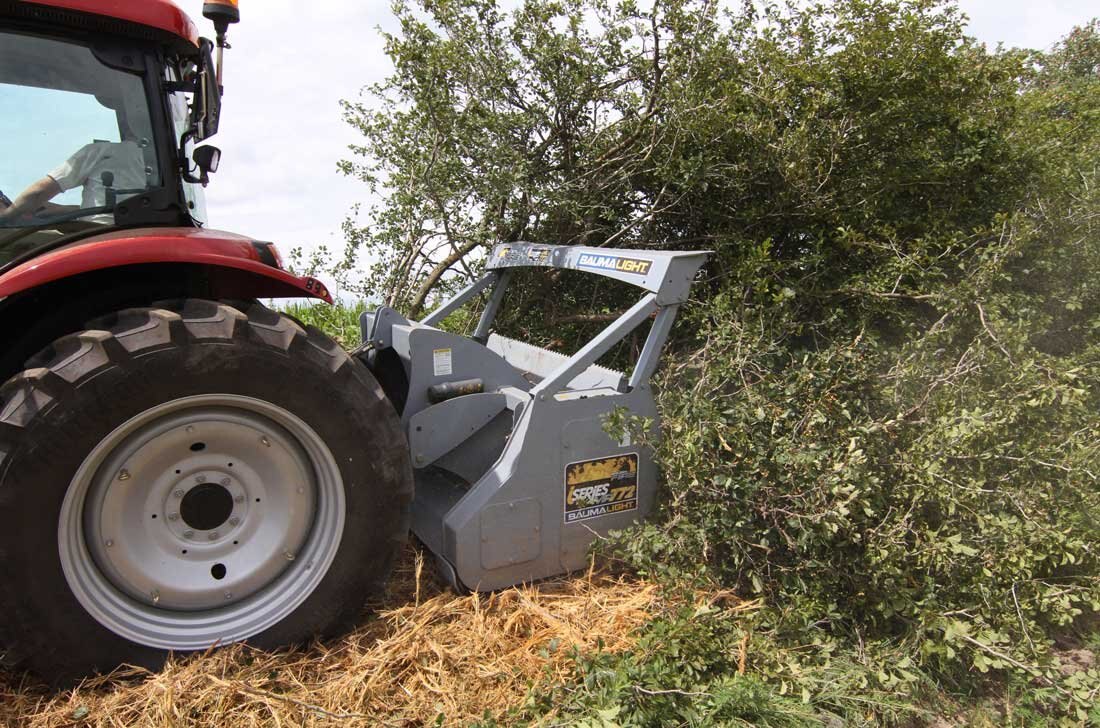

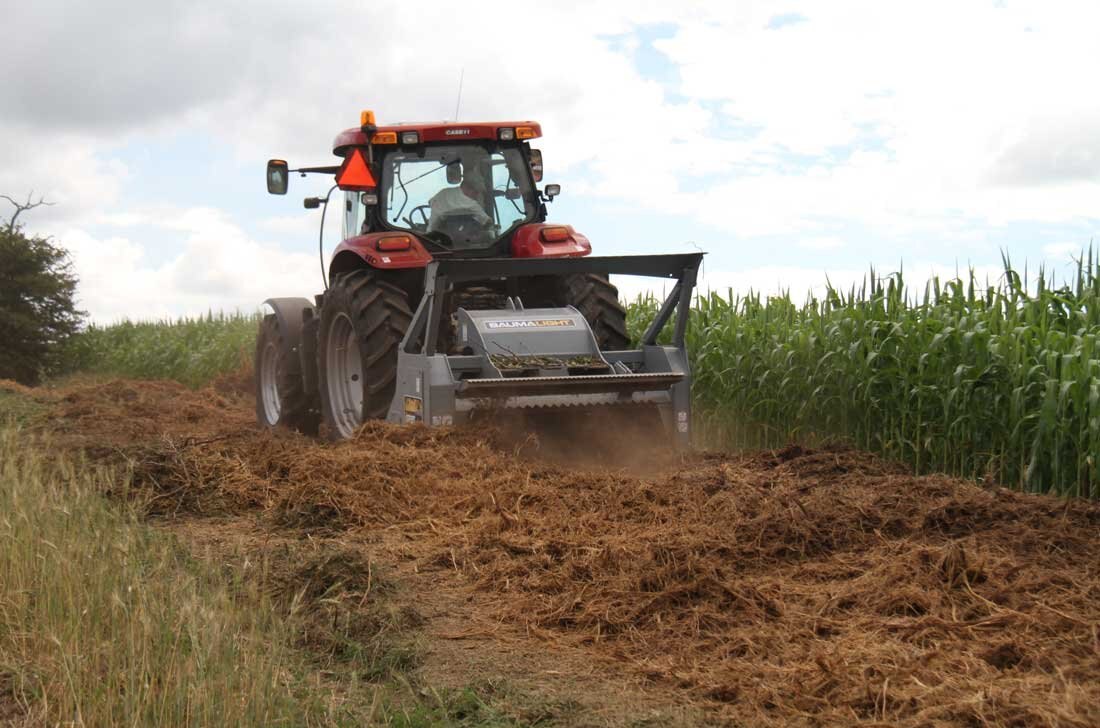

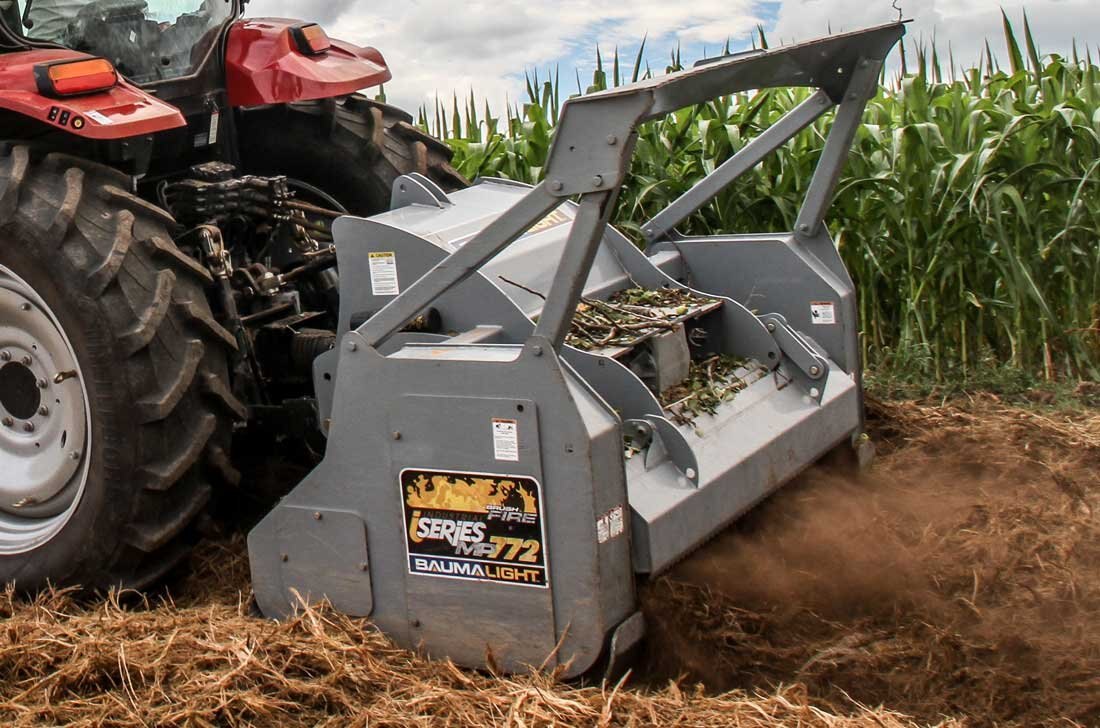

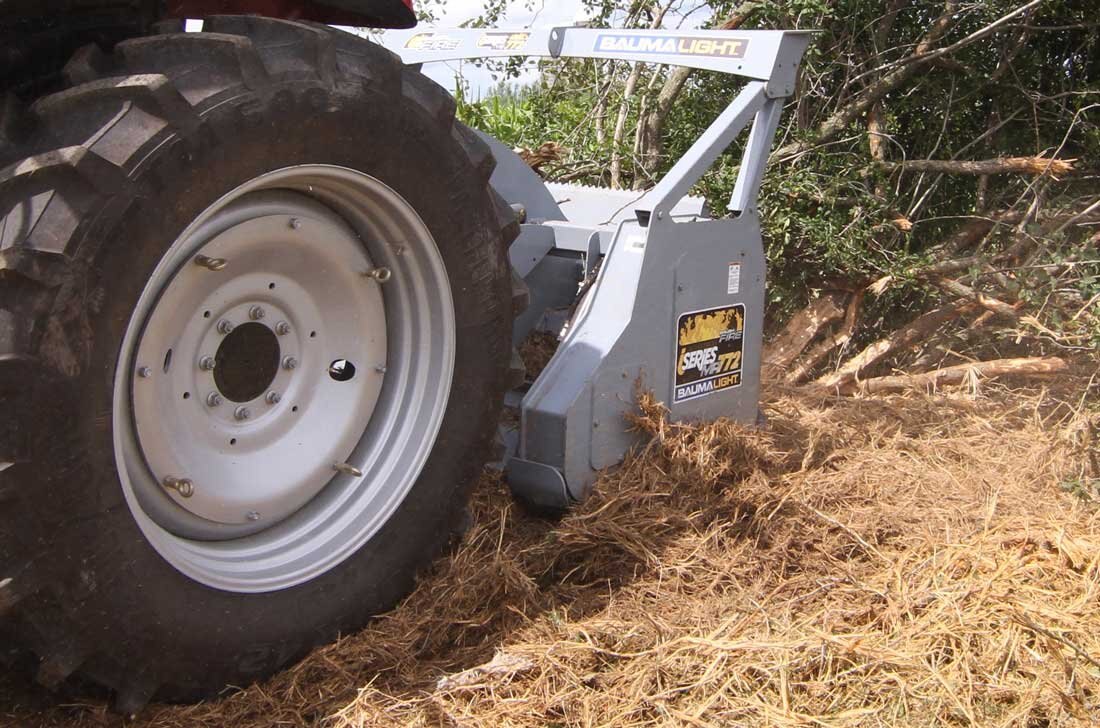

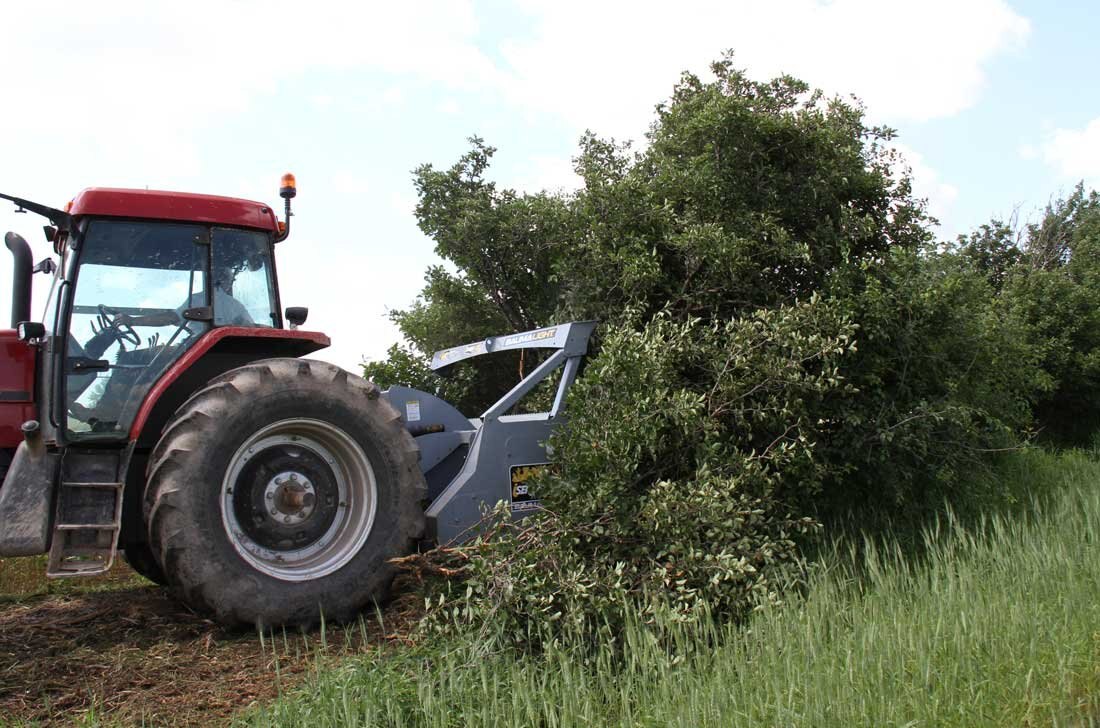

iMP772 Fixed Tooth Mulcher for Power Take Off on a Tractor

The 700 series Baumalight Brush Fire brush mulchers will efficiently mulch heavy brush and trees and are designed for contractors, rental and any other heavy duty mulching and land clearing. The 700 Series teeth are available in either Ripper or Planer style. The carbide Ripper tooth is the good general use tooth. Their v-shaped design shreds through brush unforgivingly and makes them less vulnerable in areas plagued by rocks and debris. The 700 Series Planer style tooth provides the most efficient cutting by smoothly chipping away at the brush. Its flat profile however makes it vulnerable to shattering on impact with rocks and other debris.
Tractor mounted brush mulchers are not limited to reverse only, drive forward over your mulch and turn it into a finer mulch. Also unique on the MP560 and bigger sizes of tractor mount Brush Fires is the opening cutting shield, this allows you to adjust for a better, higher angle of attack on bigger brush or keep it closed and control the mulch for even finer results.
With direct drive from the engine, all the way through the heavy duty gear box to the teeth a brush mulcher on the PTO of a tractor is the most efficient way to use a brush mulcher for land clearing.


  Features
Two Cuts per Pass and a Real Slasher
Ripper and planer teeth

Unique to the 700 Series teeth, is the Cup and Cone mount. Machined into the holder and forged into the teeth. Engineered to take all the strain off the mounting bolt, eliminating shearing forces. Teeth in either Ripper or Planer style are bolted into place, this hungry combination is ready to tear up brush limb from limb. The 700 Series carbide Ripper tooth is the perfect general use tooth. Backed by high efficiency motors and massive rotors, their v-shaped design shreds through brush unforgivingly and makes them less vulnerable in areas plagued by rocks and debris.

The 700 Series Planer style tooth provides the most efficient cutting by smoothly chipping away at the brush. It’s flat profile however makes it vulnerable to shattering on impact with rocks and other debris. So it is only recommended for cutting applications where efficiency is more important than tooth life.


Two Cuts per Pass and a Real Slasher
Hydraulic doors

The front and rear doors are hydraulically controlled from the cab to give you control of the mulching action. When closed you control flying debris and produce even finer mulch. Open the rear door to better attack stubborn brush by exposing more of the rotor.



Two Cuts per Pass and a Real Slasher

Reinforced Belt

A heavy duty reinforced belt delivers the force from the gear box to the rotor. Not only does this belt refuse to back down in the face of dense brush, it also offers protection from the shocks inherent in mulching.


Two Cuts per Pass and a Real Slasher

HARDENED STEEL BUSHING

Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.



Two Cuts per Pass and a Real Slasher
Greaseable Pins


Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.




Specifications
Model
iMP772
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Path Width
84''
Unit Weight
4558 lbs
System Protection
Sllp Clutch
Rotor Width
72''
Maximum Engine HP
135
Minimum Engine HP
90
Maximum PTO HP
125
Cutting Depth
Level to 4'' Below
Cutting Style
Carblt Tapper Fit
Number Of Cutters
94
Rotor Shaft Size
2.5''
Rotor Diameter (tool Tips)
17.25''
Rotor Weight (with Tools)
930 lbs
Hitch Size
CAT 2 or 3
Drive Speed
1,000
Gearbox Spllne Size
1-3/8''
Tractor End Spllne Size
1-3/8
