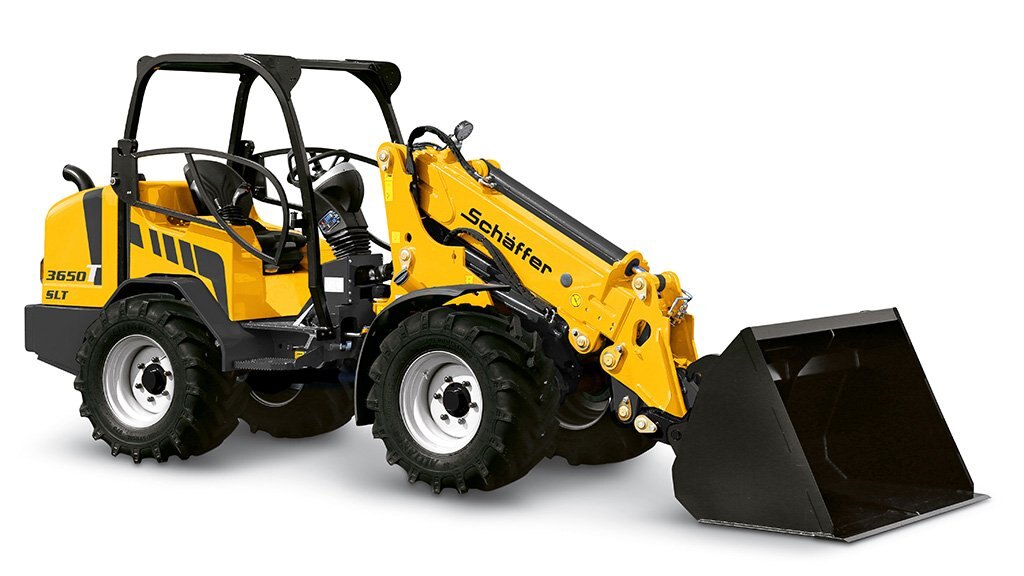

Schaffer 3650 T SLT

  • Schaffer 3650 T SLT
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic wheel loaders
The Schäffer tele wheel loaders were designed specifically for the high demands of construction, landscaping, municipal services and industry. They combine the manoeuvrability and clear visibility of an articulated wheel loader with the high lifting height and range of a conventional telescopic loader. Special attention is paid to the agility, driving comfort and ease of use of the machines. All together this provides the best conditions for long working days.
  Standard equipment
  • Kubota Turbo diesel engine, 3 cylinders, water-cooled, 37 kW (50 HP)
  • Special low construction design
  • DOC and DPF for compliance with Stage V emissions standards
  • Hydrostatic four wheel drive with automotive control
  • High-pressure drive HD-plus
  • Tyres 15.0/55-17 AS, offset +85
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h switchable under load
  • Original Schäffer axles, wide design
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Pressure relief 3rd control circuit electrically
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front on boom
  • Z-bar boom with parallel lift
  • Working hydraulics: 52 l/min
  • Adjustable steering column
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Rear weight end plate and towing hitch
  • Counter weight 110 kg mounted under rear chassis
  • Wide chassis
  • Headstock type wheel loader with hydraulic tool lock
  HTF
High Traction Force
Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
  SPT
Schäffer Power Transmission
Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.

Benefits:

  • Lower fuel consumption, reduced operating costs
  • Starting aid makes it is easier to start up on slopes
  • Different parameters for drive characteristics can be set
  • Safety functions: including overheating and over rotation protection of the motor
  • Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with feed dosing units, straw spreaders or mulchers (using pedal control on 9640 T and 9660 T)
Specifications
Model
3650 T SLT
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
1420 mm - 1730 mm
Output
37 kW (50 HP)
Diesel Engine
3 Cyl. Kubota Turbo
Lifting Capacity
1950 kg
Turning Radius Inside
1230 mm
Height Protection Roof
from 2020 mm
Length With Standard Bucket
4735 mm
Lifting Height (tool Pivot)
3850 mm
Working Weight Protection Roof
3700 kg
Tipping Load Straight, Pallet Fork*
1710 kg
Tipping Height (bottom Edge Of Bucket)
3862 mm
