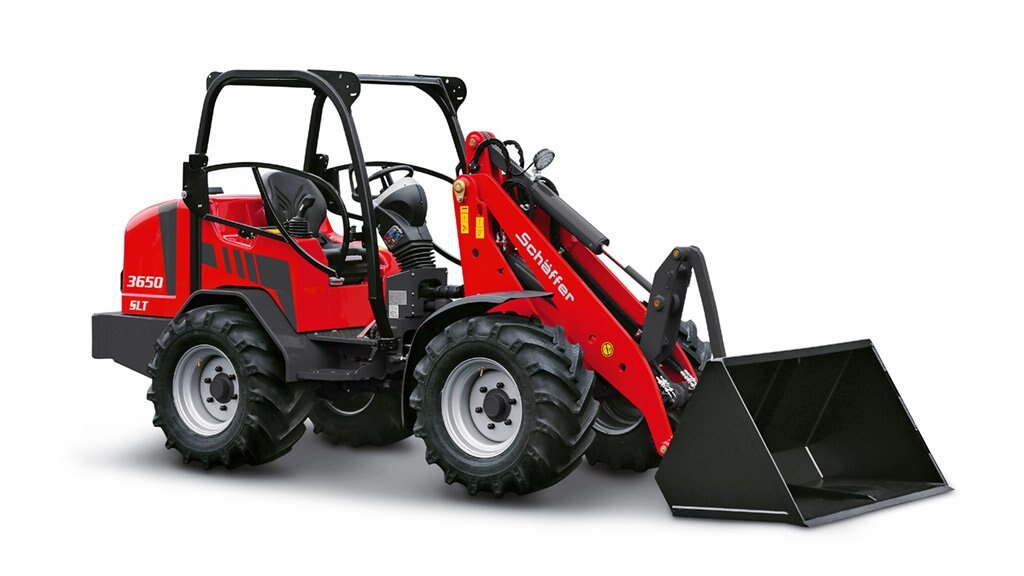

Schaffer 3650 SLT

  • Schaffer 3650 SLT
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Compact loaders
The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile.
  Standard equipment
  • Special low construction design
  • Kubota diesel engine, 3 cylinders, water-cooled, 28 kW (38 HP) / 37 kW (50 HP)
  • DOC and DPF for compliance with Stage V emissions standards
  • Hydrostatic four wheel drive with automotive control
  • Tyres 10.0/75-15.3 AS, offset -5
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h switchable under load
  • Genuine Schäffer axle
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front
  • Parallel lift
  • Working hydraulics: 46 l/min, optional 51 l/min.
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Rear weight end plate
  • Quick-change frame SWH with hydraulic tool lock
Specifications
Model
3650 SLT
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
1100 mm - 1570 mm
Output
28 kW (38 HP) / 37 kW (50 HP)
Diesel Engine
3 Cyl., Kubota, electr. regulated drive (SPT)
Working Weight
2700 kg
Lifting Capacity
2000 kg
Turning Radius Inside
985 mm
Height Protection Roof
2020 mm
Lifting Height, Loader Arm
2950 mm
Length With Standard Bucket
4185 mm
Working Weight Protection Roof
2700 kg
Tipping Height (bottom Edge Of Bucket)
2140 mm
