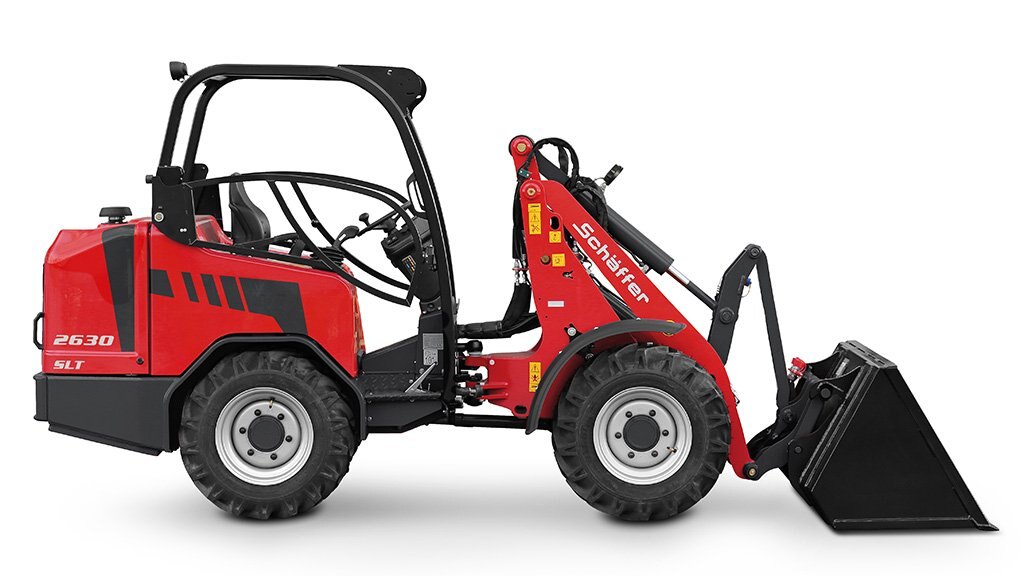

Schaffer 2630 SLT

  • Schaffer 2630 SLT
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Compact loaders
The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile.
  Standard equipment
  • Kubota diesel engine, 3 cylinders, water-cooled, 18.5 kW (25 HP)
  • Special low construction design
  • Highest torque due to 1.7 l cylinder capacity
  • Hydrostatic four wheel drive with cardan shaft and automotive control
  • High-pressure drive  HD-plus
  • Tyres 10.0/75-15.3 AS, offset +40 incl. reversable rims
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h
  • Genuine Schäffer axle
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front
  • Parallel lift
  • Working hydraulics: 38 l/min, optional 42 l/min.
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Rear weight end plate
  • Quick-change frame SWH with hydraulic tool lock
Specifications
Model
2630 SLT
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
1020 mm - 1300 mm
Output
18.5 kW (25 HP)
**Option
high lift version
Height Cabin
2.150 mm
Diesel Engine
Kubota diesel engine, 3 cylinders, water-cooled
Lifting Capacity
1650 kg
Working Weight Cabin
2.300 kg
Turning Radius Inside
1020 mm
Height Protection Roof
from 2.180 mm
Length With Standard Bucket
3695 mm
Working Weight Protection Roof
2.100 kg
Tipping Height (bottom Edge Of Bucket)
2090 mm / 2345 mm**
